Boxco

Boxco S-Series 80x80x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-080806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-080806 is a 80×80×60 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-080806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×80×60 mm (3.15×3.15×2.36 in)
Mounting plate dimension M1 × M2
68 × 68 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0808 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

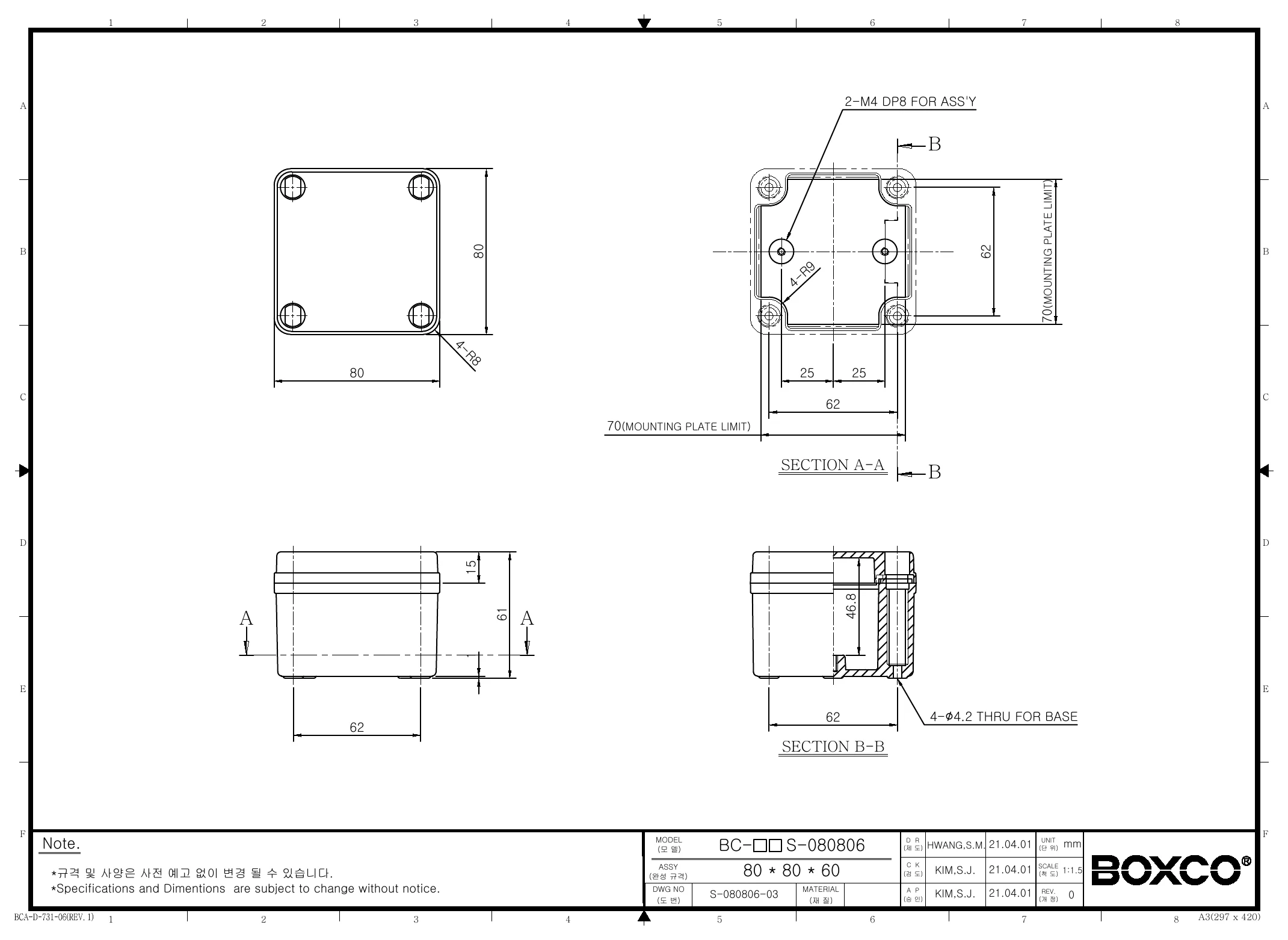

BC-CTS-080806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CTS-080806 plastic enclosure suited for?

This enclosure is suited for protecting sensitive electronic equipment in industrial, commercial, and outdoor environments where dust, water, and impact resistance matter. Its anti-static material and high-impact polycarbonate construction make it a practical choice for control, monitoring, and instrumentation housings.

What are the key size and material specifications of this model?

The BC-CTS-080806 measures 3.15 x 3.15 x 2.36 inches, which corresponds to 80 x 80 x 60 mm. It is made from polycarbonate and includes a transparent cover in a screw-type enclosure design.

How well does this enclosure handle outdoor or harsh environments?

This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It also includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 degrees C to 110 degrees C. That range makes it suitable for demanding environments with both low and high ambient temperatures.

Does this enclosure support internal component mounting?

Yes, the enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to help secure internal hardware such as mounting plates or DIN rail-related equipment inside the enclosure.

Why would a buyer choose this transparent-cover screw-type enclosure over a more basic box?

This model combines polycarbonate construction, an IP67 and IK08 rating, anti-static material, and UV stabilization in one enclosure. The transparent cover also allows visual inspection without opening the box, which can be useful when status visibility matters.
