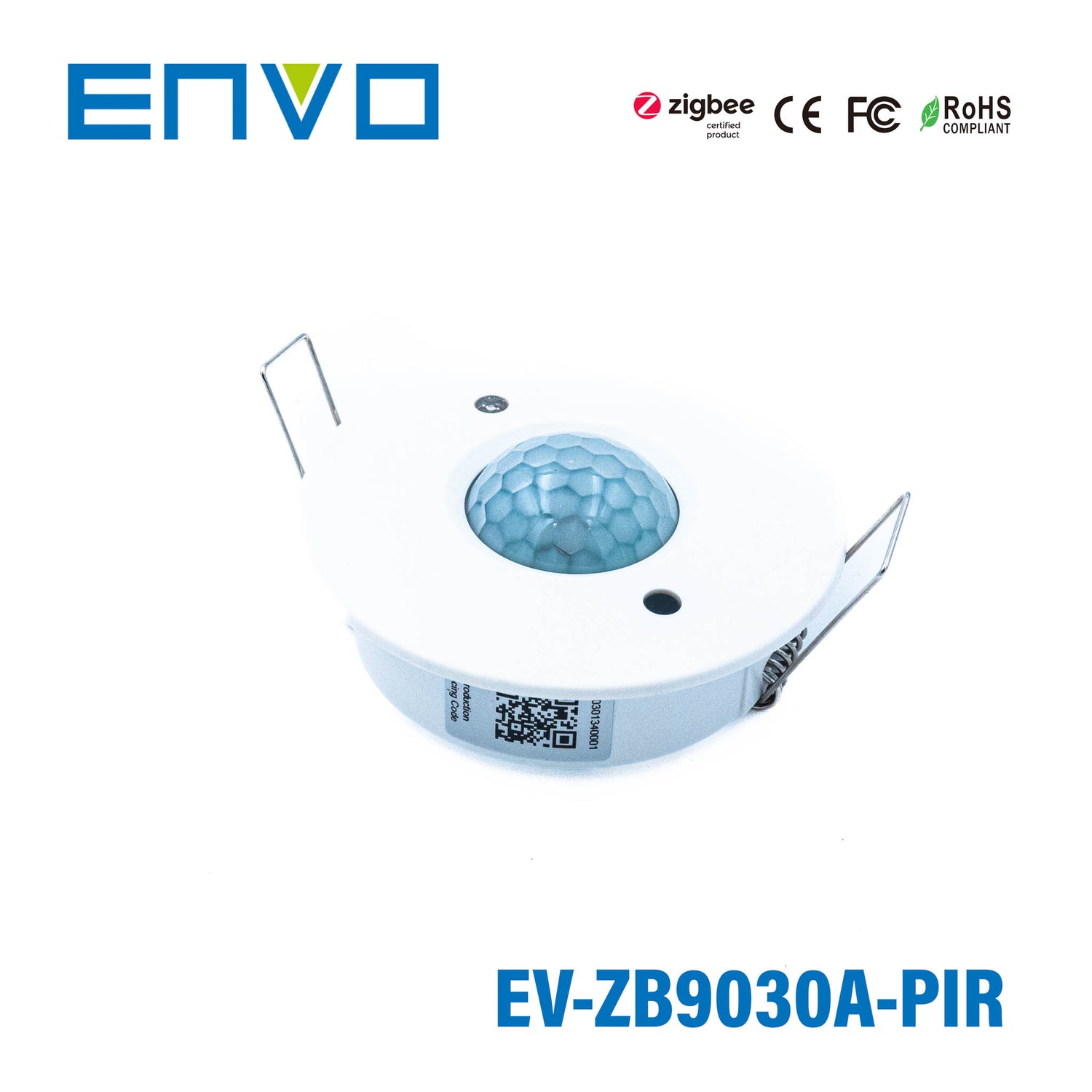

ENVO Zigbee Ceiling Mounted PIR Sensor, 0-10V Dimming
Log in to see priceThe EV-ZB9030A-PIR is an ENVO Zigbee controller (supply: 12/24VDC, operating temperature: 0~+40°C).
Key Features
- ✓ Supply voltage: 12/24VDC
- ✓ ZigBee 3.0 compliant
- ✓ Operating temperature: 0~+40°C
- ✓ 5 year warranty
-
BrandEnvo
-
Operating Temperature0°C~40°C
-
Warranty5 Year
-
Length8.3 cm
-
Width8.3 cm
-
Height2.1 cm
::specification::
Frequently Asked Questions
What is the ENVO Zigbee Ceiling Mounted PIR Sensor used for?
This sensor is designed for autonomous lighting control in indoor spaces using PIR motion detection and daylight harvesting. It works with 0-10V dim-to-off LED drivers to help reduce energy use and support energy code compliance.
Is this sensor compatible with Zigbee systems?
Yes. This model is Zigbee 3.0 compliant and is described as compatible with universal Zigbee platforms that support sensors. It also supports OTA firmware upgrades and operates on a robust mesh network.
What dimming method does this PIR sensor support?
This model uses analog 0-10V dimming control. Its dimming output is rated at 4mA in sink mode and 20mA in source mode, and it is intended for use with 0-10V dim-to-off LED drivers.
Where is this sensor best suited to operate?
The sensor is intended for indoor applications. Its operating temperature range is 0°C to 40°C, making it suitable for typical conditioned commercial or interior environments.
How compact is the ENVO Zigbee Ceiling Mounted PIR Sensor?

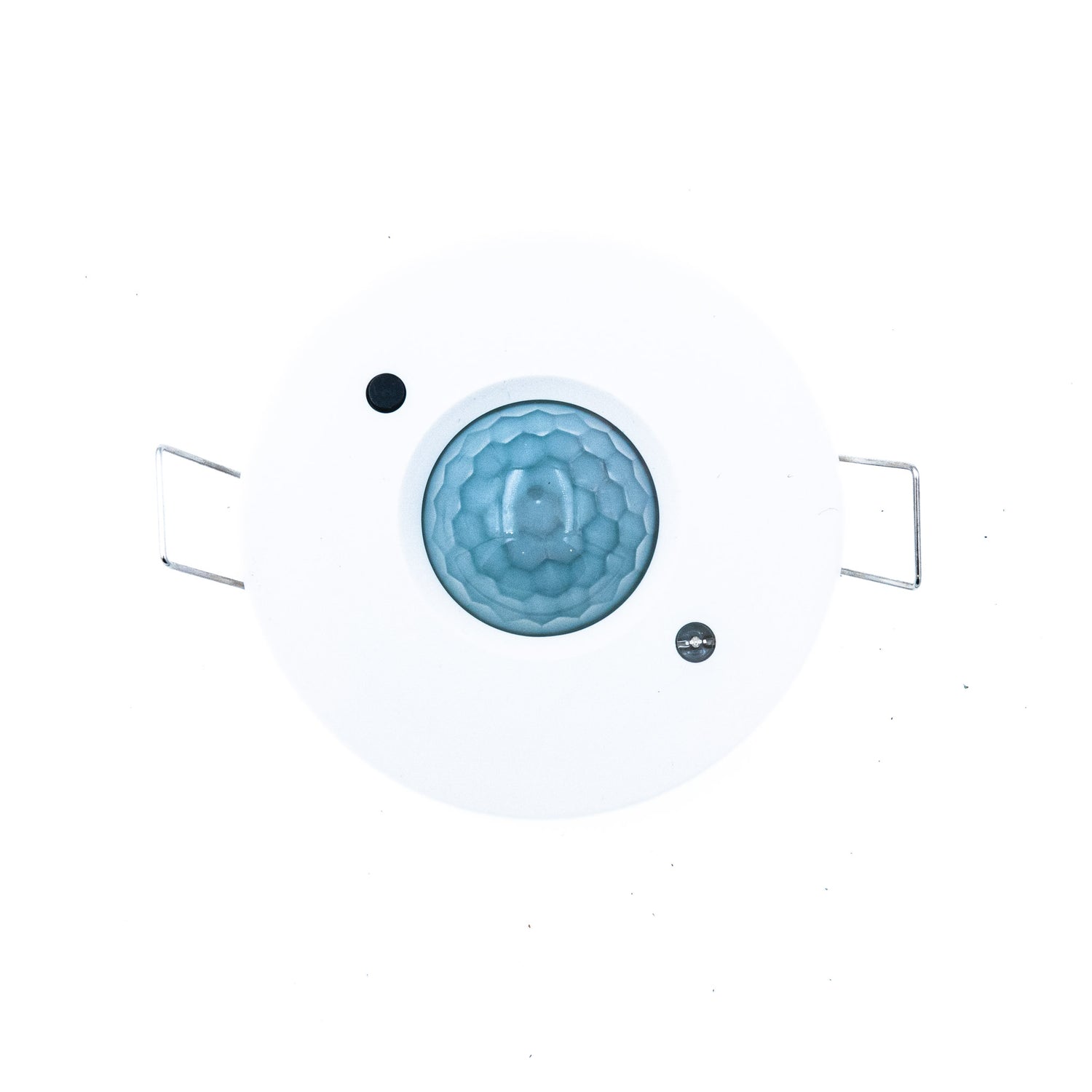

This is a compact ceiling recessed sensor with dimensions of Φ35 x H30 mm. Its small white housing helps it fit discreetly into ceiling-mounted lighting control applications.
What are the power and wireless specifications for this model?

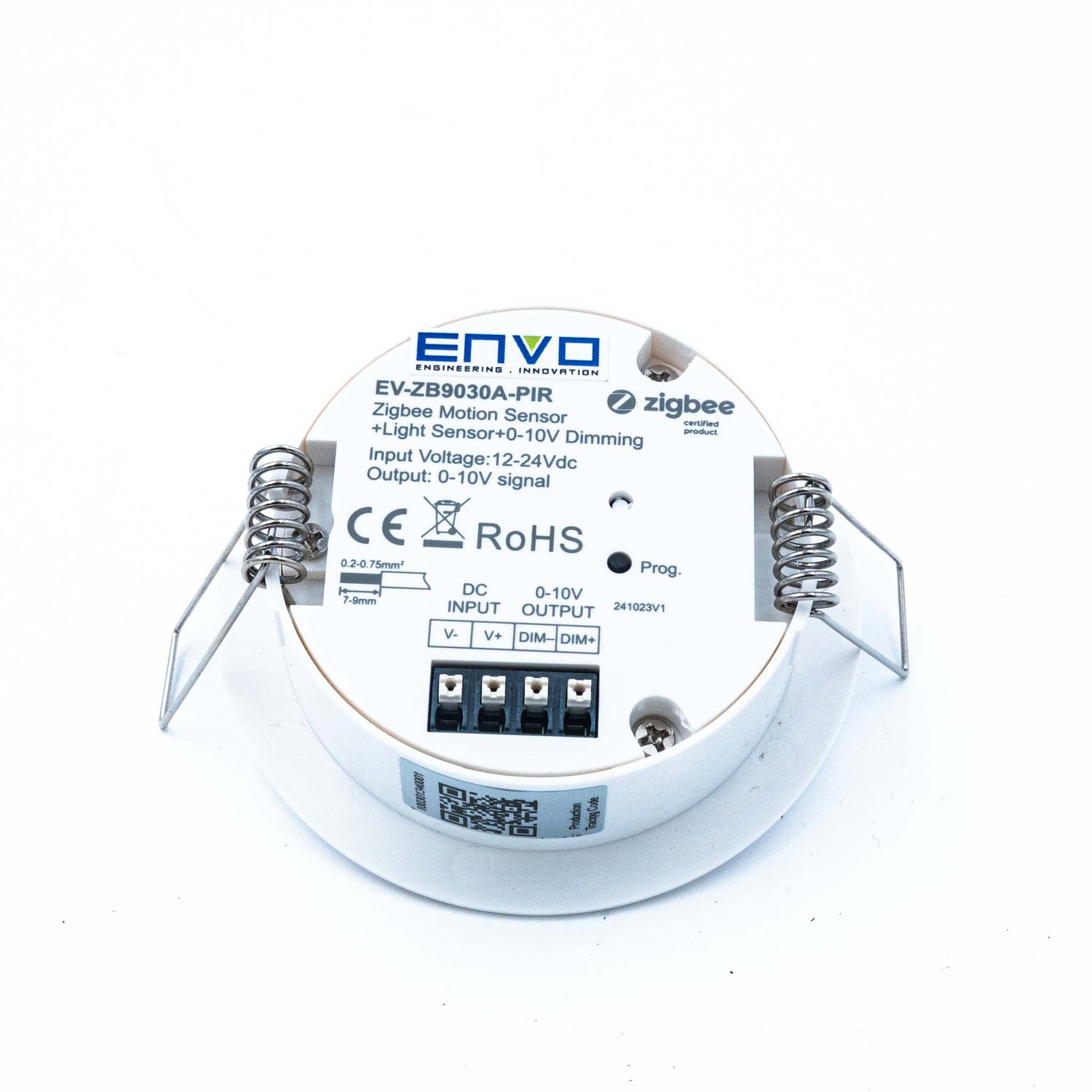

The sensor operates on 12/24 VDC input and uses 2.4 GHz radio frequency communication. Its wireless range is rated up to 100 feet (30 meters) line of sight.
