Boxco

Boxco S-Series 100x185x70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-101807
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-101807 is a 100×185×70 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-101807Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×185×70 mm (3.94×7.28×2.76 in)
Mounting plate dimension M1 × M2
80 × 164 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1018 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

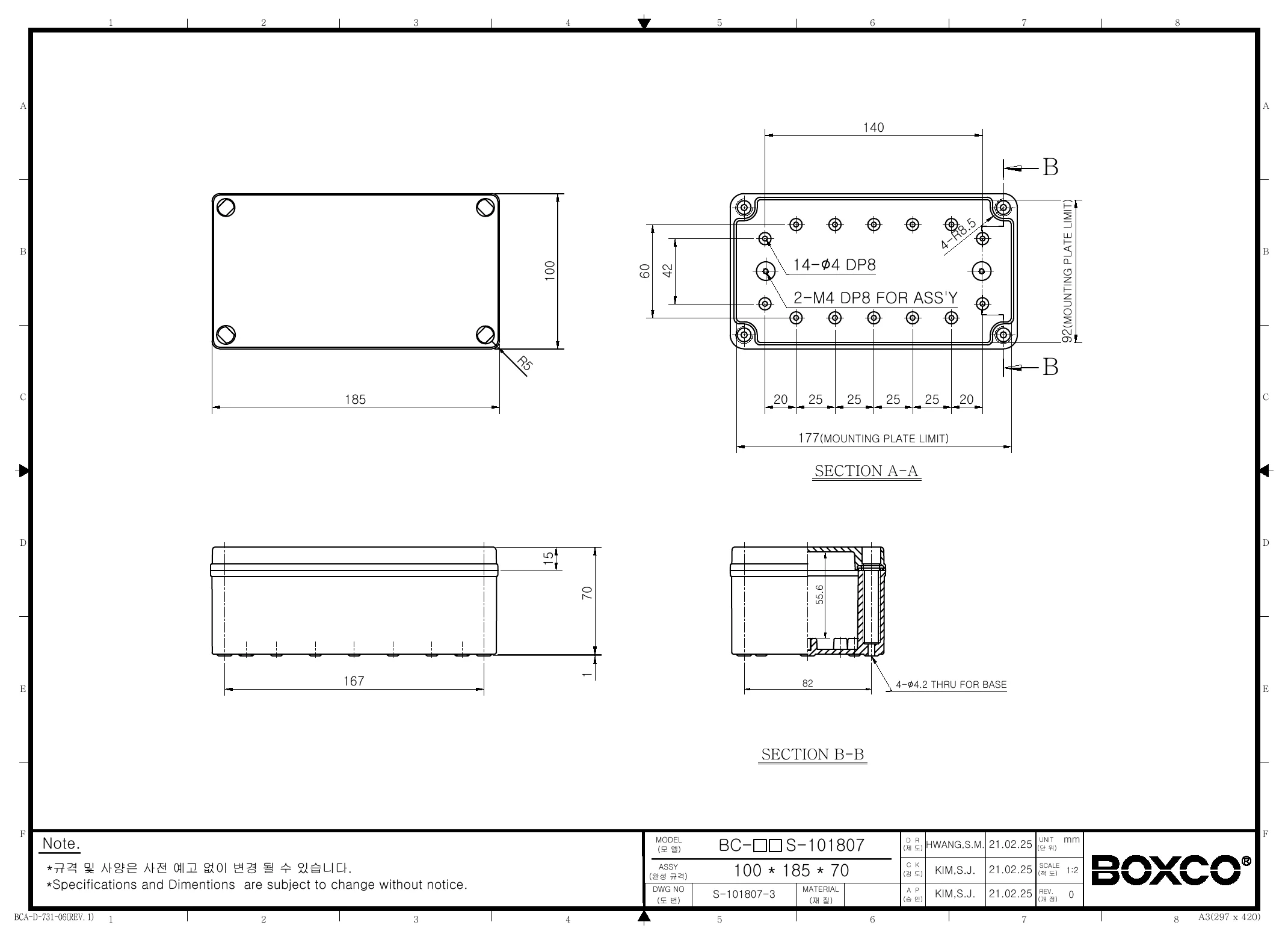

Technical drawings

BC-ATS-101807 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is the Boxco S-Series BC-ATS-101807 suitable for outdoor use?

Yes. This enclosure uses an ultraviolet stabilizer to help protect the housing during outdoor use and reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress when properly closed.

What are the main material and protection specifications for this enclosure?

This model is made from ABS plastic and has a transparent cover with a screw-type closure. It is rated IP67 for dust and water protection and IK08 for impact resistance. Boxco also states the material is high impact resistant and designed to resist breakage during hole and press processing.

Can this enclosure be used for sensitive electronic equipment?

It can be a good fit for sensitive electronics because Boxco specifies anti-static material for protection against static electricity. That makes this model more suitable for electronics housings than a generic plastic box without that feature. Final suitability still depends on the needs of the specific equipment inside.

What size is the BC-ATS-101807 enclosure?

This enclosure measures 3.94 x 7.28 x 2.76 inches, which is 100 x 185 x 70 mm. Those dimensions make it a compact rectangular enclosure for applications that need more internal length than a small junction-style box. Buyers should confirm internal clearance based on their own components and mounting layout.

Does this model support mounting internal components or rails?

Yes. Boxco lists internal mounting plate attachment points with brass inserted injection molding so a mounting plate can be fixed tightly inside the enclosure. It also includes pre-molded mounting screw nuts that can be used to secure DIN rail or other internal equipment.

What operating temperatures can this enclosure handle?

The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both cold and moderately hot environments. It is important to make sure the electronics installed inside are also rated for the same conditions.
