Boxco

Boxco S-Series 140x230x95mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-142309
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-142309 is a 140×230×95 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-142309Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
140×230×95 mm (5.51×9.06×3.74 in)
Mounting plate dimension M1 × M2
123 × 212 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1423 P (Plastic, P type), 1423 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

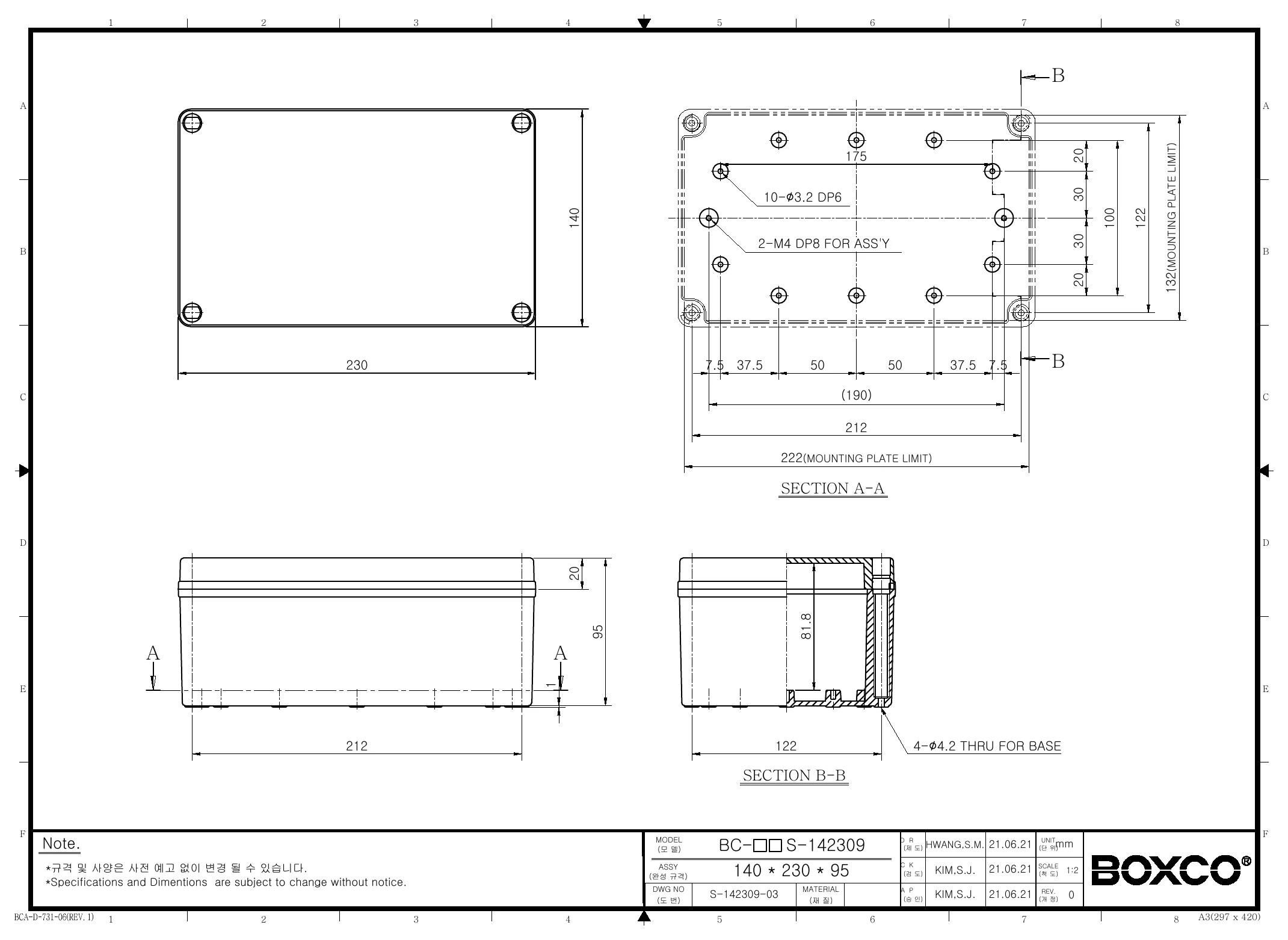

Technical drawings

BC-ATS-142309 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-ATS-142309 enclosure suited for?

This model is suited for protecting control, monitoring, and other electronic equipment that needs a sealed non-metallic enclosure. Its IP67 rating, IK08 impact resistance, anti-static material, and UV-stabilized ABS construction make it a practical choice for industrial and outdoor equipment housings where dust, water, and impact resistance matter.

What are the key specifications of this enclosure?

The BC-ATS-142309 measures 5.51 x 9.06 x 3.74 inches, or 140 x 230 x 95 mm, and weighs 0.544 kg. It is made from ABS, uses a transparent cover with a screw-type closure, carries an IP67 ingress rating and IK08 impact rating, and is specified for use from -40°C to 70°C.

Is this plastic enclosure suitable for outdoor or washdown environments?

Yes, this model is designed for demanding environments where dust and water protection are important. The enclosure uses UV stabilizer for outdoor exposure and includes a precision-injected gasket to support its IP67 rating, so it is better suited to harsh conditions than a general-purpose indoor enclosure.

Why would I choose this ABS enclosure with a transparent cover over a basic opaque box?

A transparent cover allows visual inspection of indicators, displays, or internal status without opening the enclosure. On this model, that benefit is combined with ABS construction, IK08 impact resistance, anti-static material, and IP67 sealing, making it a stronger option when both visibility and protection are needed.

What kind of equipment can fit inside this enclosure?

This enclosure is intended for assemblies that can fit within a 140 x 230 x 95 mm housing. It also includes features aimed at equipment mounting, such as internal mounting plate attachment points and pre-molded screw nuts for securing compatible internal hardware, which helps support heavier components than a plain empty box.
