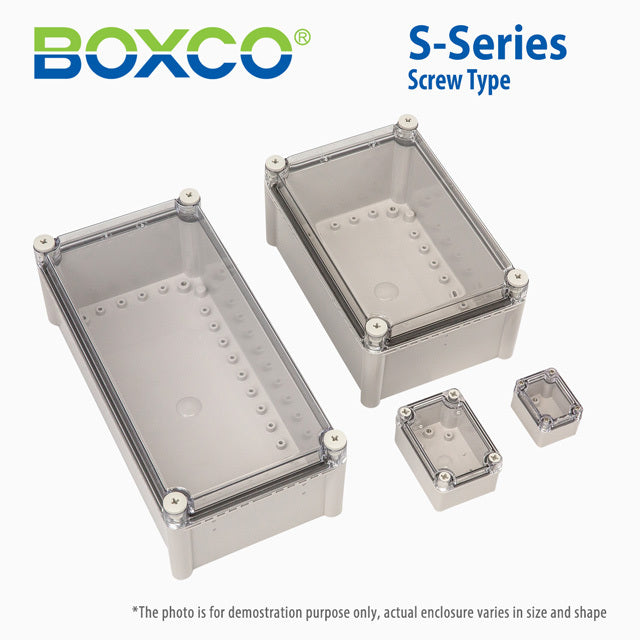

Boxco S-Series 140x230x95mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-142309

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

14 cm
Width

23 cm
Height

9.5 cm
Weight

0.54 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series BC-ATS-142309 enclosure suited for?

This model is suited for protecting control, monitoring, and other electronic equipment that needs a sealed non-metallic enclosure. Its IP67 rating, IK08 impact resistance, anti-static material, and UV-stabilized ABS construction make it a practical choice for industrial and outdoor equipment housings where dust, water, and impact resistance matter.

What are the key specifications of this enclosure?

The BC-ATS-142309 measures 5.51 x 9.06 x 3.74 inches, or 140 x 230 x 95 mm, and weighs 0.544 kg. It is made from ABS, uses a transparent cover with a screw-type closure, carries an IP67 ingress rating and IK08 impact rating, and is specified for use from -40°C to 70°C.

Is this plastic enclosure suitable for outdoor or washdown environments?

Yes, this model is designed for demanding environments where dust and water protection are important. The enclosure uses UV stabilizer for outdoor exposure and includes a precision-injected gasket to support its IP67 rating, so it is better suited to harsh conditions than a general-purpose indoor enclosure.

Why would I choose this ABS enclosure with a transparent cover over a basic opaque box?

A transparent cover allows visual inspection of indicators, displays, or internal status without opening the enclosure. On this model, that benefit is combined with ABS construction, IK08 impact resistance, anti-static material, and IP67 sealing, making it a stronger option when both visibility and protection are needed.

What kind of equipment can fit inside this enclosure?

This enclosure is intended for assemblies that can fit within a 140 x 230 x 95 mm housing. It also includes features aimed at equipment mounting, such as internal mounting plate attachment points and pre-molded screw nuts for securing compatible internal hardware, which helps support heavier components than a plain empty box.
