Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 330x430x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-334318
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-334318 is a 330×430×180 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-334318Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
330×430×180 mm (12.99×16.93×7.09 in)
Mounting plate dimension M1 × M2
294 × 394 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3343 P (Plastic, P type), 3343 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

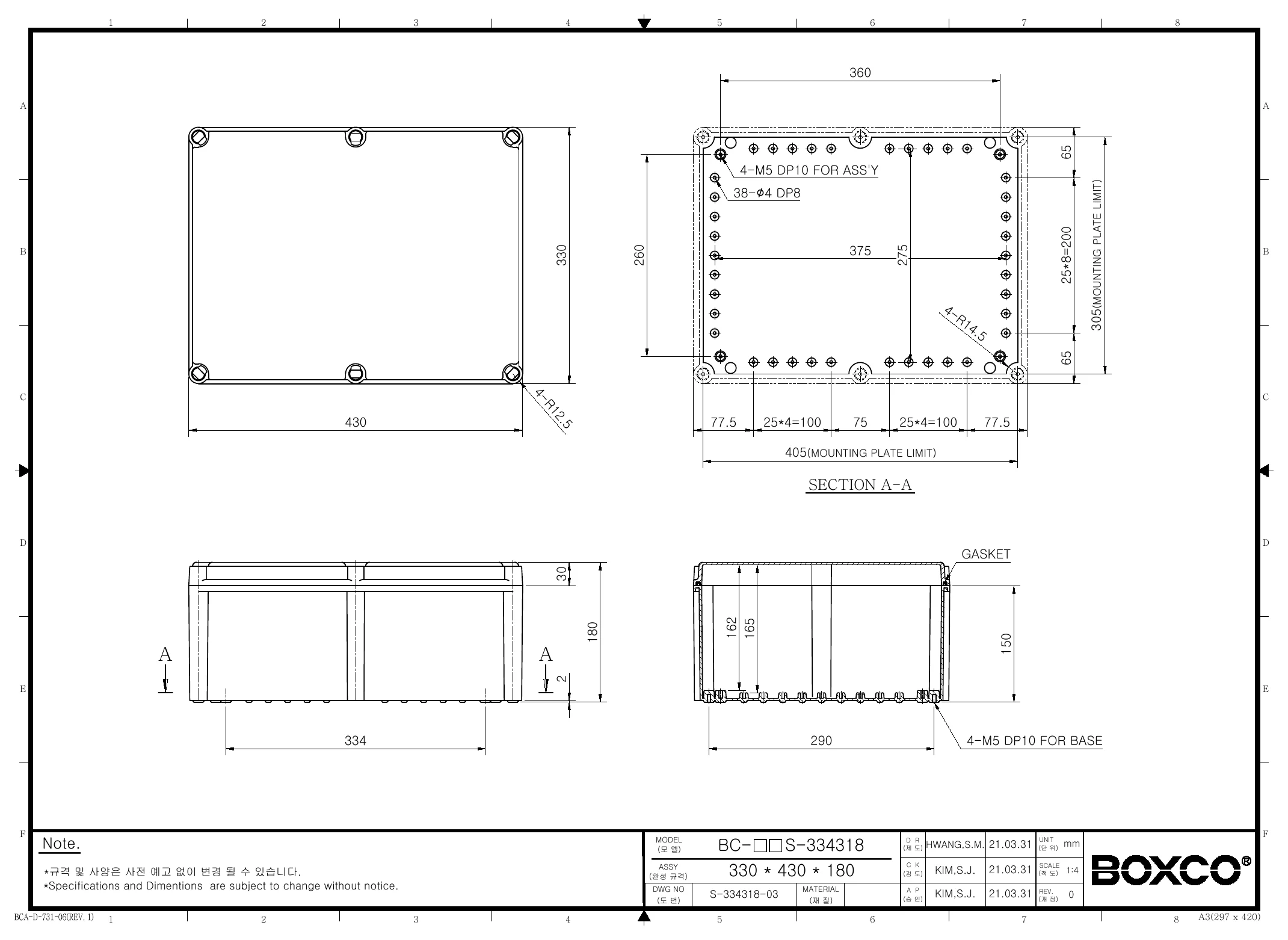

Technical drawings

BC-AGS-334318 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-AGS-334318 enclosure suited for?

This enclosure is designed to protect electrical or electronic equipment in industrial and commercial environments where a durable non-metallic housing is needed. Its high-impact ABS construction, IP67 sealing, and IK08 impact rating make it a practical choice for outdoor or washdown-prone locations where dust and water resistance matter.

What are the dimensions of this enclosure?

The BC-AGS-334318 measures 12.99 x 16.93 x 7.09 inches, which corresponds to 330 x 430 x 180 mm. This larger format provides room for internal components while still using a screw-type cover design for secure closure.

Is this plastic enclosure suitable for outdoor environments?

Yes. Boxco states that the S-Series includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports use in environments exposed to dust and water.

How durable is the BC-AGS-334318 against impact and harsh conditions?

This model is made from high-impact-resistant ABS and carries an IK08 impact rating. It is also described as resistant to breakage during hole and press processing, which supports use in demanding industrial settings.

What internal mounting features does this enclosure include?

The enclosure includes mounting plate attachment points with brass inserted injection molding to help secure heavier internal equipment. It also has pre-molded mounting screw nuts that can be used for DIN rail or other internal hardware.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That makes it suitable for a wide range of indoor and outdoor industrial environments within those limits.

What distinguishes this Boxco S-Series model from basic general-purpose enclosures?

This model combines several protective features in one enclosure, including IP67 sealing, IK08 impact resistance, UV-stabilized material for outdoor use, and anti-static material for sensitive electronic instruments. It also includes molded attachment points and screw nuts that add flexibility for internal equipment mounting.
