Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

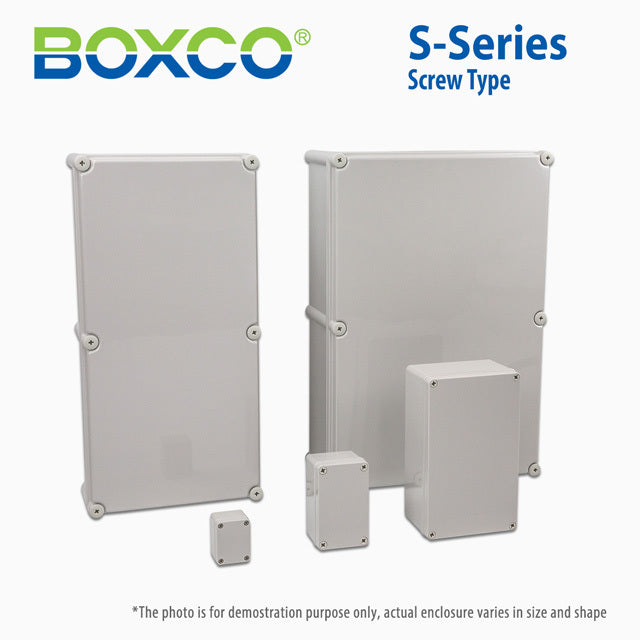

Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU:

BC-CGS-193818

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

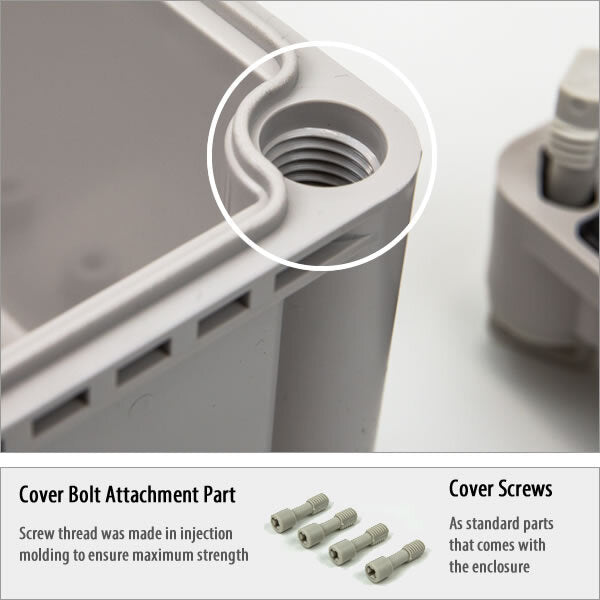

Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~110°C
Warranty

1 Year
Length

19 cm
Width

38 cm
Height

18 cm
Weight

1.56 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco S-Series enclosure best suited for?

This model is suited for industrial and commercial equipment that needs a durable non-metallic enclosure with strong environmental protection. Its large 190 x 380 x 180 mm size and internal mounting features make it a practical choice for control, automation, and instrumentation housings.

Is this enclosure suitable for outdoor environments?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. Its IP67 rating also supports strong protection against dust and water ingress in demanding environments.

How durable is this plastic enclosure in harsh conditions?

This enclosure is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. It is made from polycarbonate and described as high impact resistant, which helps it withstand external impact and mechanical processing.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 110 °C. That wide operating range makes it appropriate for both cold and high-heat environments where standard plastic enclosures may be less suitable.

Does this enclosure support internal mounting hardware or accessories?

Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding for securely fixing a mounting plate. It also has pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment mounting.

What distinguishes this screw-type enclosure from other enclosure cover styles?

This model uses a screw-type cover, and Boxco notes that the cover bolt attachment threads are formed during injection molding for maximum strength. That makes it a strong choice when a more secure cover fastening method is preferred.

What are the key specifications of this specific model?

This is the Boxco S-Series model BC-CGS-193818 with overall dimensions of 7.48 x 14.96 x 7.09 inches (190 x 380 x 180 mm). It has a grey cover, polycarbonate construction, IP67 and IK08 ratings, a listed weight of 1.561 kg, and a 1-year warranty.
