Boxco

Boxco S-Series 50x65x45mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-050604
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-050604 is a 50×65×45 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-050604Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
50×65×45 mm (1.97×2.56×1.77 in)
Mounting plate dimension M1 × M2
40 × 55 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0506 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

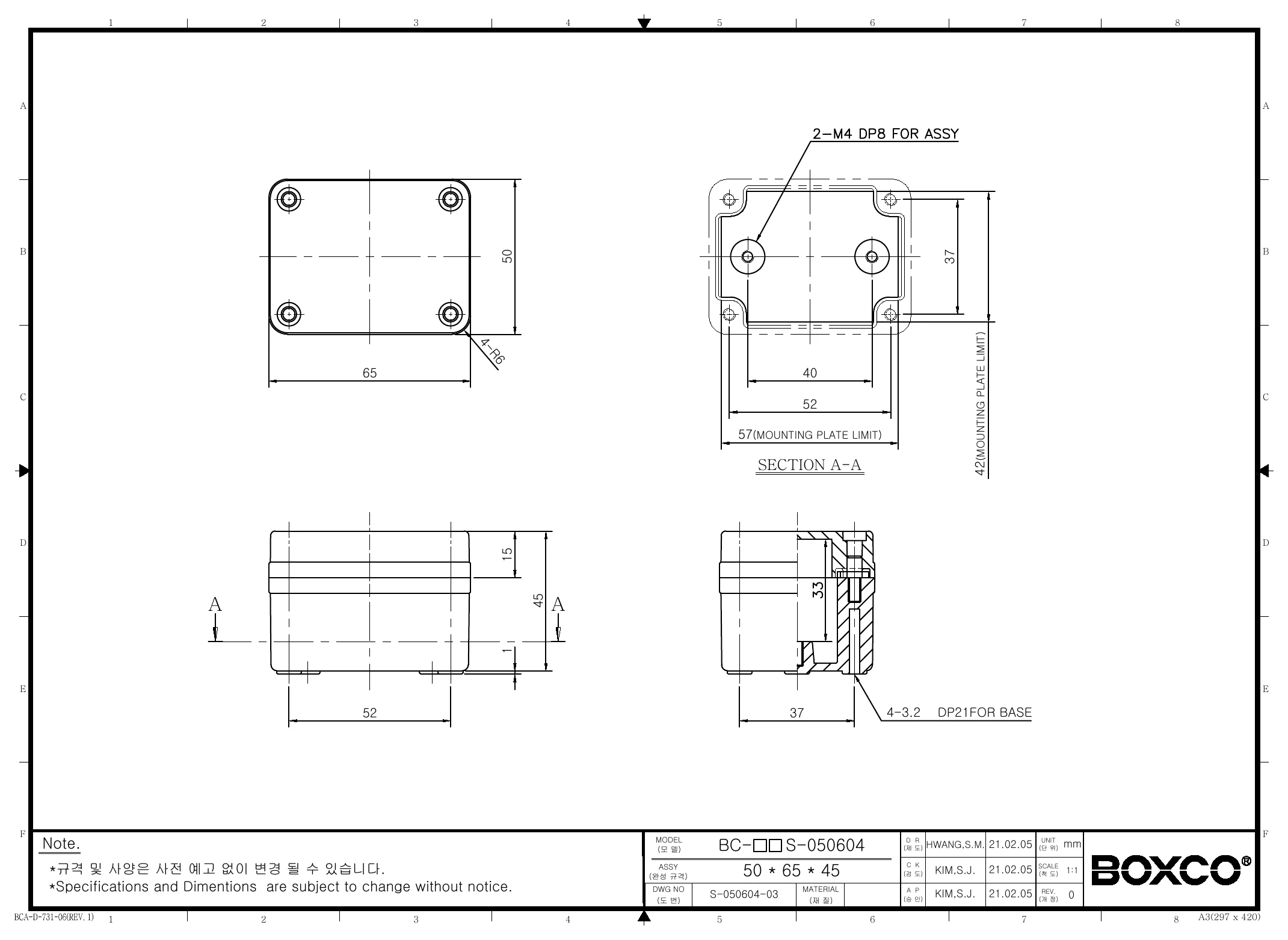

Technical drawings

BC-AGS-050604 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-AGS-050604 enclosure suited for?

This model is designed for protecting small electronic assemblies that need a sealed plastic housing in indoor or outdoor environments. Its anti-static material and IP67 dust- and water-resistance make it relevant for sensitive electronic instruments and other compact control or monitoring components.

What are the exact dimensions of this enclosure?

The Boxco BC-AGS-050604 measures 1.97 x 2.56 x 1.77 inches, which is 50 x 65 x 45 mm. Its compact size makes it appropriate when space is limited but a rugged enclosure is still required.

Is this plastic enclosure suitable for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long-term exposure. The enclosure is also rated IP67, which supports strong dust-proof and waterproof performance when closed properly.

How durable is the BC-AGS-050604 against impact and harsh conditions?

This enclosure carries an IK08 impact rating and is made from high-impact resistant ABS. Boxco also describes the material as strong against external impact and resistant to breakage during hole and press processing.

What features support internal component mounting in this enclosure?

The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features support secure attachment of internal hardware such as a mounting plate or DIN rail-related equipment without relying on improvised fastening methods.

What temperature range is this enclosure rated for?

The specified operating temperature range is -40 degrees C to 70 degrees C. That range makes it suitable for many general industrial and outdoor electronic enclosure applications within those limits.
