Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

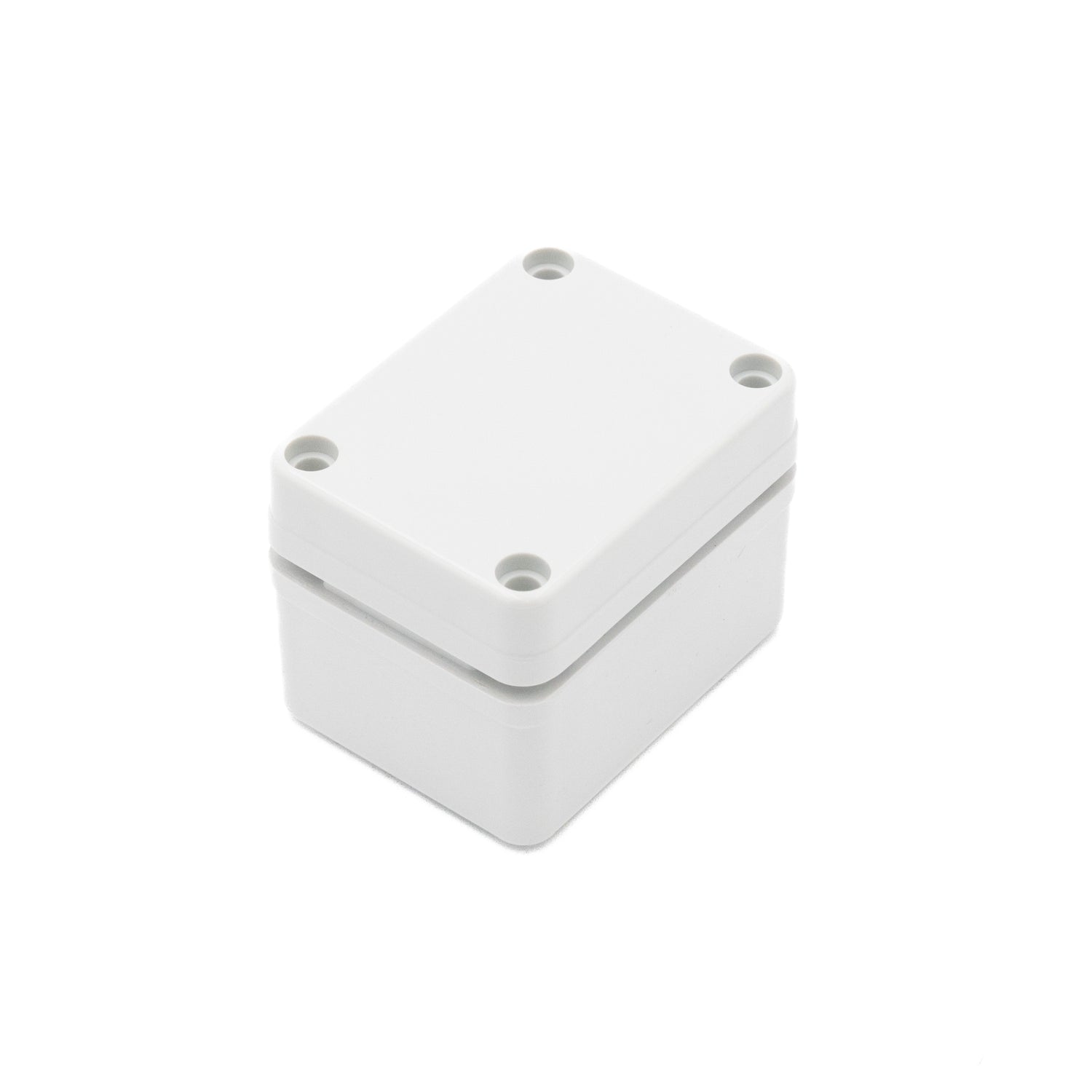

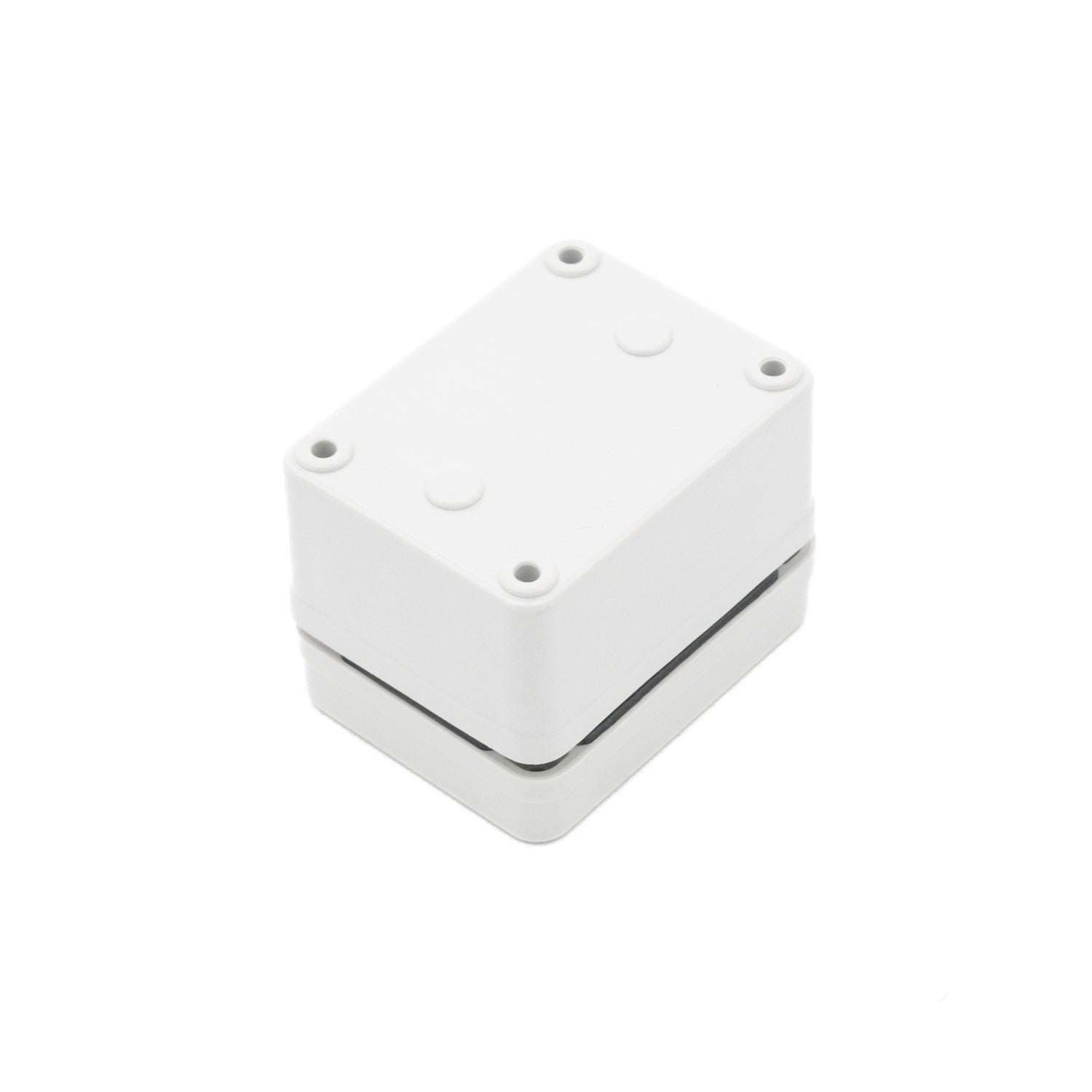

Boxco S-Series 50x65x45mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU:

BC-AGS-050604

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

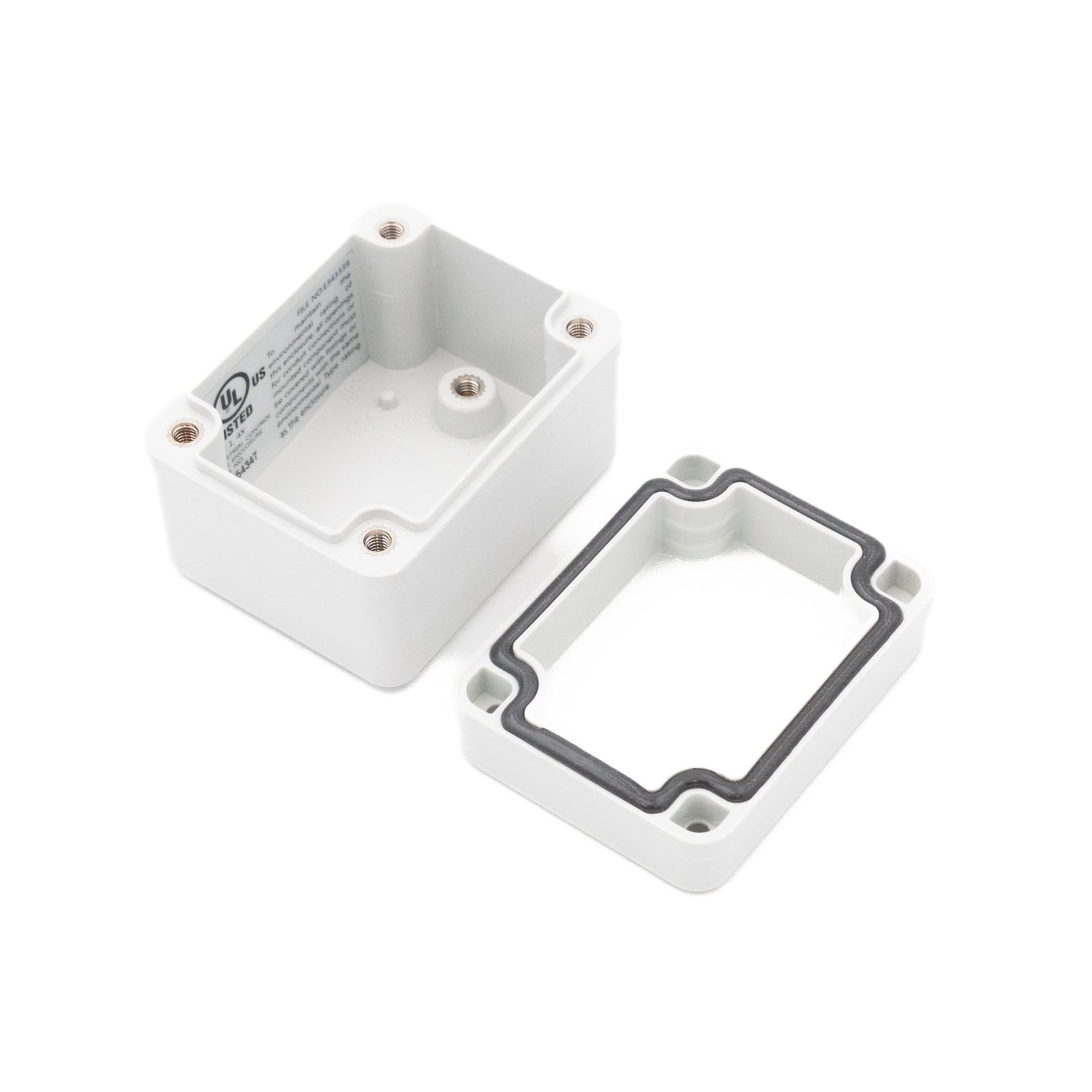

Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

5 cm
Width

6.5 cm
Height

4.5 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series BC-AGS-050604 enclosure suited for?

This model is designed for protecting small electronic assemblies that need a sealed plastic housing in indoor or outdoor environments. Its anti-static material and IP67 dust- and water-resistance make it relevant for sensitive electronic instruments and other compact control or monitoring components.

What are the exact dimensions of this enclosure?

The Boxco BC-AGS-050604 measures 1.97 x 2.56 x 1.77 inches, which is 50 x 65 x 45 mm. Its compact size makes it appropriate when space is limited but a rugged enclosure is still required.

Is this plastic enclosure suitable for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long-term exposure. The enclosure is also rated IP67, which supports strong dust-proof and waterproof performance when closed properly.

How durable is the BC-AGS-050604 against impact and harsh conditions?

This enclosure carries an IK08 impact rating and is made from high-impact resistant ABS. Boxco also describes the material as strong against external impact and resistant to breakage during hole and press processing.

What features support internal component mounting in this enclosure?

The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features support secure attachment of internal hardware such as a mounting plate or DIN rail-related equipment without relying on improvised fastening methods.

What temperature range is this enclosure rated for?

The specified operating temperature range is -40 degrees C to 70 degrees C. That range makes it suitable for many general industrial and outdoor electronic enclosure applications within those limits.
