Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 50x65x45mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-050604
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-050604 is a 50×65×45 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-050604Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
50×65×45 mm (1.97×2.56×1.77 in)
Mounting plate dimension M1 × M2
40 × 55 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0506 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

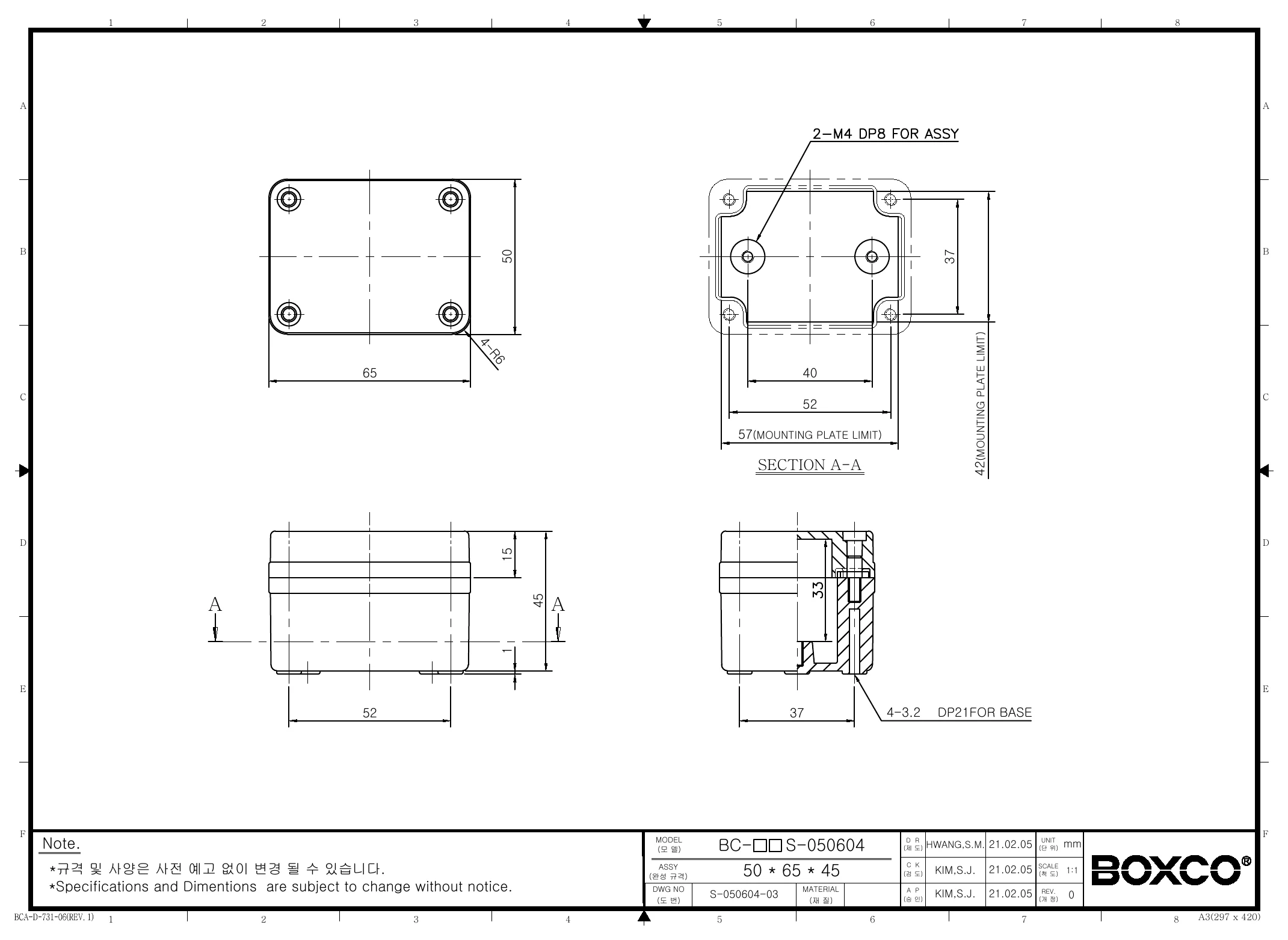

Technical drawings

BC-ATS-050604 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-ATS-050604 enclosure suited for?

This enclosure is suited for protecting compact electronic components in industrial, commercial, or outdoor equipment housings. Its anti-static ABS construction and transparent screw-type cover make it a practical choice when sensitive electronics need basic visibility and enclosed protection.

Is this enclosure suitable for outdoor or dusty environments?

Yes. This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure in demanding environments. The product description also notes an ultraviolet stabilizer for outdoor usage and a precision-injected gasket for waterproof and dust-proof performance.

What are the key material and impact characteristics of this enclosure?

The BC-ATS-050604 is made from ABS and includes anti-static material to help protect sensitive electronic instruments from static electricity. It is also rated IK08 and described as high impact resistant, which supports use where the enclosure may face mechanical contact or handling stress.

What size is this Boxco enclosure?

This enclosure measures 1.97 x 2.56 x 1.77 inches, which corresponds to 50 x 65 x 45 mm. That compact size makes it appropriate for small-format protected assemblies where space is limited.

What cover style does this model use, and why does that matter?

This model uses a transparent screw-type cover. That design helps provide secure closure while allowing visual inspection of internal components without opening the enclosure.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use across both low-temperature and moderately elevated-temperature environments, subject to the requirements of the installed components.
