Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

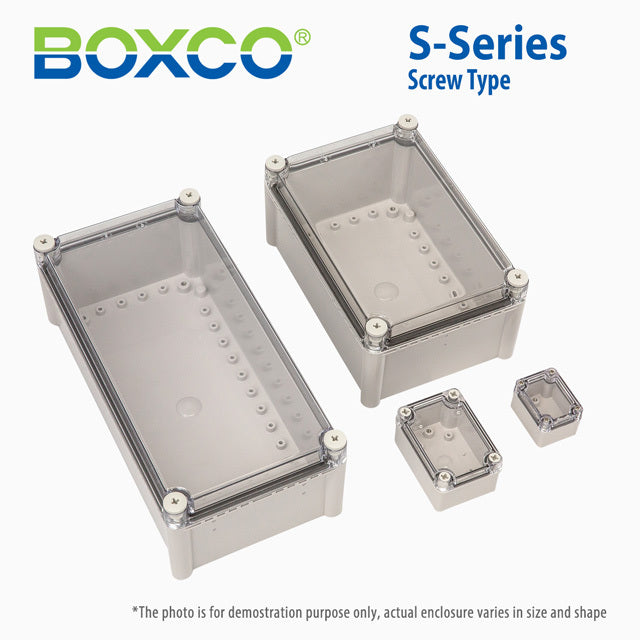

Boxco S-Series 50x65x45mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-050604

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

5 cm
Width

6.5 cm
Height

4.5 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series BC-ATS-050604 enclosure suited for?

This enclosure is suited for protecting compact electronic components in industrial, commercial, or outdoor equipment housings. Its anti-static ABS construction and transparent screw-type cover make it a practical choice when sensitive electronics need basic visibility and enclosed protection.

Is this enclosure suitable for outdoor or dusty environments?

Yes. This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure in demanding environments. The product description also notes an ultraviolet stabilizer for outdoor usage and a precision-injected gasket for waterproof and dust-proof performance.

What are the key material and impact characteristics of this enclosure?

The BC-ATS-050604 is made from ABS and includes anti-static material to help protect sensitive electronic instruments from static electricity. It is also rated IK08 and described as high impact resistant, which supports use where the enclosure may face mechanical contact or handling stress.

What size is this Boxco enclosure?

This enclosure measures 1.97 x 2.56 x 1.77 inches, which corresponds to 50 x 65 x 45 mm. That compact size makes it appropriate for small-format protected assemblies where space is limited.

What cover style does this model use, and why does that matter?

This model uses a transparent screw-type cover. That design helps provide secure closure while allowing visual inspection of internal components without opening the enclosure.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use across both low-temperature and moderately elevated-temperature environments, subject to the requirements of the installed components.
