Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 50x65x55mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-050605
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-050605 is a 50×65×55 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-050605Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
50×65×55 mm (1.97×2.56×2.17 in)
Mounting plate dimension M1 × M2
40 × 55 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0506 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

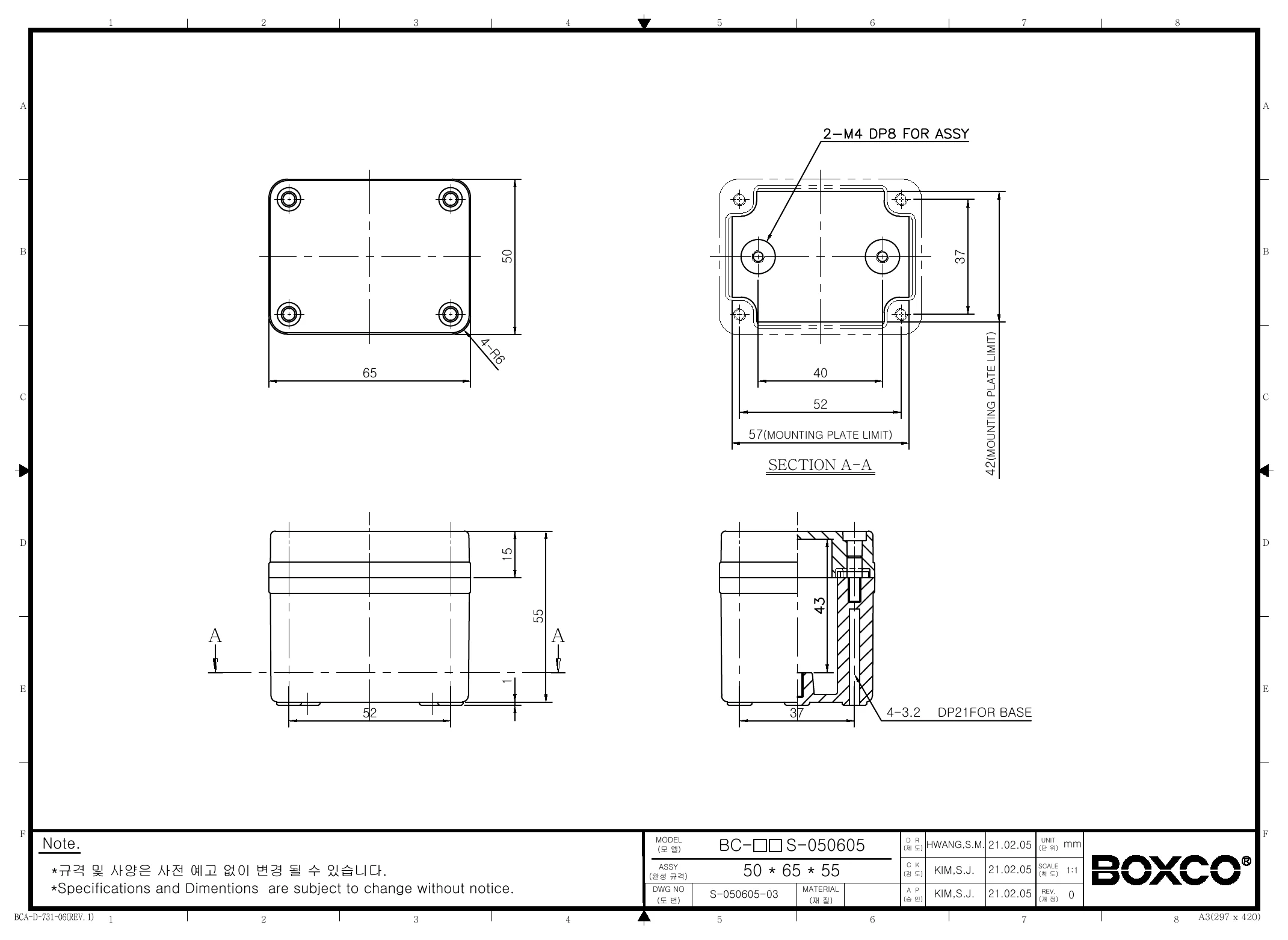

BC-ATS-050605 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-ATS-050605 plastic enclosure suited for?

This enclosure is suited for protecting compact electrical or electronic components that need a sealed housing in industrial or outdoor environments. Its anti-static material also makes it a practical choice for sensitive electronic instruments that benefit from reduced static electricity exposure.

What are the main specifications of the BC-ATS-050605 enclosure?

This model measures 1.97 x 2.56 x 2.17 inches (50 x 65 x 55 mm) and is made from ABS with a transparent cover. It is rated IP67 for dust and water resistance, IK08 for impact resistance, and has a listed operating temperature range of -40 °C to 70 °C.

Is this enclosure appropriate for outdoor use?

Yes, the product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. Boxco notes that only limited color change should be noticed even after long-term exposure.

How does the transparent cover version compare to an opaque enclosure?

The transparent cover allows visual inspection of internal indicators or labels without opening the box. For buyers who need to check contents quickly while keeping the enclosure closed, this version can be more practical than a fully opaque cover.

What internal mounting features does this Boxco enclosure include?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding for secure mounting of heavier internal equipment. It also has pre-molded mounting screw nuts that can be used to secure items such as DIN rail or other internal hardware.

How durable is the BC-ATS-050605 enclosure in demanding environments?

This model is described as being made from high impact resistant material and carries an IK08 impact rating. The gasket is also precision injected to support strong waterproof and dust-proof performance alongside its IP67 rating.
