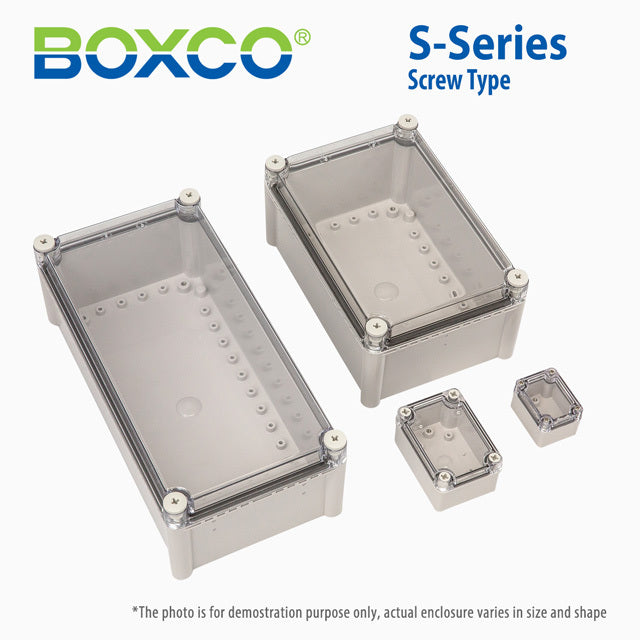

Boxco S-Series 50x65x55mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-050605

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

5 cm
Width

6.5 cm
Height

5.5 cm
Weight

0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series BC-ATS-050605 plastic enclosure suited for?

This enclosure is suited for protecting compact electrical or electronic components that need a sealed housing in industrial or outdoor environments. Its anti-static material also makes it a practical choice for sensitive electronic instruments that benefit from reduced static electricity exposure.

What are the main specifications of the BC-ATS-050605 enclosure?

This model measures 1.97 x 2.56 x 2.17 inches (50 x 65 x 55 mm) and is made from ABS with a transparent cover. It is rated IP67 for dust and water resistance, IK08 for impact resistance, and has a listed operating temperature range of -40 °C to 70 °C.

Is this enclosure appropriate for outdoor use?

Yes, the product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. Boxco notes that only limited color change should be noticed even after long-term exposure.

How does the transparent cover version compare to an opaque enclosure?

The transparent cover allows visual inspection of internal indicators or labels without opening the box. For buyers who need to check contents quickly while keeping the enclosure closed, this version can be more practical than a fully opaque cover.

What internal mounting features does this Boxco enclosure include?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding for secure mounting of heavier internal equipment. It also has pre-molded mounting screw nuts that can be used to secure items such as DIN rail or other internal hardware.

How durable is the BC-ATS-050605 enclosure in demanding environments?

This model is described as being made from high impact resistant material and carries an IK08 impact rating. The gasket is also precision injected to support strong waterproof and dust-proof performance alongside its IP67 rating.
