Boxco S-Series 80x110x70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-081107
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-081107 is a 80×110×70 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-081107Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×110×70 mm (3.15×4.33×2.76 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0811 P (Plastic, P type), 0811 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

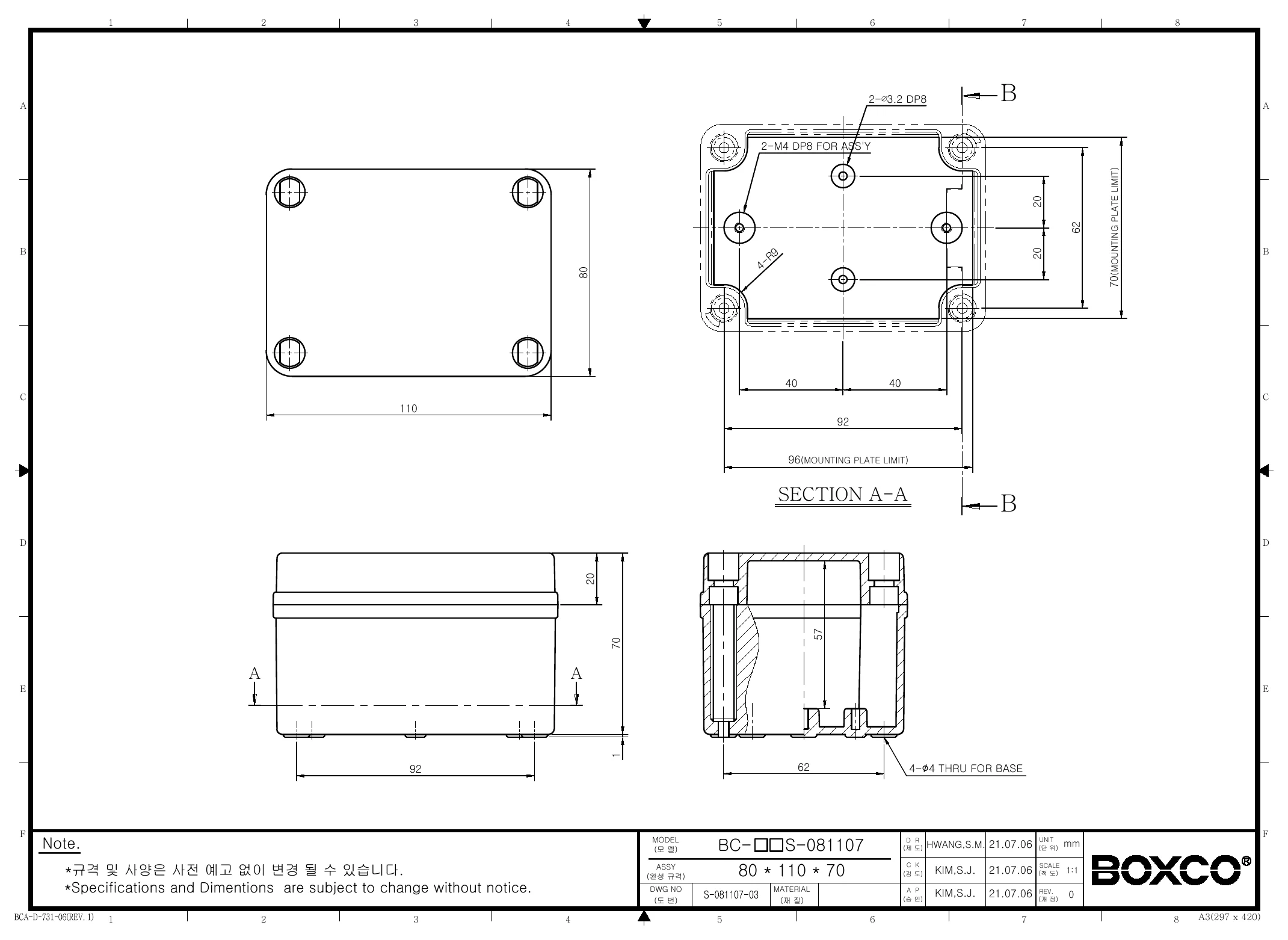

Technical drawings

BC-ATS-081107 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x110x70mm enclosure suited for?

This enclosure is suited for protecting compact electrical or electronic components in industrial, commercial, and OEM applications. Its anti-static ABS construction and impact-resistant design make it a practical choice for housing sensitive instruments or control components that need physical protection inside a sealed box.

Is this enclosure appropriate for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also notes an added ultraviolet stabilizer for outdoor use, helping reduce visible color change over time.

What are the key material and durability features of this enclosure?

This enclosure is made from ABS and includes a transparent cover in a screw-type design. It is described as high impact resistant, and the IK08 impact rating indicates added protection against external mechanical impact in demanding environments.

What size is this Boxco enclosure?

This model measures 3.15 x 4.33 x 2.76 inches, which corresponds to 80 x 110 x 70 mm. That size makes it useful when you need a compact enclosure with enough internal volume for small assemblies and protected components.

Does this enclosure support internal mounting hardware or accessory panels?

Yes. The product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts, which support securing internal hardware and equipment inside the enclosure body.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating environments, provided the full application stays within those limits.
