Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

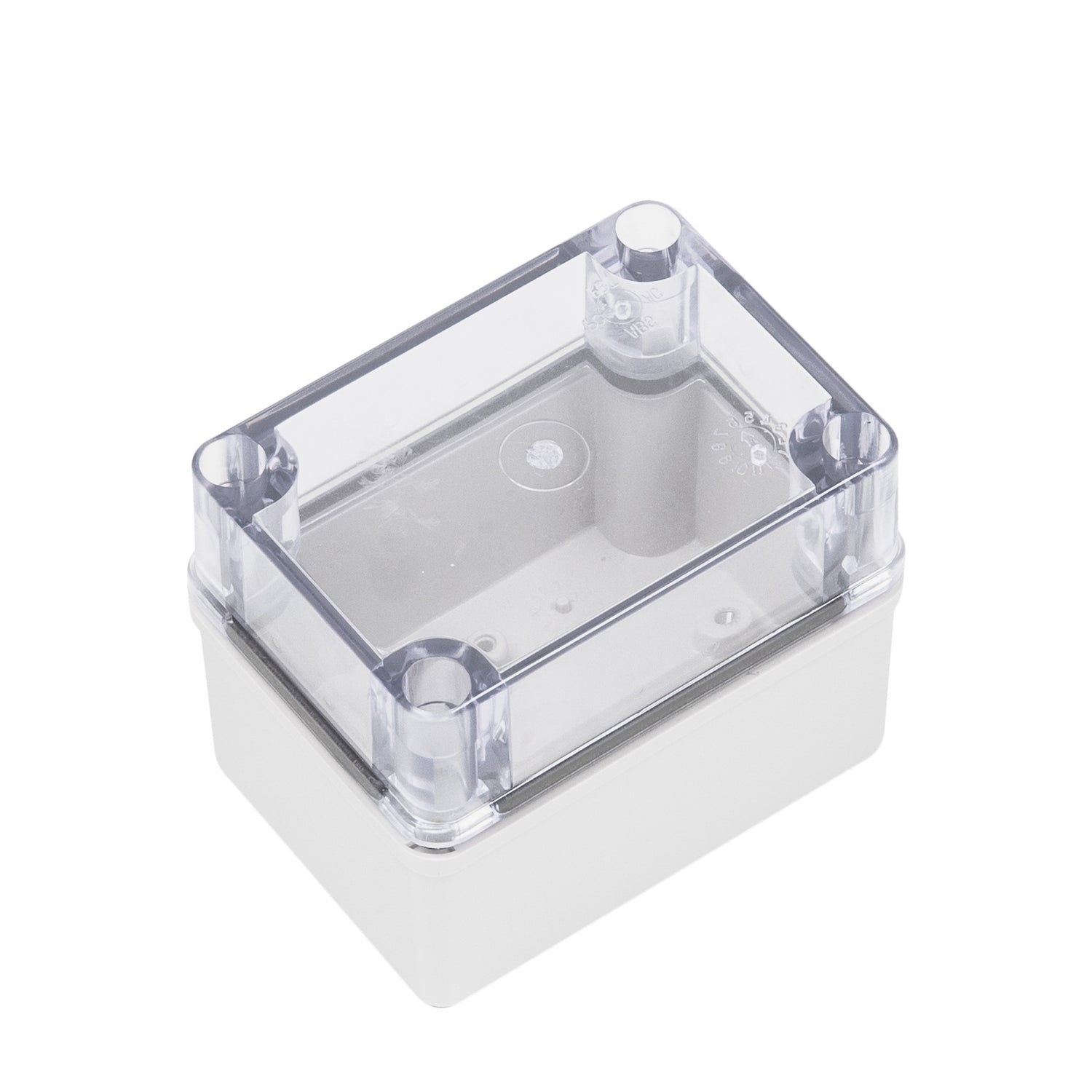

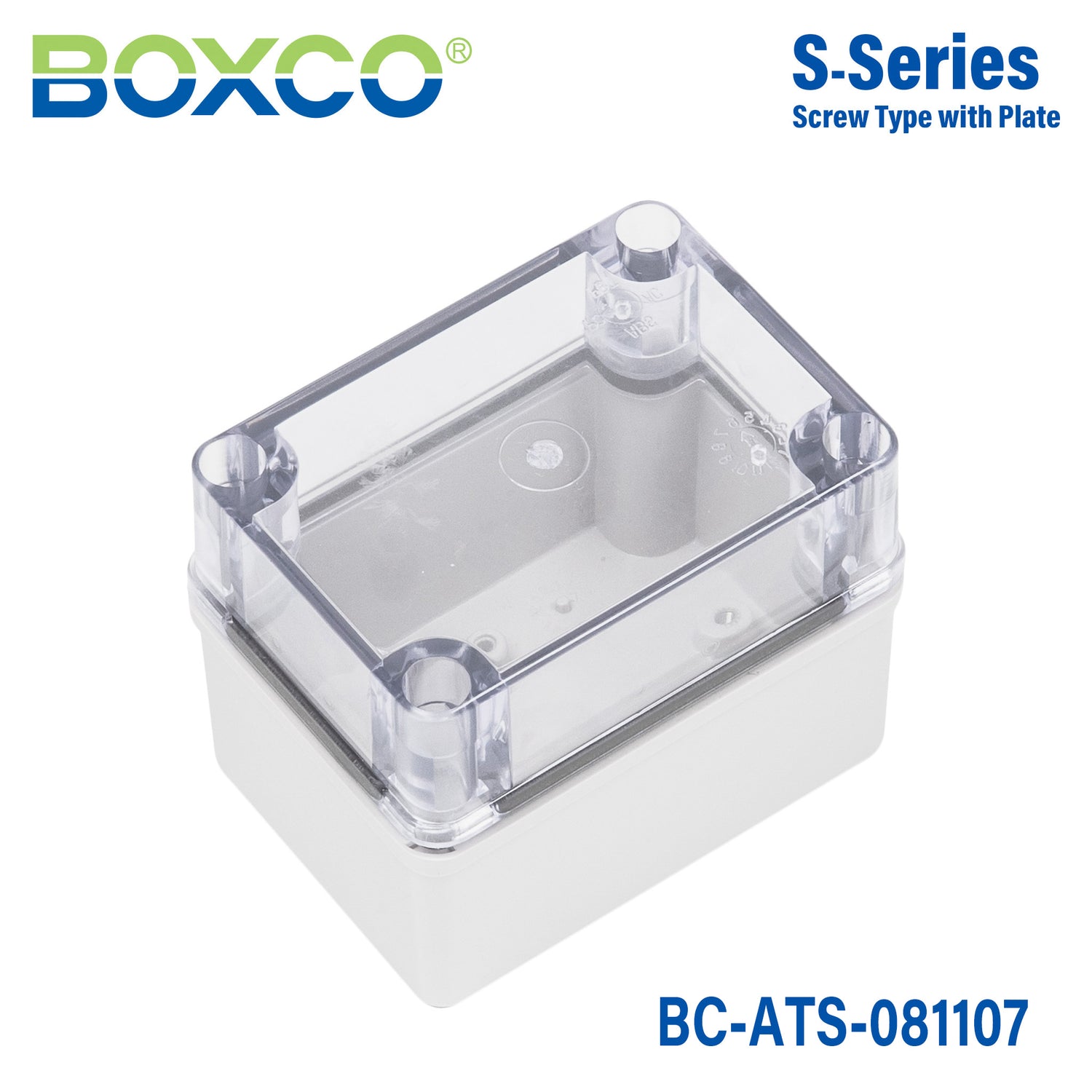

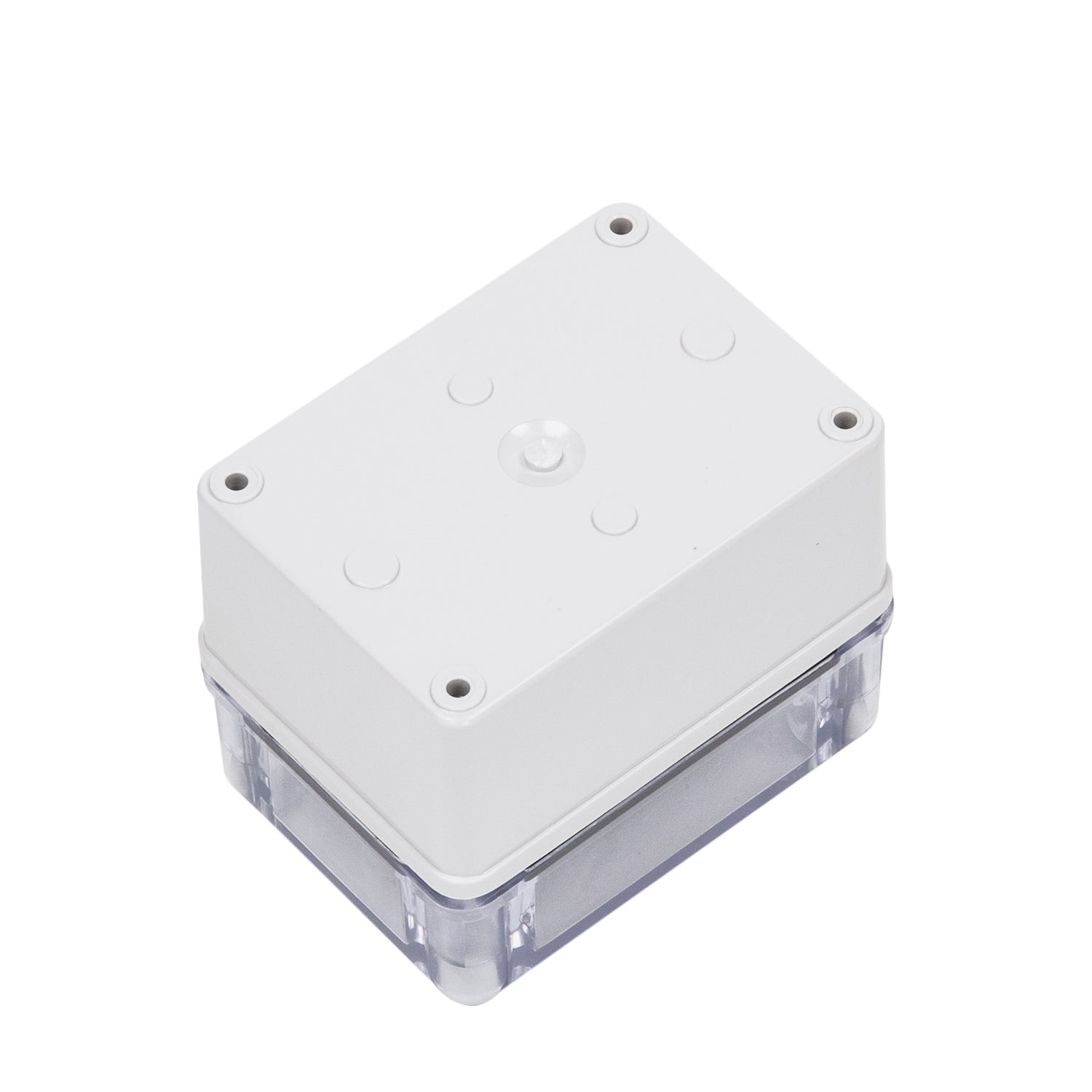

Boxco S-Series 80x110x70mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-081107

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

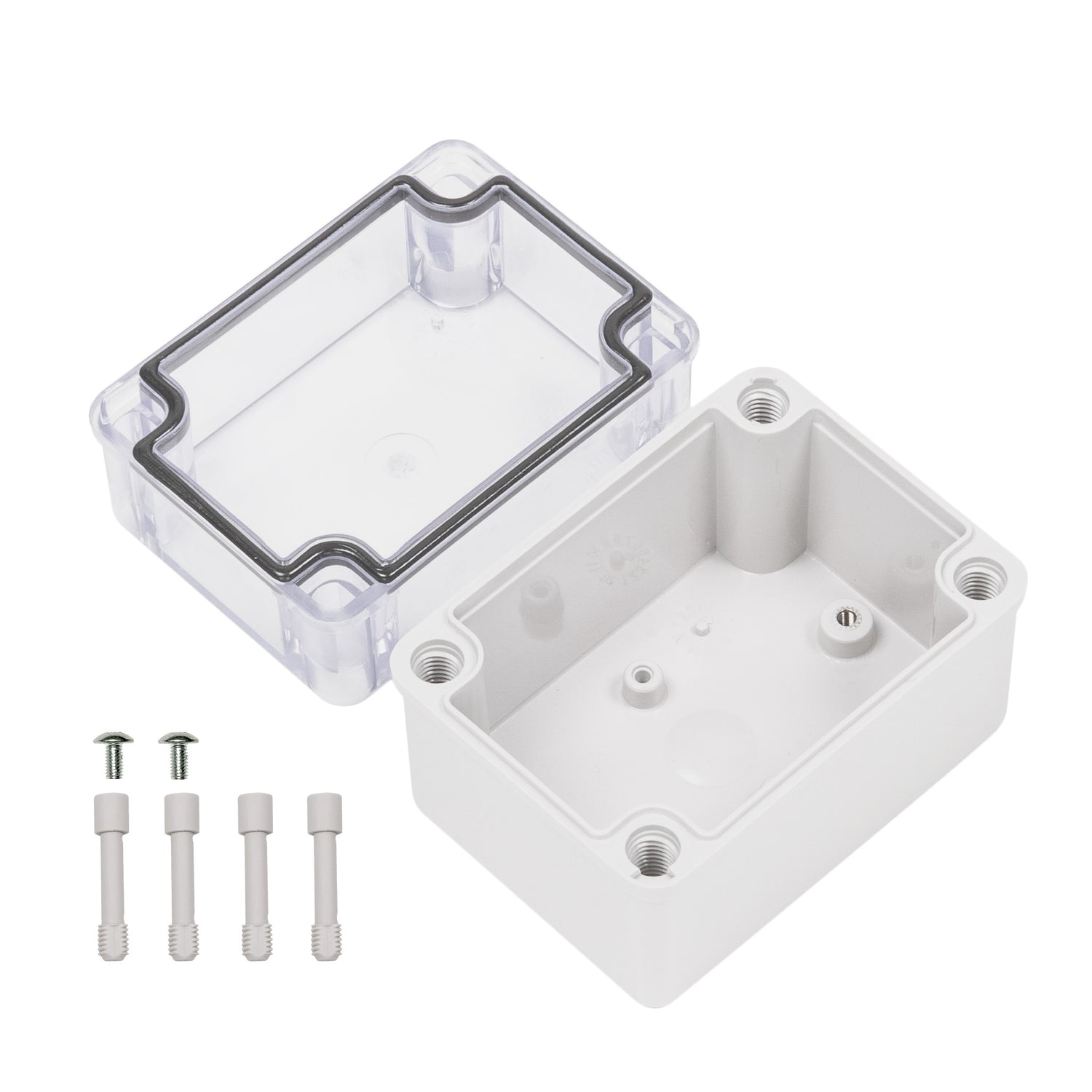

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

8 cm
Width

11 cm
Height

7 cm
Weight

0.17 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series 80x110x70mm enclosure suited for?

This enclosure is suited for protecting compact electrical or electronic components in industrial, commercial, and OEM applications. Its anti-static ABS construction and impact-resistant design make it a practical choice for housing sensitive instruments or control components that need physical protection inside a sealed box.

Is this enclosure appropriate for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also notes an added ultraviolet stabilizer for outdoor use, helping reduce visible color change over time.

What are the key material and durability features of this enclosure?

This enclosure is made from ABS and includes a transparent cover in a screw-type design. It is described as high impact resistant, and the IK08 impact rating indicates added protection against external mechanical impact in demanding environments.

What size is this Boxco enclosure?

This model measures 3.15 x 4.33 x 2.76 inches, which corresponds to 80 x 110 x 70 mm. That size makes it useful when you need a compact enclosure with enough internal volume for small assemblies and protected components.

Does this enclosure support internal mounting hardware or accessory panels?

Yes. The product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts, which support securing internal hardware and equipment inside the enclosure body.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating environments, provided the full application stays within those limits.
