Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081307
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-081307 is a 80×130×70 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-081307Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×70 mm (3.15×5.12×2.76 in)
Mounting plate dimension M1 × M2
65 × 115 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0813 P (Plastic, P type), 0813 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

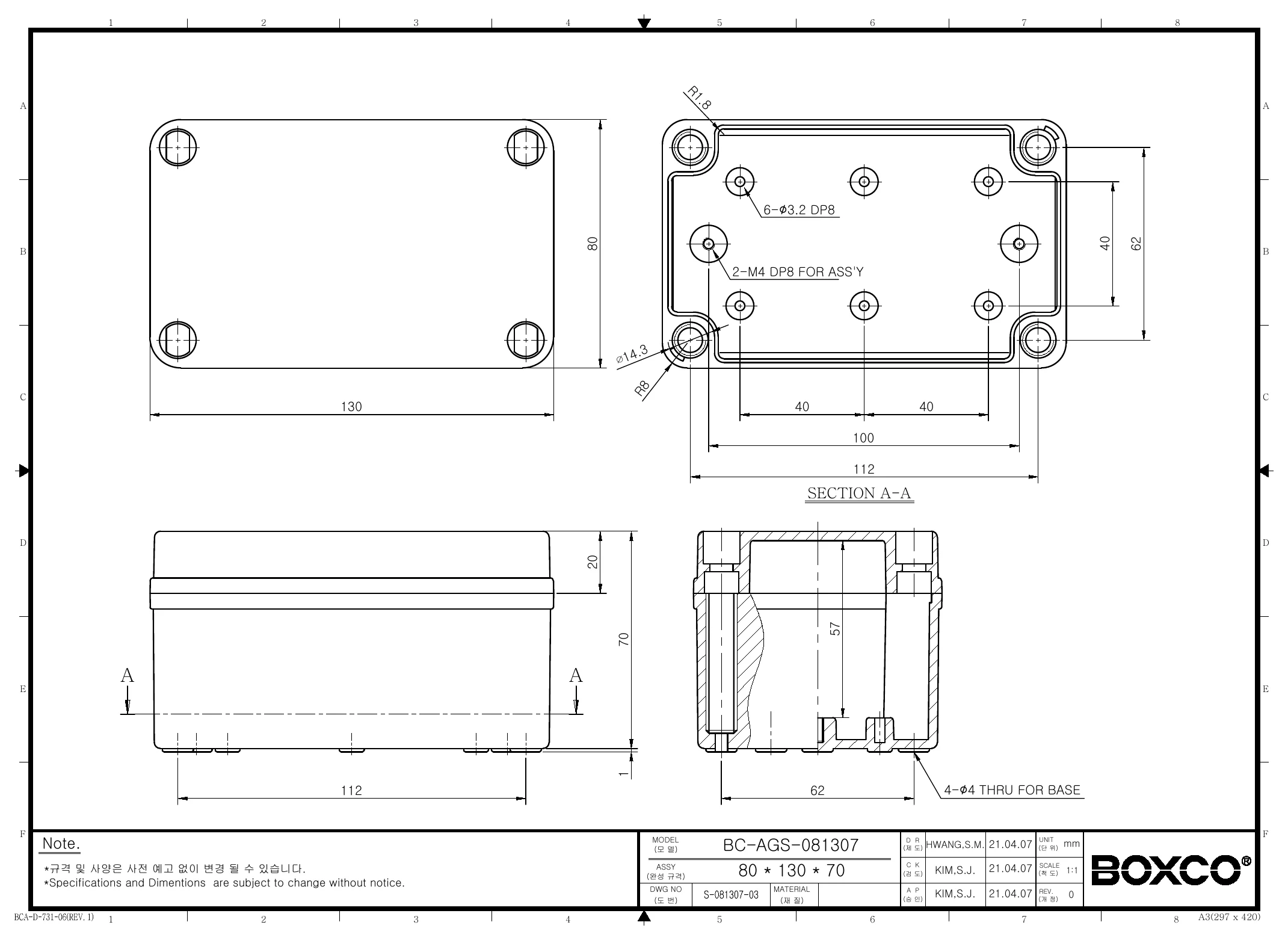

Technical drawings

BC-AGS-081307 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x130x70mm plastic enclosure suited for?

This enclosure is suited for protecting electronic components and instruments that need a compact, sealed housing. Its anti-static material and high-impact ABS construction make it a practical choice for industrial, commercial, and outdoor equipment housings where durability matters.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed for outdoor use. The S-Series includes an ultraviolet stabilizer to help reduce visible color change over long-term exposure, and the IP67 rating supports strong protection against dust and water ingress.

What level of protection does this enclosure provide against water, dust, and impact?

This enclosure is rated IP67, which indicates a high level of protection against dust and water ingress. It also carries an IK08 impact rating, and the ABS body is described as high impact resistant for added durability in demanding environments.

What are the key dimensions and material details for this model?

This Boxco enclosure measures 3.15 x 5.12 x 2.76 inches, which corresponds to 80 x 130 x 70 mm. It is made from ABS plastic and comes with a grey screw-type cover.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That range makes it suitable for use in both cold and warm industrial or outdoor conditions within those limits.

Does this enclosure support internal mounting hardware or accessories?

Yes, the enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure mounting of internal equipment such as plates or DIN rail-compatible hardware.
