Boxco

Boxco S-Series 80x80x60mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-080806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-080806 is a 80×80×60 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-080806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×80×60 mm (3.15×3.15×2.36 in)
Mounting plate dimension M1 × M2
68 × 68 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0808 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

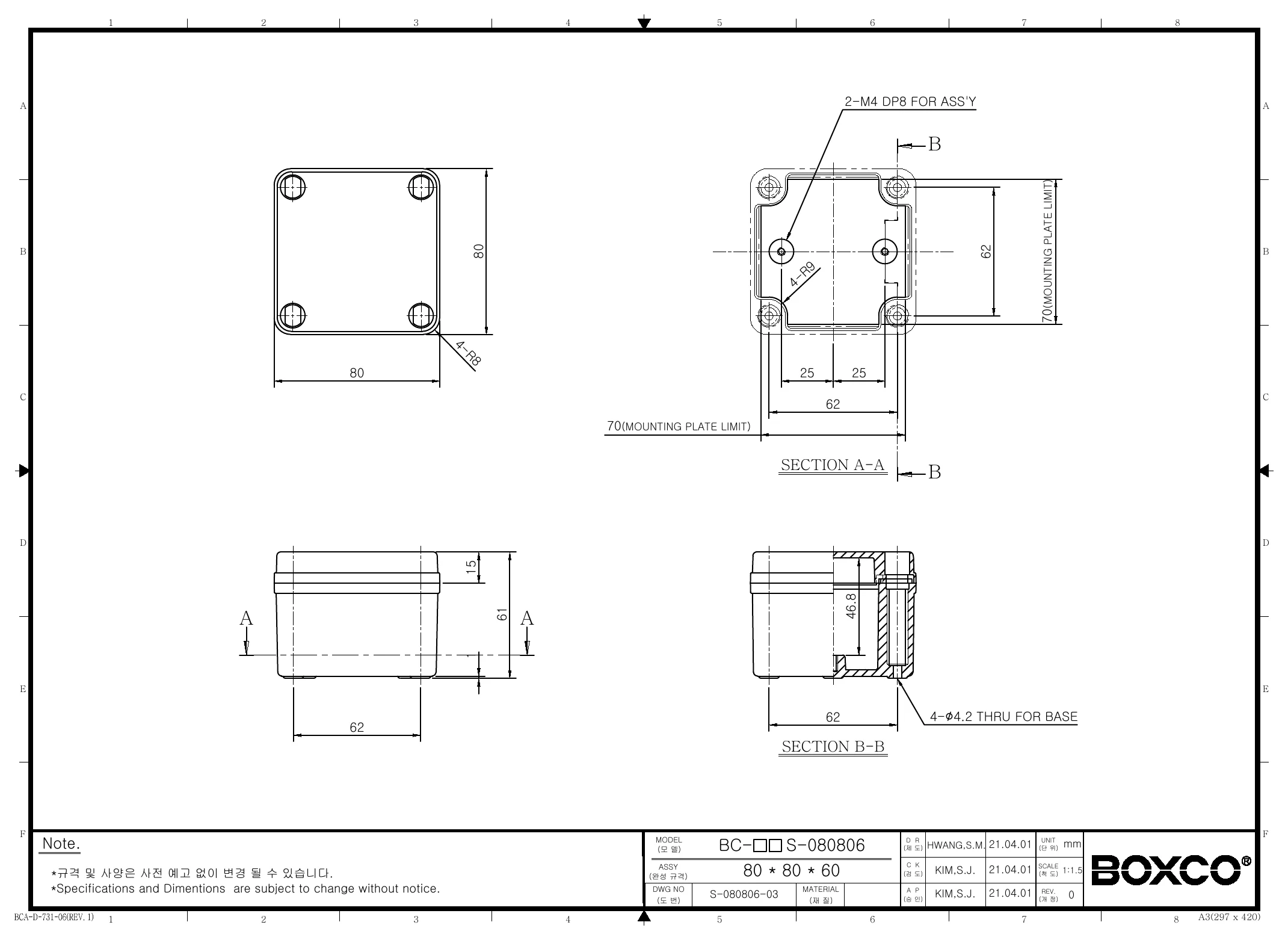

Technical drawings

BC-ATS-080806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the size of the Boxco S-Series BC-ATS-080806 enclosure?

This enclosure measures 3.15 x 3.15 x 2.36 inches, which corresponds to 80 x 80 x 60 mm. It is a compact plastic enclosure suited to applications where space is limited but environmental protection is still required.

What materials and cover style does this enclosure use?

The BC-ATS-080806 is made from ABS plastic and includes a transparent cover. That combination provides impact-resistant housing protection while allowing visibility into the enclosure without opening it.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. Its description also notes an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over time.

How durable is this enclosure for industrial use?

The enclosure carries an IK08 impact rating and is described as using high impact resistant material. It is designed to resist external impact and help prevent breakage during hole and press processing.

What temperature range can this plastic enclosure handle?

The specified operating temperature range is -40 degrees C to 70 degrees C. This makes it suitable for a wide range of indoor and outdoor industrial environments within that temperature window.

What kinds of equipment is this enclosure typically used to protect?

This enclosure is intended for protecting electronic instruments and similar components that need a sealed, impact-resistant housing. The product description also notes anti-static material, which can help protect sensitive electronic instruments from static electricity.
