Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

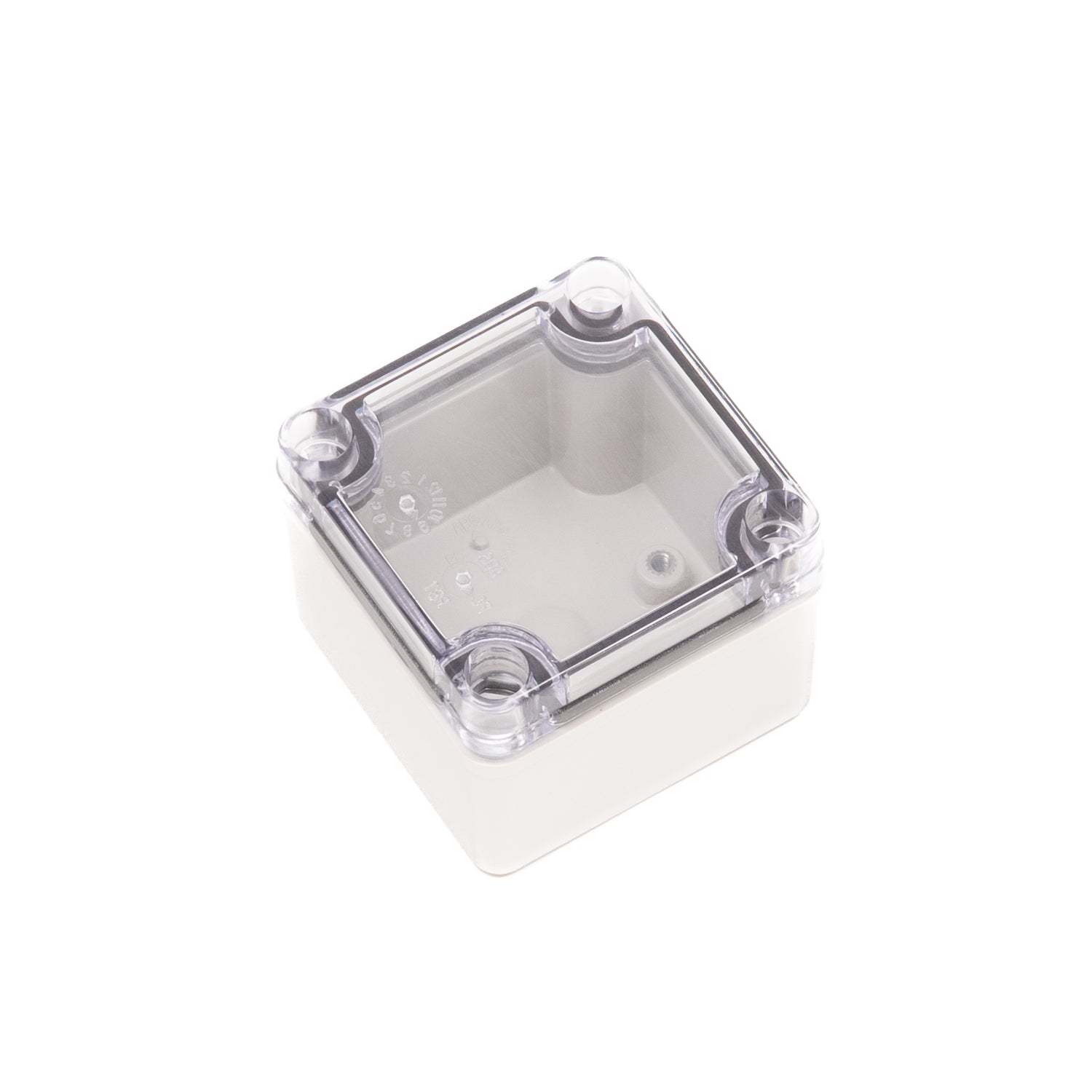

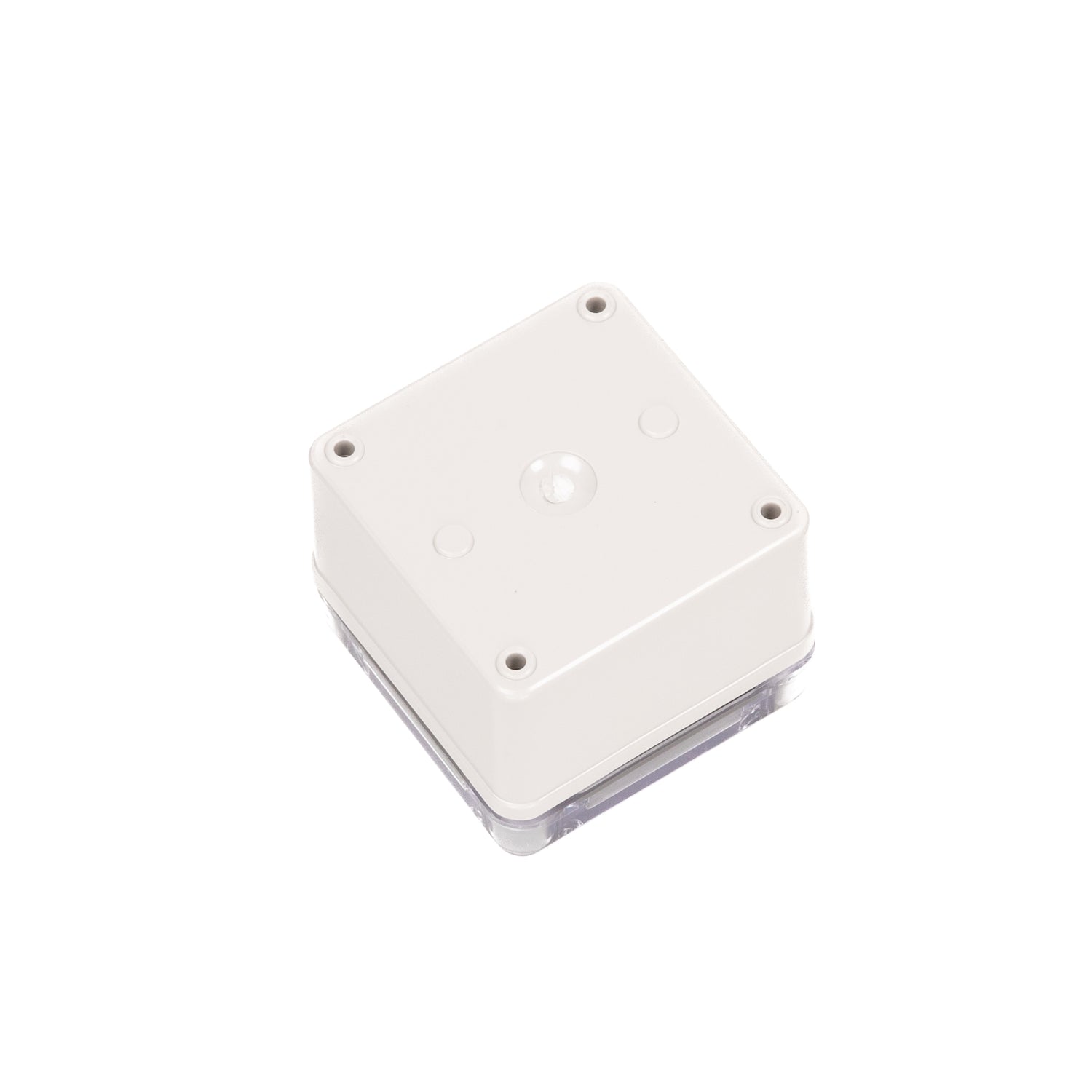

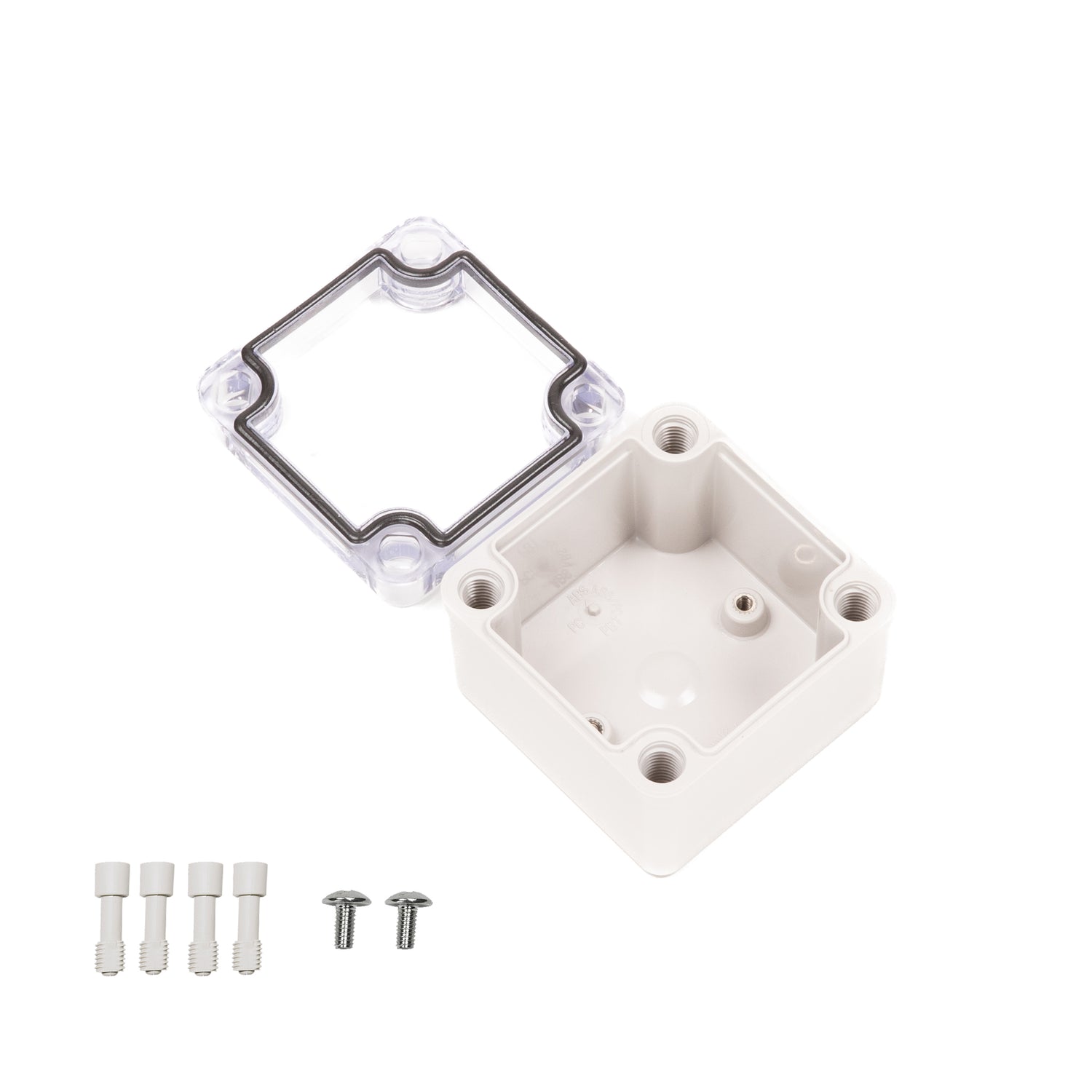

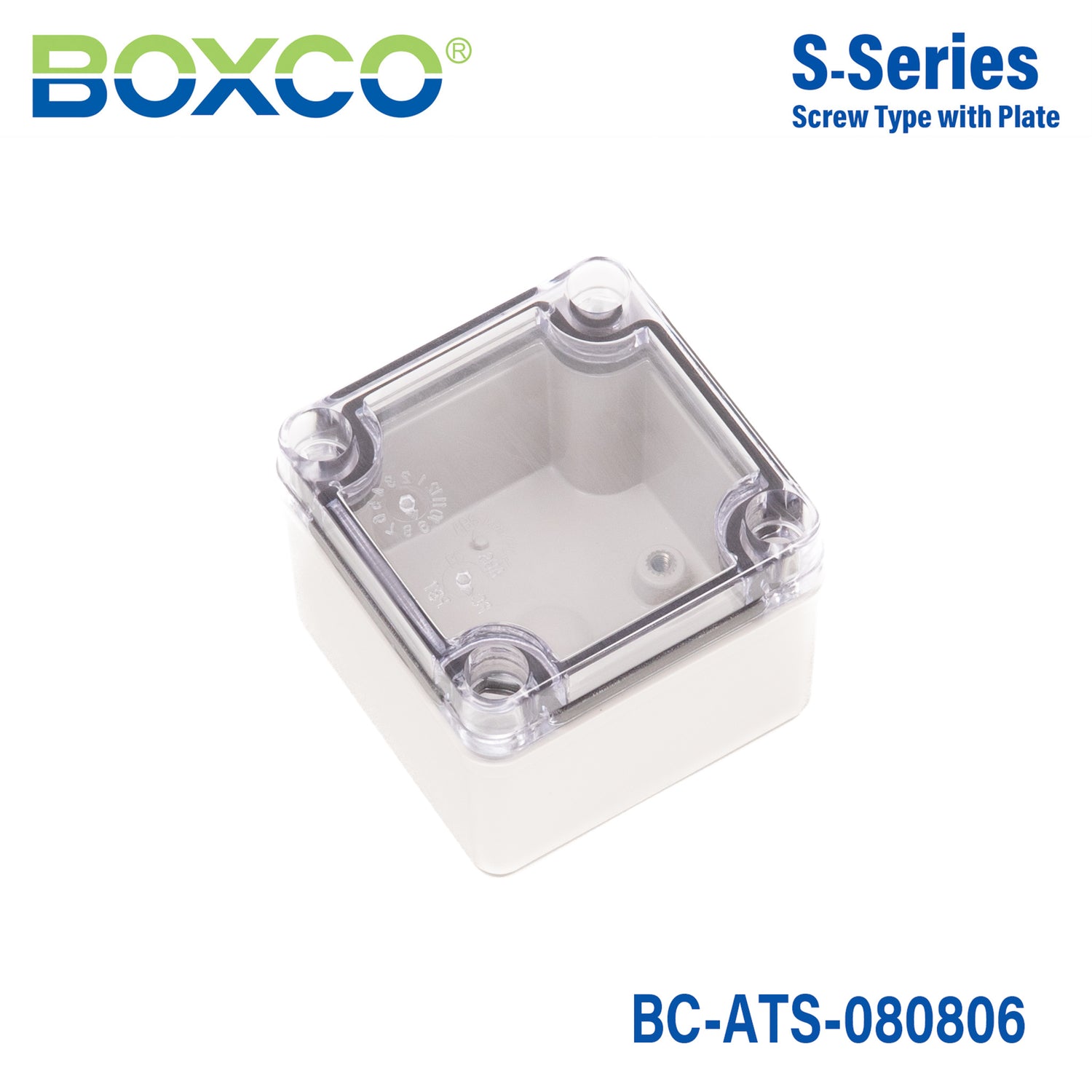

Boxco S-Series 80x80x60mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-080806

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

8 cm
Width

8 cm
Height

6 cm
Weight

0.14 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the size of the Boxco S-Series BC-ATS-080806 enclosure?

This enclosure measures 3.15 x 3.15 x 2.36 inches, which corresponds to 80 x 80 x 60 mm. It is a compact plastic enclosure suited to applications where space is limited but environmental protection is still required.

What materials and cover style does this enclosure use?

The BC-ATS-080806 is made from ABS plastic and includes a transparent cover. That combination provides impact-resistant housing protection while allowing visibility into the enclosure without opening it.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. Its description also notes an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over time.

How durable is this enclosure for industrial use?

The enclosure carries an IK08 impact rating and is described as using high impact resistant material. It is designed to resist external impact and help prevent breakage during hole and press processing.

What temperature range can this plastic enclosure handle?

The specified operating temperature range is -40 degrees C to 70 degrees C. This makes it suitable for a wide range of indoor and outdoor industrial environments within that temperature window.

What kinds of equipment is this enclosure typically used to protect?

This enclosure is intended for protecting electronic instruments and similar components that need a sealed, impact-resistant housing. The product description also notes anti-static material, which can help protect sensitive electronic instruments from static electricity.
