Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 140x230x95mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-142309
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-142309 is a 140×230×95 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-142309Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
140×230×95 mm (5.51×9.06×3.74 in)
Mounting plate dimension M1 × M2
123 × 212 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1423 P (Plastic, P type), 1423 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

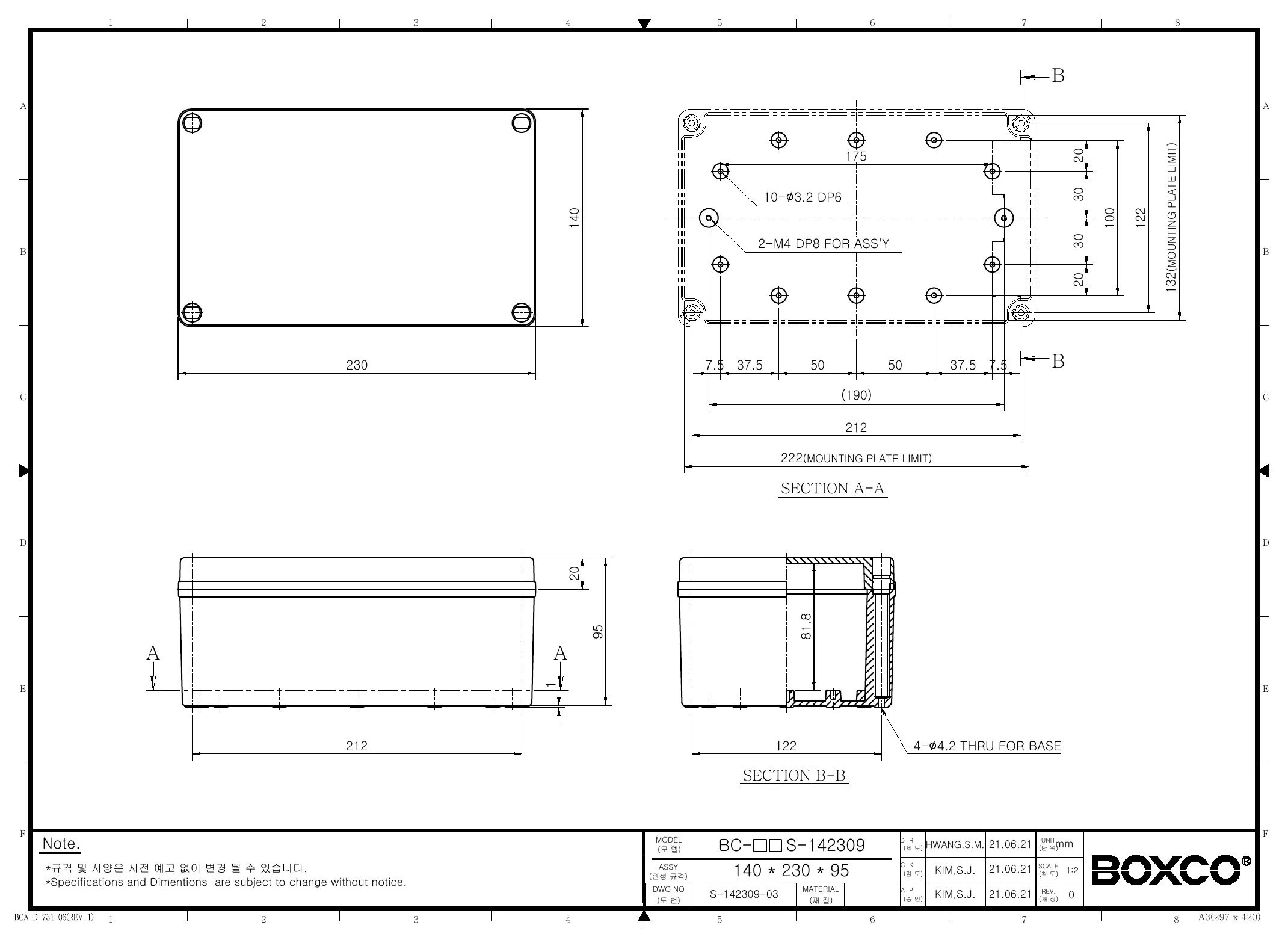

Technical drawings

BC-CGS-142309 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This model is suited for protecting electronics and control components that need a durable non-metallic enclosure with strong dust and water resistance. Its anti-static PC construction, IK08 impact rating, and internal mounting features make it a practical choice for industrial control, instrumentation, and outdoor equipment housings.

Can this enclosure be used outdoors?

Yes, this Boxco S-Series enclosure is designed for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, reducing visible color change over long-term exposure.

How well does this enclosure resist water, dust, and impact?

This model is rated IP67 and IK08. That means it is built for strong protection against dust ingress, water exposure, and mechanical impact in demanding environments.

What are the size and material details for this enclosure?

The enclosure measures 5.51 x 9.06 x 3.74 inches, which is 140 x 230 x 95 mm. It is made from polycarbonate (PC) and comes with a grey cover in a screw-type design.

What internal mounting options does this enclosure support?

This model includes internal mounting plate attachment points and pre-molded mounting screw nuts. Those features help support mounting plates, DIN rail, or other internal equipment more securely inside the enclosure.

What operating temperature range can this enclosure handle?

This enclosure is specified for use from -40 degrees C to 110 degrees C. That wide temperature range makes it suitable for both cold and high-heat operating environments where standard plastic enclosures may be less suitable.
