Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

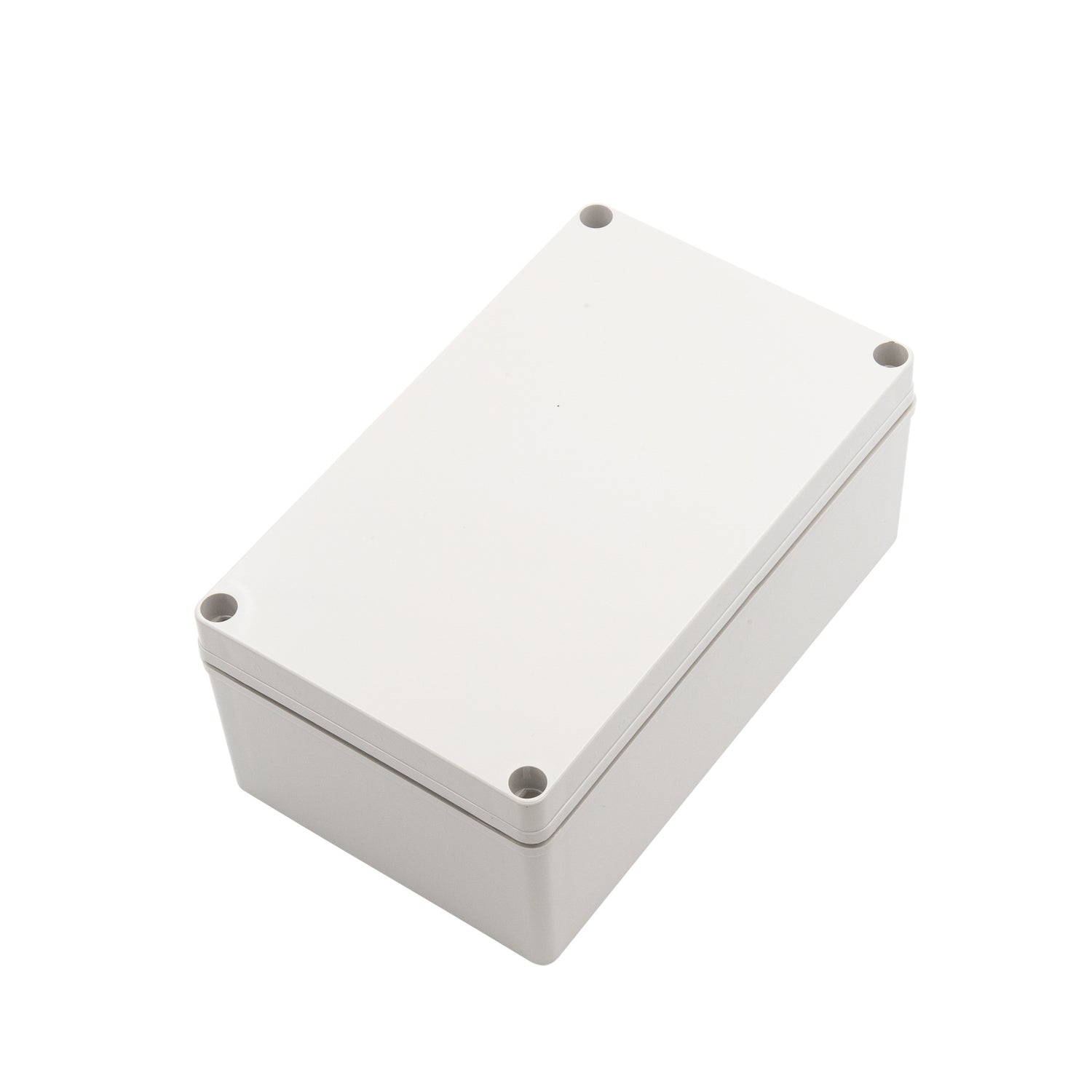

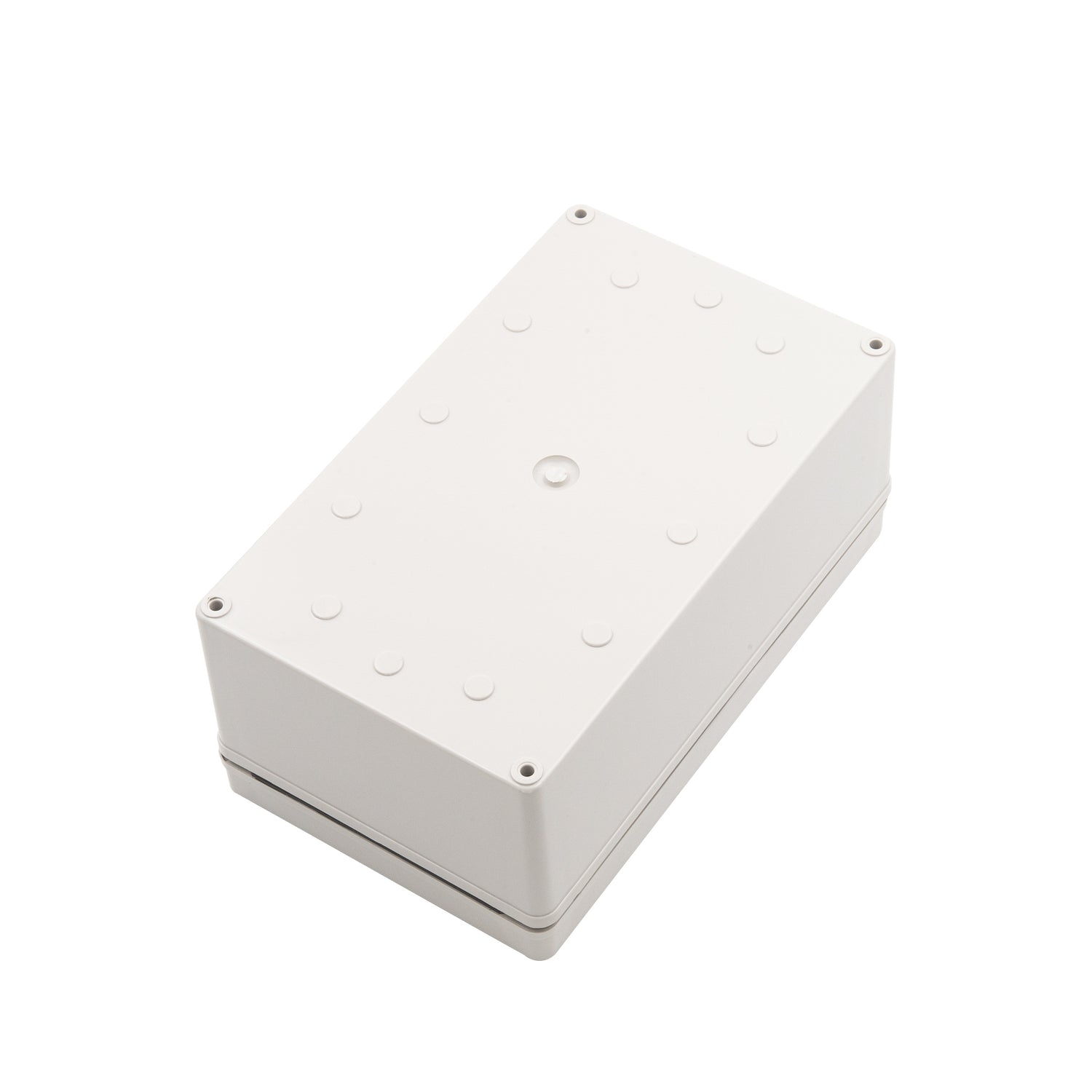

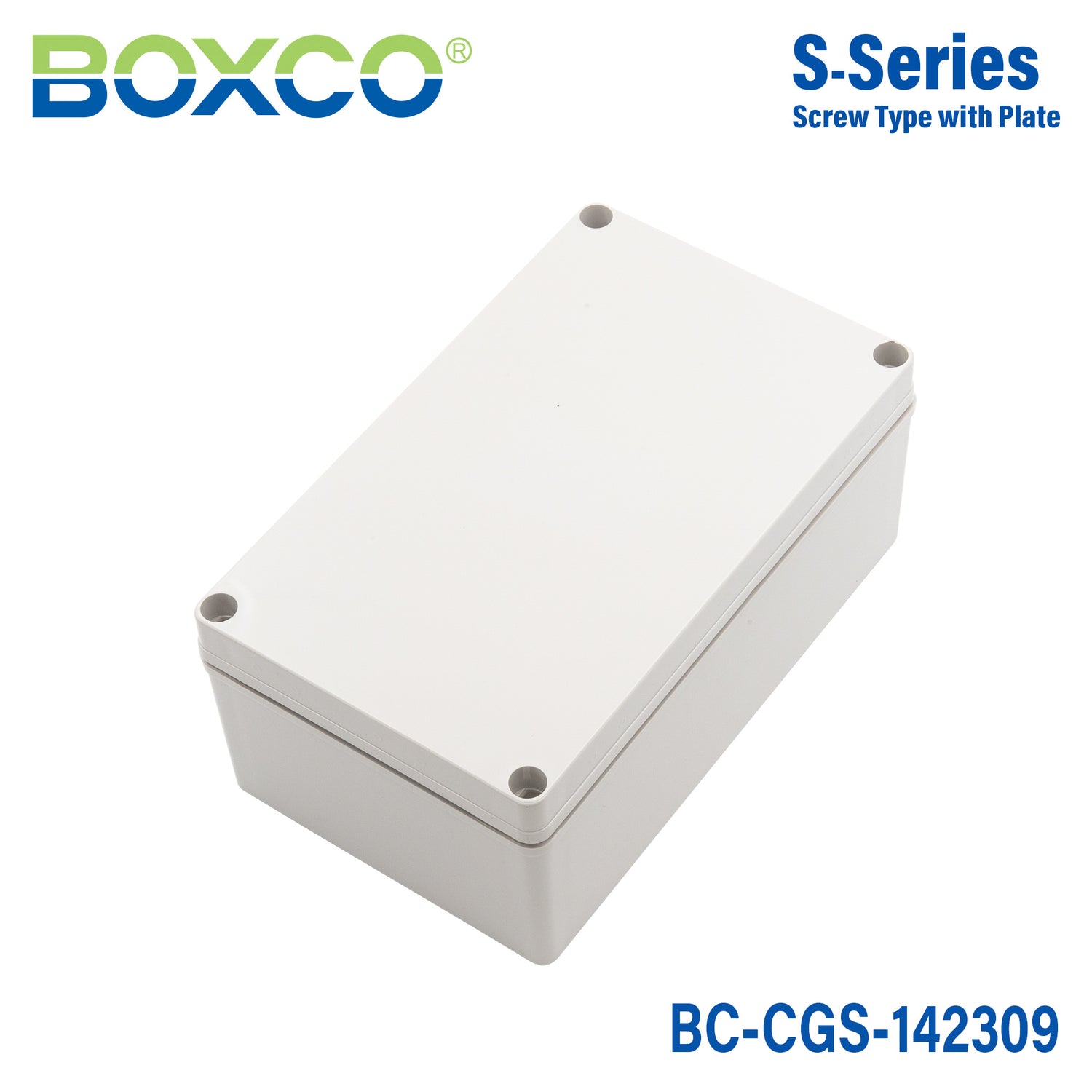

Boxco S-Series 140x230x95mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU:

BC-CGS-142309

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

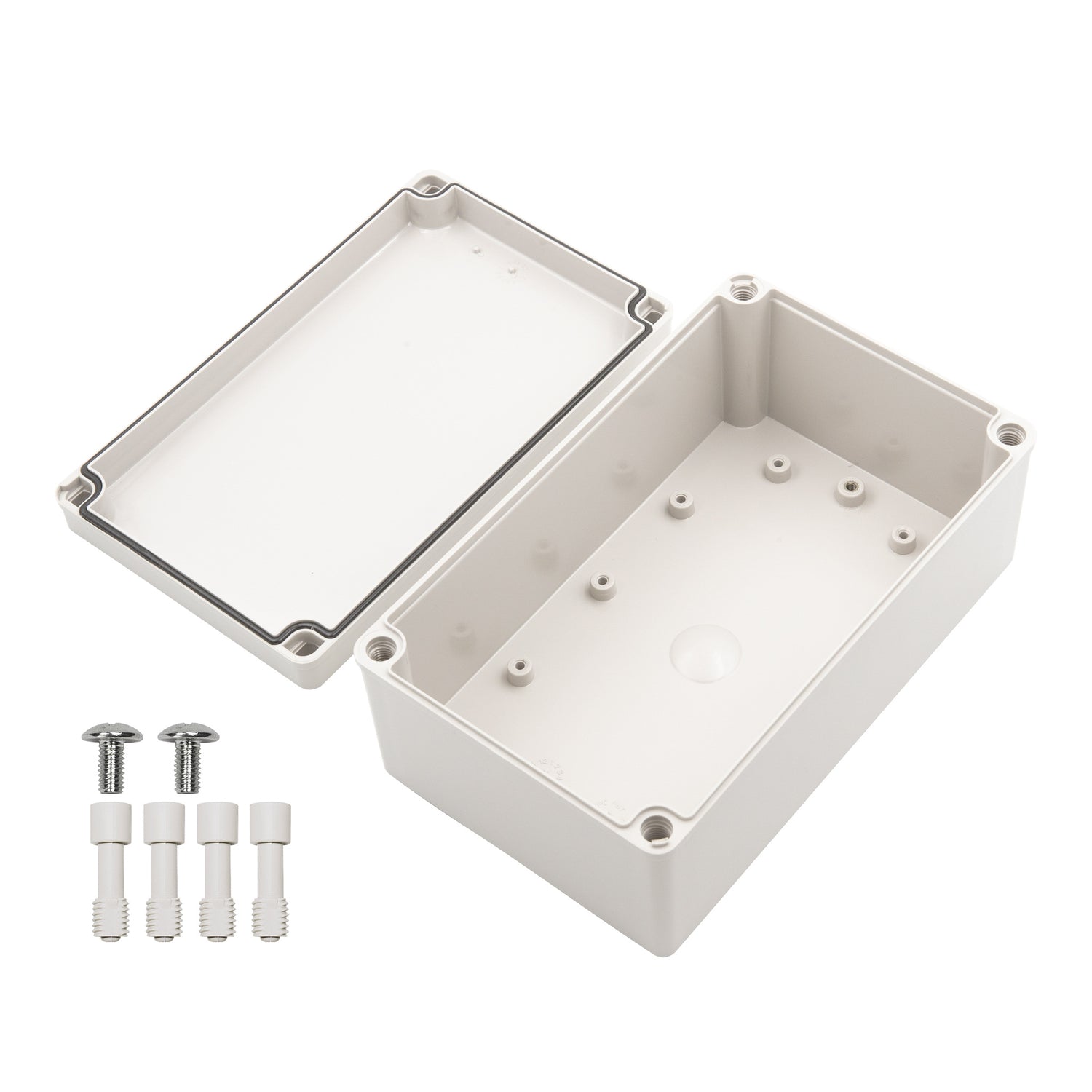

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~110°C
Warranty

1 Year
Length

14 cm
Width

23 cm
Height

9.5 cm
Weight

0.91 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco S-Series enclosure best suited for?

This model is suited for protecting electronics and control components that need a durable non-metallic enclosure with strong dust and water resistance. Its anti-static PC construction, IK08 impact rating, and internal mounting features make it a practical choice for industrial control, instrumentation, and outdoor equipment housings.

Can this enclosure be used outdoors?

Yes, this Boxco S-Series enclosure is designed for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, reducing visible color change over long-term exposure.

How well does this enclosure resist water, dust, and impact?

This model is rated IP67 and IK08. That means it is built for strong protection against dust ingress, water exposure, and mechanical impact in demanding environments.

What are the size and material details for this enclosure?

The enclosure measures 5.51 x 9.06 x 3.74 inches, which is 140 x 230 x 95 mm. It is made from polycarbonate (PC) and comes with a grey cover in a screw-type design.

What internal mounting options does this enclosure support?

This model includes internal mounting plate attachment points and pre-molded mounting screw nuts. Those features help support mounting plates, DIN rail, or other internal equipment more securely inside the enclosure.

What operating temperature range can this enclosure handle?

This enclosure is specified for use from -40 degrees C to 110 degrees C. That wide temperature range makes it suitable for both cold and high-heat operating environments where standard plastic enclosures may be less suitable.
