Boxco

Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-192818
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CTS-192818 is a 190×280×180 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-192818Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×280×180 mm (7.48×11.02×7.09 in)
Mounting plate dimension M1 × M2
159 × 249 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1928 PG (Plastic, PG type), 1928 P (Plastic, P type), 1928 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

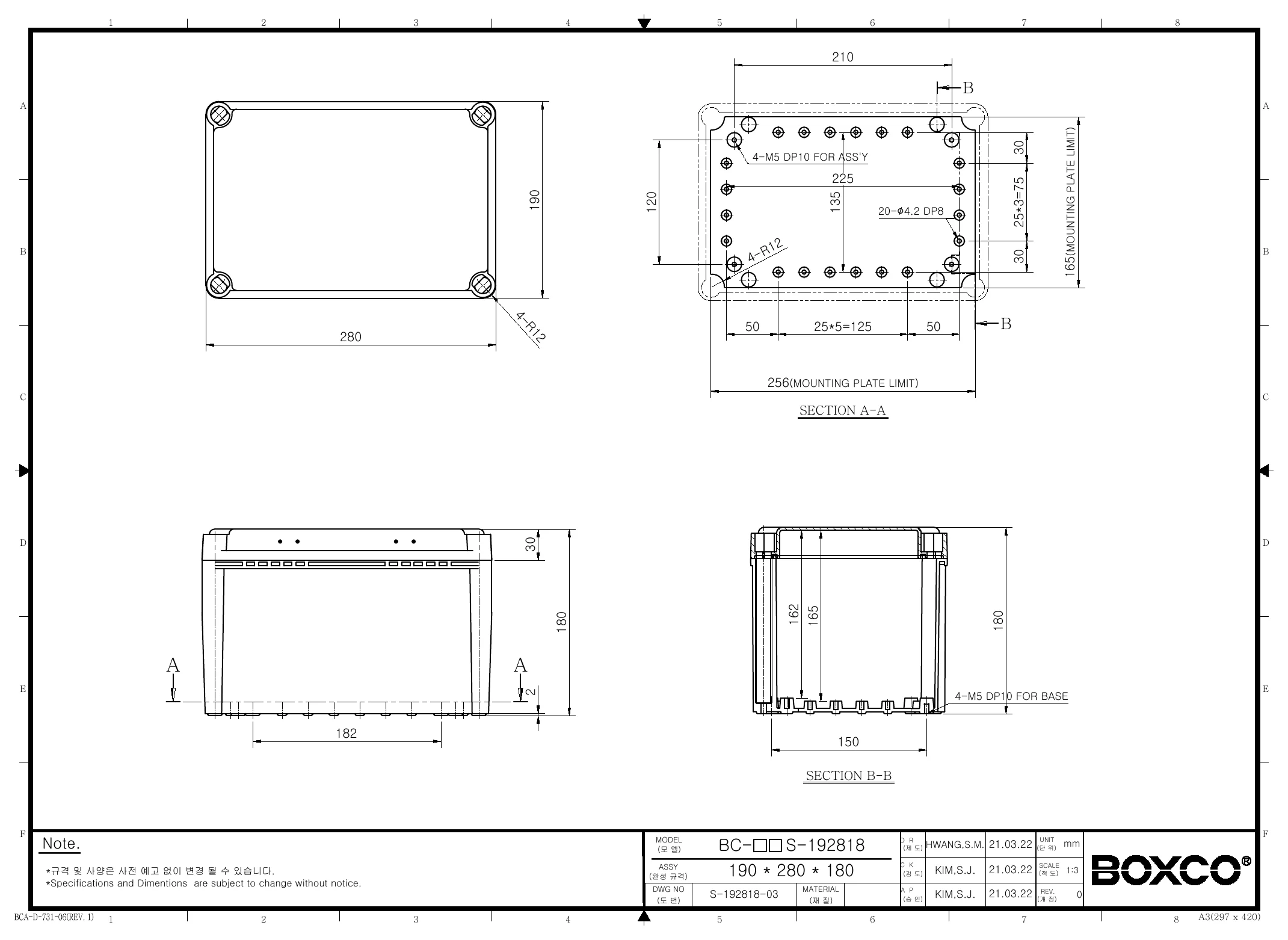

BC-CTS-192818 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This enclosure is designed for protecting electrical or electronic equipment in industrial and commercial environments where dust, water, and impact resistance matter. Its transparent cover also makes it useful when internal components need to remain visible without opening the box.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its IP67 rating also supports use in demanding environments where water and dust protection are important.

What are the key protection ratings for this model?

This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. Those ratings make it a strong choice for applications where the enclosure may face harsh surroundings or accidental external impact.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and includes a transparent cover. The description also notes high impact resistance, anti-static material for sensitive electronic instruments, and UV stabilization for improved outdoor durability.

What size is this Boxco enclosure?

The enclosure size is 7.48 x 11.02 x 7.09 inches, which is also listed as 190 x 280 x 180 mm. This makes it appropriate for applications that need a relatively large plastic enclosure with room for internal components and accessories.

What temperature range can this enclosure handle?

This model has a stated operating temperature range of -40 °C to 110 °C. That wide range makes it suitable for environments exposed to both low and high temperatures, depending on the overall system design.

Does this enclosure support internal mounting accessories?

Yes. The description highlights internal mounting plate attachment points with brass inserted injection molding, along with pre-molded mounting screw nuts for securing compatible internal equipment such as DIN rail hardware. These built-in features help support heavier internal assemblies compared with a basic empty box.
