Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

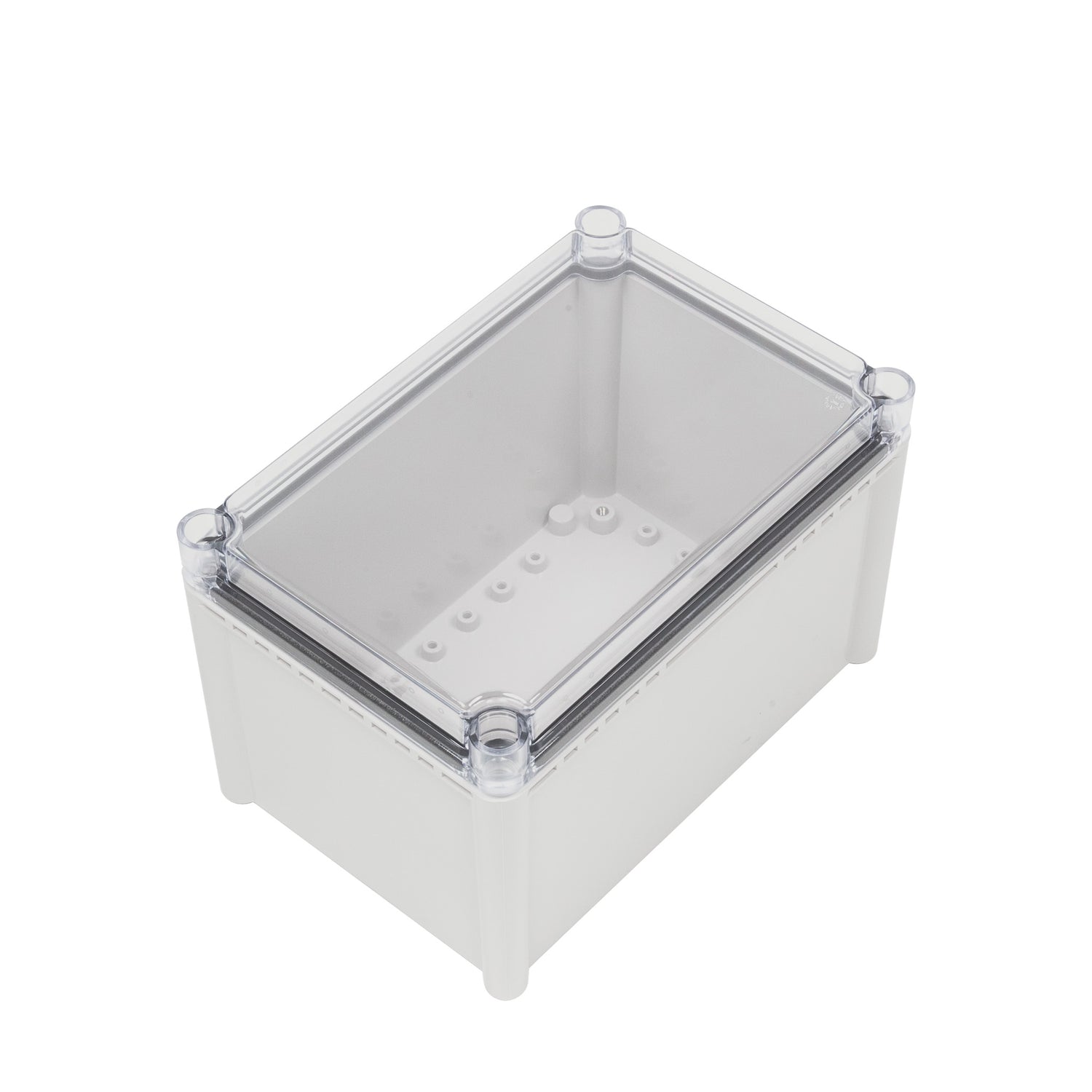

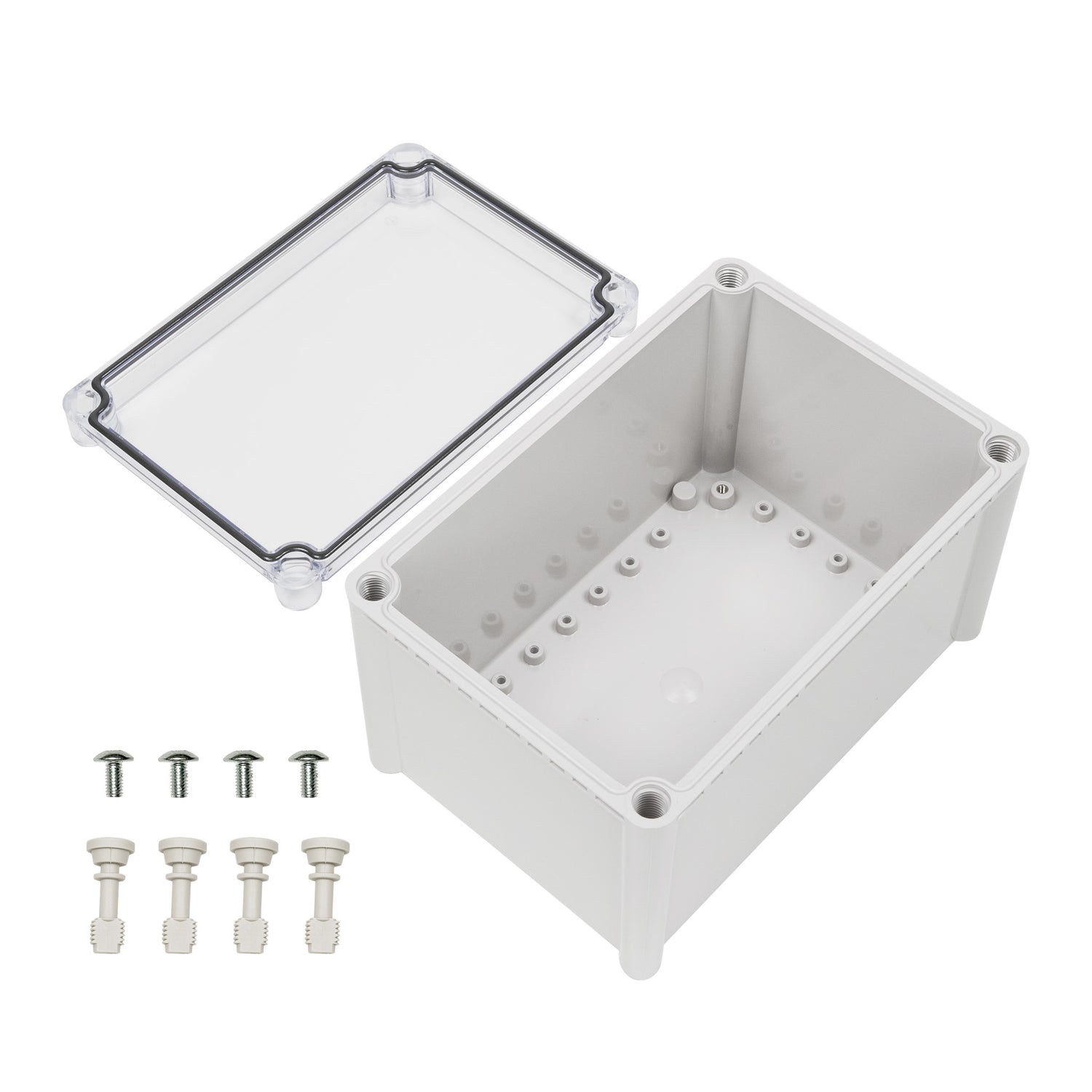

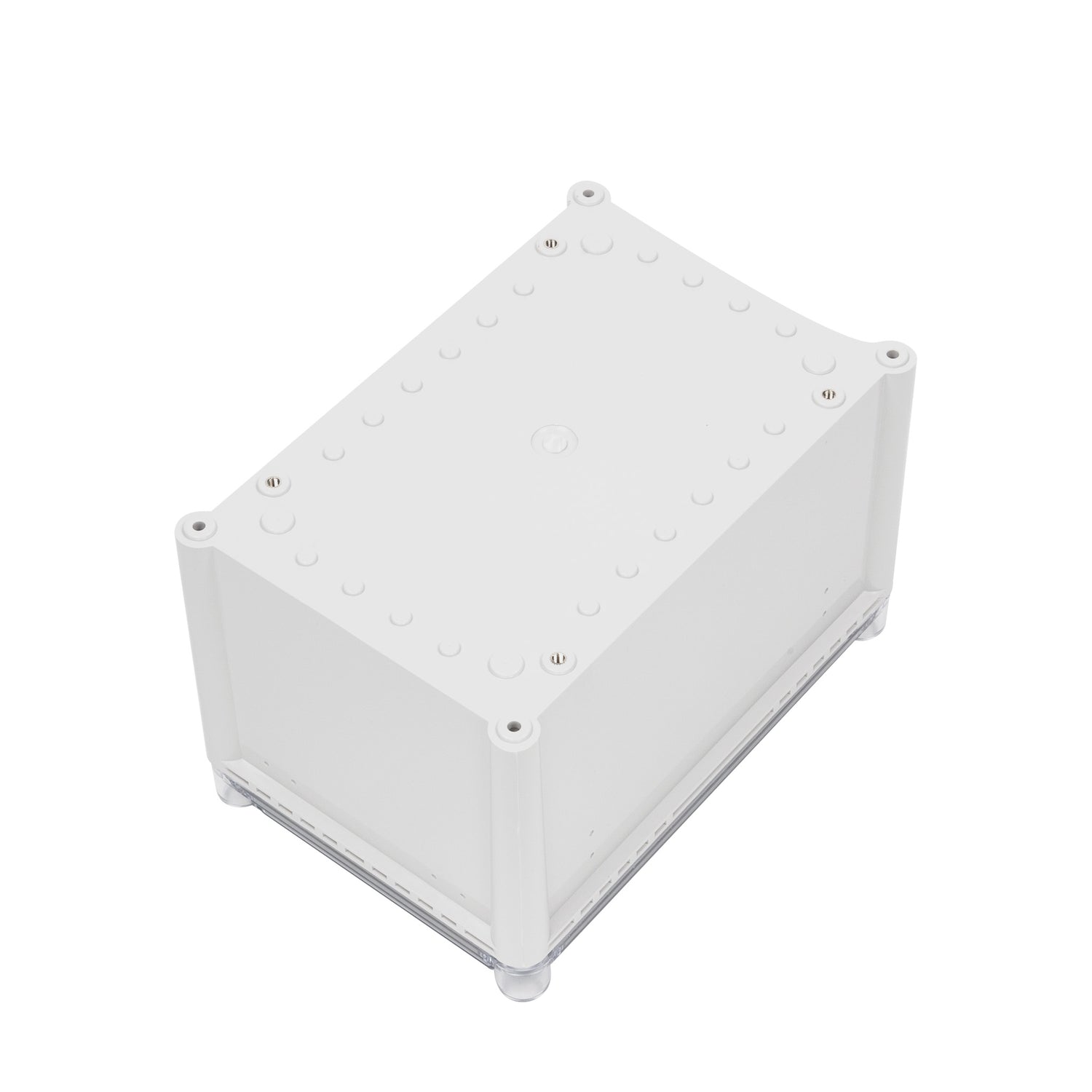

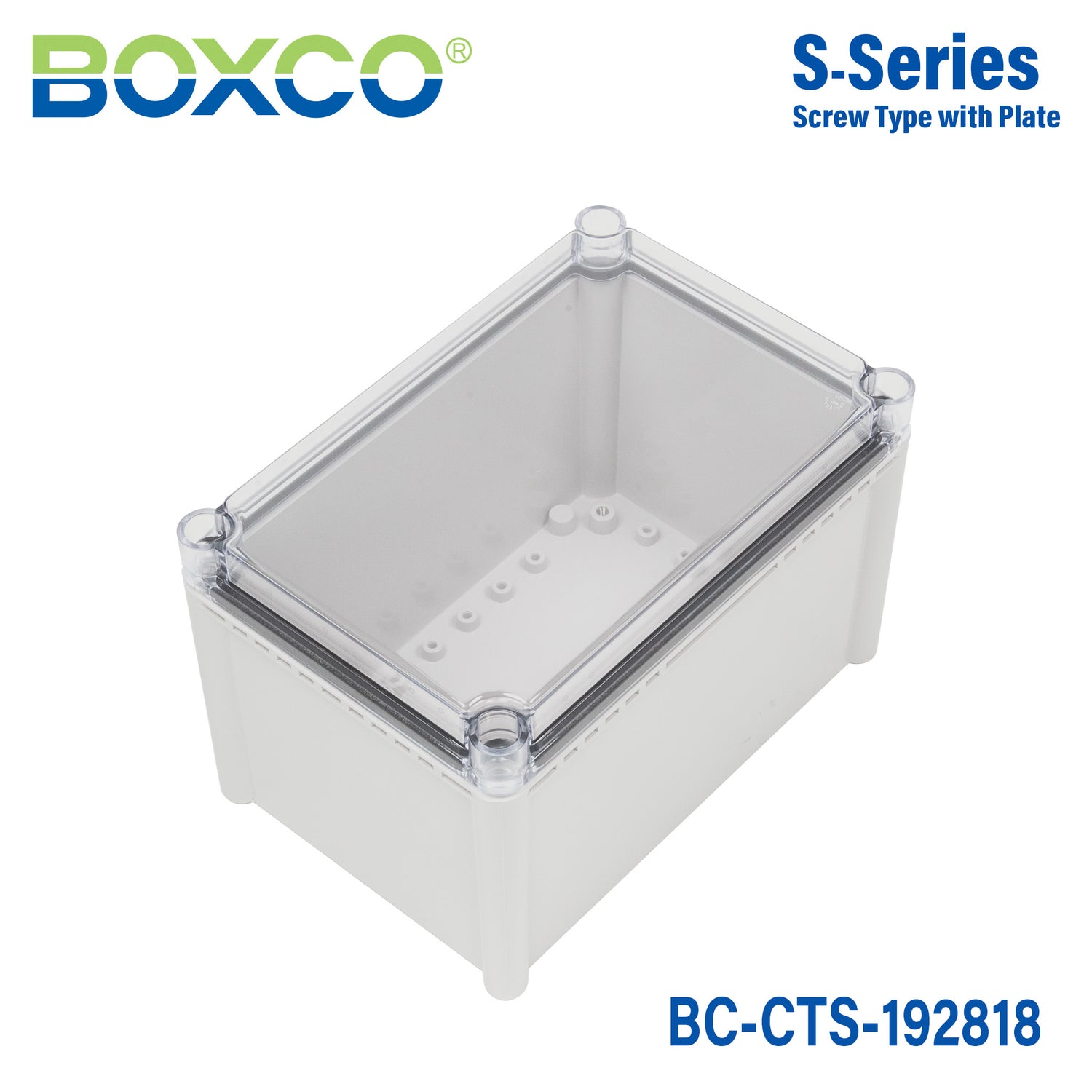

Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU:

BC-CTS-192818

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~110°C
Warranty

1 Year
Length

19 cm
Width

28 cm
Height

18 cm
Weight

1.23 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco S-Series enclosure best suited for?

This enclosure is designed for protecting electrical or electronic equipment in industrial and commercial environments where dust, water, and impact resistance matter. Its transparent cover also makes it useful when internal components need to remain visible without opening the box.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its IP67 rating also supports use in demanding environments where water and dust protection are important.

What are the key protection ratings for this model?

This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. Those ratings make it a strong choice for applications where the enclosure may face harsh surroundings or accidental external impact.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and includes a transparent cover. The description also notes high impact resistance, anti-static material for sensitive electronic instruments, and UV stabilization for improved outdoor durability.

What size is this Boxco enclosure?

The enclosure size is 7.48 x 11.02 x 7.09 inches, which is also listed as 190 x 280 x 180 mm. This makes it appropriate for applications that need a relatively large plastic enclosure with room for internal components and accessories.

What temperature range can this enclosure handle?

This model has a stated operating temperature range of -40 °C to 110 °C. That wide range makes it suitable for environments exposed to both low and high temperatures, depending on the overall system design.

Does this enclosure support internal mounting accessories?

Yes. The description highlights internal mounting plate attachment points with brass inserted injection molding, along with pre-molded mounting screw nuts for securing compatible internal equipment such as DIN rail hardware. These built-in features help support heavier internal assemblies compared with a basic empty box.
