Boxco

Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-193818
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-193818 is a 190×380×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-193818Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
190×380×180 mm (7.48×14.96×7.09 in)
Mounting plate dimension M1 × M2
159 × 347 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1938 P (Plastic, P type), 1938 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

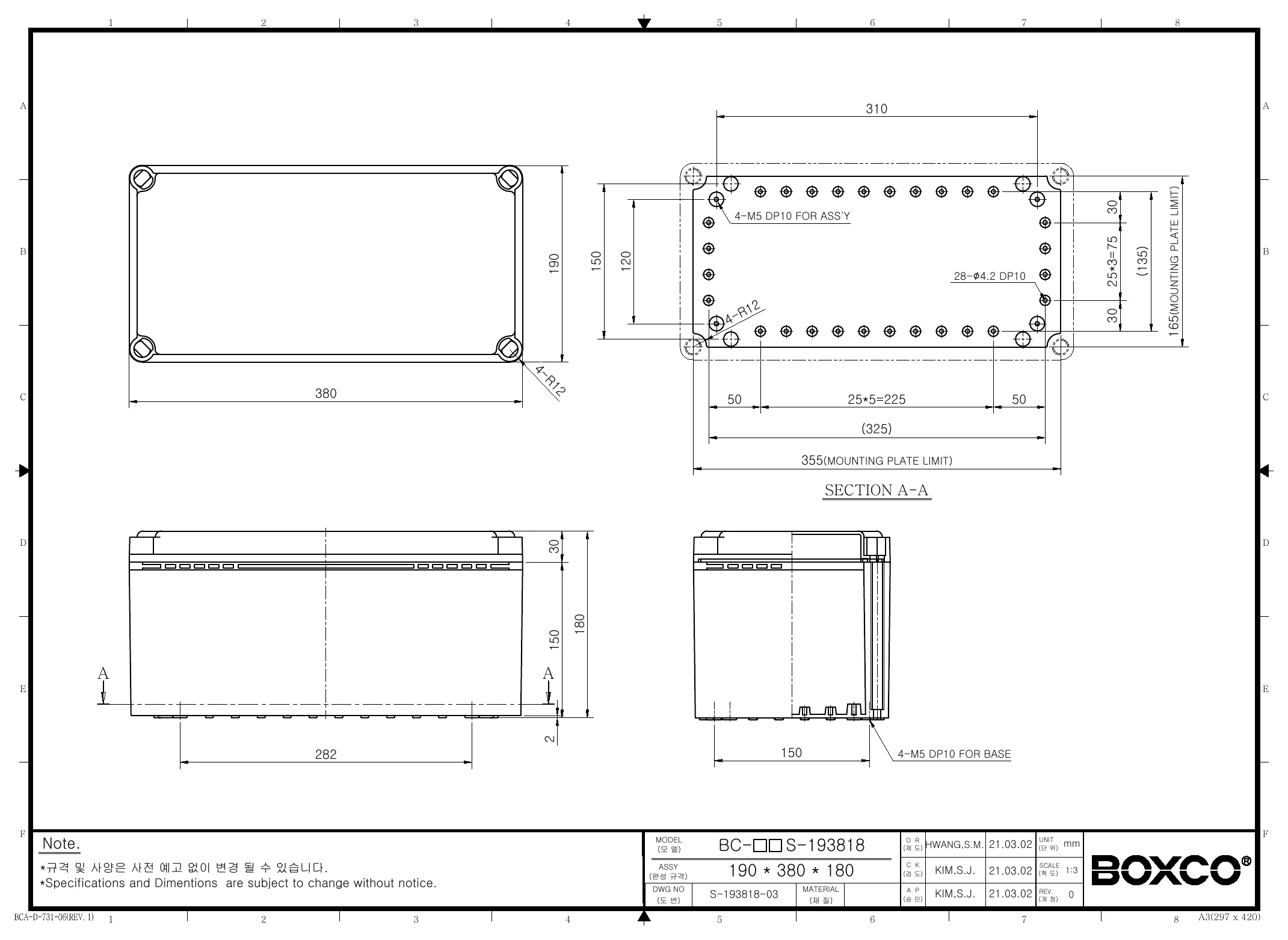

Technical drawings

BC-CGS-193818 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This model is suited for industrial and commercial equipment that needs a durable non-metallic enclosure with strong environmental protection. Its large 190 x 380 x 180 mm size and internal mounting features make it a practical choice for control, automation, and instrumentation housings.

Is this enclosure suitable for outdoor environments?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. Its IP67 rating also supports strong protection against dust and water ingress in demanding environments.

How durable is this plastic enclosure in harsh conditions?

This enclosure is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. It is made from polycarbonate and described as high impact resistant, which helps it withstand external impact and mechanical processing.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 110 °C. That wide operating range makes it appropriate for both cold and high-heat environments where standard plastic enclosures may be less suitable.

Does this enclosure support internal mounting hardware or accessories?

Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding for securely fixing a mounting plate. It also has pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment mounting.

What distinguishes this screw-type enclosure from other enclosure cover styles?

This model uses a screw-type cover, and Boxco notes that the cover bolt attachment threads are formed during injection molding for maximum strength. That makes it a strong choice when a more secure cover fastening method is preferred.

What are the key specifications of this specific model?

This is the Boxco S-Series model BC-CGS-193818 with overall dimensions of 7.48 x 14.96 x 7.09 inches (190 x 380 x 180 mm). It has a grey cover, polycarbonate construction, IP67 and IK08 ratings, a listed weight of 1.561 kg, and a 1-year warranty.
