Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 280x560x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-285613
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-285613 is a 280×560×130 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-ATS-285613Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×560×130 mm (11.02×22.05×5.12 in)
Mounting plate dimension M1 × M2
251 × 531 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2856 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

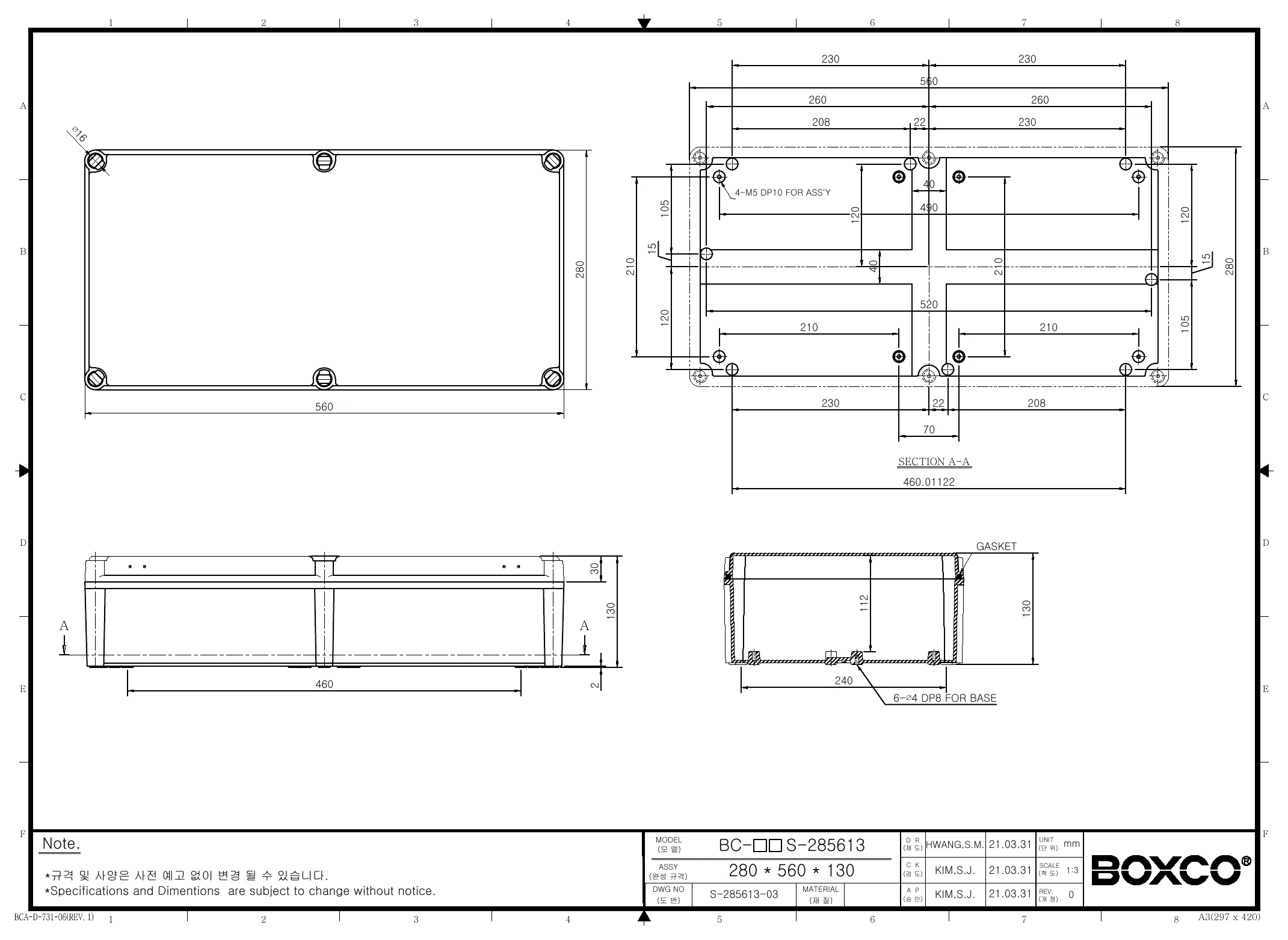

Technical drawings

BC-ATS-285613 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This enclosure is suited for protecting industrial and commercial equipment that needs a durable non-metallic housing. Its anti-static ABS construction and internal mounting plate attachment points make it a practical choice for housing sensitive electronic instruments and heavier internal components.

Is this enclosure suitable for outdoor environments?

Yes. This model includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports use where strong protection against dust and water ingress is required.

What level of environmental protection does this enclosure provide?

This model is rated IP67 and IK08. That means it is designed for strong protection against dust and water ingress, while also offering solid impact resistance for demanding environments.

What are the dimensions and material of this enclosure?

This Boxco S-Series enclosure measures 11.02 x 22.05 x 5.12 inches, which corresponds to 280 x 560 x 130 mm. It is made from ABS plastic and includes a transparent cover with a screw-type closure.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where temperature swings are a concern.

What mounting and equipment support features are included in this enclosure?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding to support securely mounted internal hardware. It also has pre-molded mounting screw nuts that allow DIN rail or other equipment to be fixed inside the enclosure body.

How does this model differ from a standard plastic enclosure?

This model stands out with its IP67 and IK08 ratings, anti-static material, UV-stabilized ABS construction, and transparent screw-type cover. It is also designed with enclosure-specific features such as gasket sealing, mounting plate attachment points, and pre-molded screw nuts for internal equipment support.
