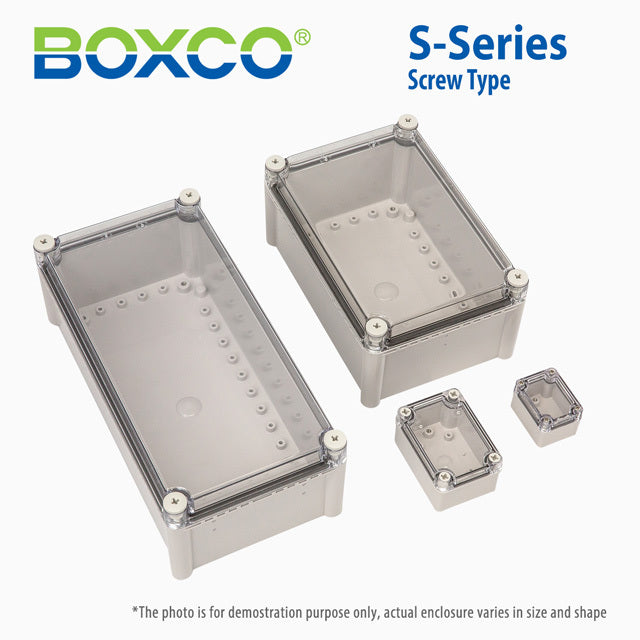

Boxco S-Series 280x560x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-285613

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

28 cm
Width

56 cm
Height

13 cm
Weight

2.27 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco S-Series enclosure best suited for?

This enclosure is suited for protecting industrial and commercial equipment that needs a durable non-metallic housing. Its anti-static ABS construction and internal mounting plate attachment points make it a practical choice for housing sensitive electronic instruments and heavier internal components.

Is this enclosure suitable for outdoor environments?

Yes. This model includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports use where strong protection against dust and water ingress is required.

What level of environmental protection does this enclosure provide?

This model is rated IP67 and IK08. That means it is designed for strong protection against dust and water ingress, while also offering solid impact resistance for demanding environments.

What are the dimensions and material of this enclosure?

This Boxco S-Series enclosure measures 11.02 x 22.05 x 5.12 inches, which corresponds to 280 x 560 x 130 mm. It is made from ABS plastic and includes a transparent cover with a screw-type closure.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where temperature swings are a concern.

What mounting and equipment support features are included in this enclosure?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding to support securely mounted internal hardware. It also has pre-molded mounting screw nuts that allow DIN rail or other equipment to be fixed inside the enclosure body.

How does this model differ from a standard plastic enclosure?

This model stands out with its IP67 and IK08 ratings, anti-static material, UV-stabilized ABS construction, and transparent screw-type cover. It is also designed with enclosure-specific features such as gasket sealing, mounting plate attachment points, and pre-molded screw nuts for internal equipment support.
