Boxco

Boxco S-Series 50x65x45mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-050604
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-050604 is a 50×65×45 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-050604Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
50×65×45 mm (1.97×2.56×1.77 in)
Mounting plate dimension M1 × M2
40 × 55 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0506 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

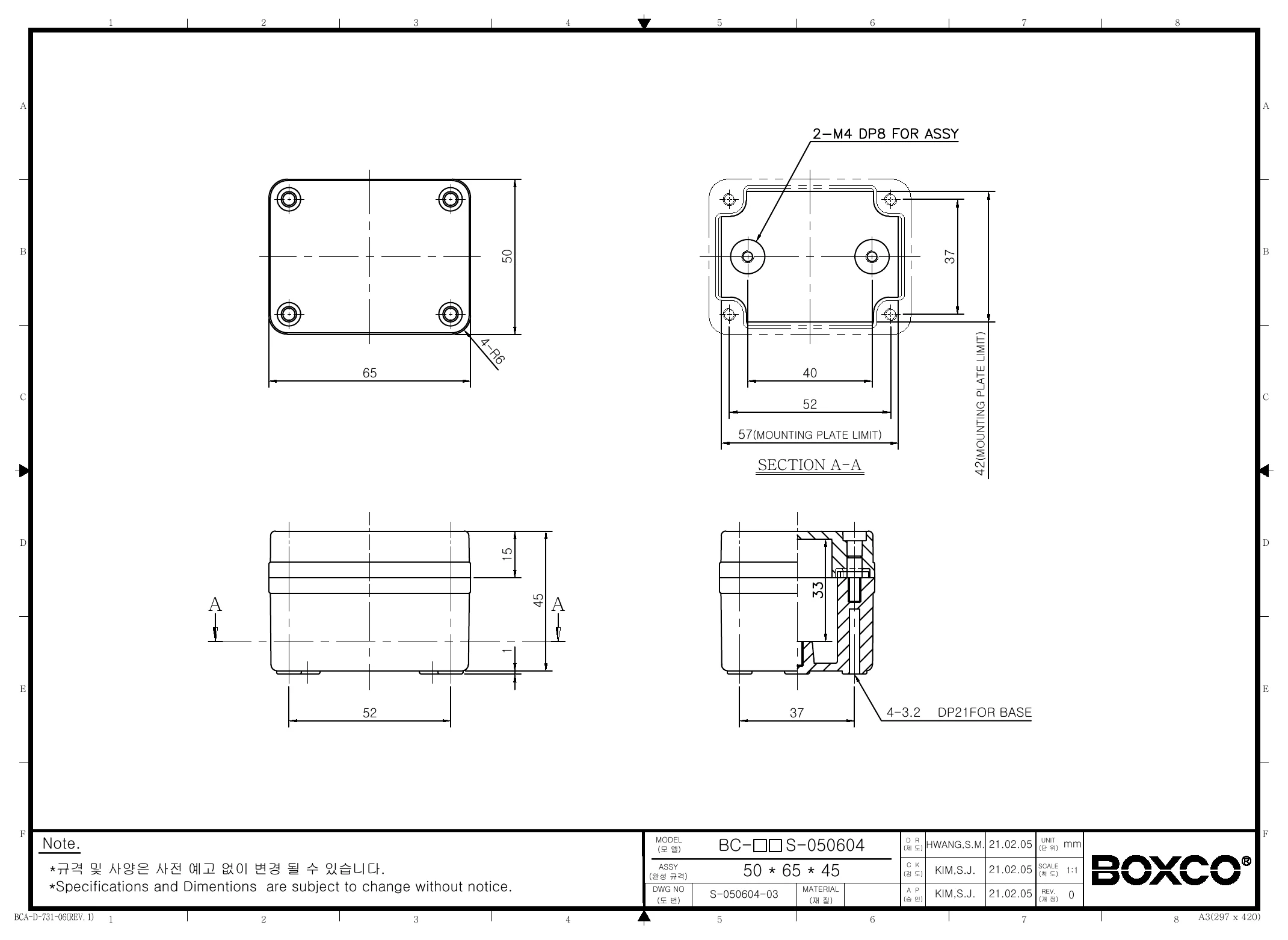

Technical drawings

BC-CGS-050604 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CGS-050604 enclosure suited for?

This enclosure is suited for protecting small electronic components and control devices in industrial or commercial environments where dust and water resistance matter. Its compact 50 x 65 x 45 mm size makes it a fit for space-constrained enclosures, instrument housings, and general-purpose equipment protection.

Is this enclosure appropriate for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor usage and reduce visible color change over time. Its IP67 rating also supports use in environments where protection from dust and temporary water exposure is important.

What material is this model made from?

This model is made from polycarbonate (PC) and has a grey cover. The product description also notes anti-static material use and high impact resistance, which helps protect sensitive electronic instruments and improves durability during processing.

How durable is the BC-CGS-050604 enclosure in demanding environments?

This model is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. Boxco also describes it as using high impact resistant material, with molded screw threads and brass-inserted mounting points to support strength in practical use.

What temperature range can this plastic enclosure handle?

The listed operating temperature range for this model is -40 °C to 110 °C. That range makes it suitable for use across both low-temperature and elevated-temperature environments within those limits.

What mounting or internal hardware features does this enclosure include?

The product description specifies internal mounting plate attachment points with brass inserted injection molding and pre-molded mounting screw nuts. These features are intended to help support mounting plates, DIN rail, or other internal equipment inside the enclosure.
