Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

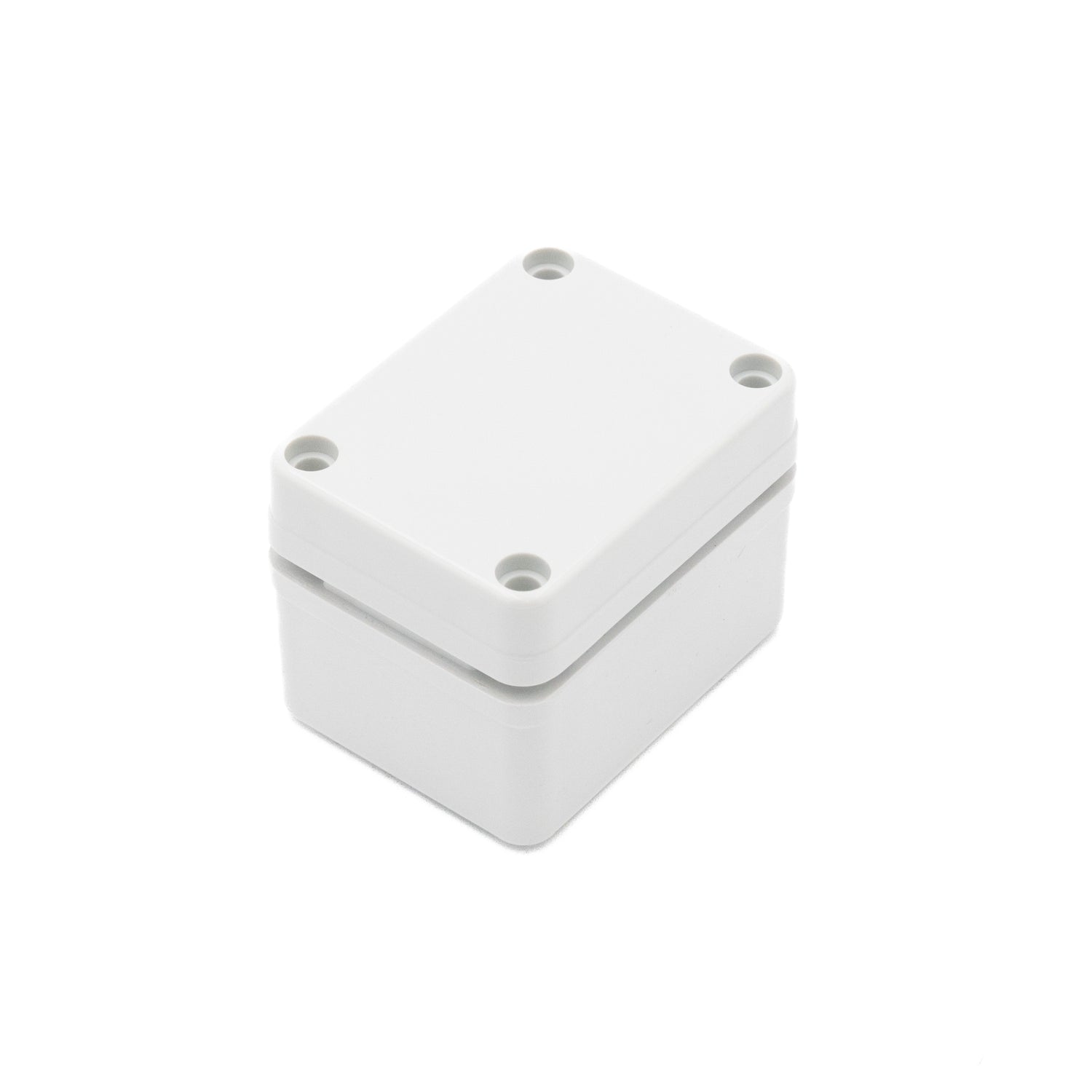

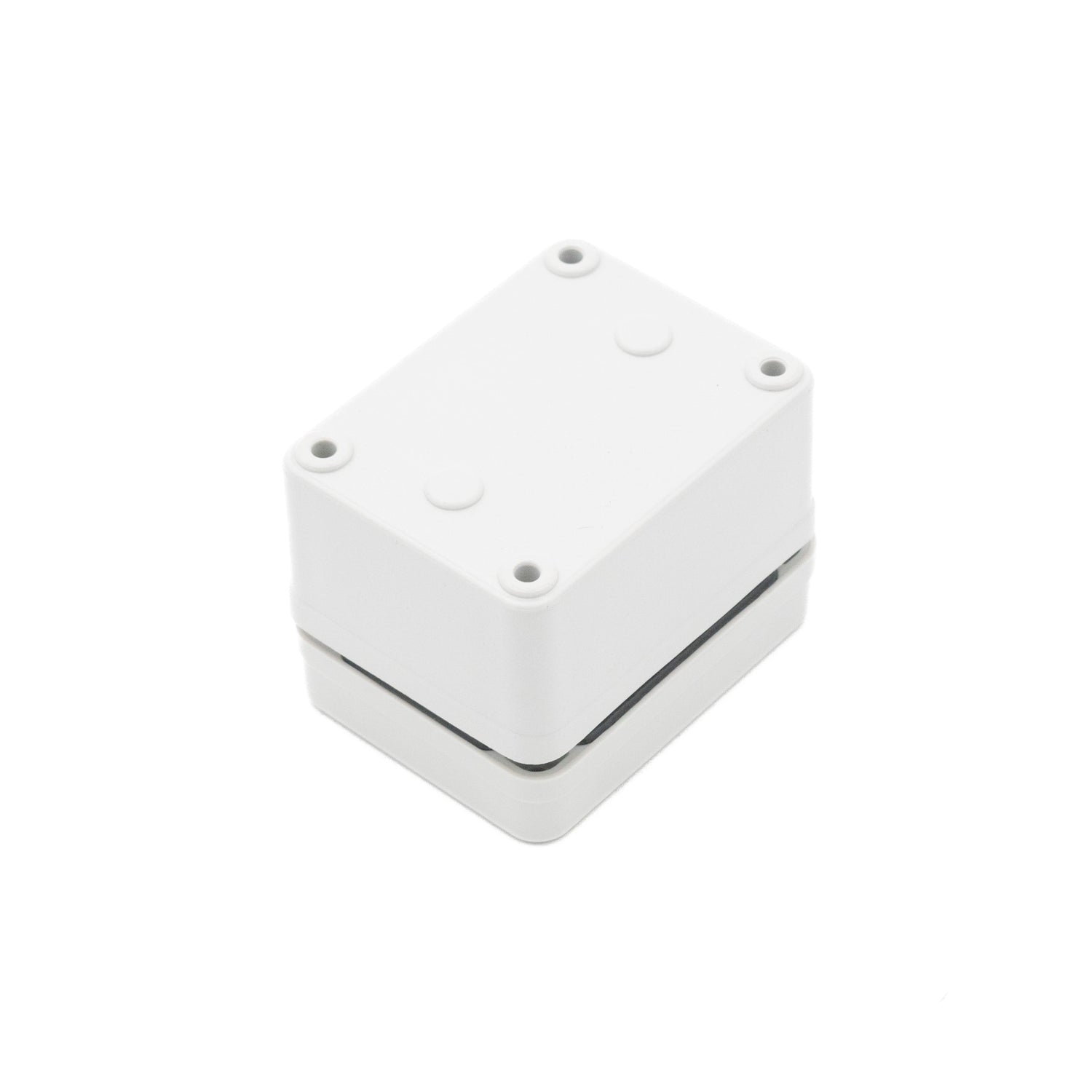

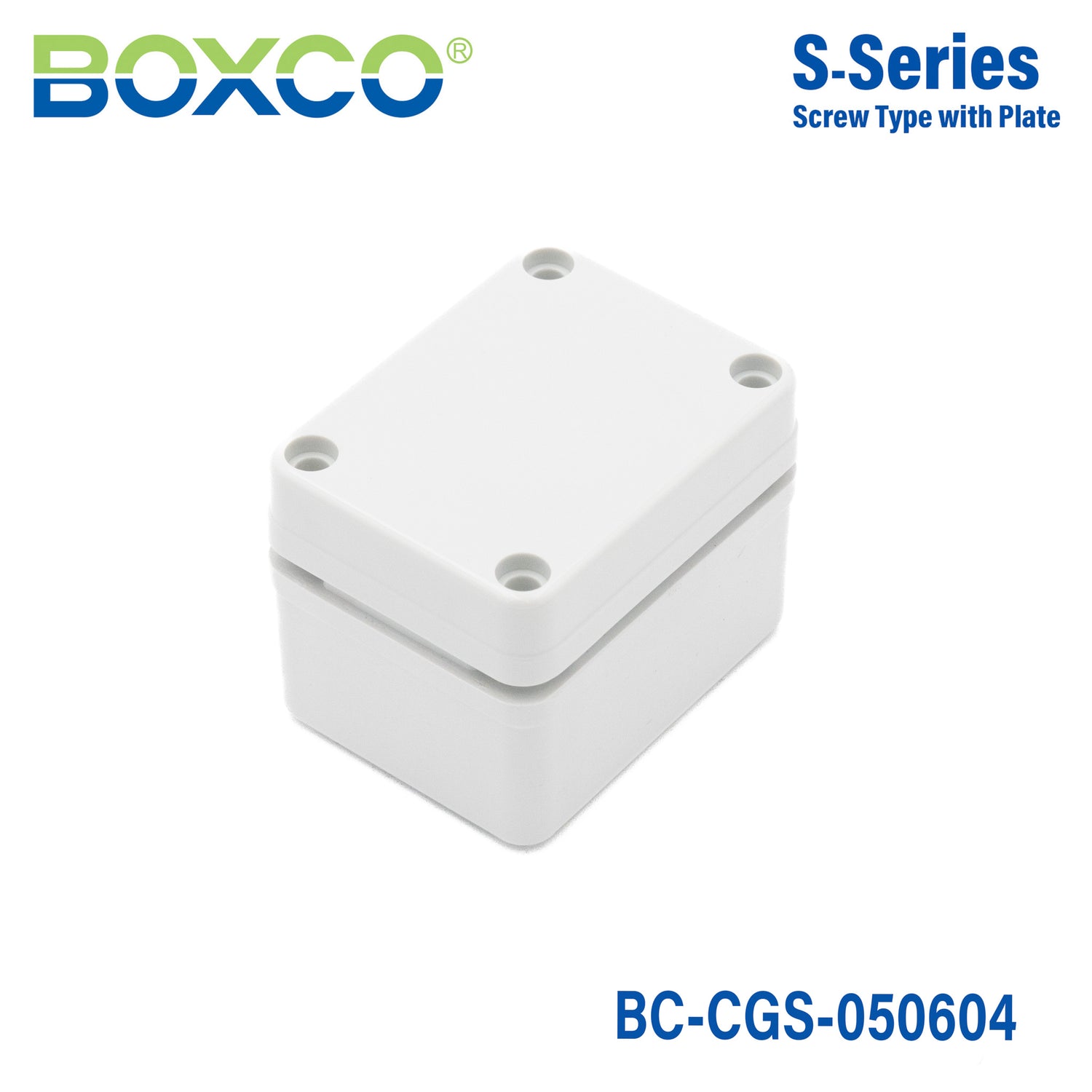

Boxco S-Series 50x65x45mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU:

BC-CGS-050604

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

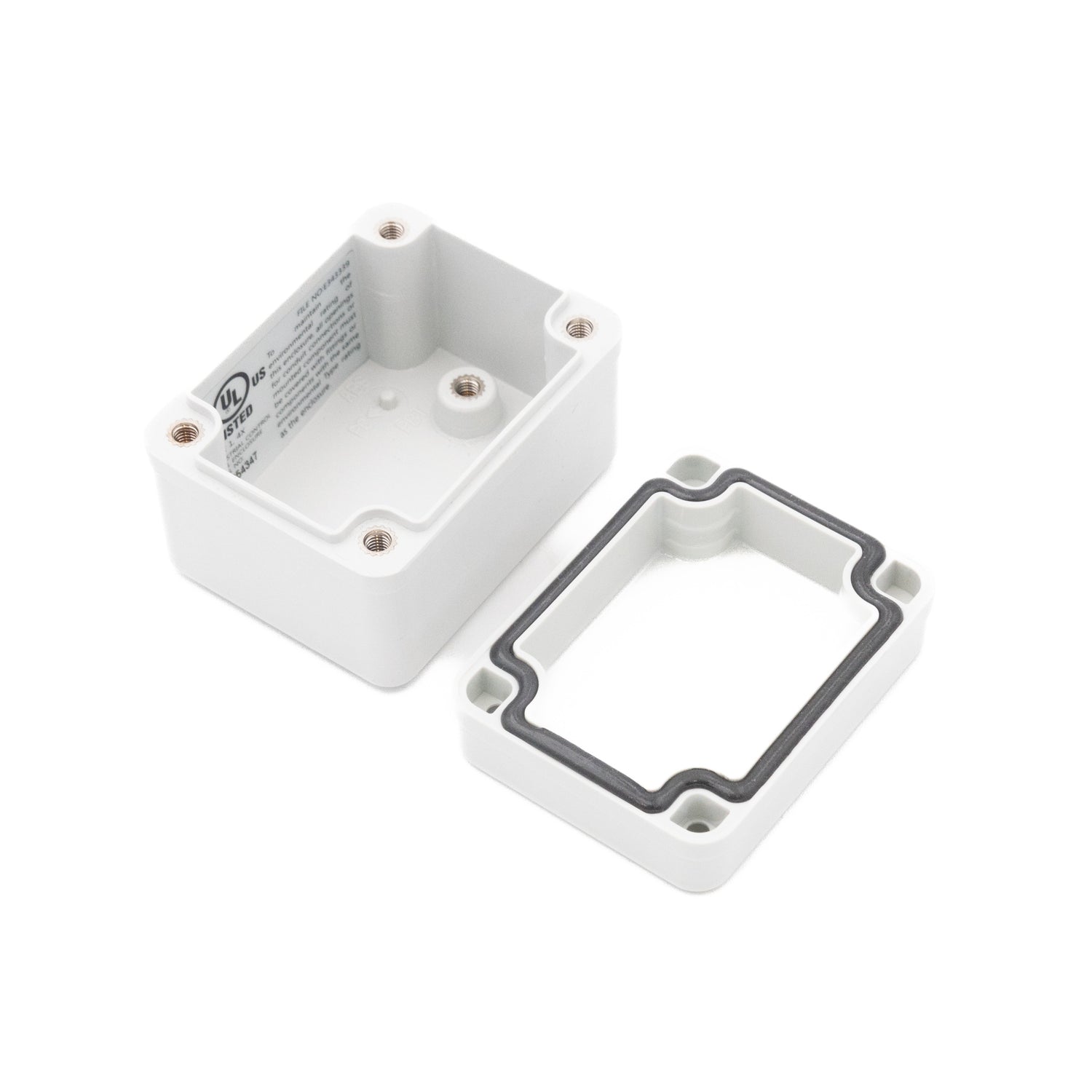

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~110°C
Warranty

1 Year
Length

5 cm
Width

6.5 cm
Height

4.5 cm
Weight

0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series BC-CGS-050604 enclosure suited for?

This enclosure is suited for protecting small electronic components and control devices in industrial or commercial environments where dust and water resistance matter. Its compact 50 x 65 x 45 mm size makes it a fit for space-constrained enclosures, instrument housings, and general-purpose equipment protection.

Is this enclosure appropriate for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor usage and reduce visible color change over time. Its IP67 rating also supports use in environments where protection from dust and temporary water exposure is important.

What material is this model made from?

This model is made from polycarbonate (PC) and has a grey cover. The product description also notes anti-static material use and high impact resistance, which helps protect sensitive electronic instruments and improves durability during processing.

How durable is the BC-CGS-050604 enclosure in demanding environments?

This model is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. Boxco also describes it as using high impact resistant material, with molded screw threads and brass-inserted mounting points to support strength in practical use.

What temperature range can this plastic enclosure handle?

The listed operating temperature range for this model is -40 °C to 110 °C. That range makes it suitable for use across both low-temperature and elevated-temperature environments within those limits.

What mounting or internal hardware features does this enclosure include?

The product description specifies internal mounting plate attachment points with brass inserted injection molding and pre-molded mounting screw nuts. These features are intended to help support mounting plates, DIN rail, or other internal equipment inside the enclosure.

Model	Material	Cover
Boxco S-Series 330x430x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 280x380x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x110x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 65x95x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 150x250x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 80x180x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 280x560x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 200x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 100x230x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x190x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 200x200x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 125x125x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 125x125x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 50x65x55mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 200x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x250x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x130x85mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 80x110x45mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x130x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 190x380x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 190x380x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 150x200x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 150x150x75mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 100x200x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
Boxco S-Series 190x280x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type	PC	Transparent	View
Boxco S-Series 150x200x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 140x170x95mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x180x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80×180×70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 80x80x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type	PC	Grey	View
Boxco S-Series 200x200x100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type	ABS	Transparent	View
Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type	ABS	Grey	View
