Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x130x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081308
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-081308 is a 80×130×85 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-081308Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×85 mm (3.15×5.12×3.35 in)
Mounting plate dimension M1 × M2
65 × 115 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0813 P (Plastic, P type), 0813 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

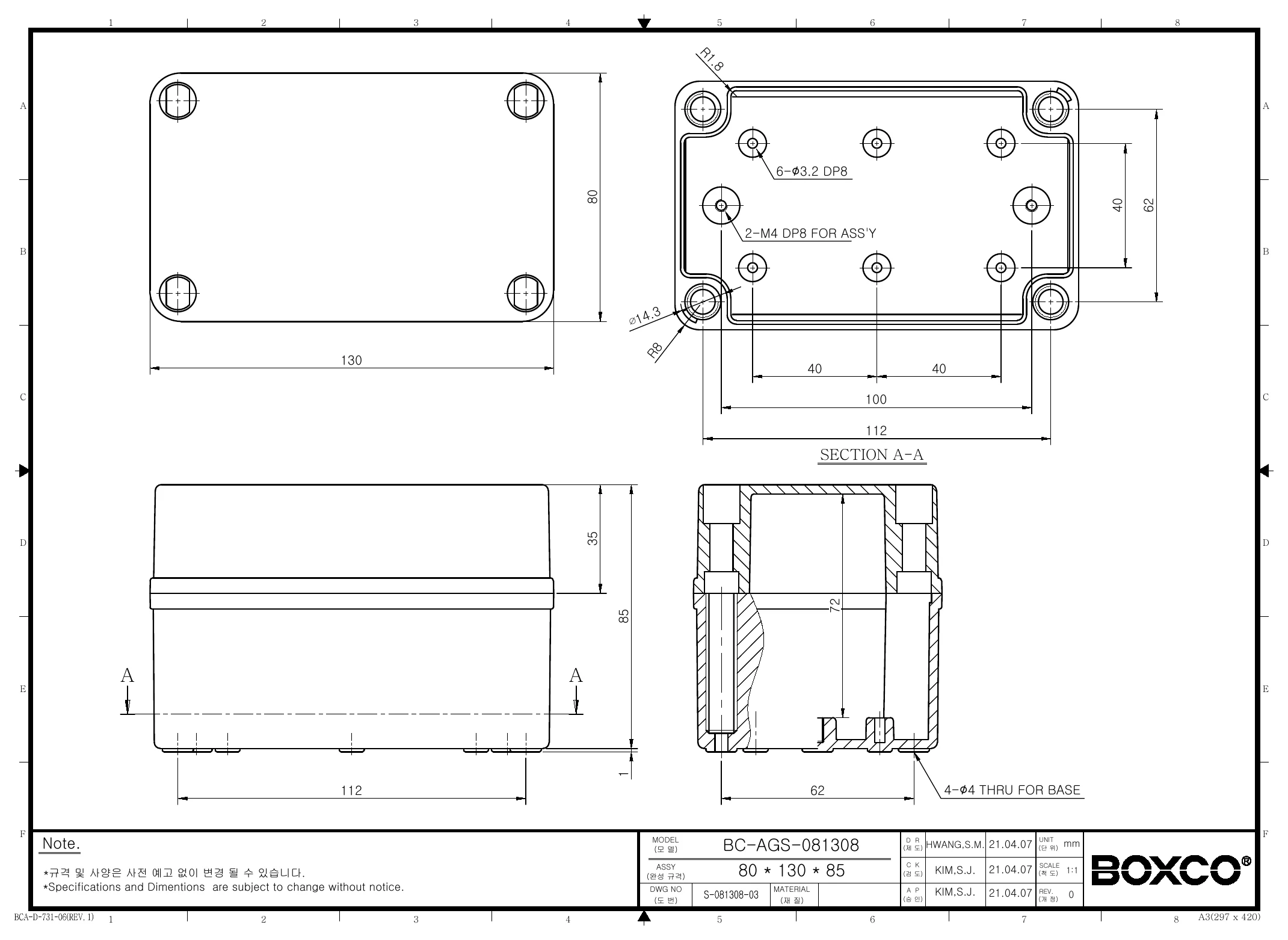

Technical drawings

BC-CGS-081308 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series plastic enclosure suited for?

This enclosure is suited for protecting electronic components and instruments in industrial or outdoor environments where dust, moisture, and impact resistance matter. Its anti-static polycarbonate construction and internal mounting features make it a practical choice for control, monitoring, and protection applications.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to help protect it during outdoor use and reduce visible color change over time. Its IP67 rating also supports use in wet and dusty environments when enclosure integrity is maintained.

What are the key protection ratings for this model?

This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. Those ratings make it a strong option where the enclosure may be exposed to harsh environmental conditions or incidental mechanical impact.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and includes anti-static material to help protect sensitive electronic instruments from static electricity. Boxco also describes the housing as high-impact resistant, which supports durability during use and processing.

What are the dimensions and weight of this enclosure?

The enclosure measures 3.15 x 5.12 x 3.35 inches, which corresponds to 80 x 130 x 85 mm. Its listed weight is 0.256 kg, making it a compact option for applications that need a rugged but relatively lightweight housing.

What temperature range can this enclosure handle?

This model has a stated operating temperature range of -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low-temperature and elevated-temperature environments within those limits.

What features support mounting components inside the enclosure?

This enclosure includes internal mounting plate attachment points with brass inserted injection molding for secure mounting of heavier equipment. It also has pre-molded mounting screw nuts that can be used to secure compatible internal hardware such as DIN rail accessories.

How does this screw-type enclosure differ from more basic plastic boxes?

This model stands out with its IP67 and IK08 ratings, UV-stabilized polycarbonate construction, anti-static properties, and molded internal mounting features. Compared with a basic unsealed plastic box, it is designed for stronger environmental protection, better durability, and more demanding industrial use.
