Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

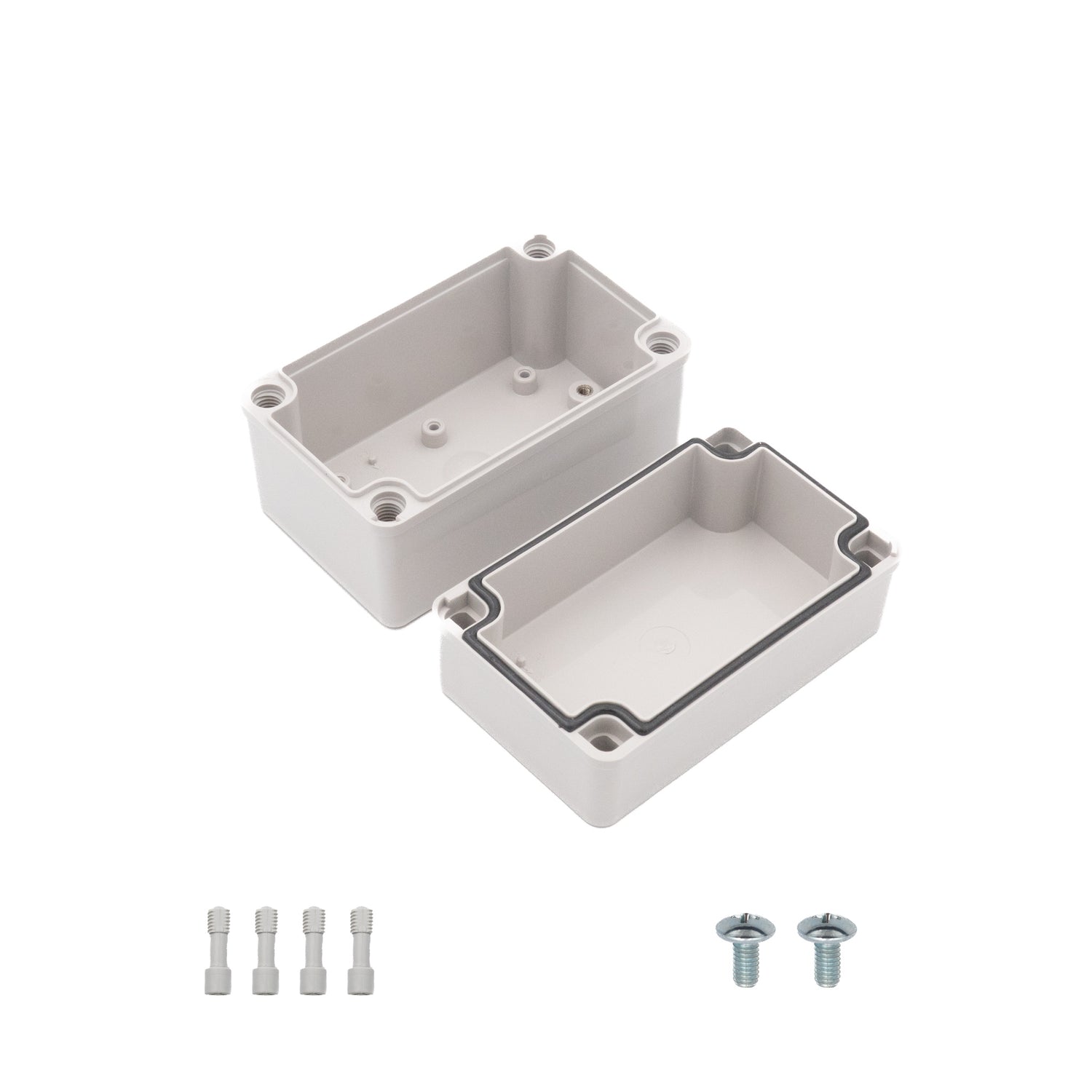

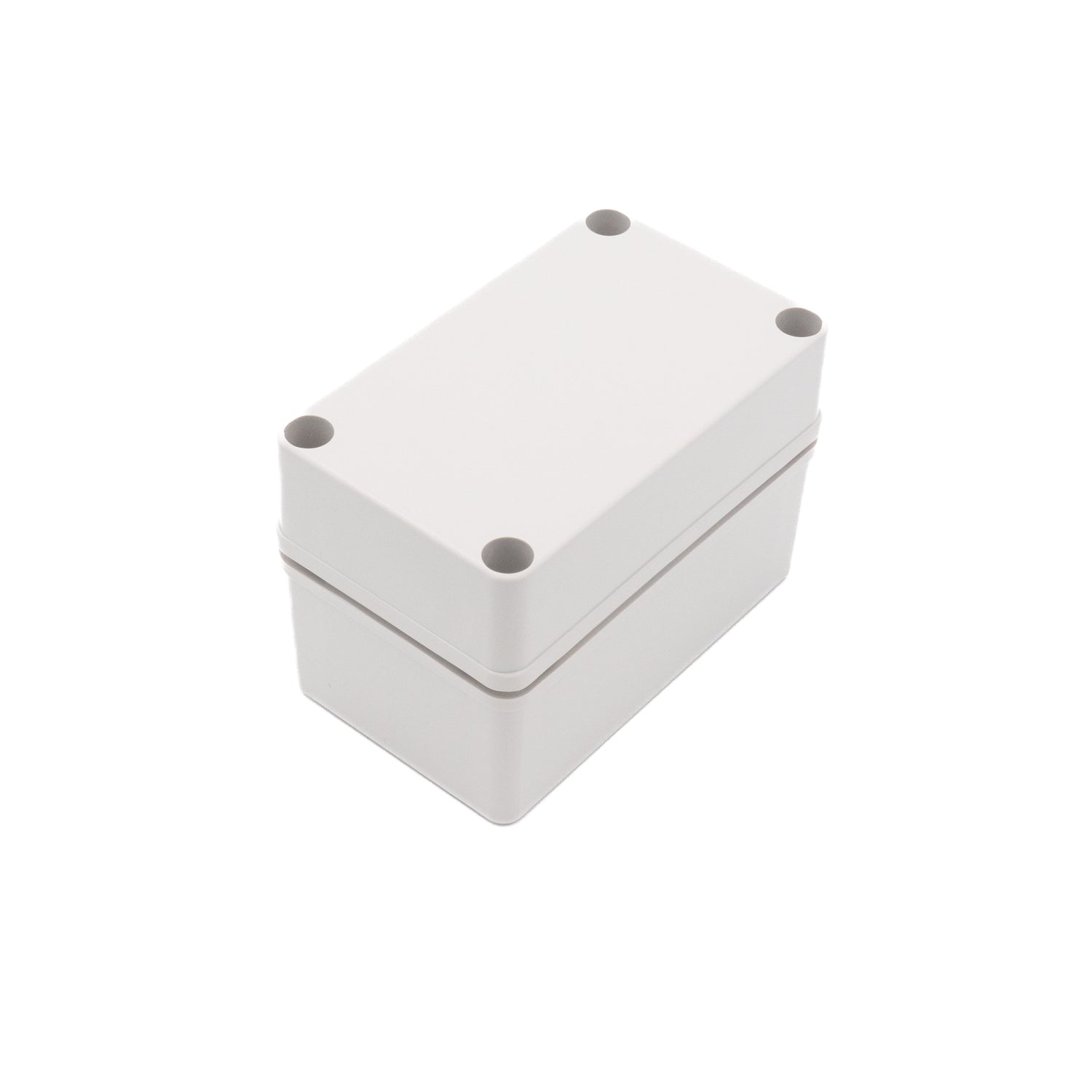

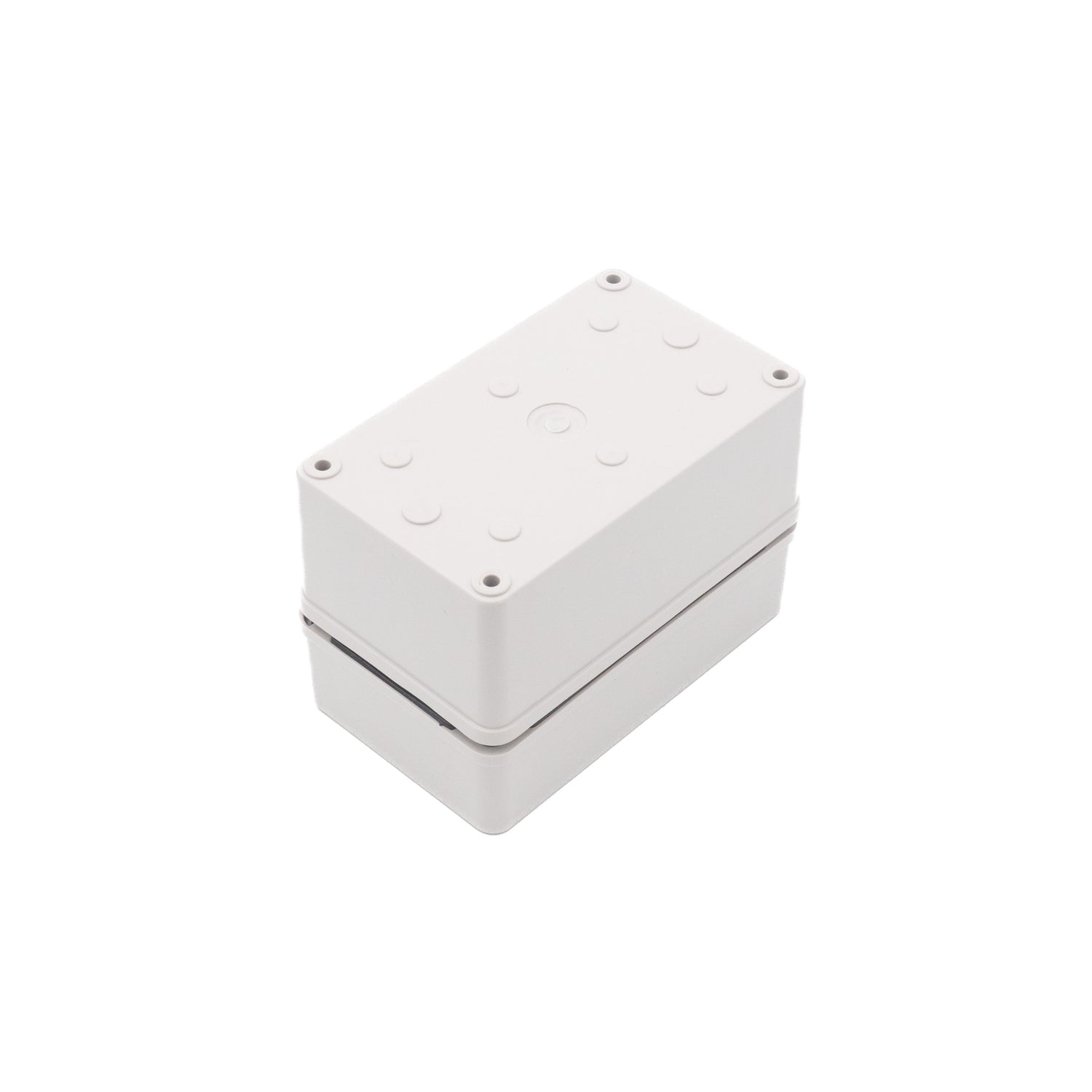

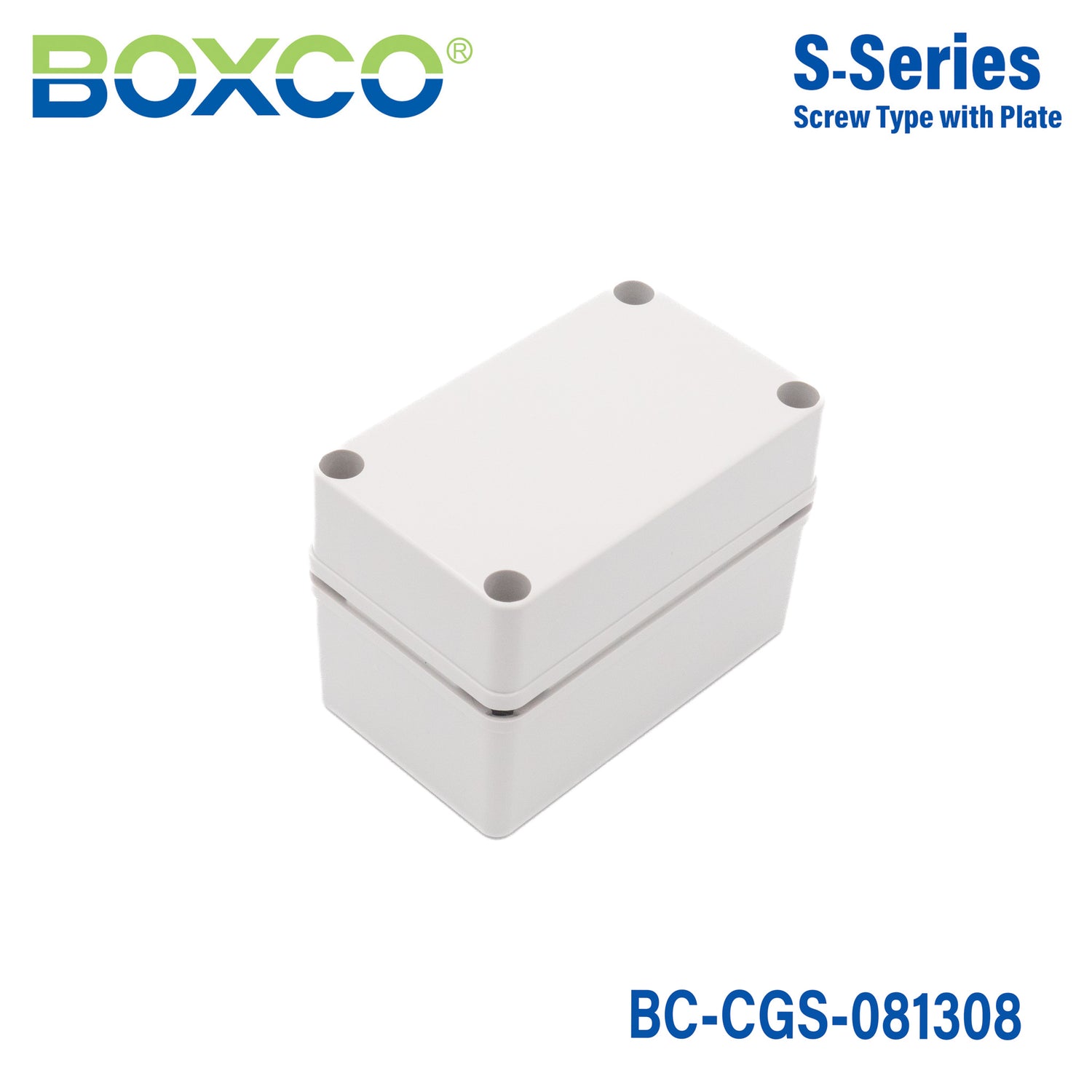

Boxco S-Series 80x130x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU:

BC-CGS-081308

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~110°C
Warranty

1 Year
Length

8 cm
Width

13 cm
Height

8.5 cm
Weight

0.26 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco S-Series plastic enclosure suited for?

This enclosure is suited for protecting electronic components and instruments in industrial or outdoor environments where dust, moisture, and impact resistance matter. Its anti-static polycarbonate construction and internal mounting features make it a practical choice for control, monitoring, and protection applications.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to help protect it during outdoor use and reduce visible color change over time. Its IP67 rating also supports use in wet and dusty environments when enclosure integrity is maintained.

What are the key protection ratings for this model?

This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. Those ratings make it a strong option where the enclosure may be exposed to harsh environmental conditions or incidental mechanical impact.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and includes anti-static material to help protect sensitive electronic instruments from static electricity. Boxco also describes the housing as high-impact resistant, which supports durability during use and processing.

What are the dimensions and weight of this enclosure?

The enclosure measures 3.15 x 5.12 x 3.35 inches, which corresponds to 80 x 130 x 85 mm. Its listed weight is 0.256 kg, making it a compact option for applications that need a rugged but relatively lightweight housing.

What temperature range can this enclosure handle?

This model has a stated operating temperature range of -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low-temperature and elevated-temperature environments within those limits.

What features support mounting components inside the enclosure?

This enclosure includes internal mounting plate attachment points with brass inserted injection molding for secure mounting of heavier equipment. It also has pre-molded mounting screw nuts that can be used to secure compatible internal hardware such as DIN rail accessories.

How does this screw-type enclosure differ from more basic plastic boxes?

This model stands out with its IP67 and IK08 ratings, UV-stabilized polycarbonate construction, anti-static properties, and molded internal mounting features. Compared with a basic unsealed plastic box, it is designed for stronger environmental protection, better durability, and more demanding industrial use.
