Envo

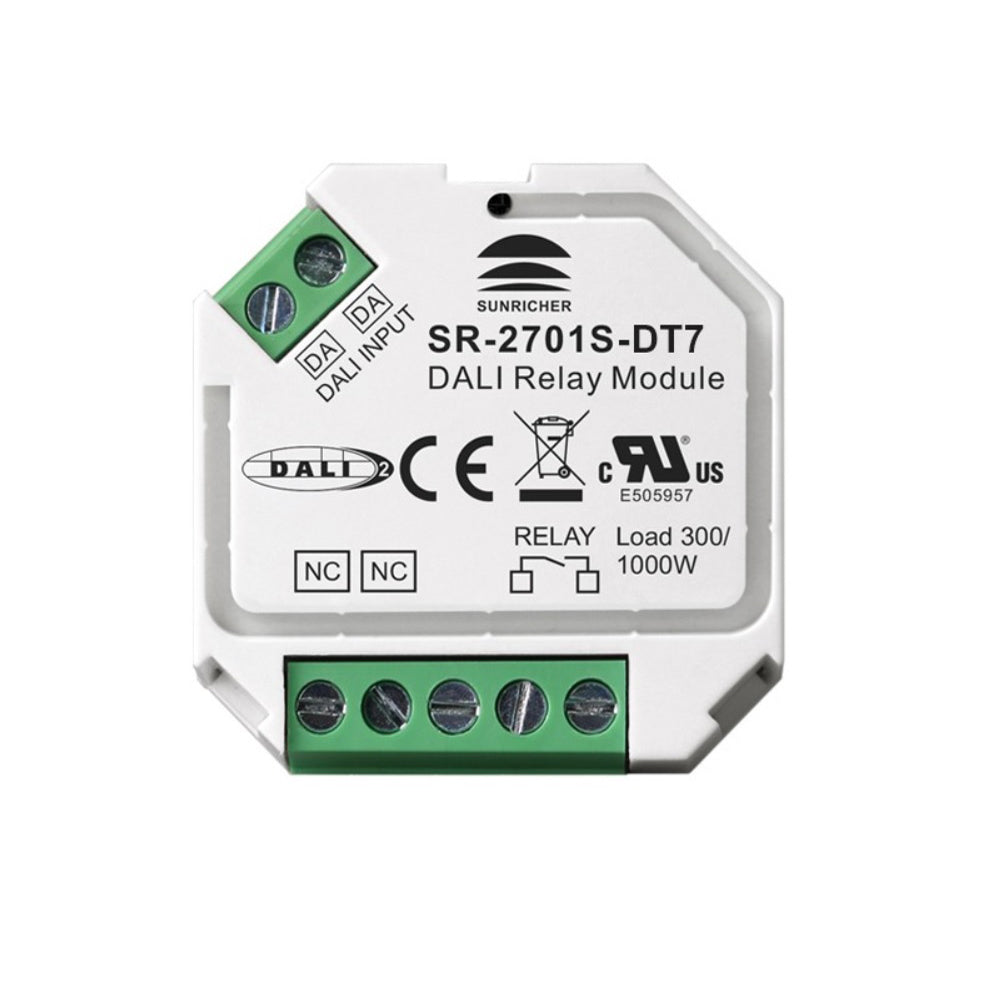

ENVO SR-2701S-DT7 Relay On/Off Control, Configurable Single Address

DALI Relay Module
SKU SR-2701S-DT7
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Features

  • DALI-2 relay module, DALI-2 certified, complies to DALI standards IEC 62386-101, IEC 62386-102, IEC 62386-208
  • DALI bus powered, no extra power supply required
  • 1 DALI address can be assigned by DALI master controller
  • Control of one standard contactor
  • Compact relay module for controlling a standard contactor via DALI
  • Loads that do not have a DALI input can therefore be integrated in the DALI circuit
  • The loads can be switched on and off via DALI
  • Compatible with universal DALI systems and master controllers in the market
  • Mini Size, easy to be installed into a standard wall box
  • 5 years warranty
  • Waterproof grade: IP20

Specifications

SR-2701S-DT7Specifications from the official datasheetDownload datasheet PDF

Input

DALI control input
1
DALI consumption
< 3mA
Number of DALI addresses
1

Output, relay

Switching voltage AC
Max. 250V
Switching voltage DC
Max. 30V
Current
Resistive load: max. 4.3A, Capacitive load: max. 1.3A, Inductive load: max. 4.3A
Type of contact
1 normally closed

Certifications & ratings

Certification marks
DALI, CE, RoHS

Compatible Load Types

Resistive loads (conventional incandescent and halogen light sources)
1000W @ 230VAC, 500W @ 110VAC
Capacitive loads (fluorescent tube lamp, electronic transformer, LED)
300W @ 230VAC, 150W @ 110VAC
Inductive loads (ferromagnetic transformers)
1000W @ 230VAC, 500W @ 110VAC

Downloads

FAQ

What does the ENVO DALI2 Relay On/Off Control, Configurable Single Address do?

This model is a DALI2 relay on/off control device intended for switching applications in a DALI-based lighting control environment. It is configured as a single-address device, which makes it suitable where individual relay control is needed within a broader control system.

Is this model for dimming or only on/off switching?

This product is identified as a relay on/off control model, so its role is switching rather than providing load dimming itself. Its control interface is listed as DALI, which means it is intended to operate within a DALI control system.

What are the electrical ratings for SR-2701S-DT7?

The listed power rating for this model is 300 W, with an output voltage of 230 V. The rated current is 0.0030 A, and buyers should use those published values when checking fit for the intended control application.

What operating temperature range is supported?

The specified operating temperature range for SR-2701S-DT7 is -20 °C to 45 °C. That makes it better suited to environments that stay within that range during normal use.

Is SR-2701S-DT7 suitable for DALI2-based control systems?

Yes, this model is specifically presented as an ENVO DALI2 relay on/off control product. For buyers standardizing on DALI2 control infrastructure, that makes it a relevant option for single-address relay control use cases.

What practical product details matter for handling and lifecycle planning?

This model has a listed weight of 0.2000 kg and a warranty period of 3 years. Those details are useful when comparing compact control components and planning long-term maintenance expectations for a project.
