Boxco

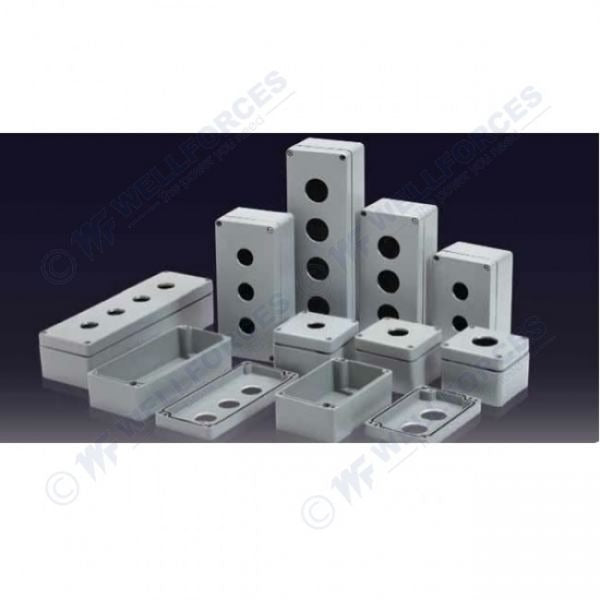

Boxco Push Button Box, 80x250x70 - 4 HOLE, IP67, IK08, ABS, Grey Cover

SKU BC-AGS-2504-082507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-2504-082507 is an ABS push button box (250×80×70 mm) from Boxco.

Specifications

BC-AGS-2504-082507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H
250×80×70 mm (9.84×3.15×2.76 in)
Button hole diameter
25 mm
Number of button holes
4

Material

Material
ABS
Base colour
Grey
Cover
Grey

Protection & environment

IP rating
IP67
IK rating
IK08
Operating temperature
-40 ~ +85℃
Use
Indoor
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Downloads

FAQ

What is this Boxco push button box designed for?

This model is a push button enclosure intended for control box and panel applications that need a protected housing for push buttons or switches. It is built as a 4-hole enclosure with a screw-type design and a grey cover.

How many push button openings does this enclosure have?

This specific model has 4 pre-cut holes on the cover. The product description also notes that this series is made for push button entries and uses a pre-cut cover design to reduce additional machining for supported button sizes.

What are the dimensions of this push button box?

The enclosure measures 3.15 x 9.84 x 2.76 inches, which is 80 x 250 x 70 mm. That longer format can be useful when you need a narrow enclosure with room for multiple push button positions in one housing.

Is this enclosure suitable for dusty or wet environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. It is a suitable option when the application needs a sealed enclosure for demanding industrial or outdoor-adjacent environments.

What material is this Boxco enclosure made from?

This model uses ABS material, and the product family description also references ABS and polycarbonate construction within the series. For this specific enclosure, the listed material is ABS with a grey cover.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 degrees C to 85 degrees C. That makes it suitable for applications that face both low-temperature and elevated-temperature operating conditions within that stated range.
