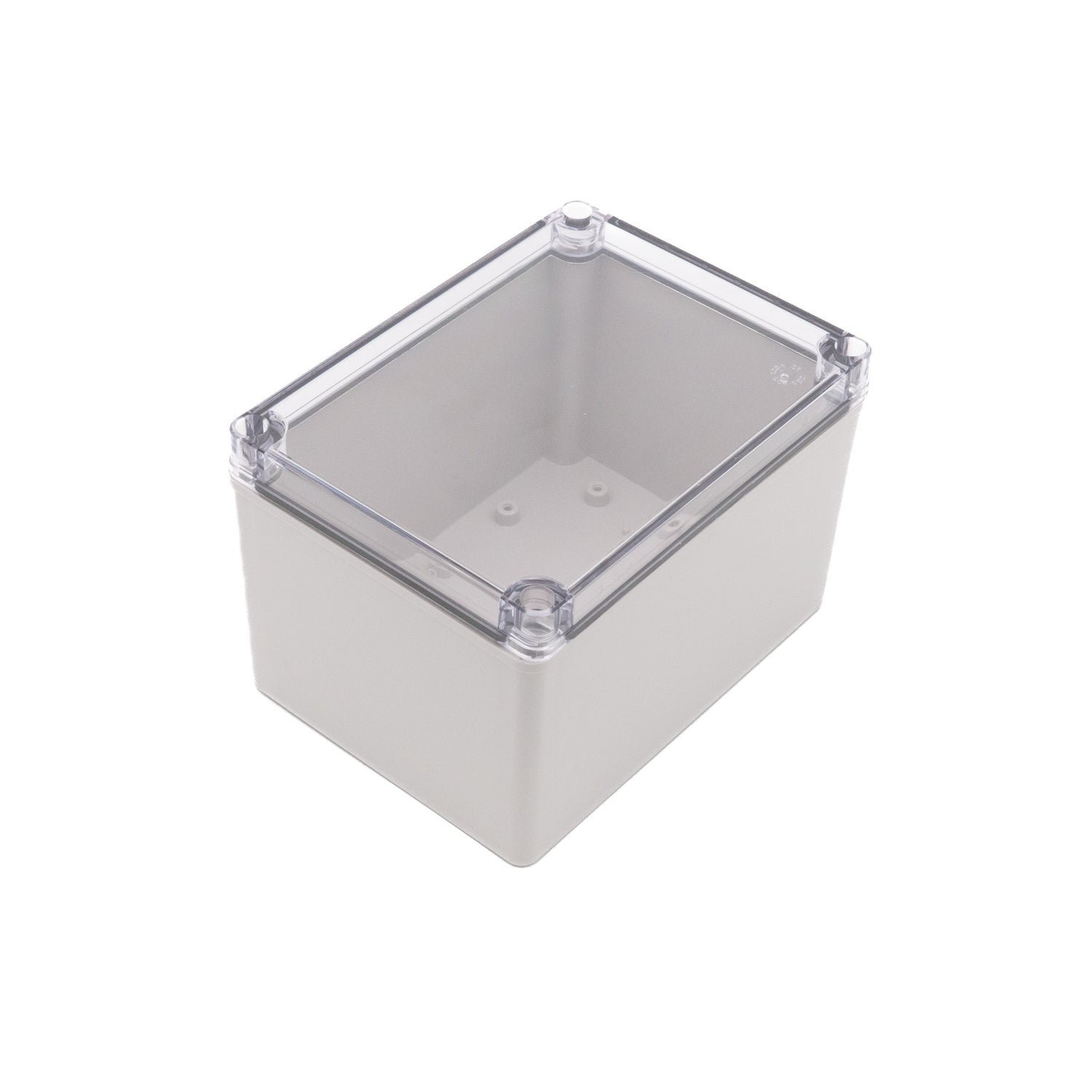

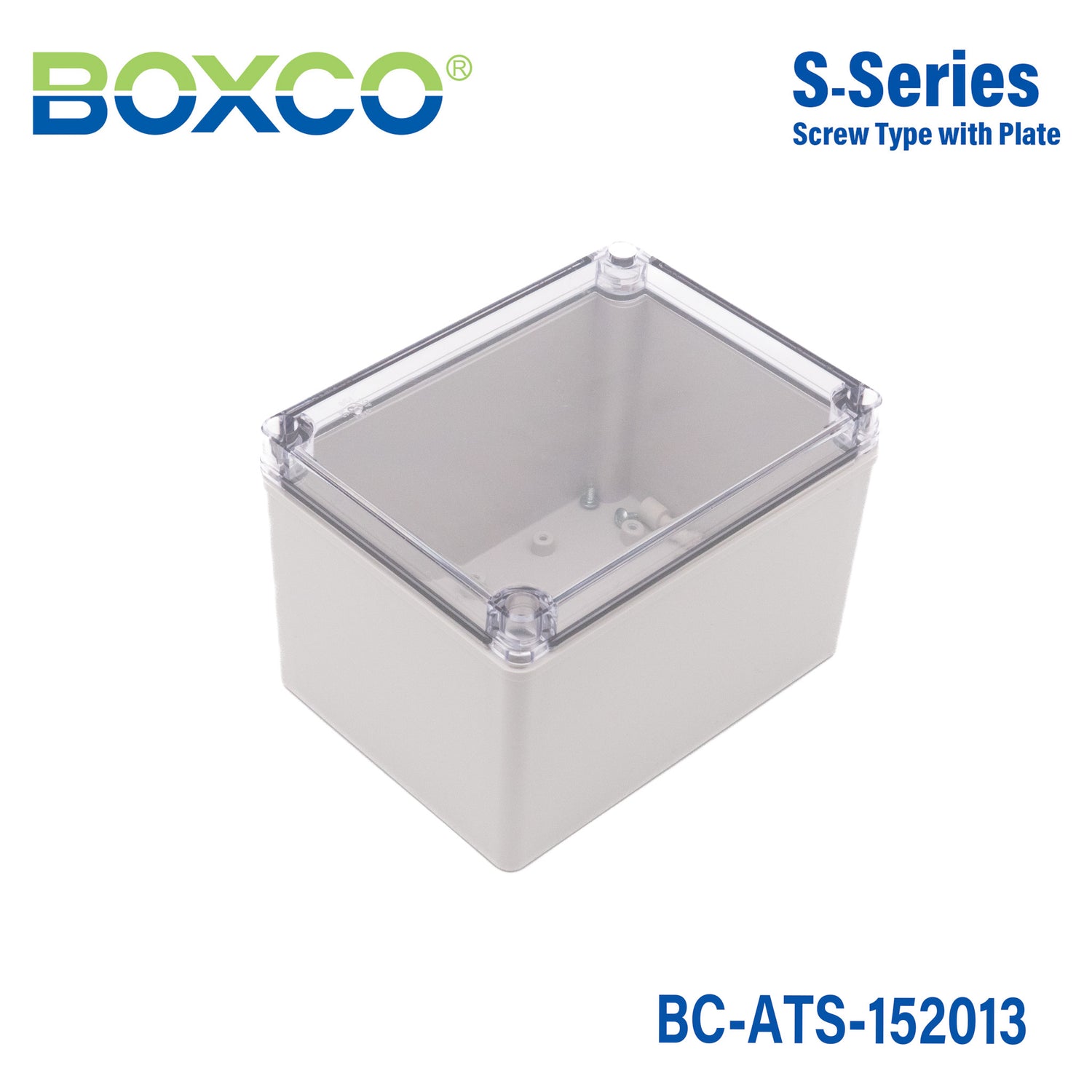

Boxco S-Series 150x200x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-152013

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

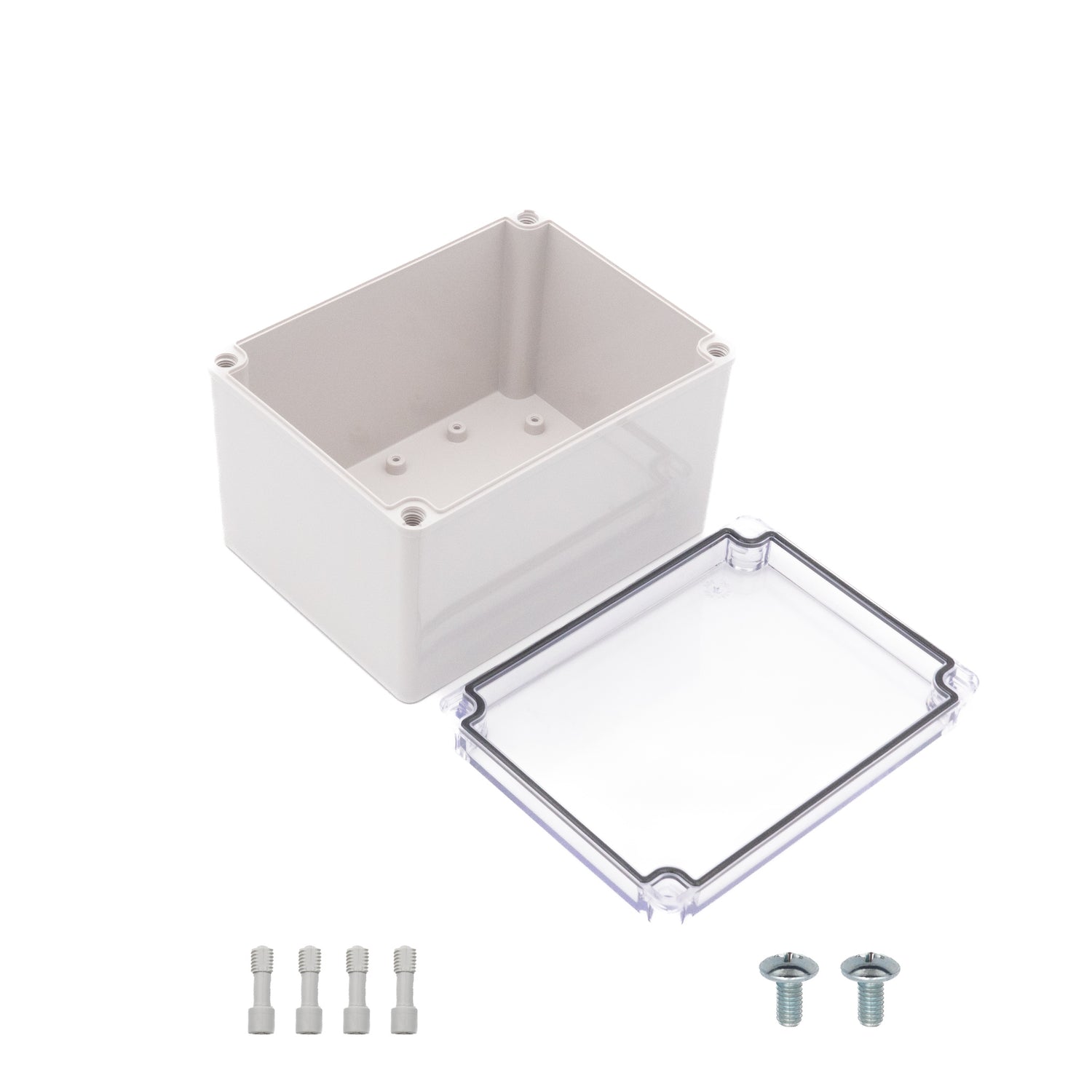

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

15 cm
Width

20 cm
Height

13 cm
Weight

0.55 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series 150x200x130mm enclosure suited for?

This enclosure is suited for protecting industrial and commercial electronics that need a sealed non-metallic housing. Its anti-static ABS construction and transparent screw-type cover make it a practical option for control components, monitoring devices, and other sensitive equipment housed in indoor or outdoor environments.

Is this enclosure appropriate for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor usage and reduce visible color change over time. The IP67 rating also indicates strong protection against dust and water ingress in demanding environments.

What level of environmental and impact protection does this model provide?

This model is rated IP67 and IK08. That means it is designed for strong dust and water resistance and offers solid impact resistance for environments where the enclosure may be exposed to physical contact or general industrial wear.

What material is this enclosure made from, and why does it matter?

This model is made from ABS plastic and uses anti-static material properties to help protect sensitive electronic instruments from static electricity. Boxco also describes the housing as high impact resistant, which helps reduce breakage during processing and in service.

What are the dimensions and weight of this enclosure?

The enclosure measures 5.91 x 7.87 x 5.12 inches, which corresponds to 150 x 200 x 130 mm. Its listed weight is 0.546 kg, making it a moderate-size enclosure for applications that need more internal space than compact junction boxes.

Does this enclosure support internal mounting hardware and equipment retention?

Yes. The product description states that it includes mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support secure placement of internal plates, DIN rail, or other equipment inside the enclosure.

What temperature range is this enclosure rated for?

This model is rated for use from -40 °C to 70 °C. That range makes it suitable for many industrial and outdoor environments where the enclosure may be exposed to low or elevated ambient temperatures.
