Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

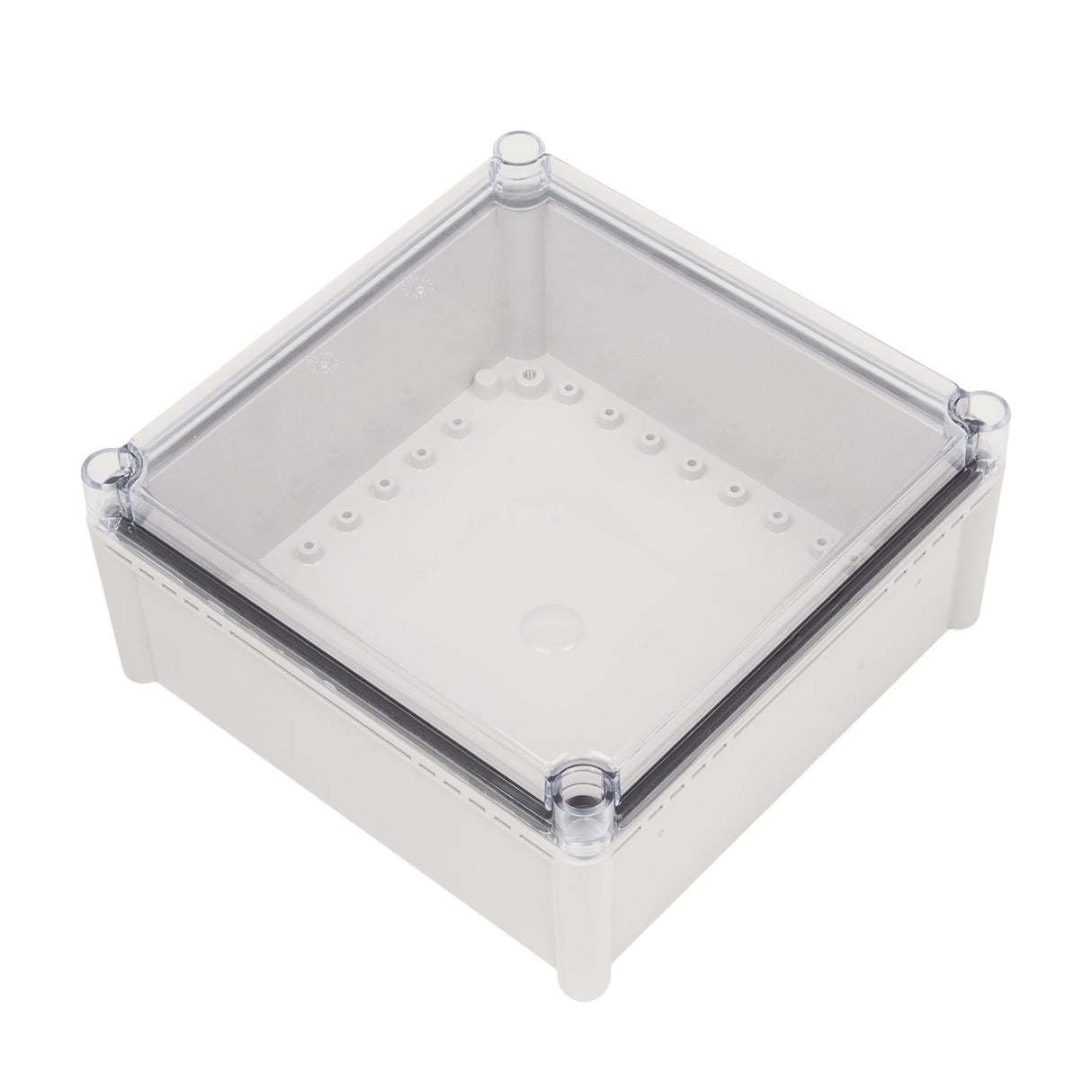

Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-282813

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

28 cm
Width

28 cm
Height

13 cm
Weight

1.21 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco S-Series BC-ATS-282813 enclosure suited for?

This enclosure is intended for protecting electronic equipment in industrial and commercial environments where a durable plastic housing is needed. Its anti-static ABS construction and transparent screw-type cover make it a practical choice for applications that need equipment protection along with quick visual inspection.

Can this enclosure be used outdoors?

Yes, this Boxco S-Series model is described as having an ultraviolet stabilizer added for outdoor usage. The product description notes that only minor color changes are expected even after long-term use.

What are the key protection ratings for this enclosure?

The BC-ATS-282813 is rated IP67 for resistance to dust and water ingress, and IK08 for impact protection. It is also made from high impact resistant ABS material to help withstand external impact.

What size is this plastic enclosure?

This model measures 11.02 x 11.02 x 5.12 inches, which corresponds to 280 x 280 x 130 mm. That gives it a square footprint with added internal volume for larger components compared with smaller enclosure sizes.

What cover style does this enclosure use, and what is it made from?

This enclosure uses a screw-type transparent cover. The housing material is ABS, giving the unit a lightweight but impact-resistant plastic construction.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both cold and hot environments within those stated limits.

Does this enclosure support internal mounting hardware?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support secure placement of internal equipment and accessories such as DIN rail hardware.
