Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

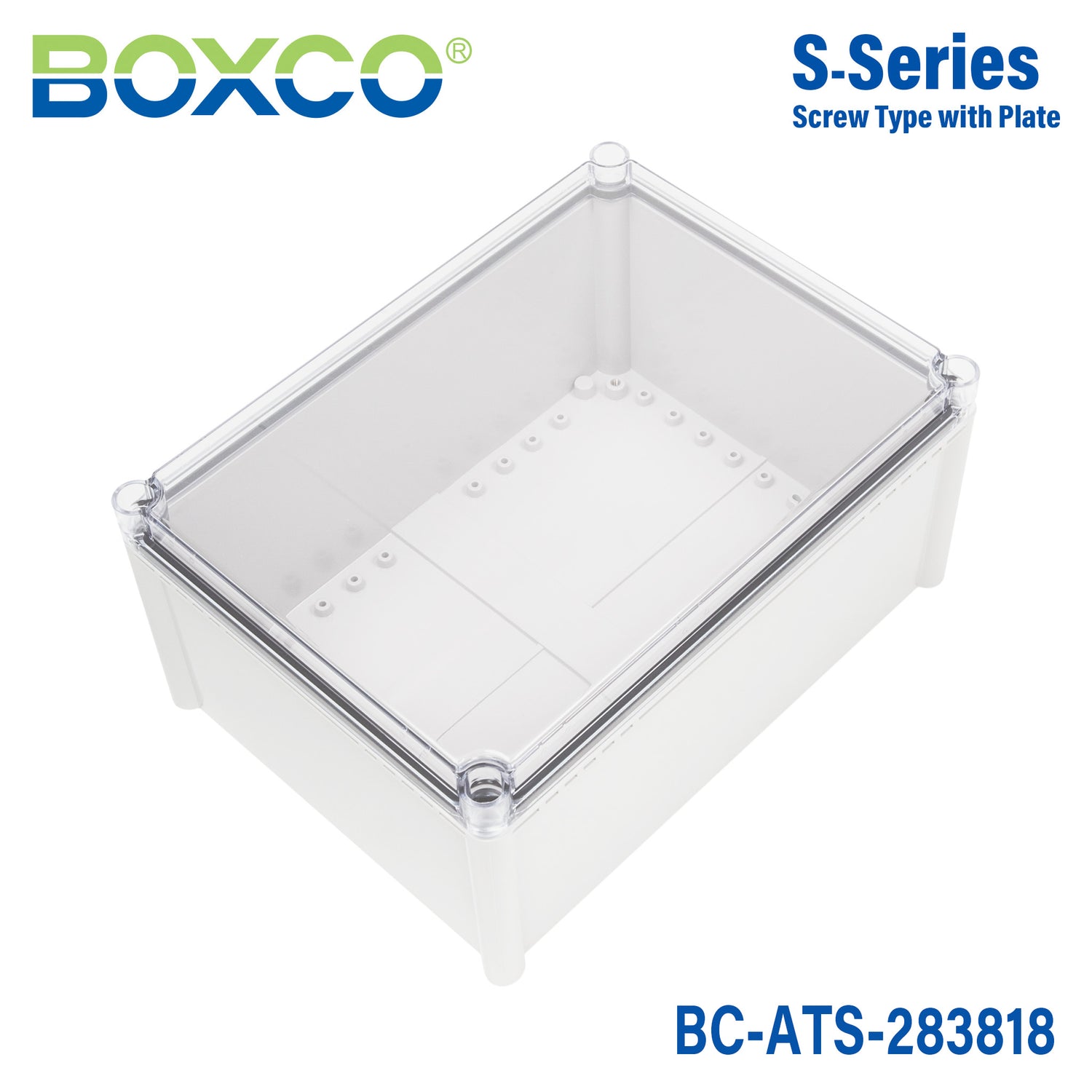

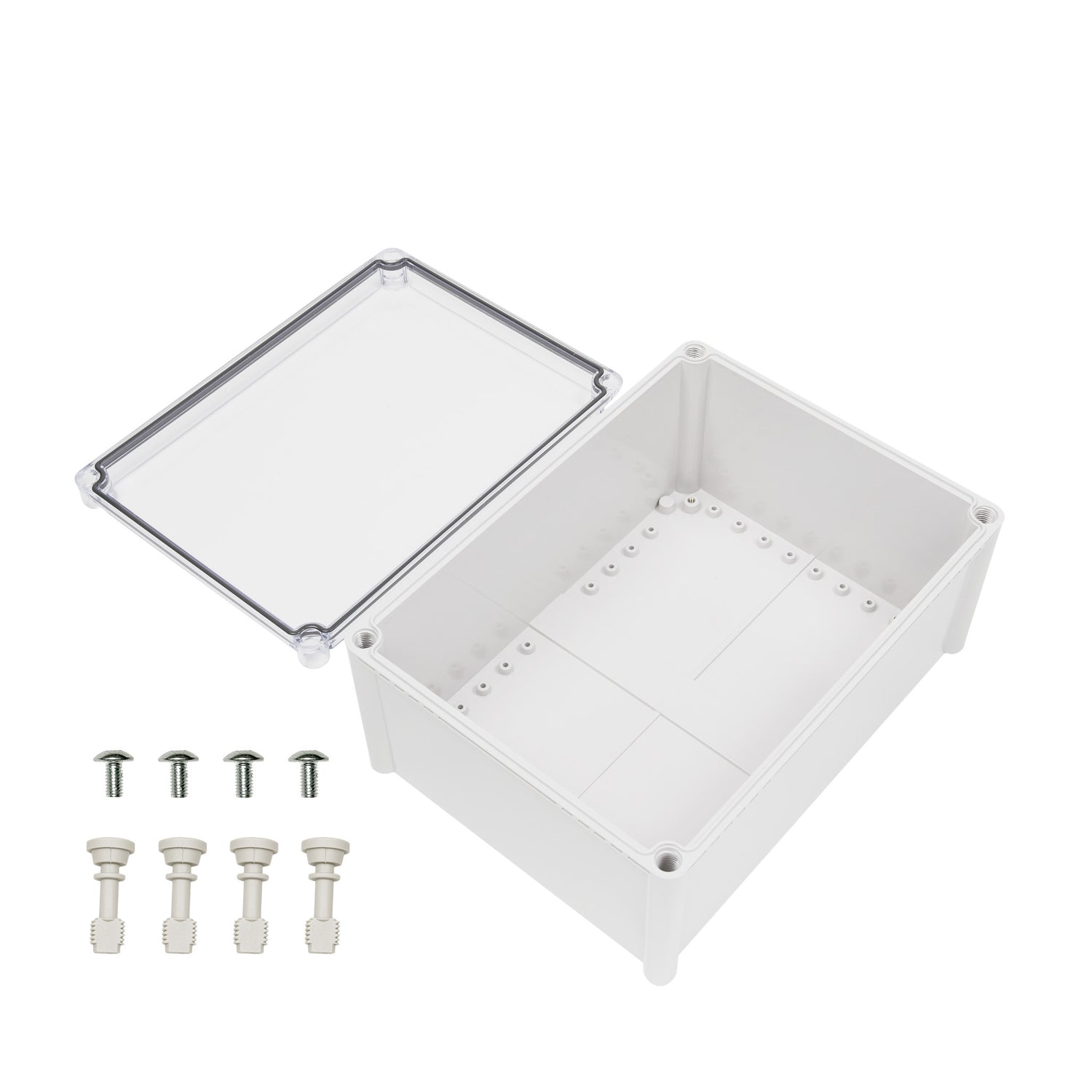

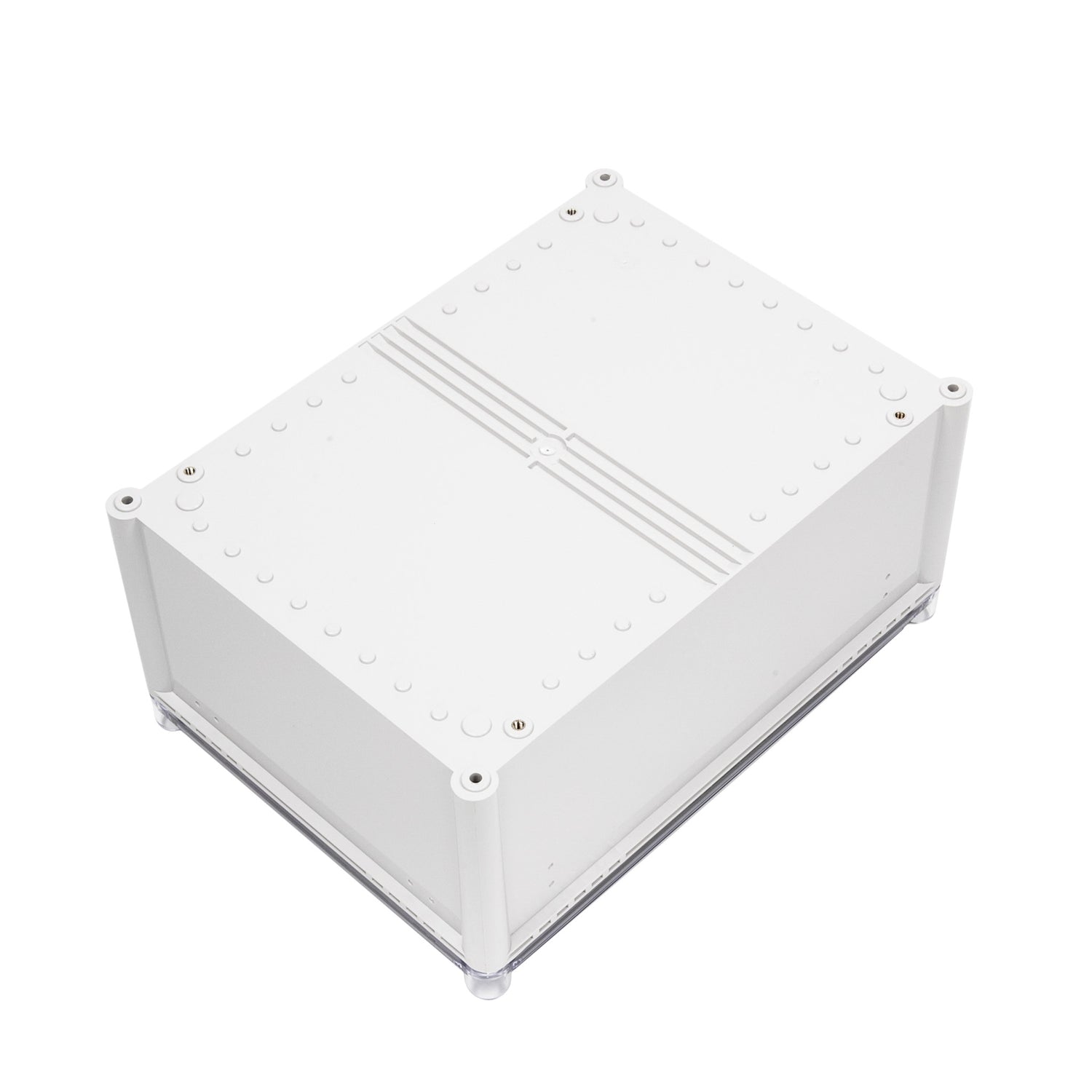

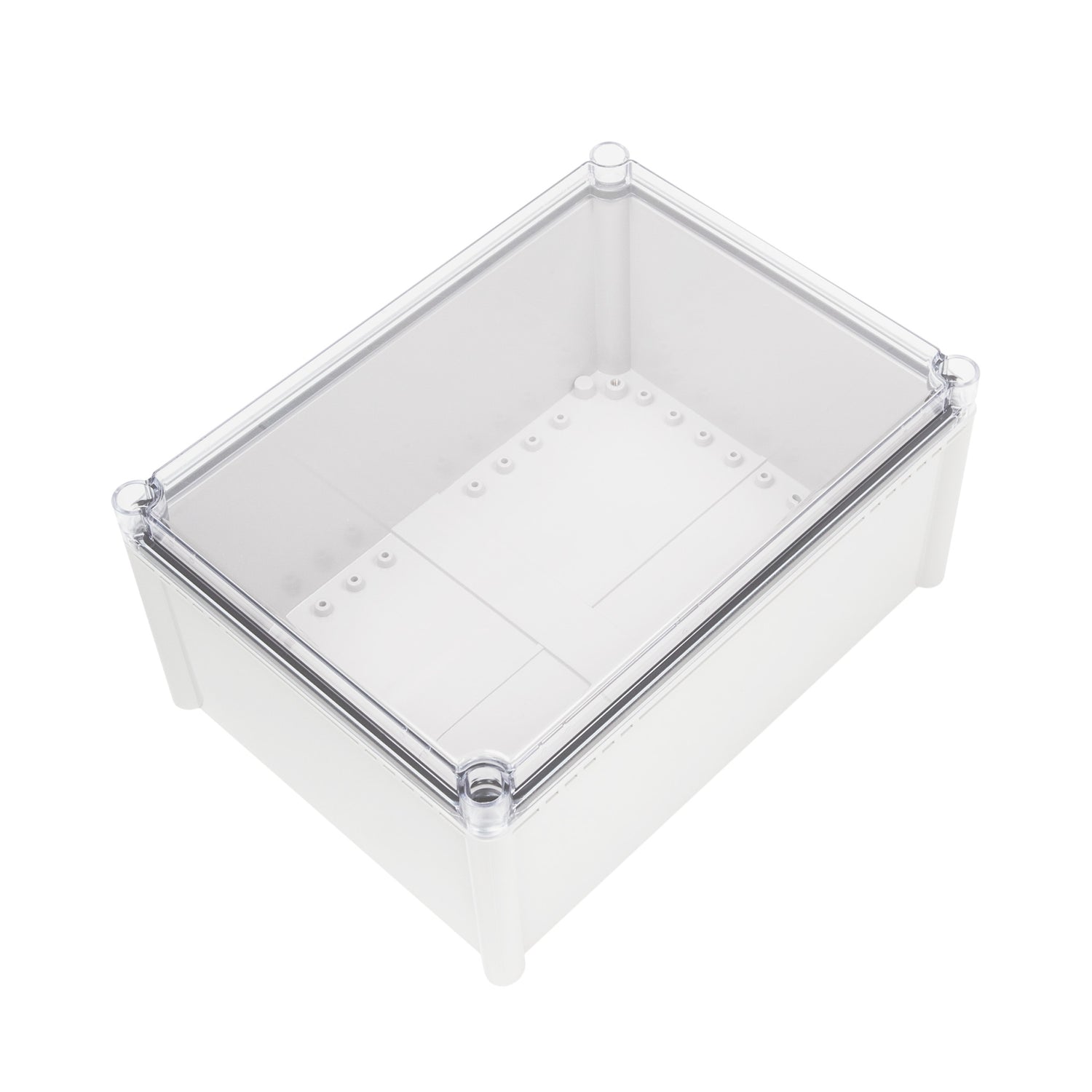

Boxco S-Series 280x380x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-283818

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

28 cm
Width

38 cm
Height

18 cm
Weight

1.76 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is the Boxco S-Series BC-ATS-283818 suitable for outdoor use?

Yes. This model uses ultraviolet stabilizer material to help protect the enclosure during outdoor exposure and reduce visible color change over time. It is also rated IP67, which supports strong protection against dust and water ingress in demanding environments.

Can this enclosure be used for sensitive electronic equipment?

Yes. The BC-ATS-283818 uses anti-static material intended to help protect sensitive electronic instruments from static electricity. Its ABS construction is also described as high-impact resistant for added physical durability.

What are the main specifications of this enclosure?

This Boxco S-Series enclosure measures 11.02 x 14.96 x 7.09 inches (280 x 380 x 180 mm) and weighs 1.762 kg. It is made from ABS, includes a transparent cover, and is rated IP67 and IK08. The stated operating temperature range is -40 degrees C to 70 degrees C.

How well does this enclosure handle dust, water, and impact?

This model is rated IP67 for dust-tight and water-resistant enclosure performance and IK08 for impact resistance. The product description also notes a precision-injected gasket designed to support strong waterproof and dust-proof performance. That makes it a practical option for industrial and outdoor protection needs.

What makes the screw-type transparent cover useful on this model?

The transparent cover lets users visually check enclosed components without opening the box. The screw-type design uses molded cover bolt attachment points to maximize thread strength, which supports a more secure closure than lighter-duty access styles. Combined with the gasket system, it aligns well with the enclosure's IP67 protection rating.

Is this enclosure designed to support internal mounting hardware and heavier equipment?

Yes. The BC-ATS-283818 includes internal mounting plate attachment points fixed to brass inserted injection molding, which the manufacturer describes as suitable for handling heavier installed equipment. It also includes pre-molded mounting screw nuts for securing DIN rail or similar internal hardware.
