Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

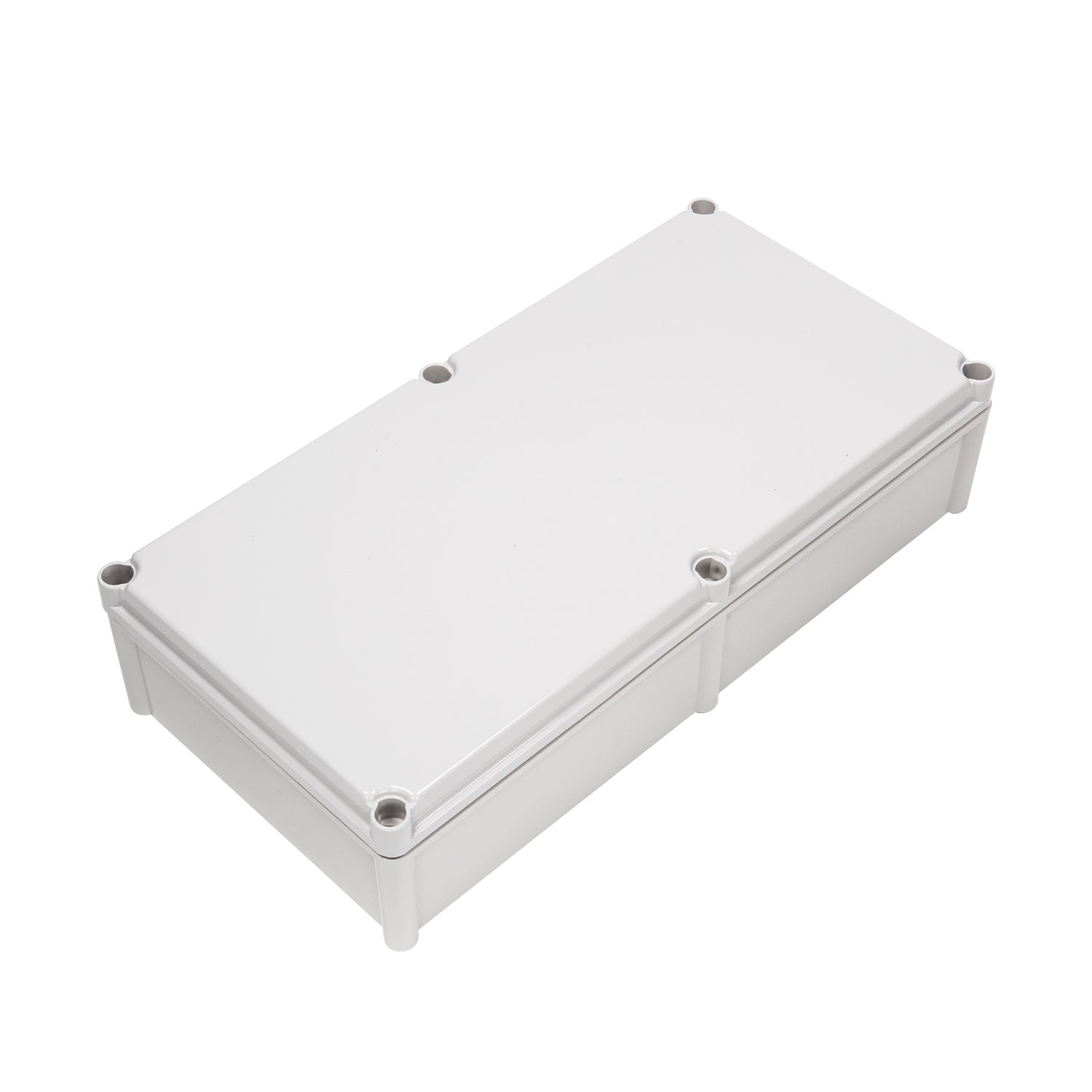

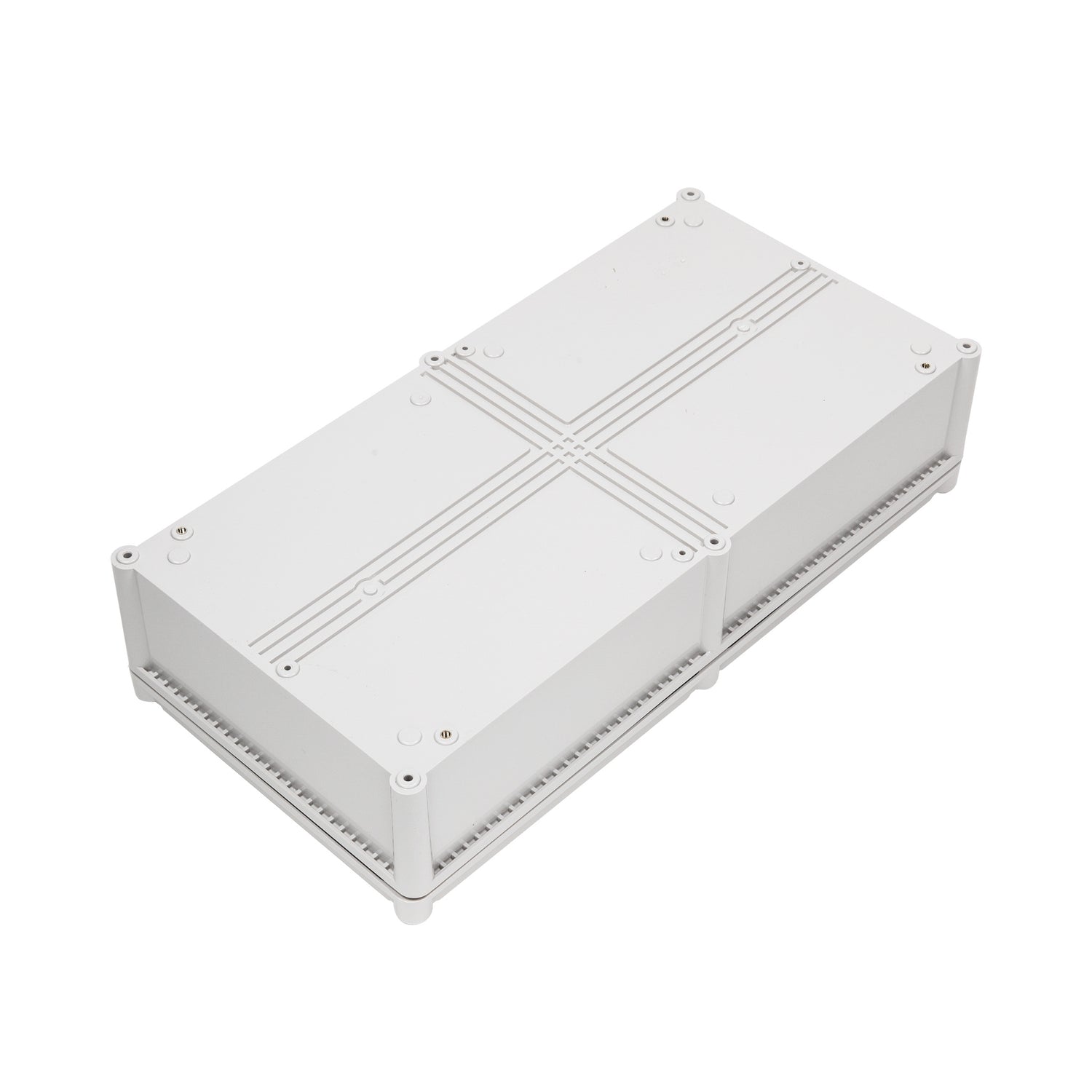

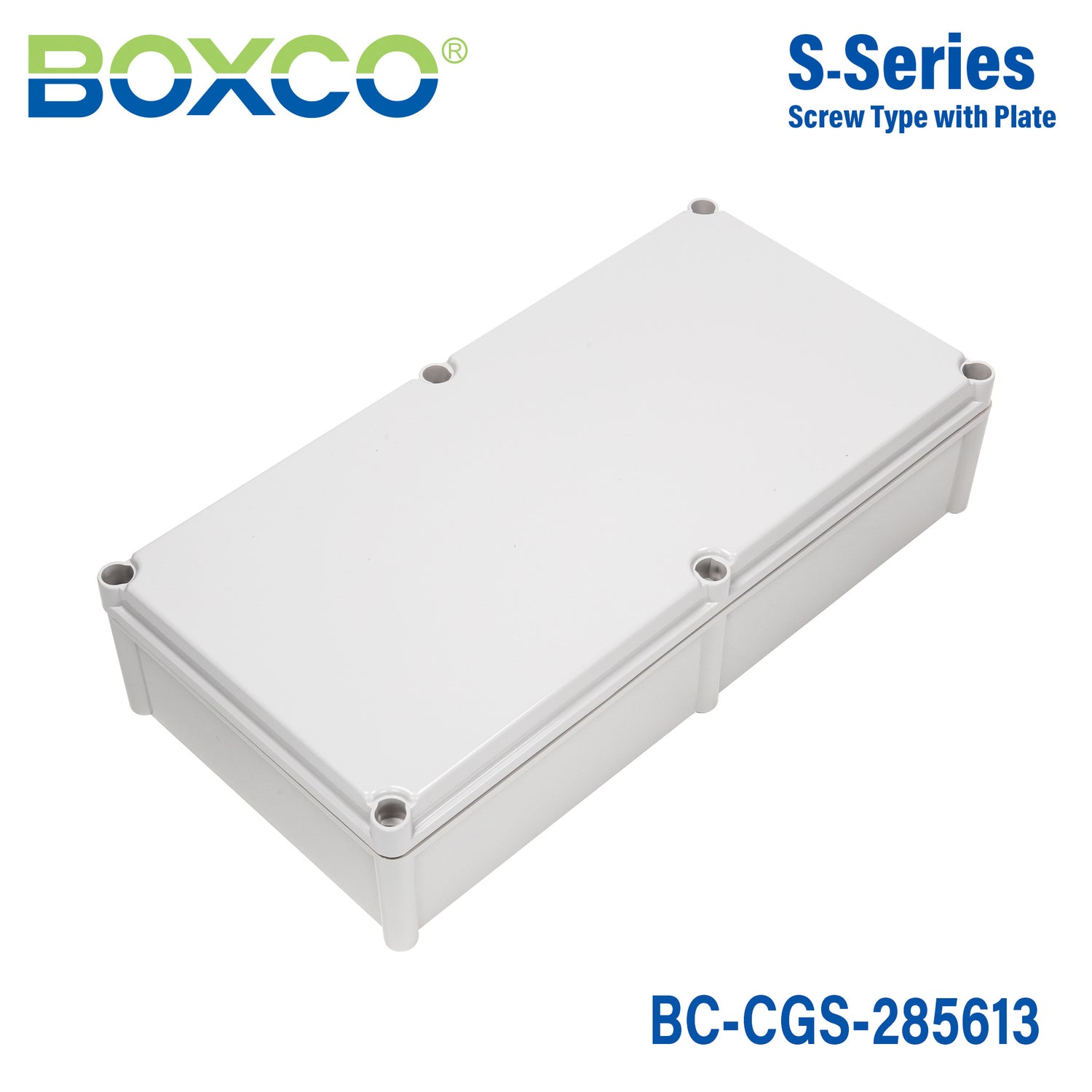

Boxco S-Series 280x560x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-285613
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-285613 is a 280×560×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-285613Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×560×130 mm (11.02×22.05×5.12 in)
Mounting plate dimension M1 × M2
251 × 531 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2856 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

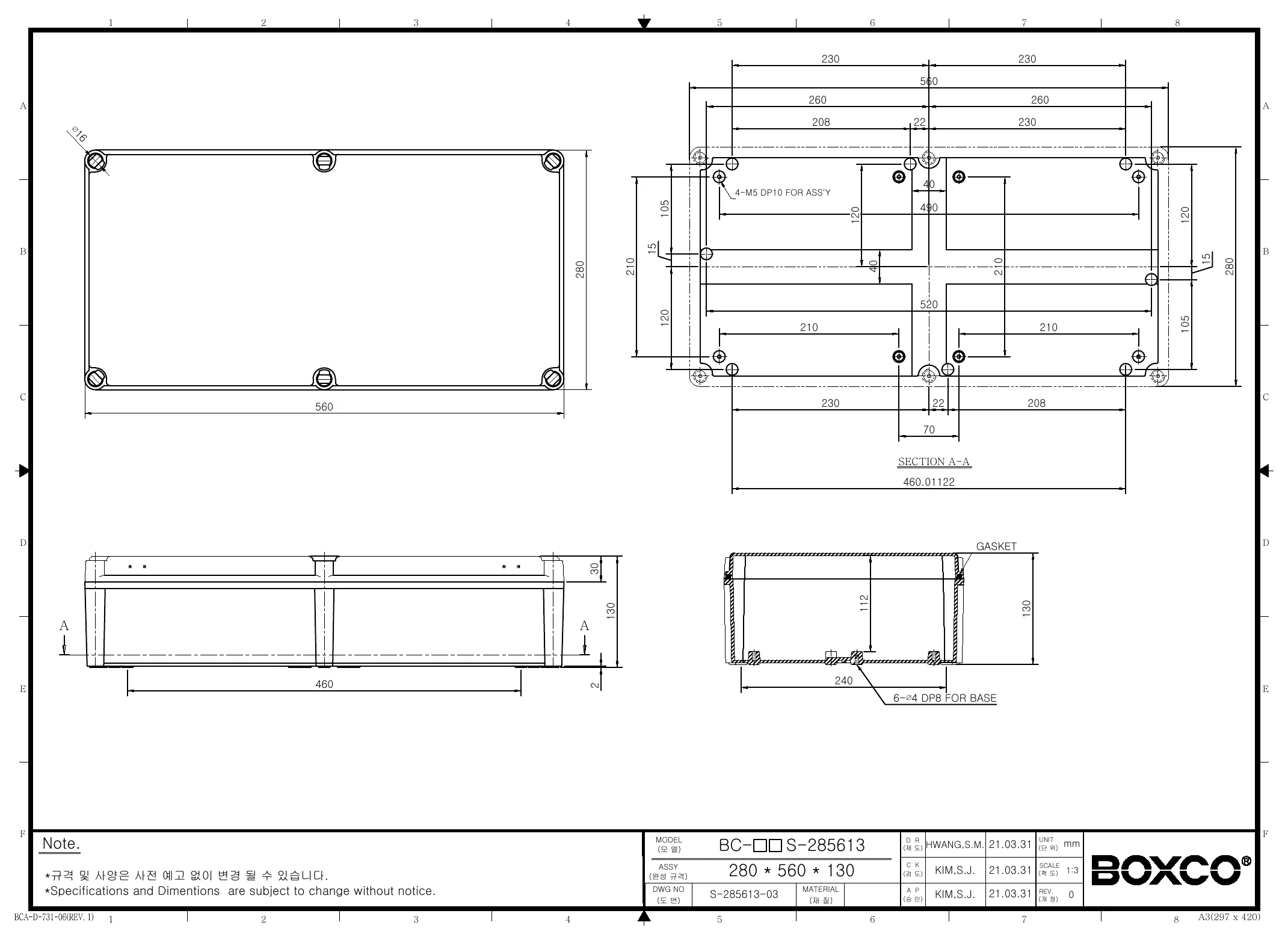

BC-CGS-285613 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series plastic enclosure best suited for?

This enclosure is suited for protecting industrial and commercial equipment that needs a sealed non-metallic housing indoors or outdoors. Its IP67 rating, IK08 impact resistance, and UV-stabilized polycarbonate construction make it a practical choice for control, monitoring, and instrumentation applications exposed to dust, moisture, or weather.

What are the key specifications of this enclosure?

This model measures 11.02 x 22.05 x 5.12 inches (280 x 560 x 130 mm) and weighs 2.67 kg. It is a screw-type plastic enclosure with a grey polycarbonate cover, and it is rated IP67 for ingress protection and IK08 for impact resistance.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce color change over long periods of exposure. Its gasketed IP67 design also supports strong waterproof and dust-proof performance in demanding environments.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 degrees C to 110 degrees C. That wide operating range makes it suitable for both cold and high-heat environments where standard plastic housings may be more limited.

How does the screw-type cover design benefit this model?

The screw-type design provides a secure cover attachment for applications that need a dependable sealed enclosure. According to the product details, the cover bolt attachment point is formed during injection molding to maximize strength.

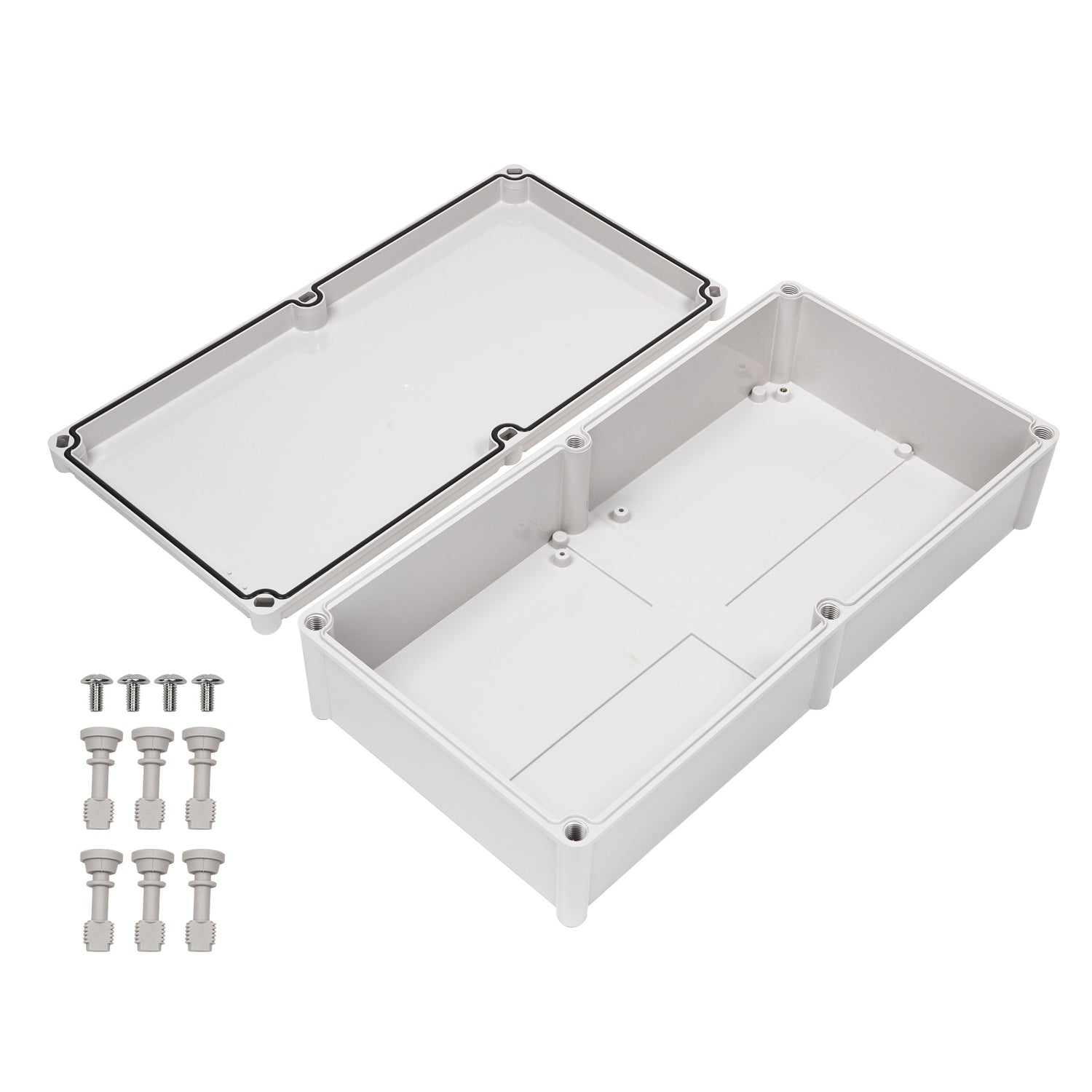

Can this enclosure support internal equipment and mounting hardware?

Yes. The enclosure includes mounting plate attachment points with brass inserted injection molding to help secure heavier internal equipment. It also has pre-molded mounting screw nuts for fastening DIN rail or other internal hardware.
