Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

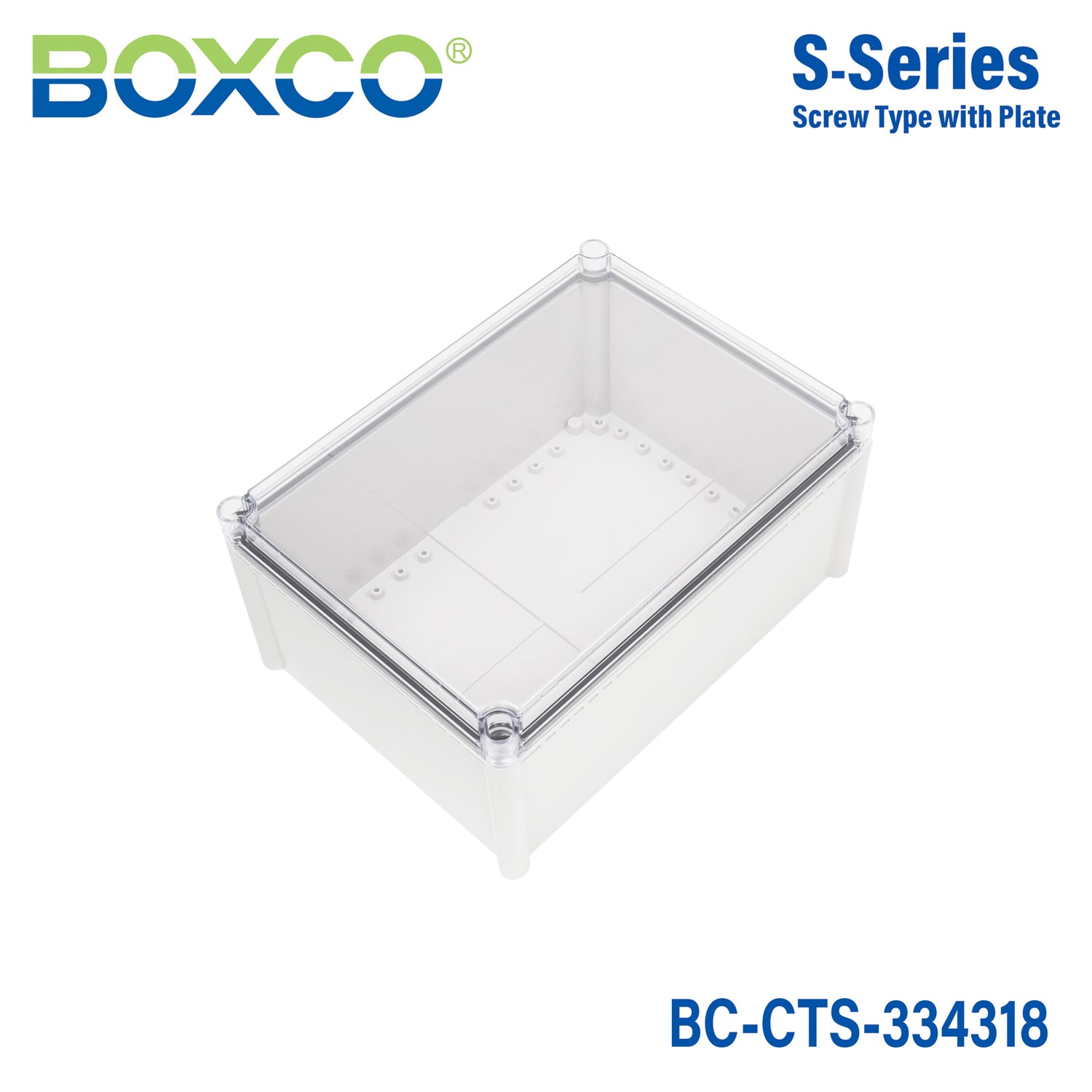

Boxco S-Series 330x430x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-334318
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-334318 is a 330×430×180 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-334318Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
330×430×180 mm (12.99×16.93×7.09 in)
Mounting plate dimension M1 × M2
294 × 394 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
3343 P (Plastic, P type), 3343 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

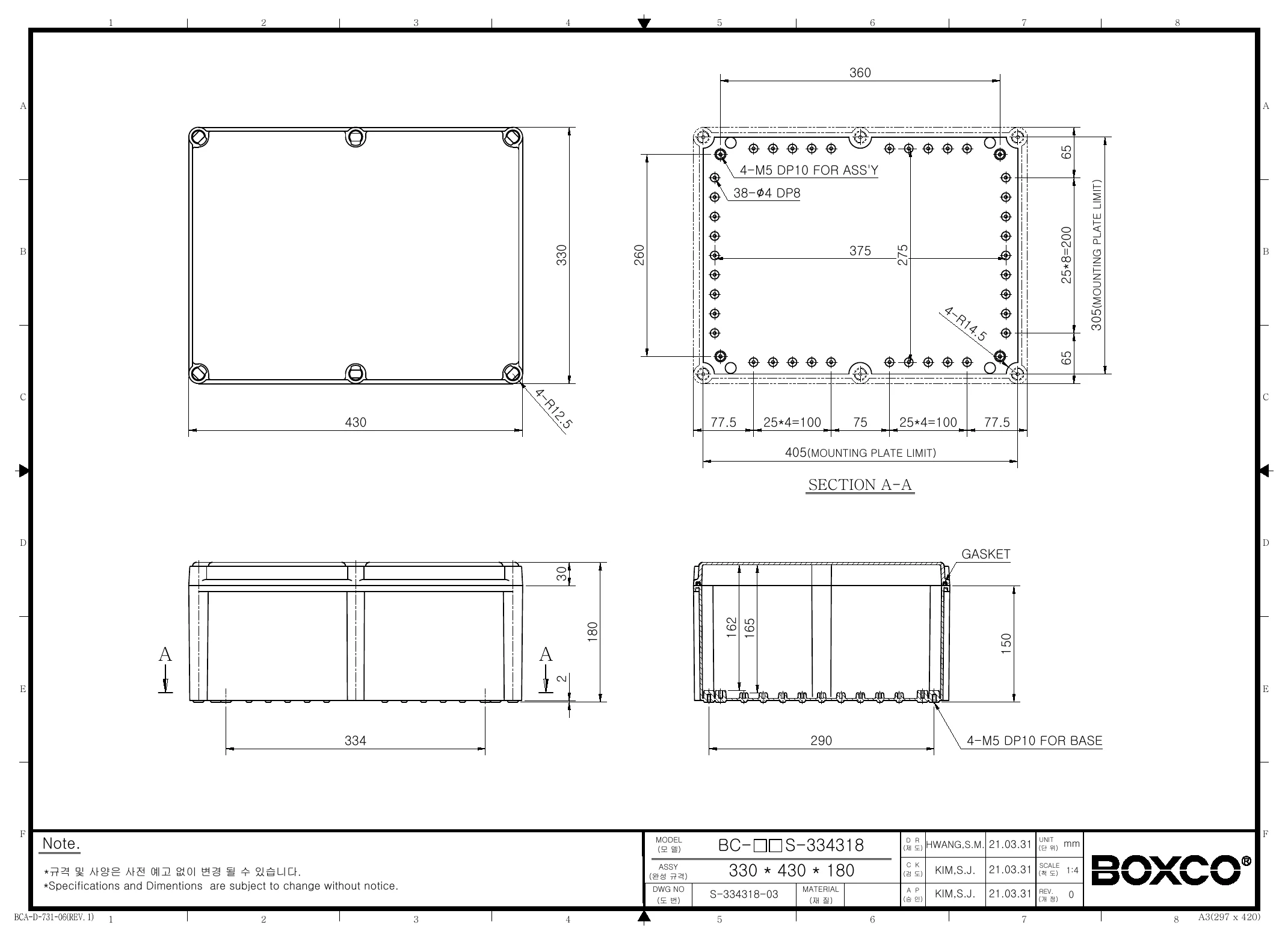

Technical drawings

BC-CTS-334318 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this enclosure suitable for outdoor use?

Yes. This Boxco S-Series enclosure uses a UV stabilizer to help protect the housing in outdoor environments and reduce visible color change over time. Its IP67 rating also supports strong protection against dust and water ingress.

What are the dimensions of this enclosure?

This model measures 12.99 x 16.93 x 7.09 inches, which is 330 x 430 x 180 mm. That size makes it a larger plastic enclosure for protecting equipment that needs more internal space.

What material is this enclosure made from?

This enclosure is made from polycarbonate (PC) and includes a transparent cover. The product description also notes high impact-resistant material and anti-static properties for protecting sensitive electronic instruments.

How durable is this enclosure in demanding environments?

This model is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. It is also designed to operate across a wide temperature range from -40 degrees C to 110 degrees C.

What kinds of applications is this enclosure best suited for?

This enclosure is well suited for protecting electrical or electronic equipment that needs a sealed, impact-resistant housing. Its transparent cover, anti-static material, and outdoor-ready UV-stabilized construction make it a practical option for industrial and commercial use cases.

Does this enclosure support internal equipment mounting?

Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding for securing heavier internal components. It also has pre-molded mounting screw nuts that support mounting DIN rail or similar equipment inside the enclosure.

What makes this model different from a basic plastic enclosure?

This Boxco S-Series model combines a transparent screw-type cover, IP67 sealing, IK08 impact resistance, UV stabilization, and anti-static material in one enclosure. It also includes molded features for internal mounting, which adds flexibility compared with simpler general-purpose enclosures.
