Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

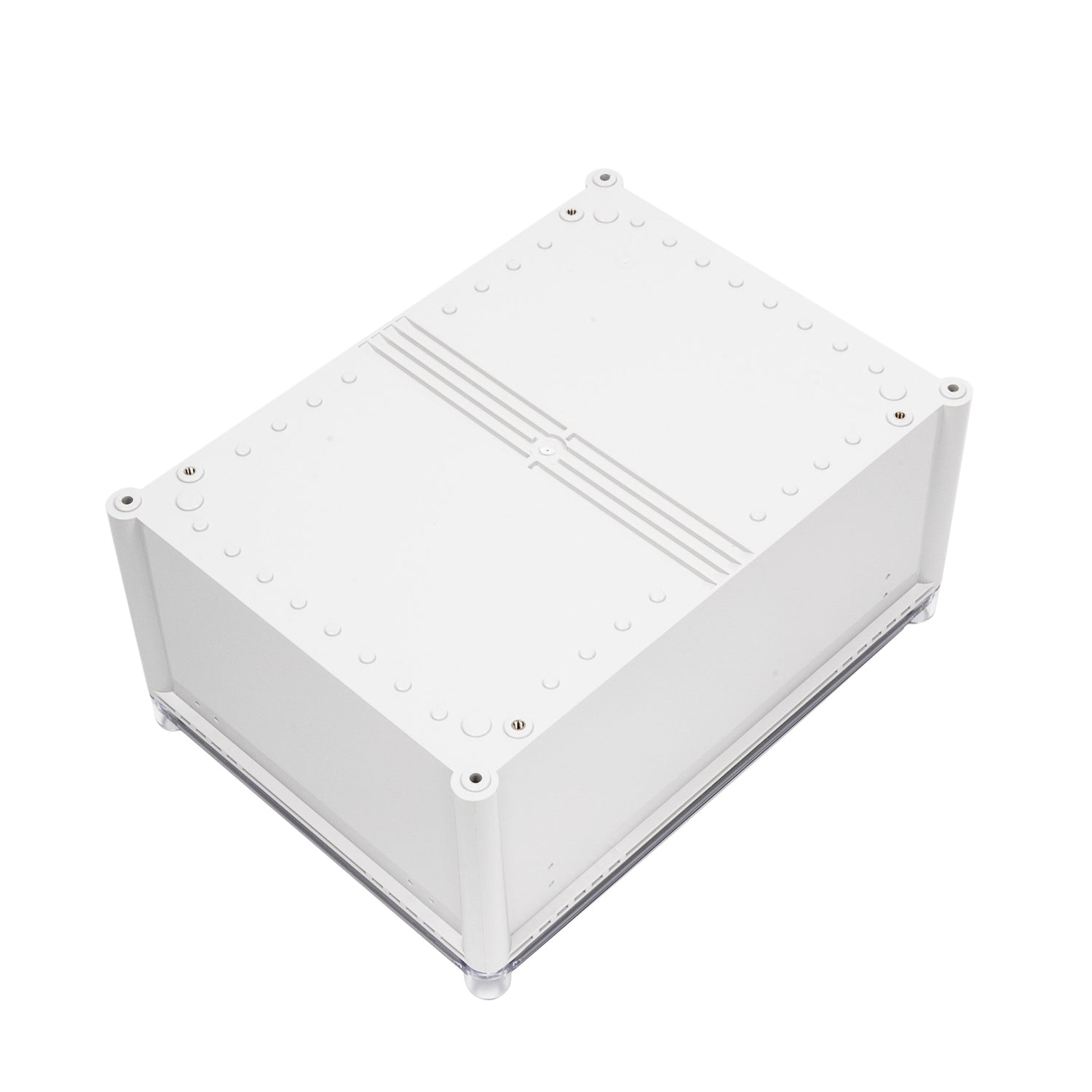

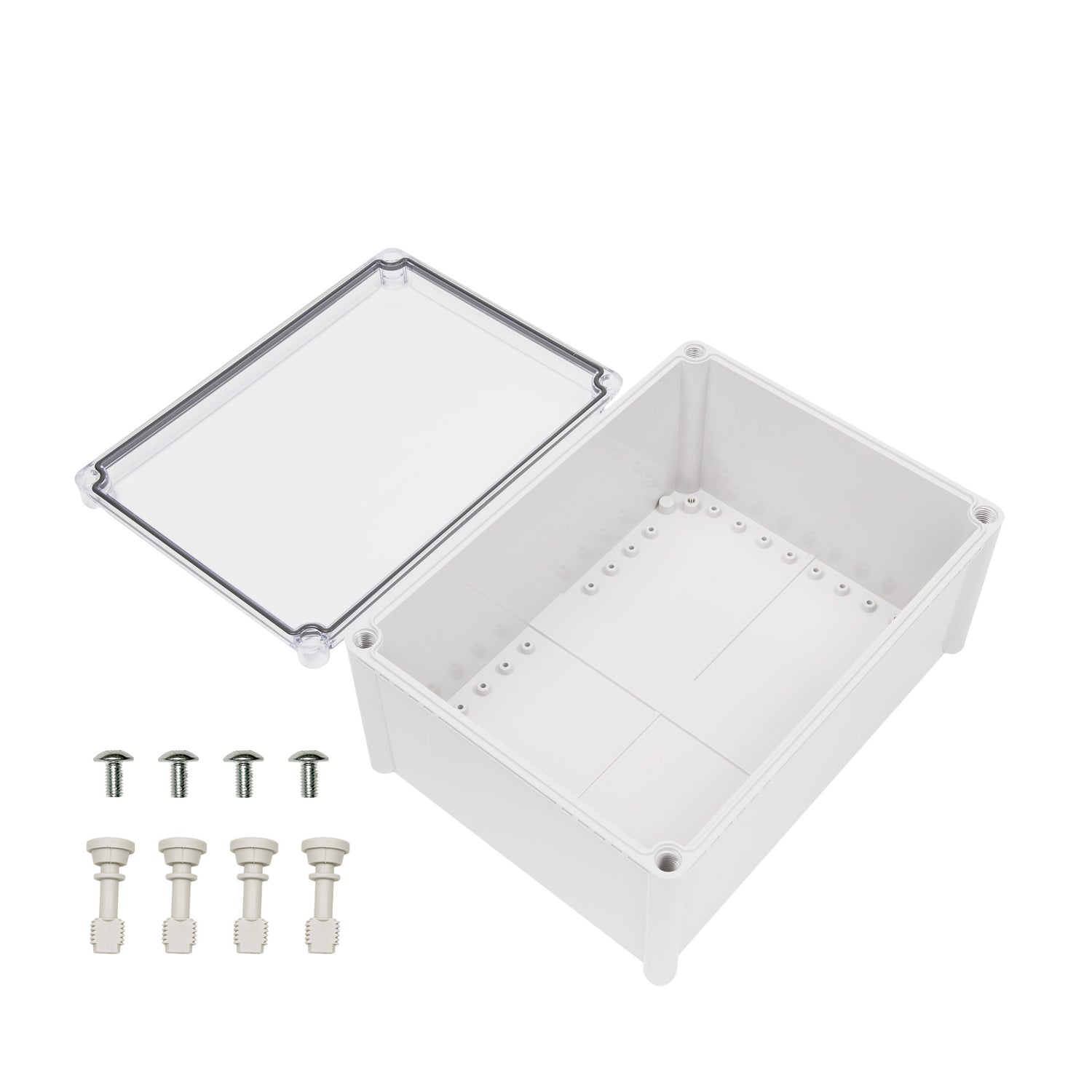

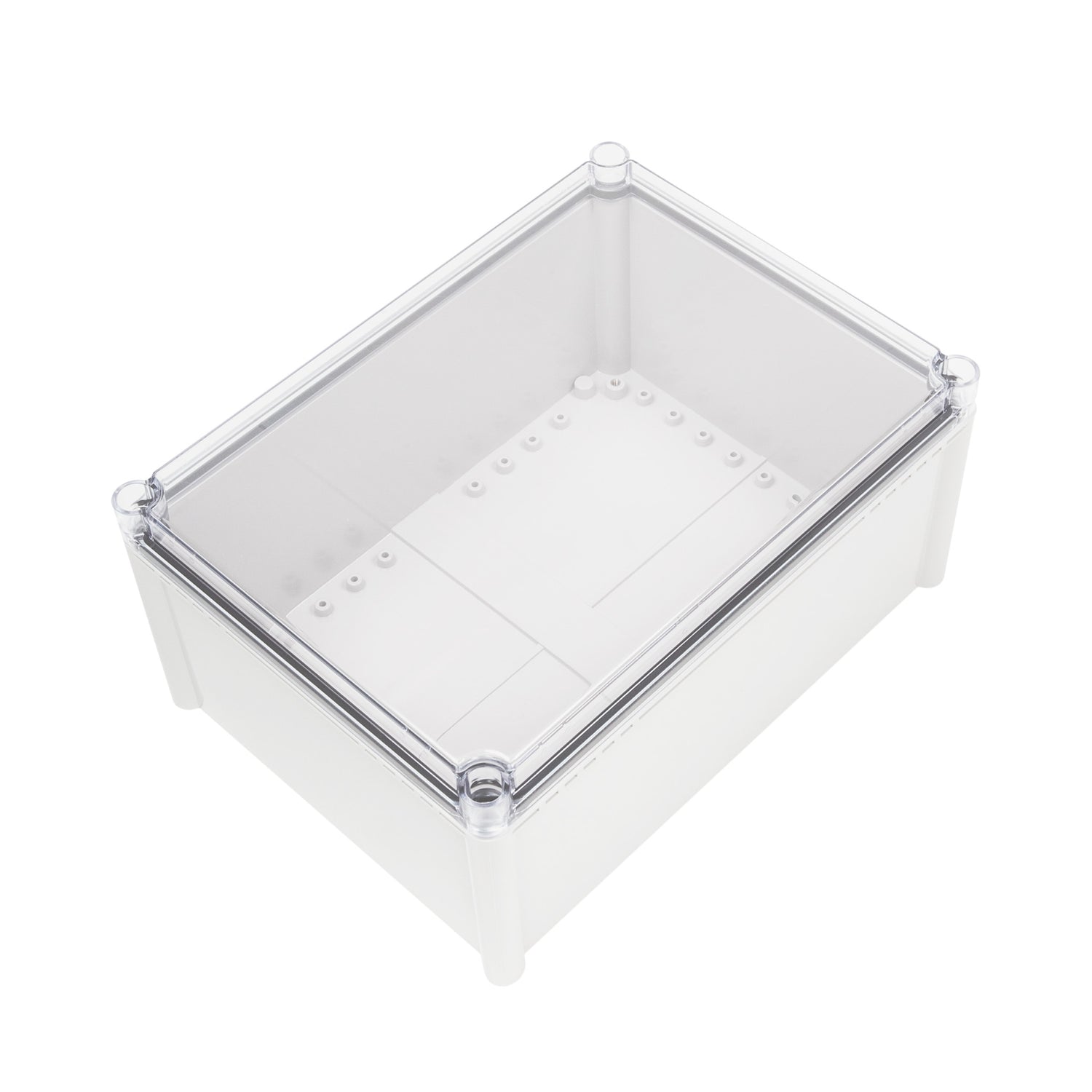

Boxco S-Series 380x560x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-385618
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-385618 is a 380×560×180 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-ATS-385618Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
380×560×180 mm (14.96×22.05×7.09 in)
Mounting plate dimension M1 × M2
345 × 531 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3856 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-ATS-385618 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series plastic enclosure commonly used for?

This enclosure is suited for protecting industrial controls, instrumentation, and other sensitive electronic equipment that need a sealed non-metallic housing. Its anti-static material, impact-resistant ABS construction, and transparent screw-type cover make it a practical choice for inspection-friendly indoor or outdoor equipment protection.

What are the key specifications of this enclosure model?

This model measures 14.96 x 22.05 x 7.09 inches (380 x 560 x 180 mm) and weighs 3.192 kg. It is made from ABS, uses a transparent cover with a screw-type closure, and is rated IP67 for dust and water protection and IK08 for impact resistance.

Is this enclosure suitable for outdoor environments?

Yes, this Boxco S-Series enclosure is designed with an ultraviolet stabilizer to support outdoor use. The product description notes that only minor color changes are expected even after long-term exposure, and the IP67 rating supports strong protection against dust and water ingress.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 °C to 70 °C. That range makes it suitable for many industrial and outdoor environments where equipment may be exposed to both low and elevated temperatures.

What makes this enclosure a good fit for protecting sensitive equipment?

This model uses anti-static material to help protect sensitive electronic instruments from static electricity. It also includes tightly fixed mounting plate attachment points, pre-molded mounting screw nuts, and a precisely injected gasket to support secure internal equipment mounting and strong sealing performance.

How does the transparent cover compare with a solid cover enclosure?

The transparent cover allows visual inspection of internal components without opening the enclosure, which can be useful for status checks and routine observation. This model still retains its screw-type closure and published IP67 and IK08 ratings, so visibility does not come at the expense of its stated protection levels.
