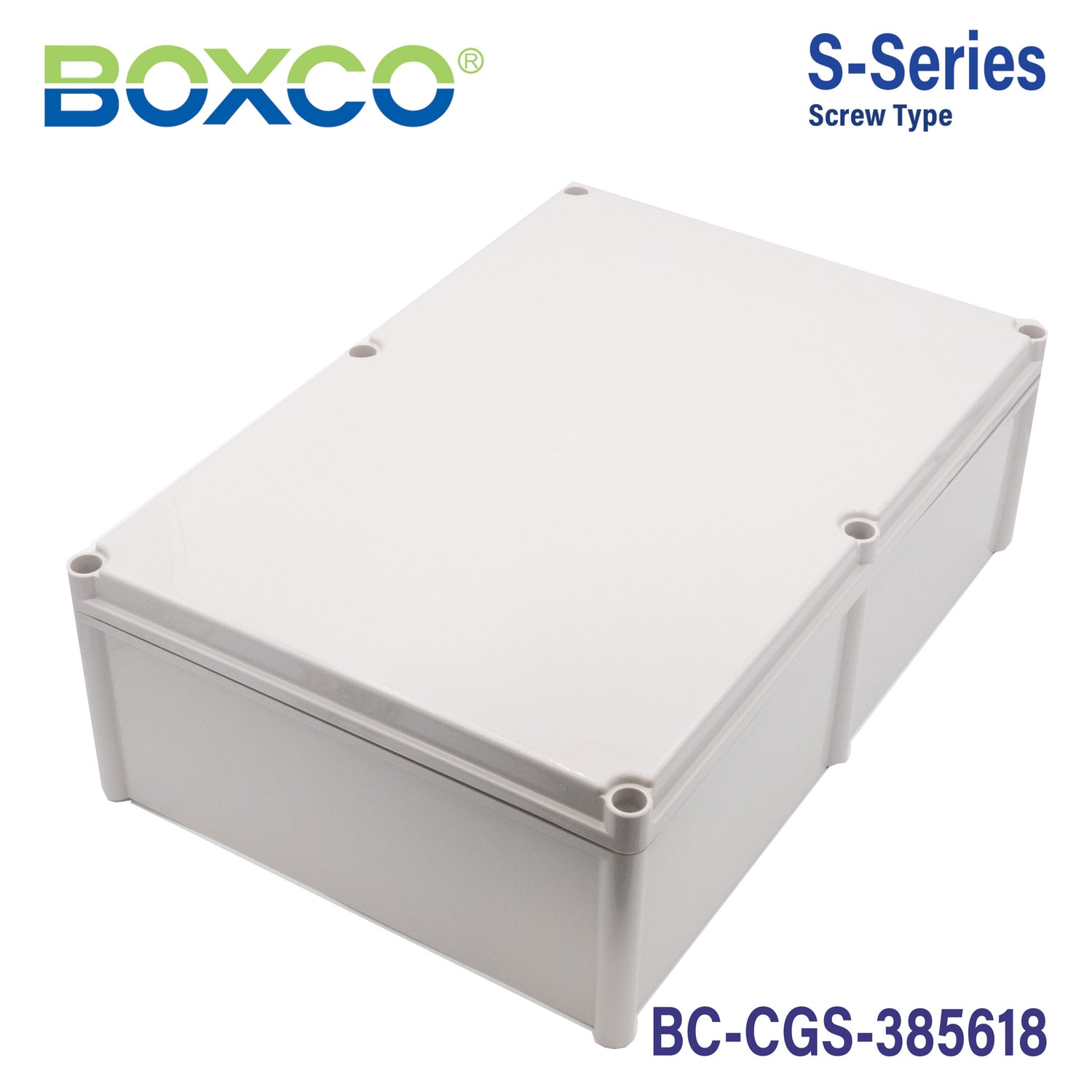

Boxco S-Series 380x560x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-385618
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-385618 is a 380×560×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-385618Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
380×560×180 mm (14.96×22.05×7.09 in)
Mounting plate dimension M1 × M2
345 × 531 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3856 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

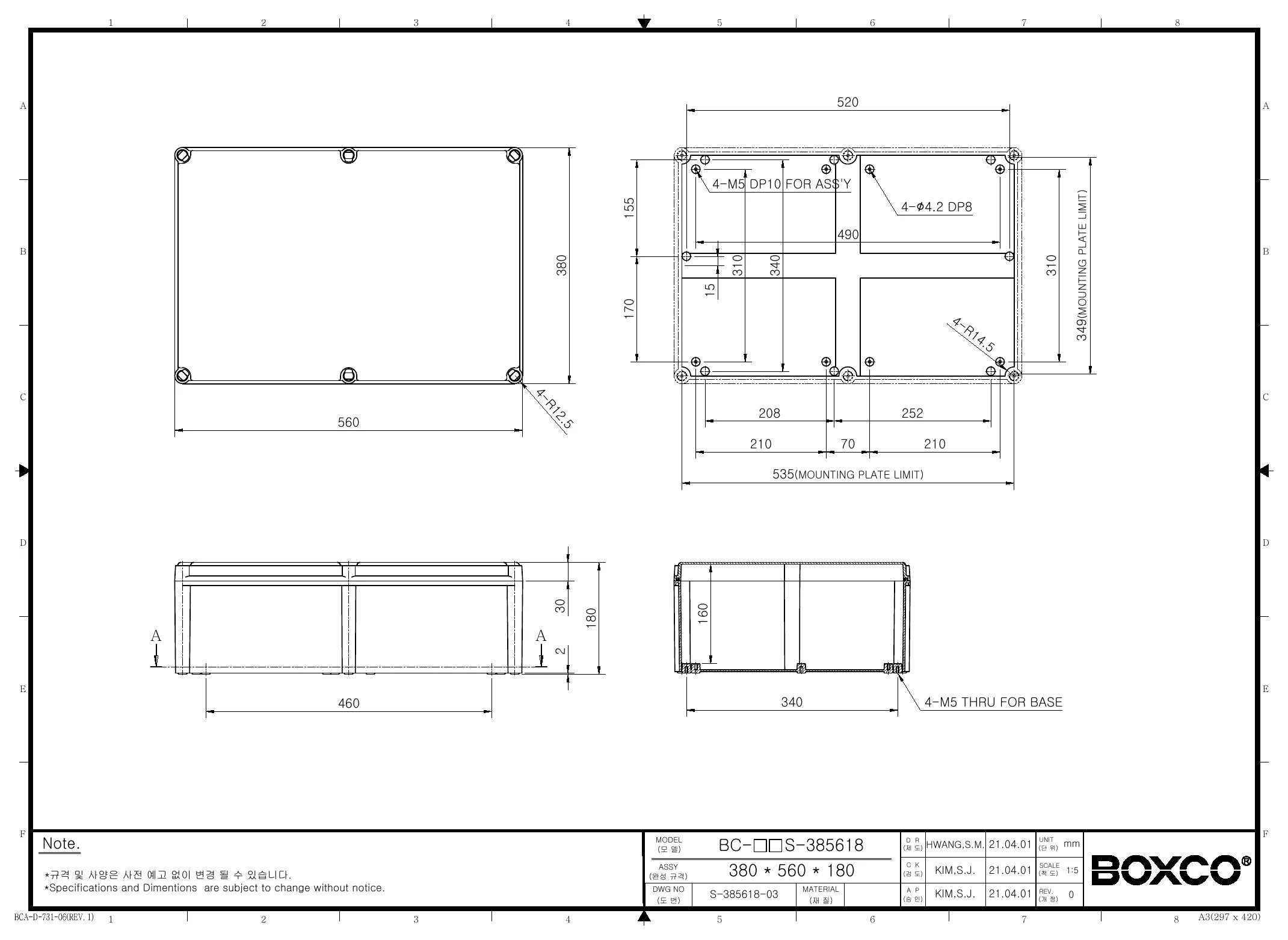

BC-CGS-385618 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure designed for?

This model is a plastic enclosure intended to house and protect electrical or electronic components in industrial and commercial applications. Its large interior size, impact resistance, and sealed construction make it a practical choice when equipment needs protection from dust, water, and general physical exposure.

Is this enclosure suitable for outdoor environments?

Yes, this Boxco S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. The housing is also rated IP67 and includes a precision-injected gasket to help provide strong waterproof and dust-proof performance.

What are the dimensions of this enclosure?

This enclosure measures 14.96 x 22.05 x 7.09 inches, which corresponds to 380 x 560 x 180 mm. That size makes it suitable for larger component layouts that require more internal space than compact junction boxes.

What do the IP67 and IK08 ratings mean for this model?

The IP67 rating indicates this enclosure is built for strong protection against dust ingress and temporary water exposure. The IK08 impact rating means the enclosure is designed to withstand a meaningful level of external mechanical impact for added durability.

What temperature range can this enclosure handle?

This model is specified for temperatures from -40 degrees C to 110 degrees C. That wide operating range supports use in both very cold and high-heat environments where standard plastic enclosures may be less suitable.

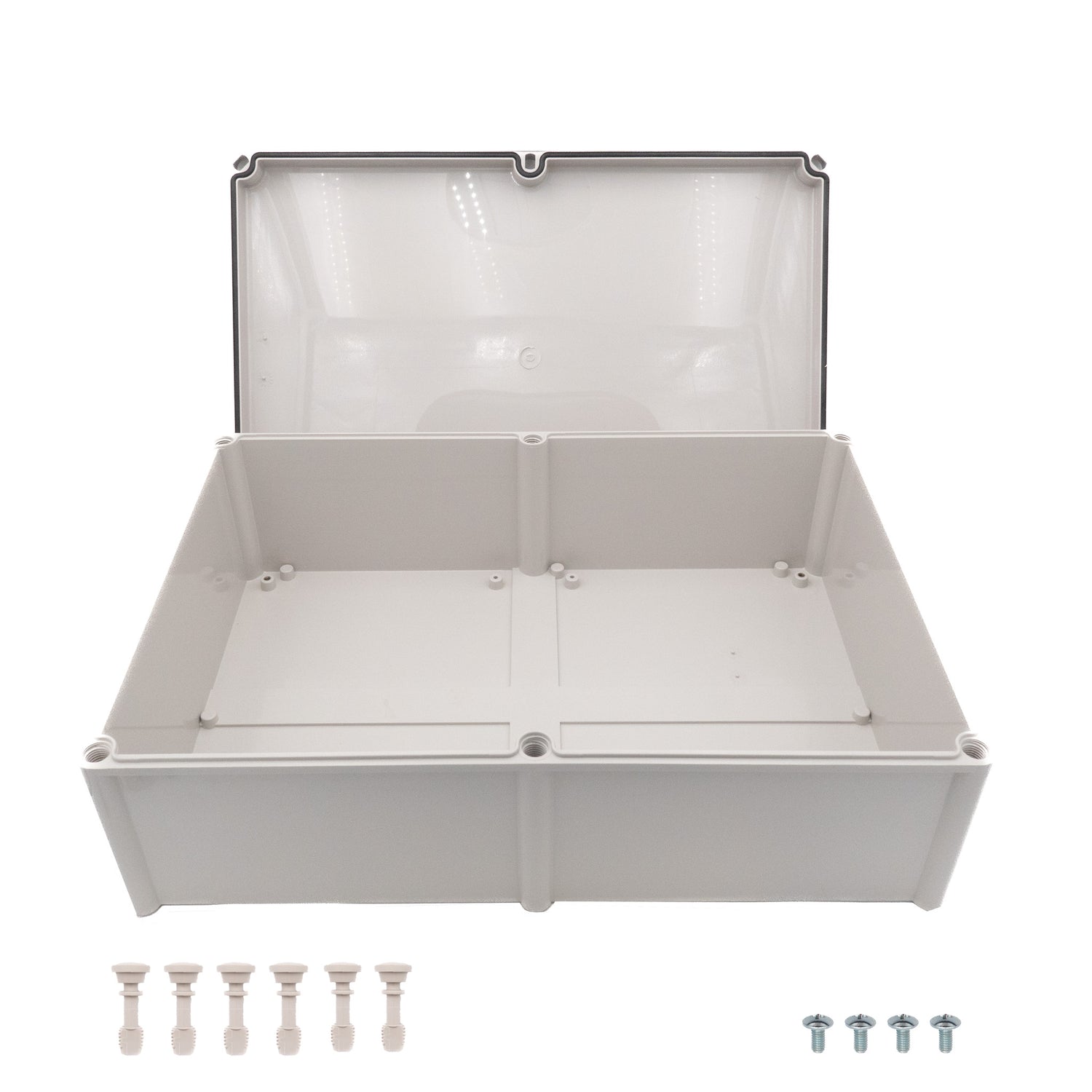

What mounting and internal equipment support features does this enclosure include?

The product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing compatible internal hardware. It is also designed with brass-inserted injection molding to support tighter mounting of heavier equipment inside the enclosure.
