Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

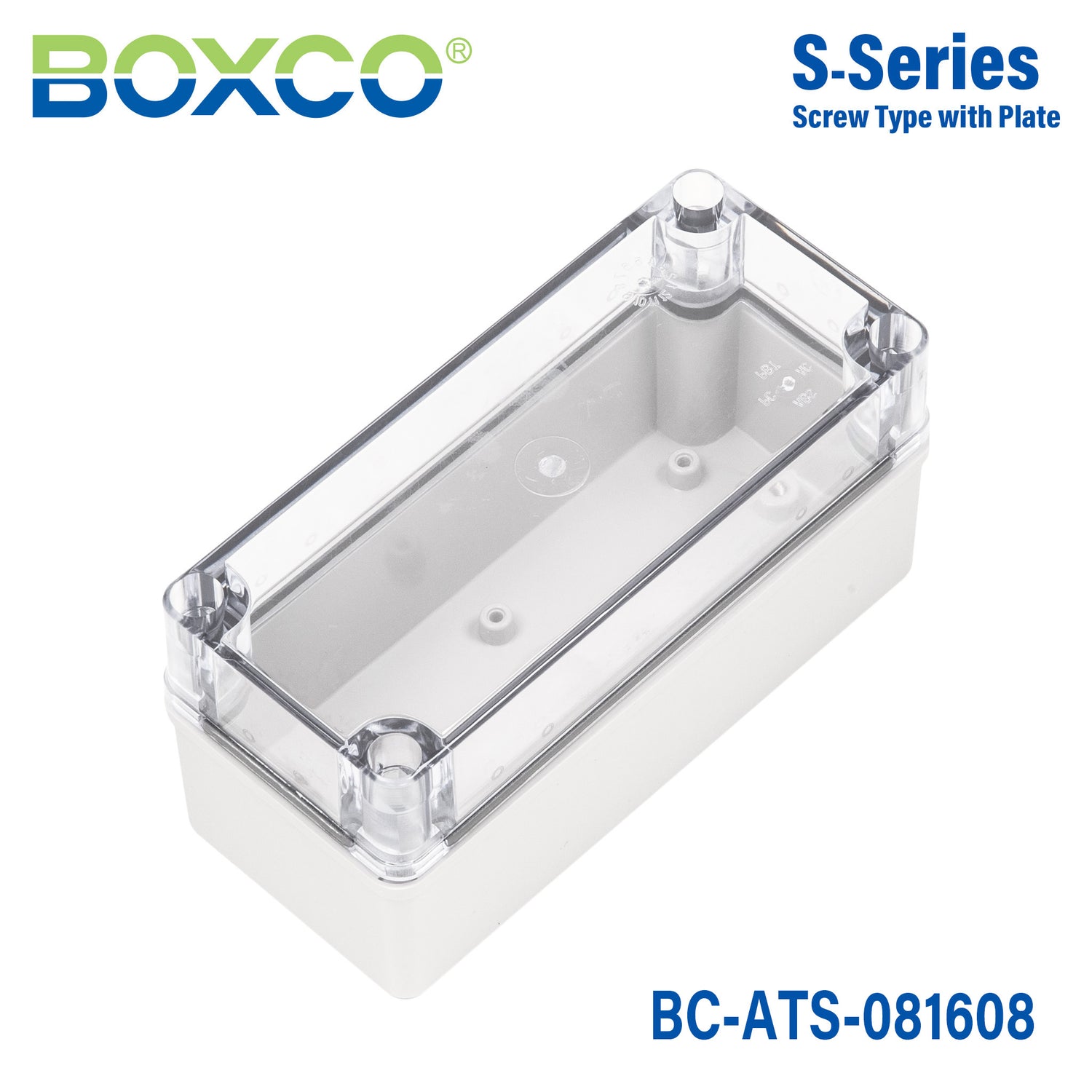

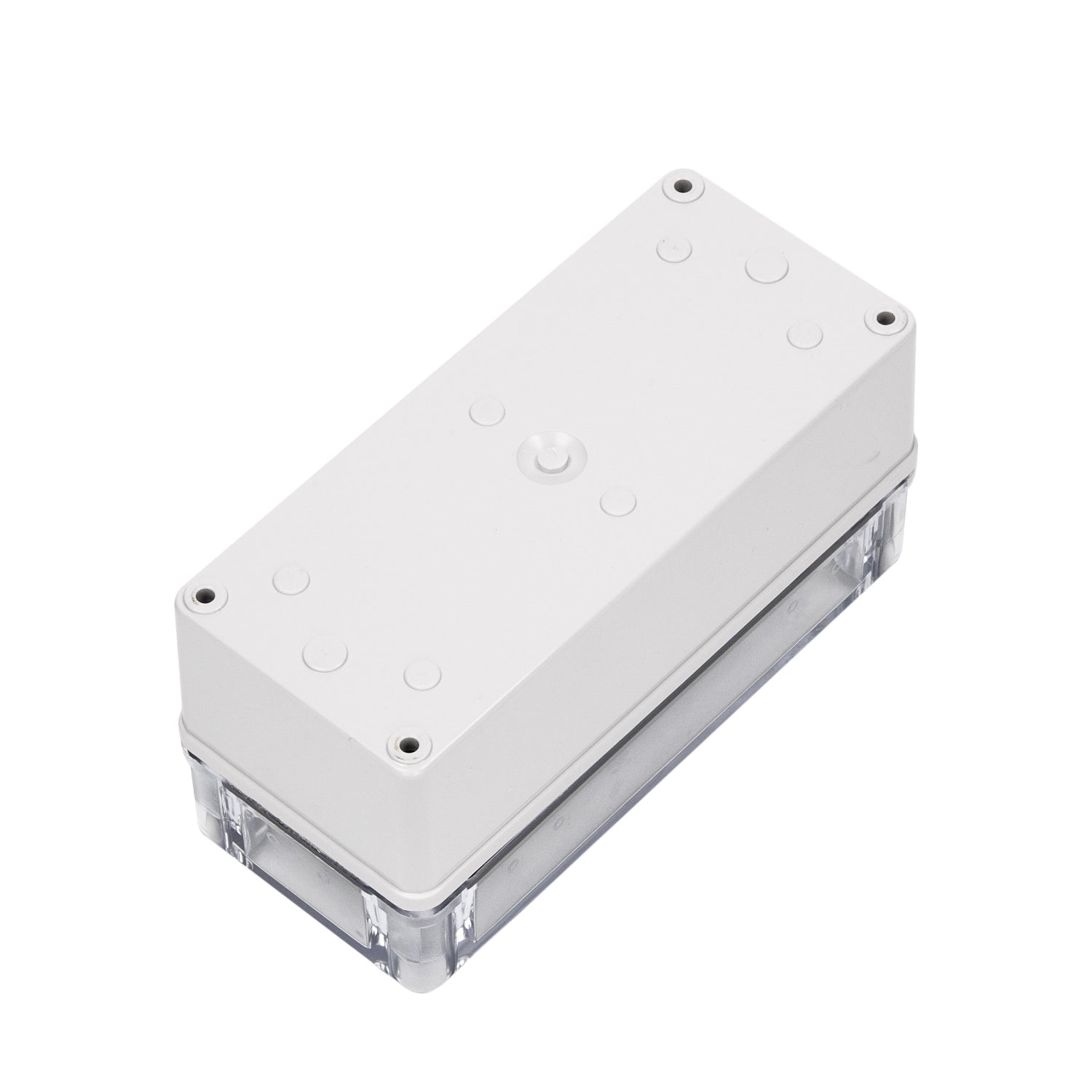

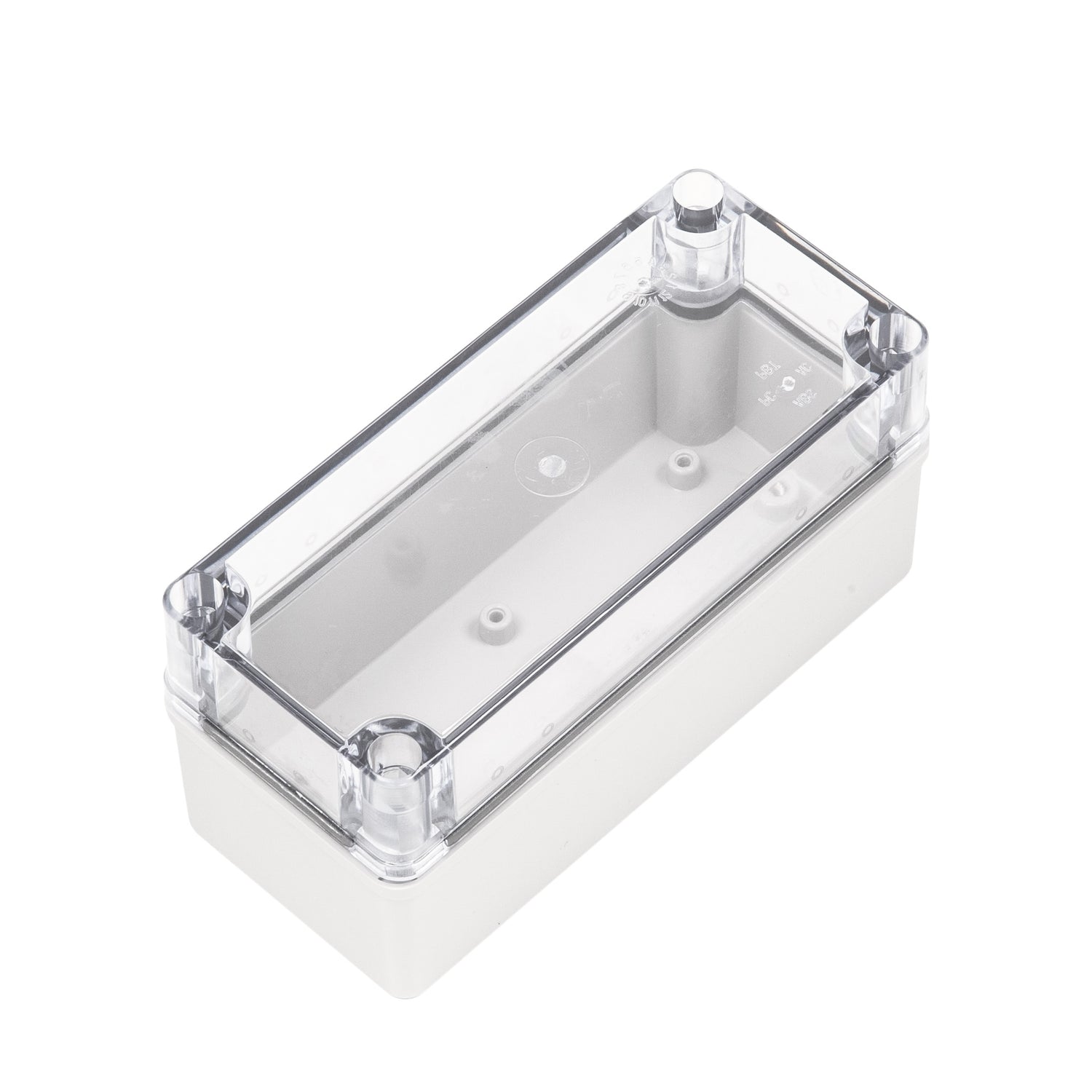

Boxco S-Series 80x160x85mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU:

BC-ATS-081608

Notify me when it's back in stock

Description

For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

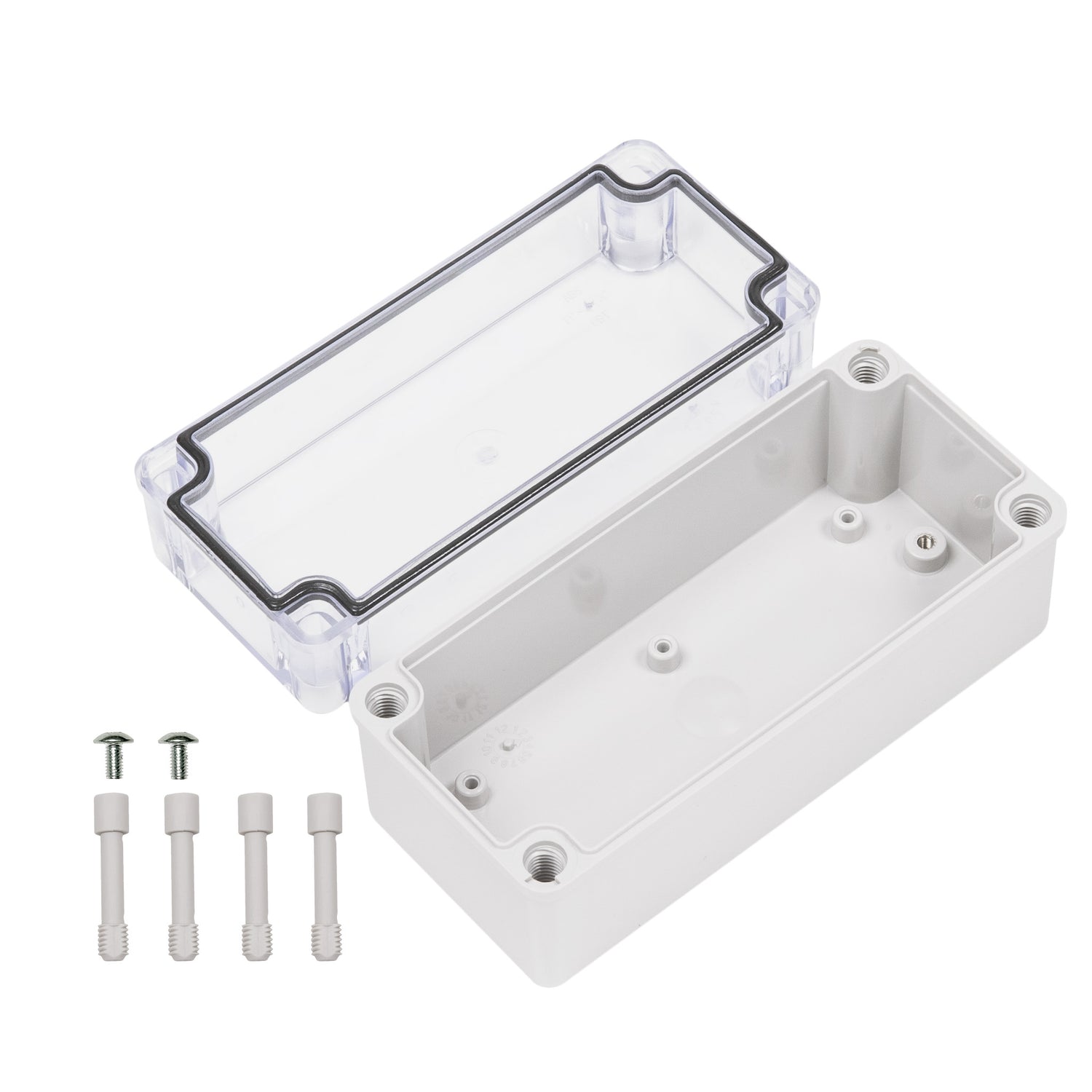

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength

Specifications

Brand

Boxco
Series

Boxco S Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

8 cm
Width

16 cm
Height

8.5 cm
Weight

0.25 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is this Boxco S-Series enclosure commonly used for?

This enclosure is suited for protecting sensitive electronic components in industrial and outdoor environments where dust, water, and impact resistance matter. Its anti-static material and durable ABS construction make it a practical choice for control, monitoring, and protection-related equipment housings.

What are the key specifications of model BC-ATS-081608?

This model measures 3.15 x 6.3 x 3.35 inches (80 x 160 x 85 mm) and is made from ABS with a transparent cover. It is rated IP67 for dust and water protection, IK08 for impact resistance, weighs 0.252 kg, and is designed for use from -40°C to 70°C.

Is this enclosure suitable for outdoor environments?

Yes, this Boxco S-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce visible color change over long-term exposure while maintaining the enclosure's protective performance.

How does the transparent cover help compared with a solid cover enclosure?

The transparent cover allows visual inspection of internal indicators or components without opening the enclosure. That can be useful when you want to check status or identification details while still using a sealed screw-type cover design.

What internal mounting features does this enclosure include?

This enclosure includes mounting plate attachment points and pre-molded mounting screw nuts for securing internal hardware. It is also described as supporting DIN rail or other equipment mounting, which can help with organized component placement inside the box.

How well does this enclosure protect against dust, water, and impact?

Model BC-ATS-081608 carries an IP67 rating, indicating strong protection against dust ingress and temporary water exposure. It also has an IK08 impact rating and uses high-impact-resistant material to help withstand external shock in demanding environments.

What warranty is provided for this enclosure?

The listed warranty period for this model is 1 year. For buyers comparing enclosure options, that gives a defined coverage term for this specific Boxco S-Series unit.
