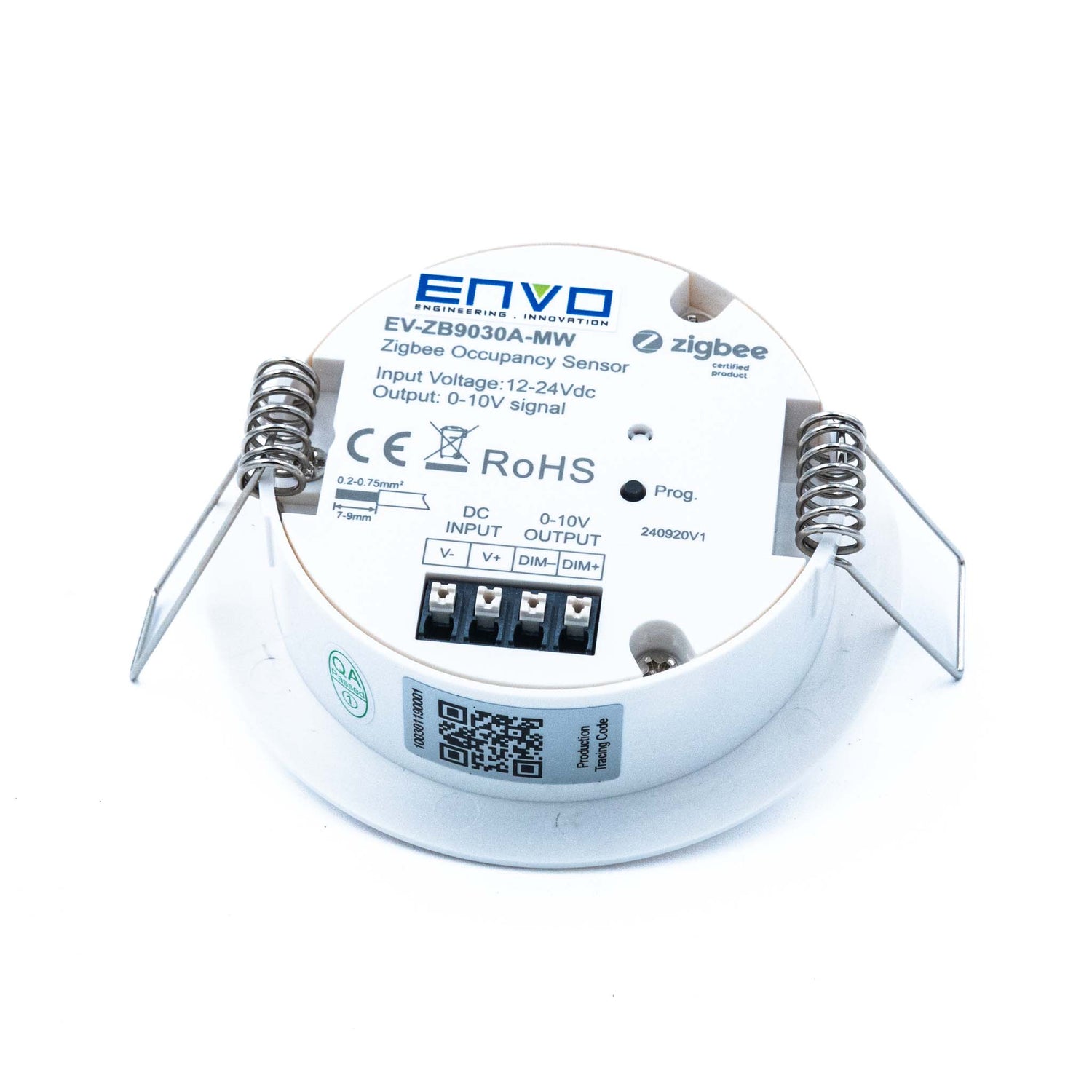

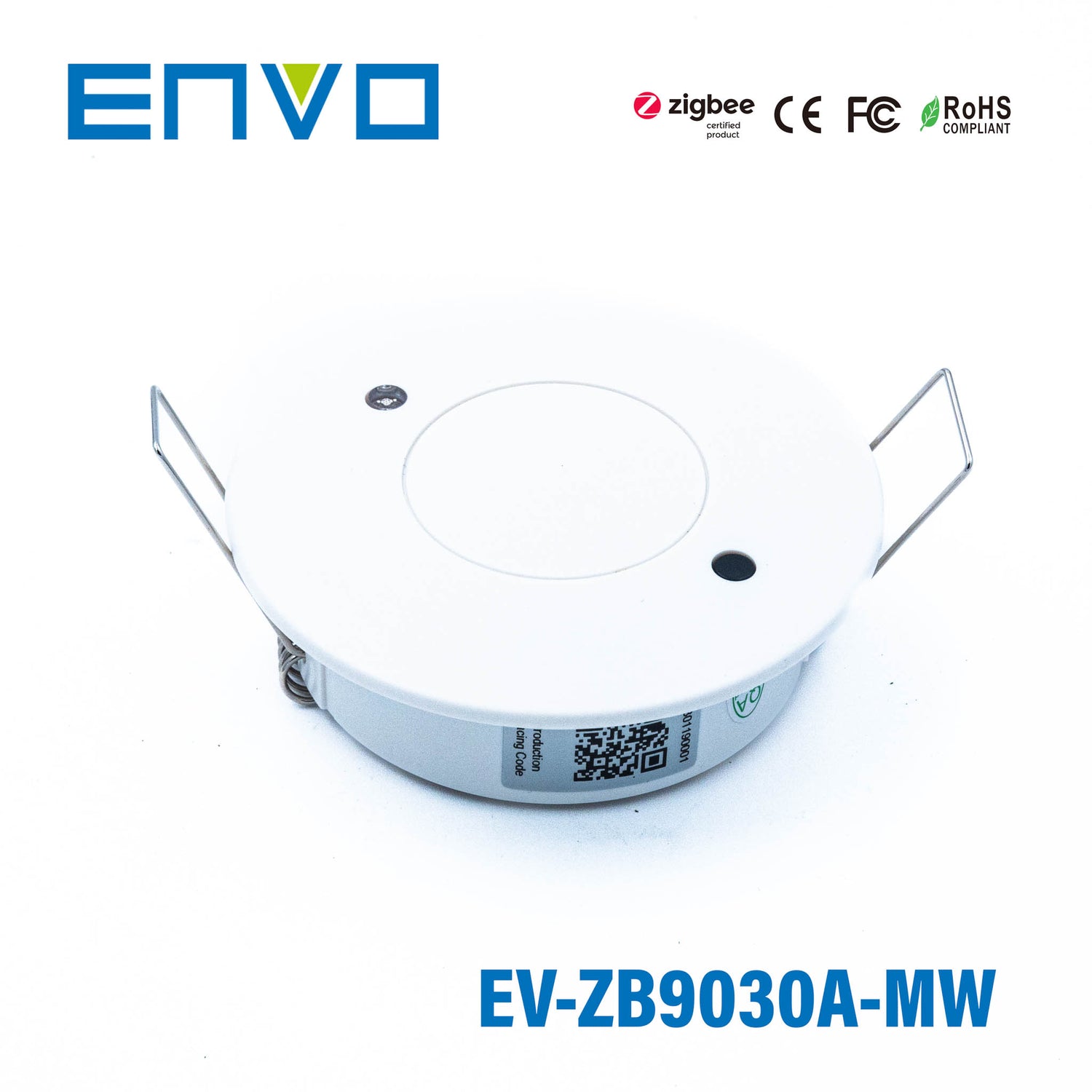

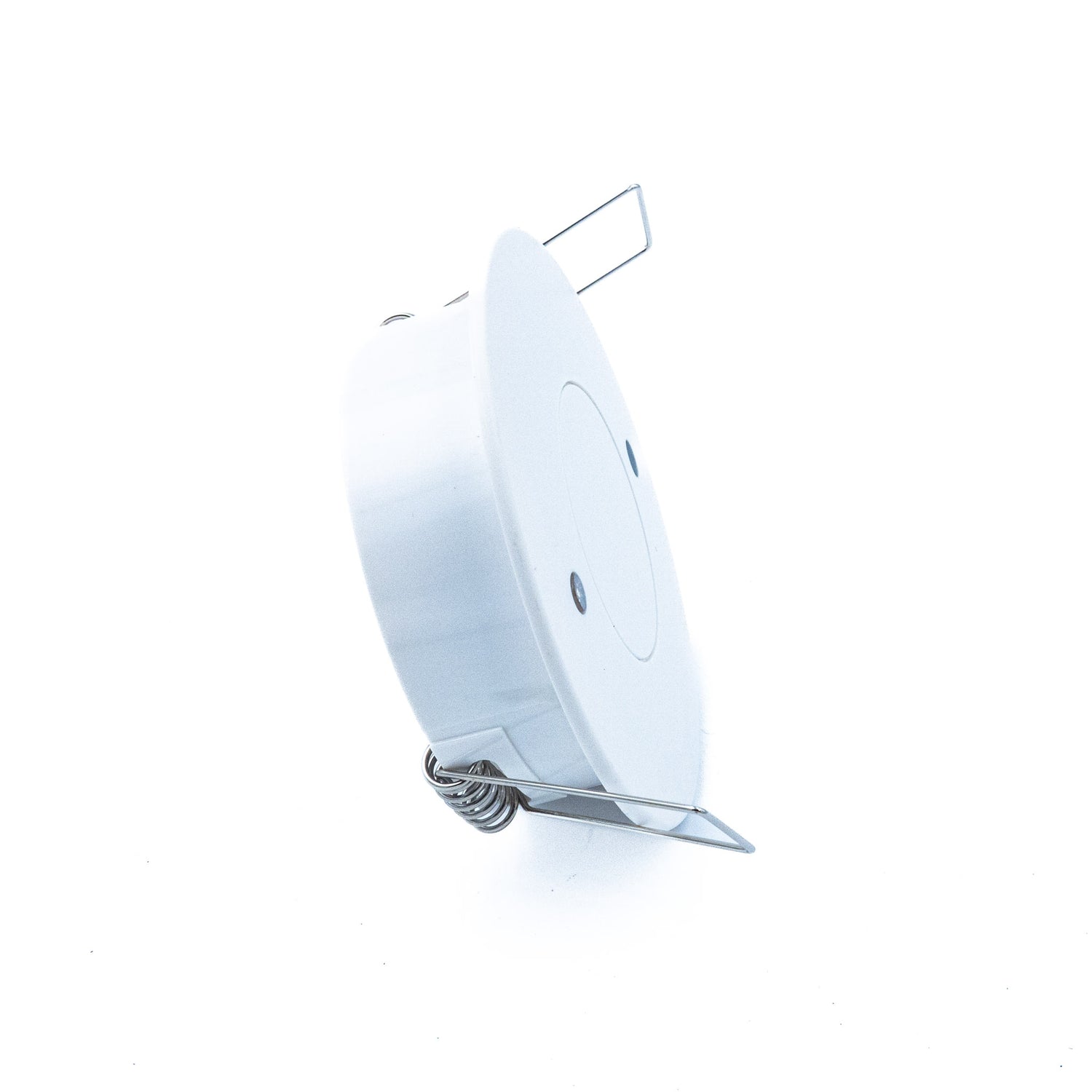

ENVO ZigBee Ceiling Mounted Microwave Sensor, 0-10V Dimming

ZigBee 3.0 protocol70-73mm cutout12/24VDC

SKU EV-ZB9030A-MW

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

The occupancy sensor is a 4 in 1 device that combines occupancy sensing, daylight harvesting, 0-10V dimming and Zigbee radio circuits. When used with 0-10V LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures. The sensor is suitable for high bay applications which need large detection area and sensor based automation.

Features

Zigbee 3.0 compliant
Microwave motion detection, dual antennas, long detection range
Daylight harvesting
Works with 0-10V dim-to-off LED drivers
Autonomous sensor-based control
OTA firmware upgrade
Ceiling recessed installation
Can be use for indoor applications

Specifications

EV-ZB9030A-MWSpecifications from the official datasheetDownload datasheet PDF

Physical Information

Cutting Hole: 70-73mm
Material / Color: ABS / White
Wire Gauge: 26-16 AWG (0.2-1.3 mm2)
Strip Length: 0.28-0.35 in. / 7-9 mm

Electrical Information

Input Voltage: 12/24 VDC
Current Consumption: < 30mA (when dimming method = sink)
Dimming Control: Analog (0-10V)
Dimming Output: 4mA (sink) / 20mA (source)
Status Indicators: Red (motion detection)

Wireless Communication

Radio Frequency: 2.4 GHz
Wireless Protocol: Zigbee 3.0
Wireless Range: 100 feet (30m) Line of Sight
Radio Certification: FCC/IC, CE

Lighting Control

Features: Continuous dimming, Individual/group addressing, Scene control, Task tuning (0-100%), Autonomous sensor-based control, Scheduler control

Environment

Operating Temperature Range: 32˚F to 104˚F / 0˚C to 40˚C (indoor use only)
Operating Humidity: 0-95% (non condensing)
Safety Certification: cULus Listed, CE

Sensing

Occupancy Sensing Type: Microwave sensor
Microwave High Frequency: 5.8 GHz ±75 MHz ISM band
Detection Sensitivity: 0-15 (0 is max sensitivity, 15 is min sensitivity)
Lux Detection Range: 0-1000 Lux
Mounting Height: Recommended height: 10ft (3m)
Detection Angle: 150° (wall), 360° (ceiling)
Sensing Information: Can be shared within Zigbee mesh network

Typical applications

Warehouses
Factories
Photo Controls
Central Management System

Downloads

Datasheet1

EV-ZB9030A-MW datasheetEV_ZB9030A_MW.pdf PDF Download

FAQ

What is the ENVO ZigBee Ceiling Mounted Microwave Sensor, 0-10V Dimming used for?

This sensor is designed for indoor lighting control in commercial or professional settings where motion sensing and dimming are needed. It combines microwave motion detection, daylight harvesting, and autonomous sensor-based control to help reduce energy use while supporting code-compliant lighting strategies.

What lighting control method does this sensor support?

This model is built to work with 0-10V dim-to-off LED drivers. Its dimming output is rated at 4mA in sink mode and 20mA in source mode, making it suitable for low-voltage dimming control applications that use that standard.

Does this sensor use ZigBee, and what version does it support?

Yes. The EV-ZB9030A-MW is Zigbee 3.0 compliant, which helps it fit into Zigbee-based smart lighting and sensor ecosystems that support this type of device. It also supports OTA firmware upgrades and benefits from a robust mesh network architecture.

How does this model detect occupancy?

This sensor uses microwave motion detection and includes dual antennas for longer detection coverage. It also has a red status indicator that flashes when motion is detected.

Is this sensor suitable for indoor environments?

Yes, this model is intended for indoor applications. Its stated operating temperature range is 0°C to 40°C, which makes it appropriate for typical conditioned interior spaces.

What power input does the EV-ZB9030A-MW require?

The sensor operates on 12/24 VDC input voltage. Its current consumption is listed as less than 30mA when the dimming method is set to sink.

How does this model compare with a basic standalone motion sensor?

Compared with a basic motion-only sensor, this model adds Zigbee 3.0 wireless capability, daylight harvesting, and support for 0-10V dim-to-off LED drivers. That makes it a better fit for smart commercial lighting control where energy savings, automation, and platform compatibility matter.
