Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

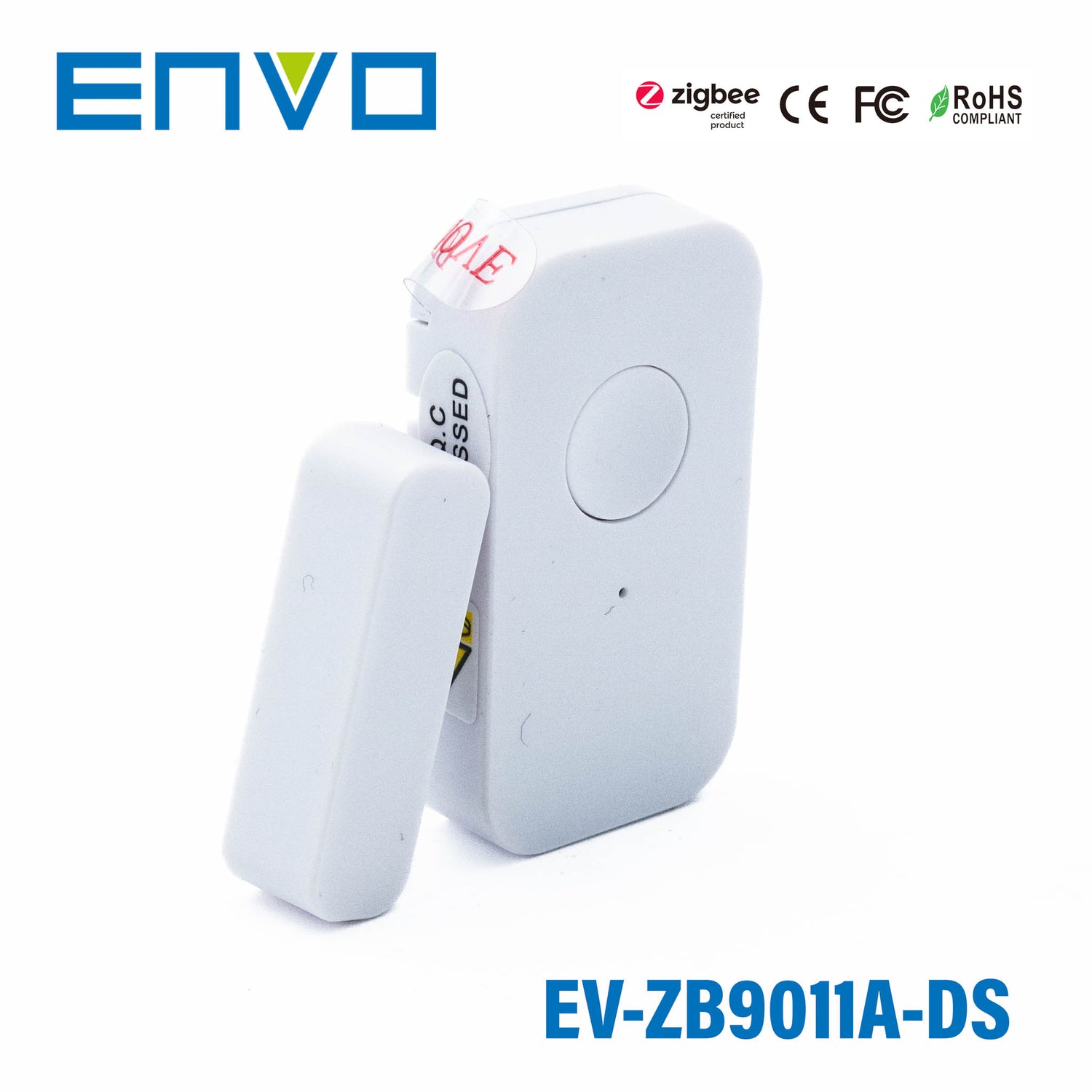

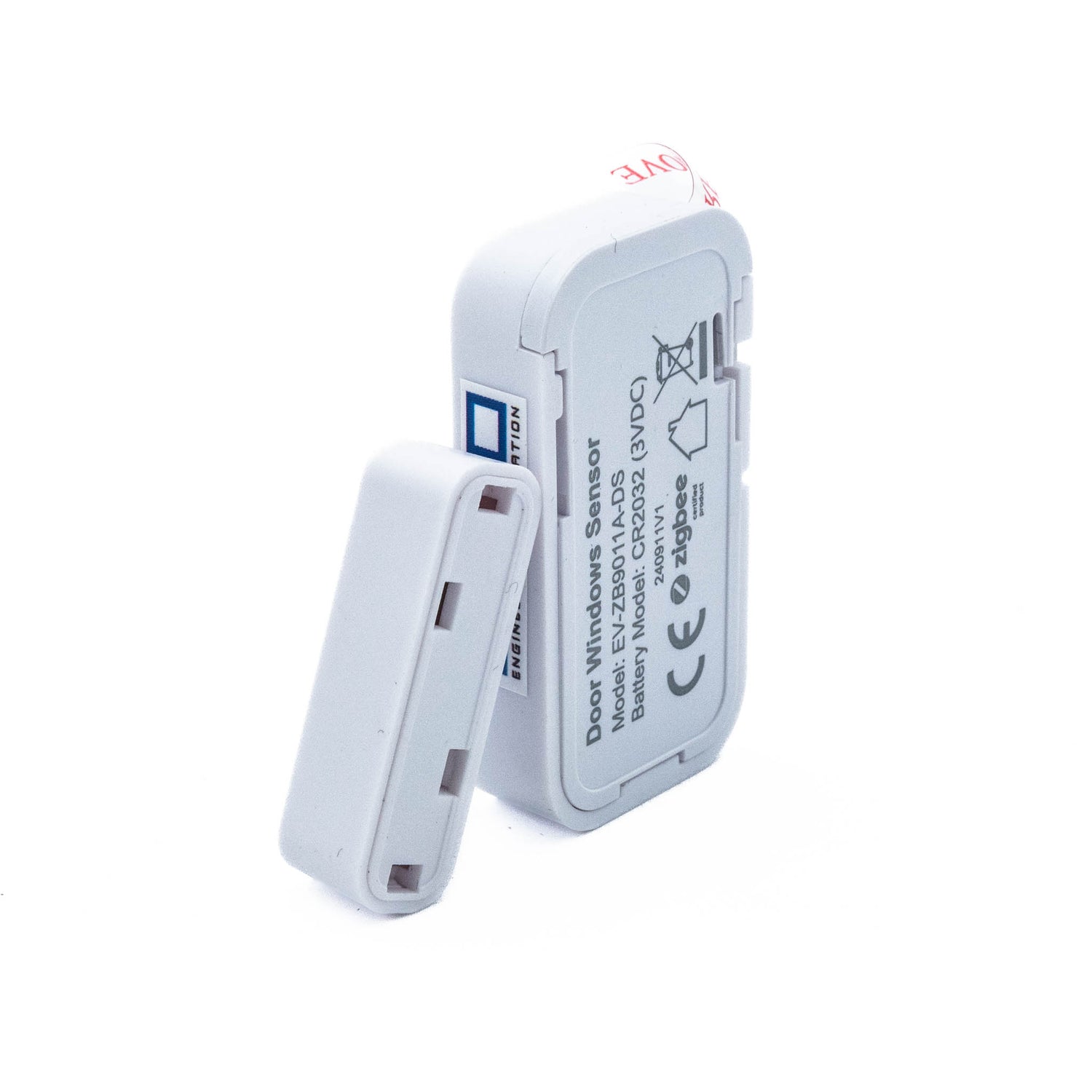

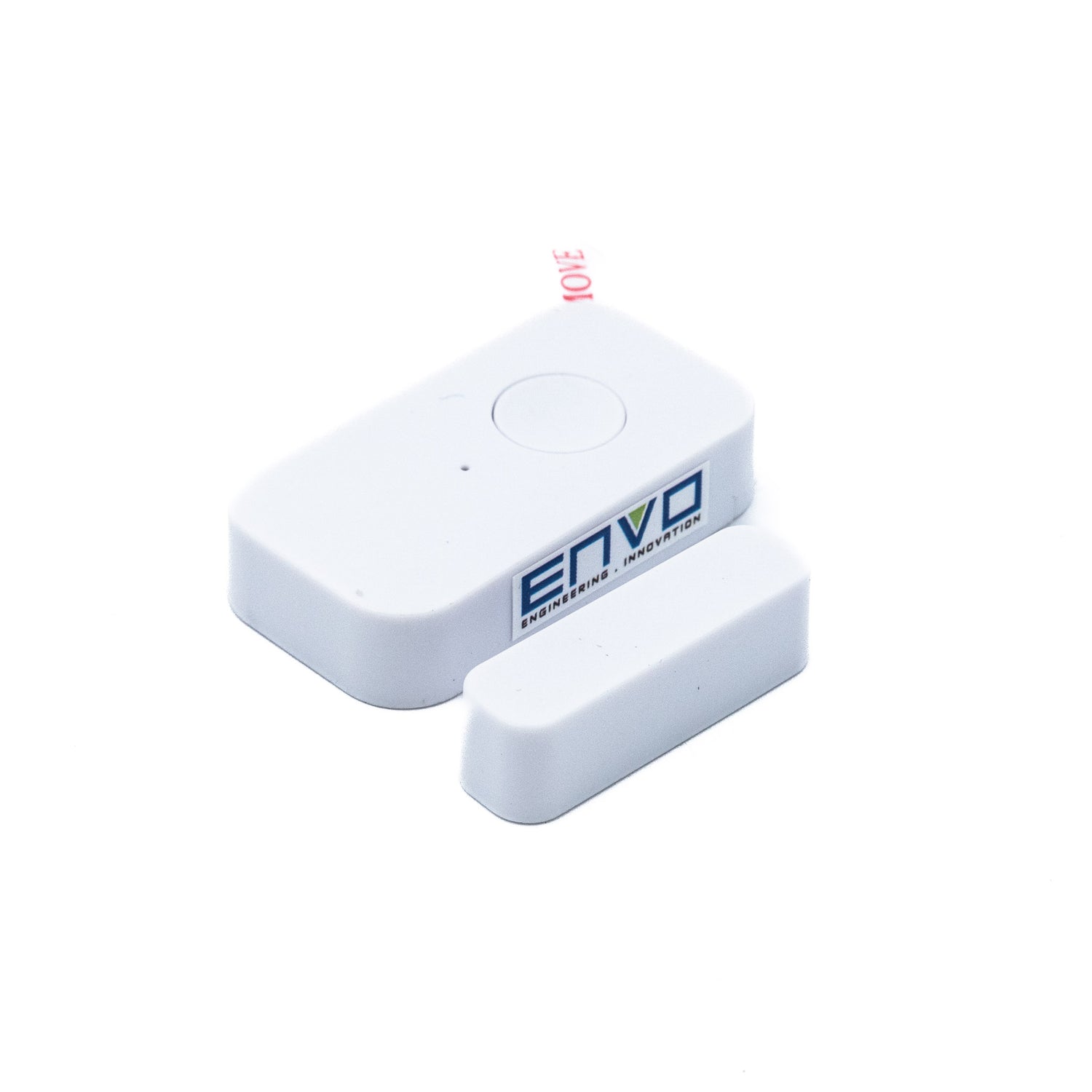

ENVO ZigBee Door/Window Sensor

ZigBee 3.0 protocol, 3VDC(CR2032 battery)

SKU:

EV-ZB9011A-DS

Please for Pricing

Notify me when it's back in stock

Description

Features:

The Zigbee Door Window sensor is a wireless, battery powered contact sensor, compatible with the Zigbee 3.0 standard.
The device can be operated intelligently via working with a Zigbee gateway to communicate with other devices.
It is a zigbee low-energy wireless door/window sensor that makes you know the opening/closing status of door and window by separating the magnet from the transmitter.
Connect it with the gateway which supports automation function and you can
create a smart scene to trigger other devices.

General Specification

Zigbee Protocol

Zigbee 3.0

Radio Frequency

2.4GHz

Power Supply

3VDC (CR2032 Batteries)

Operating temperature

0 to 40°C

Relative humidity

8% to 80%

Dimension (LxWxH)

Transmitter: 49x26.5x10mm,

Magnet: 35.5x10.5x10mm

Specifications

Brand

Envo
Operating Temperature

0°C~40°C
Warranty

5 Year
Length

4.9 cm
Width

2.65 cm
Height

1 cm

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What does the ENVO ZigBee Door/Window Sensor do?

The ENVO ZigBee Door/Window Sensor detects when a door or window opens or closes by sensing separation between the magnet and transmitter. It is designed as a low-energy wireless contact sensor for status monitoring in Zigbee-based smart systems.

Is this sensor compatible with Zigbee systems?

Yes, this model is compatible with the Zigbee 3.0 standard. It is intended to work with a Zigbee gateway so it can communicate with other supported devices and participate in smart scenes or automation.

What power source does this sensor use?

This sensor uses 3VDC supplied by CR2032 batteries. It is a battery-powered wireless device, which makes it suitable for locations where a compact sensor is needed.

What are the operating temperature limits for this model?

The ENVO ZigBee Door/Window Sensor is rated for operation from 0 to 40°C. The specified relative humidity range is 8% to 80%, which helps define the environments it is intended for.

What are the dimensions of the ENVO ZigBee Door/Window Sensor?

The transmitter measures 49 x 26.5 x 10 mm. The magnet measures 35.5 x 10.5 x 10 mm, giving the unit a compact form factor for door and window status sensing.
