Envo

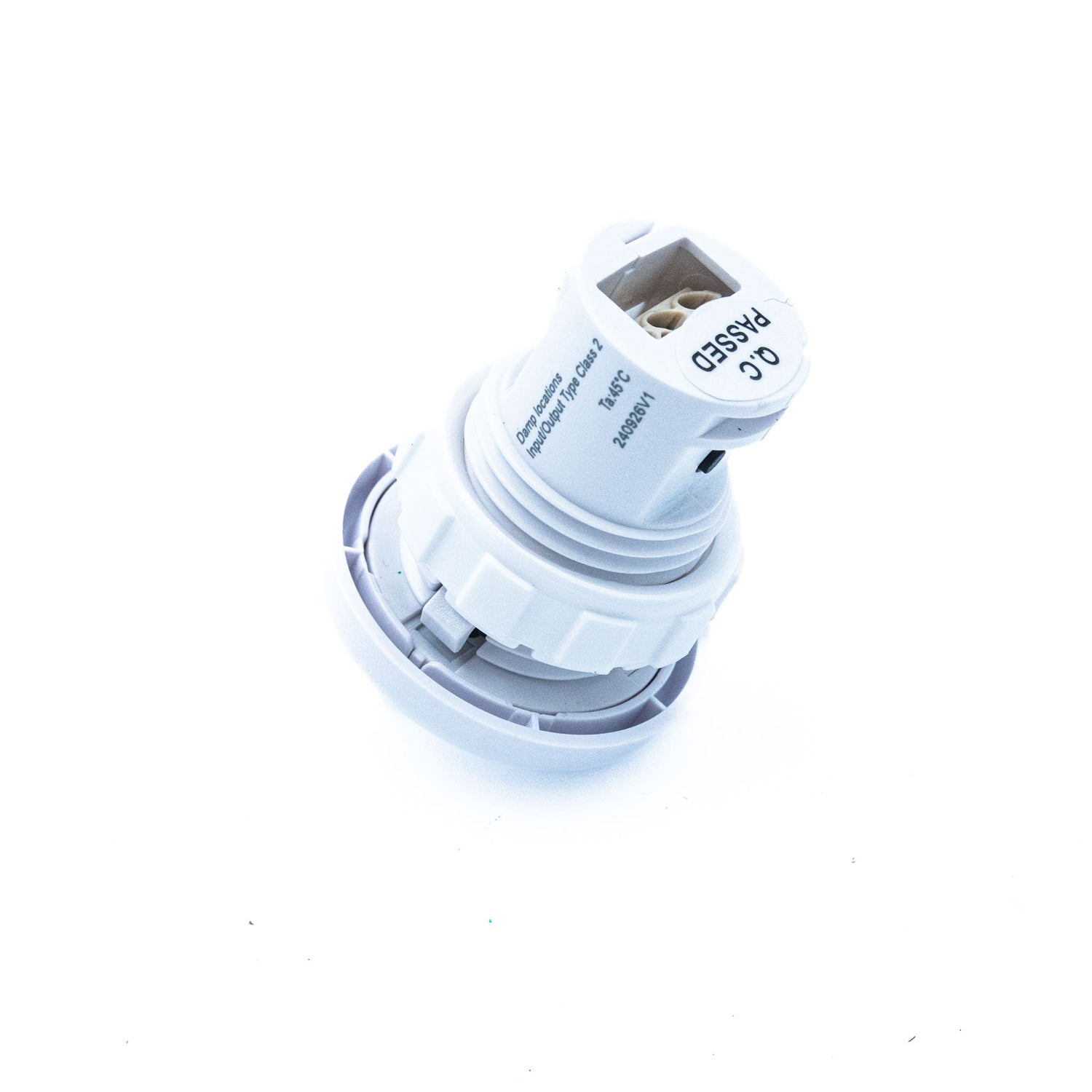

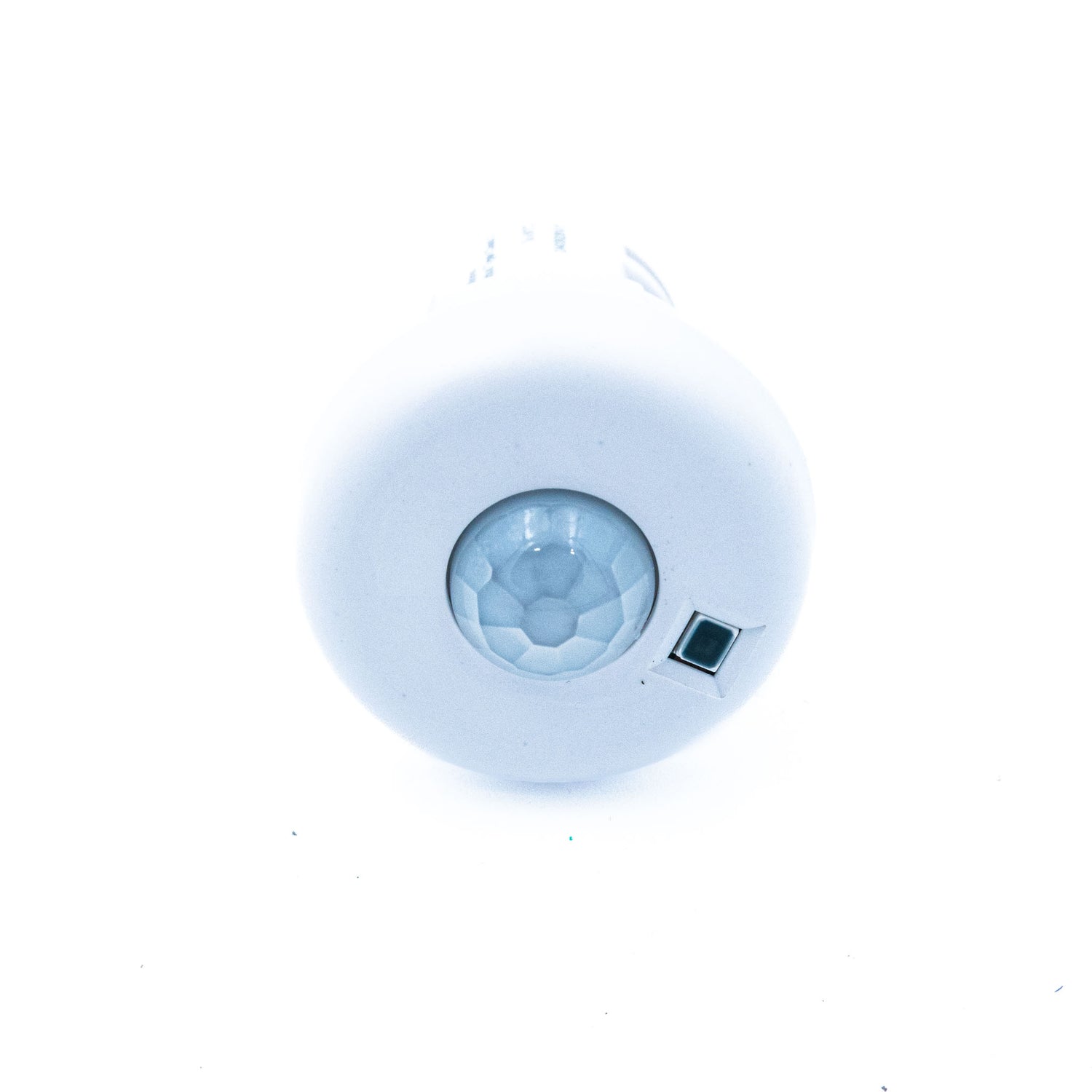

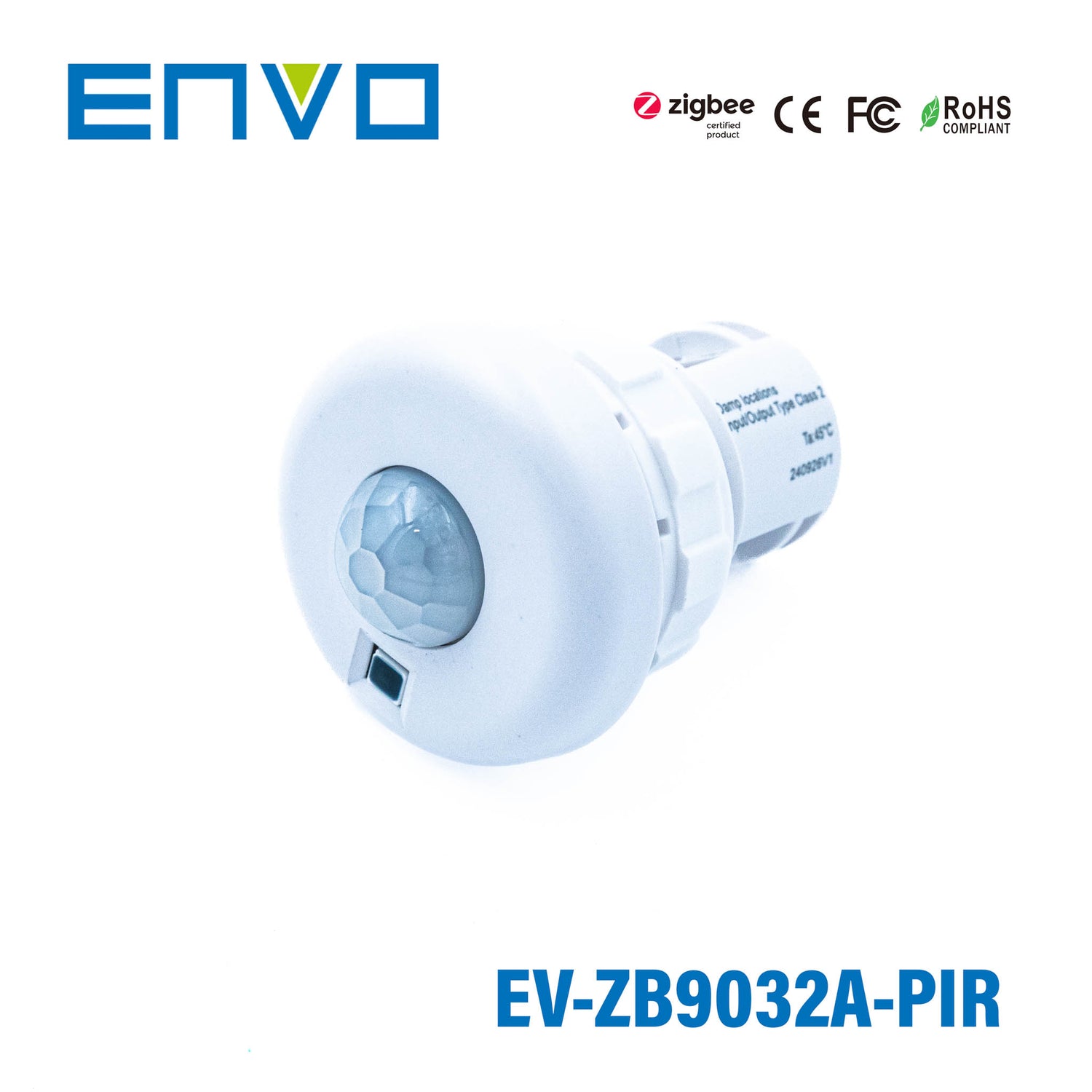

ENVO ZigBee Fixture Integrated PIR+Photocell Sensor

ZigBee 3.0 protocol1-10V dimming12/24VDC
SKU EV-ZB9032A-PIR
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

The fixture-Integrated sensor combines occupancy sensing, daylight harvesting, 0-10V dimming and Zigbee radio circuits into a small package that fits into various luminaires. When used with 0-10V dim-to-off LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures with minimal engineering effort. The sensor-equipped luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes.

Features

  • Zigbee 3.0 compliant
  • PIR motion detection
  • Daylight harvesting
  • Works with 0-10V dim-to-off LED drivers
  • Autonomous sensor-based control
  • OTA firmware upgrade
  • Ceiling recessed installation
  • Can be use for indoor applications
  • Cost-effective solution for energy savings
  • Energy code compliance
  • Robust mesh network
  • Compatible with universal Zigbee platforms that support sensor

Specifications

EV-ZB9032A-PIRSpecifications from the official datasheetDownload datasheet PDF

Sensing

Occupancy Sensing Type
PIR sensor
Detection Sensitivity
0-15 (0 is max sensitivity, 15 is min sensitivity)
Lux Detection Range
0-1000 Lux
Mounting Height
Recommended height: 8ft (2.5m)
Detection Angle
130°
Sensing Information
Can be shared within Zigbee mesh network

Physical Information

Weight
12.3g (without locknut) / 21.3g (with locknut)
Mounting (Luminaire Hole)
1/2" trade size knockout (22.2-22.3mm)
Material / Color
ABS / White
Connectors / Wire Gauge
3 pin connectors / 24-18 AWG (0.2-0.75 mm2)
Strip Length
0.28-0.35 in. / 7-9 mm

Electrical Information

Input Voltage
12/24 VDC
Current Consumption
< 30mA (when dimming method = sink)
Dimming Control
Analog (0-10V)
Dimming Output
4mA (sink) / 20mA (source)
Status Indicators
Red (motion detection)

Wireless Communication

Radio Frequency
2.4 GHz
Wireless Protocol
Zigbee 3.0
Wireless Range
100 feet (30m) Line of Sight
Radio Certification
FCC/IC, CE

Lighting Control

Features
Continuous dimming, Individual/group addressing, Scene control, Task tuning (0-100%), Autonomous sensor-based control, Scheduler control

Environment

Operating Temperature Range
32°F to 104°F / 0°C to 40°C (indoor use only)
Operating Humidity
0-95% (non condensing)
Safety Certification
cULus Listed, CE

Typical applications

  • Residences
  • Offices
  • Meeting rooms
  • Corridors

Downloads

FAQ

What does the ENVO ZigBee Fixture Integrated PIR+Photocell Sensor do?

This model combines PIR motion detection with a photocell for daylight harvesting in a single fixture-integrated ZigBee 3.0 sensor. It is designed to support autonomous sensor-based lighting control for indoor applications and help reduce energy use.

Is this sensor compatible with ZigBee lighting control systems?

Yes. The EV-ZB9032A-PIR is ZigBee 3.0 compliant and is listed as compatible with universal ZigBee platforms that support sensors. It also supports OTA firmware upgrade capability for ongoing platform support.

What kind of dimming control does this sensor support?

This sensor is intended for analog 0-10V dimming applications and works with 0-10V dim-to-off LED drivers. Its dimming output is rated at 4mA in sink mode or 20mA in source mode.

Is this sensor suitable for indoor commercial spaces?

Yes, it is specified for indoor applications and can be a good fit where occupancy sensing and daylight response are needed. Its energy-saving focus and energy code compliance make it relevant for commercial lighting projects.

What are the key operating specifications for this model?

The EV-ZB9032A-PIR operates on 12/24 VDC and uses ZigBee 3.0 at 2.4 GHz. It has a listed wireless range of up to 100 feet line of sight and a current consumption below 30mA when the dimming method is sink.

How compact is the ENVO ZigBee Fixture Integrated PIR+Photocell Sensor?

This is a compact recessed sensor designed for 1/2" trade size knockout mounting. Its listed weight is 12.3g without locknut or 21.3g with locknut, which supports use in fixture-integrated sensor applications.

What environmental range is this sensor rated for?

This model is rated for operation from 0°C to 40°C. That makes it appropriate for typical indoor temperature-controlled environments rather than extreme-temperature locations.
