Envo

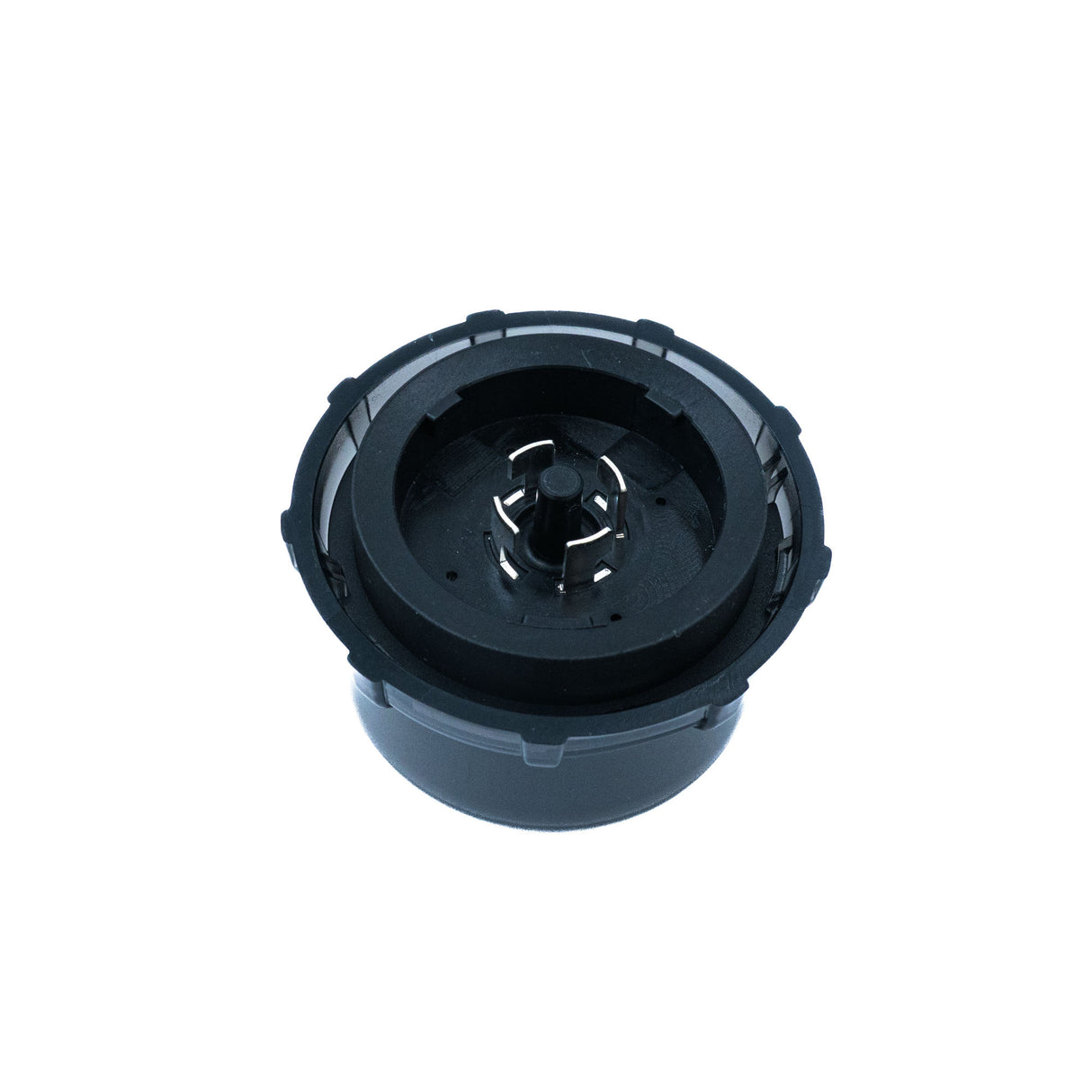

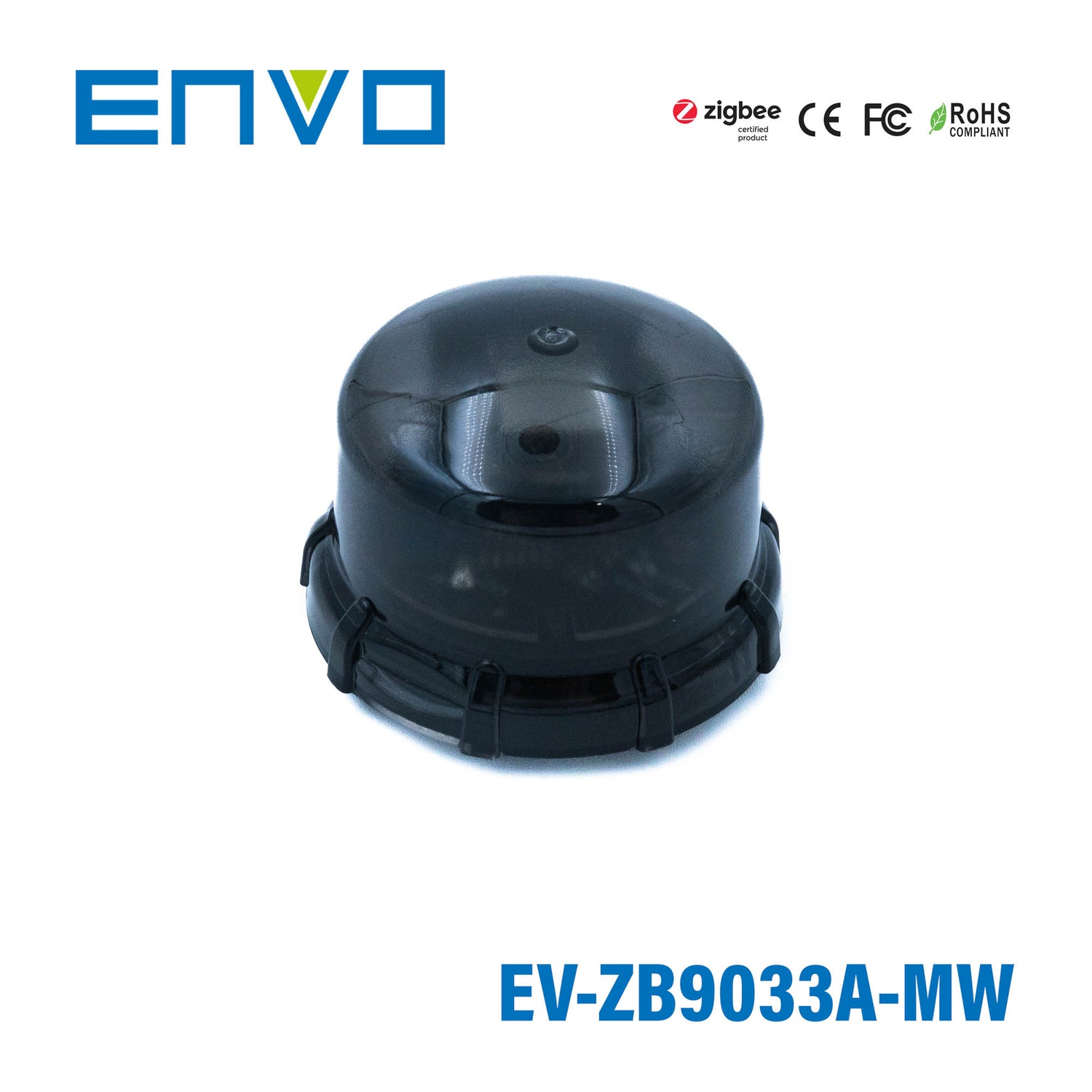

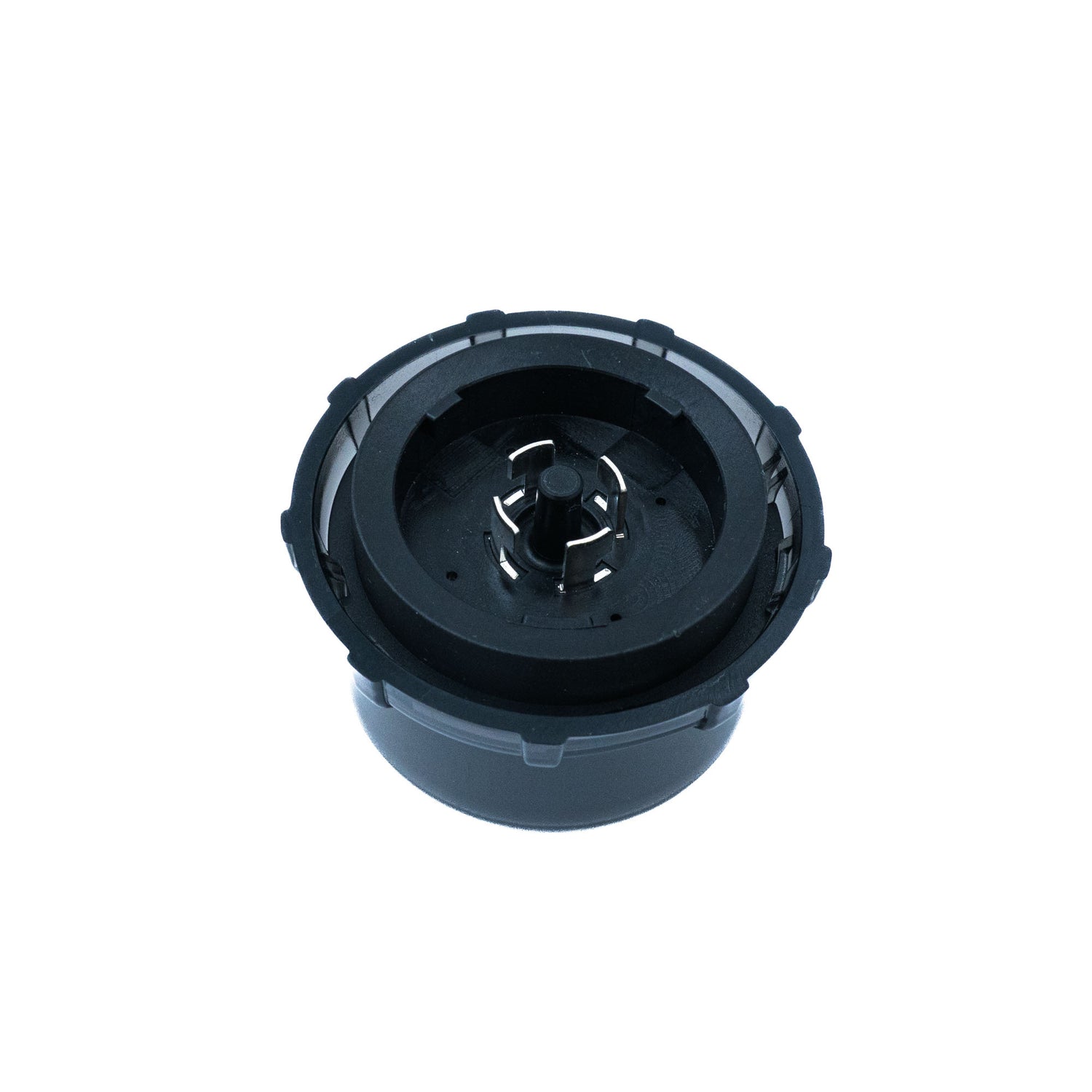

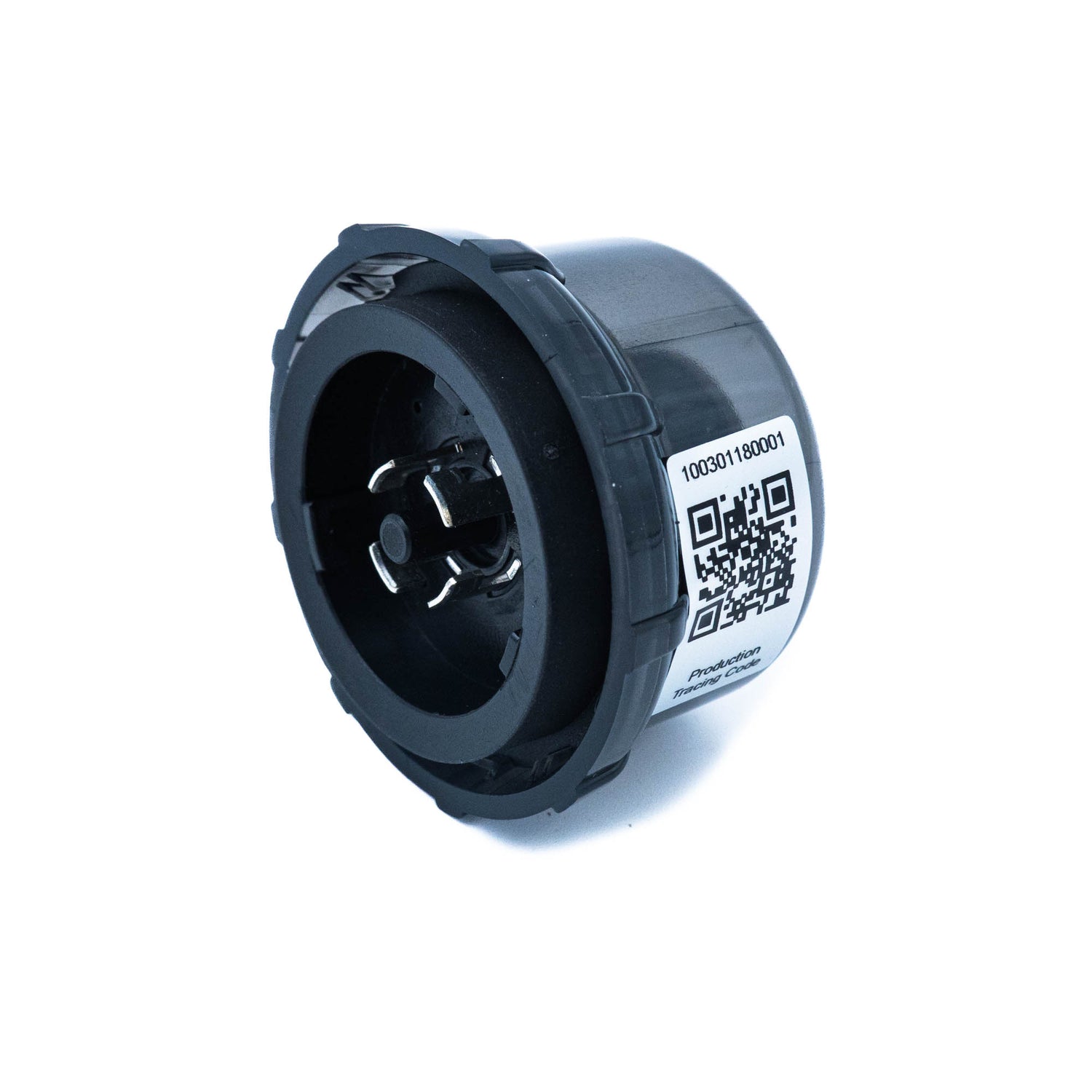

ENVO ZigBee Microwave Sensor IP65 with ZHAGA Interface Socket

ZigBee 3.0 protocolceiling/wall mount1-10V dimming
SKU EV-ZB9033A-MW
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

The occupancy sensor is a 4 in 1 device that combines occupancy sensing, daylight harvesting, 0-10V dimming and Zigbee radio circuits, and with standard zhaga interface socket, the sensor can easily fit into various luminaires with no tools required. When used with 0-10V LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures with minimal engineering effort. The sensor-equipped luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is IP65 rating, which enables it to be used for outdoor luminaires.

Features

  • Zigbee 3.0 compliant
  • Microwave motion detection, long detection range
  • Daylight harvesting
  • Works with 0-10V dim-to-off LED drivers
  • Autonomous sensor-based control
  • OTA firmware upgrade
  • Zhaga book 18 socket
  • Plug & Play
  • IP65 rating, can be used for outdoor luminaires

Specifications

EV-ZB9033A-MWSpecifications from the official datasheetDownload datasheet PDF

Environment

Operating Temperature Range
-40°F to 104°F / -40°C to 70°C
Operating Humidity
0-95% (non condensing)
Safety Certification
cULus Listed, CE

Physical Information

Dimensions
Sensor head: D50mm*H35mm, Receptacle: D30mm
Mounting
M 20X1.5 thread
Thread length
18.5 mm
Gasket Dimensions
D36.5mm
Wires
AWM1015, 20AWG, 6"(120 mm)

Electrical Information

Input Voltage
12/24 VDC
Current Consumption
< 30mA
Dimming Control
Analog (0-10V)
Dimming Output
4mA (sink) / 20mA (source)
Status Indicators
Red (zigbee network status), Red (occupancy detection)

Wireless Communication

Radio Frequency
2.4 GHz
Wireless Protocol
Zigbee 3.0
Wireless Range
100 feet (30m) Line of Sight
Radio Certification
FCC/IC, CE

Lighting Control

Features
Continuous dimming, Individual/group addressing, Scene control, Task tuning (0-100%), Autonomous sensor-based control, Scheduler control

Sensing

Occupancy Sensing Type
Microwave sensor
Microwave High Frequency
5.8 GHz ±75 MHz ISM band
Detection Sensitivity
0-15, 0 is 100% the max. sensitivity, 15 is the min. sensitivity
Lux Detection Range
0-1000 Lux
Mounting Height
Up to 49ft (15m), recommended height: 13-26ft (4-8m)
Detection Angle
150° (wall), 360° (ceiling)
Sensing Information
Can be shared within Zigbee mesh network

Typical applications

  • Warehouses
  • Factories
  • Street and Area Lighting
  • Outdoor Luminaires - Wall Packs - Parking Lots - Walkways
  • Photo Controls
  • Central Management System

Downloads

FAQ

What is the ENVO ZigBee Microwave Sensor IP65 with ZHAGA Interface Socket used for?

This model is designed for sensor-based lighting control in luminaires that use a standard Zhaga Book 18 socket. It combines microwave motion detection and daylight harvesting to help automate dimming and support energy-saving lighting applications.

Is this sensor suitable for outdoor or harsh-environment lighting applications?

Yes. This sensor is rated IP65 and is specified for operation from -40°C to 70°C, which makes it suitable for demanding indoor or outdoor luminaire environments. Buyers commonly use this type of sensor where weather resistance and wide temperature tolerance matter.

Does this sensor support Zigbee networks?

Yes, this model is Zigbee 3.0 compliant and is designed to work on Zigbee platforms that support sensors. It also supports OTA firmware upgrades and is described as part of a robust mesh network.

What kind of dimming control does this sensor support?

This sensor supports analog 0-10V dimming and is intended for use with 0-10V dim-to-off LED drivers. Its dimming output is rated at 4mA sink or 20mA source.

How does this model differ from a basic motion sensor?

In addition to microwave motion detection, this model includes daylight harvesting and Zigbee 3.0 wireless capability. That makes it a stronger fit for smart lighting control projects that need autonomous response plus integration with compatible Zigbee platforms.

What are the key physical and wireless specifications of this sensor?

This model operates on 12/24 VDC with current consumption below 30mA. It uses 2.4 GHz radio, offers up to 100 feet (30m) line-of-sight wireless range, and measures D50mm x H35mm.
