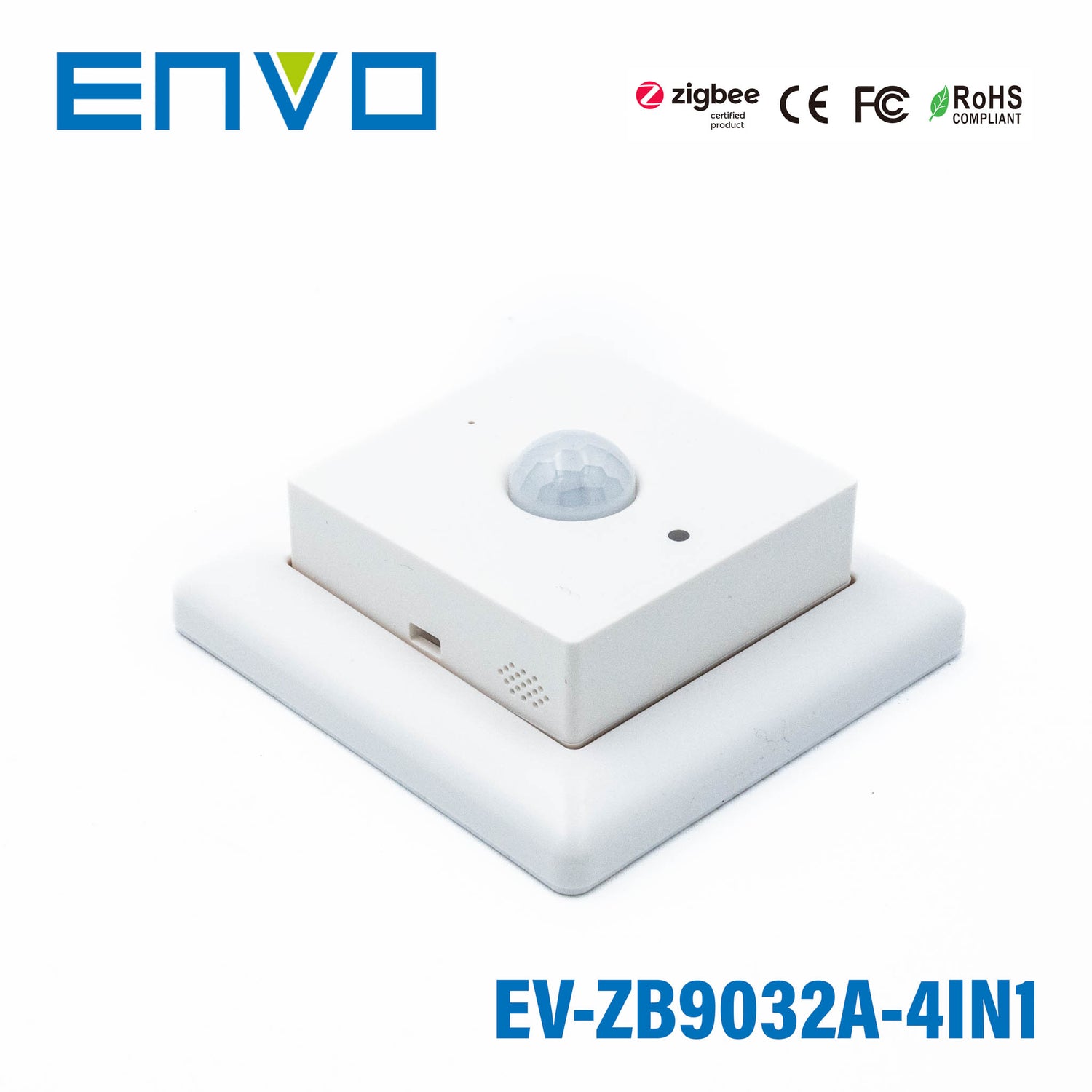

ENVO ZigBee Motion + Light + Temperature + Humidity 4-in-1 Sensor

ZigBee 3.0 protocolPIR sensor3VDC(2*AAA batteries)

SKU EV-ZB9032A-4IN1

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

The Zigbee sensor is a battery powered low power consumption 4 in 1 device that combines PIR motion sensor, temperature sensor, humidity sensor, and illuminance sensor. The PIR motion sensor trigger and sensitivity can be configured. The sensor supports low battery power alarm, if the power is lower than 5%, the motion sensor trigger and report will be forbidden, and the alarm will be reported every one hour until the battery power is higher than 5%. The sensor is suitable for smart home applications which need sensor based automation.

Features

Zigbee 3.0 compliant
PIR motion sensor, long detection range
Temperature sensing, automates your home heating or cooling
Humidity sensing, automates your home humidifying or dehumidifying
Illuminance measuring, daylight harvesting
Autonomous sensor-based control
OTA firmware upgrade
Wall mount installation
Can be use for indoor applications
Cost-effective solution for energy savings
Energy code compliance
Robust mesh network
Compatible with universal Zigbee platforms that support sensor

Specifications

EV-ZB9032A-4IN1Specifications from the official datasheetDownload datasheet PDF

Physical Information

Dimensions: 55.5*55.5*23.7mm
Material / Color: ABS / White

Electrical Information

Operate Voltage: 3VDC (2*AAA Batteries)
Standby Consumption: 10uA

Wireless Communication

Radio Frequency: 2.4 GHz
Wireless Protocol: Zigbee 3.0
Wireless Range: 100 feet (30m) Line of Sight
Radio Certification: CE

Sensing

Motion Sensor Type: PIR sensor
PIR sensor Detection Range: Max. 7 meters
Recommended Installation Height: Wall mount, 2.4 meters
Temperature Range and Precision: -40°C~+125°C, ±0.1°C
Humidity Range and Precision: 0 – 100% RH (non-condensing), 3%
Illuminance Measuring Range: 0~10000 lux

Environment

Operating Temperature Range: 32°F to 104°F / 0°C to 40°C (indoor use only)
Operating Humidity: 0-95% (non condensing)
Waterproof Rating: IP20
Safety Certification: CE

LED Indicator Status

PIR motion sensor triggered: Flashing once rapidly
Powered on: Staying solid on for 1 second
OTA firmware update: Flashing twice rapidly with 1 second interval
Identify: Flashing slowly (0.5S)
Joining a network (Triple press the button): Flashing rapidly continuously
Joined successfully: Staying solid on for 3 seconds
Leaving a network or reset (Long press the button): Flashing slowly (0.5S)
Already in a network (Short press the button): Staying solid on for 3 seconds
Not in any network (Short press the button): Flashing three times slowly (0.5S)

Typical applications

Smart home

Downloads

Datasheet1

EV-ZB9032A-4IN1 datasheetEV_ZB9032A_4IN1.pdf PDF Download

FAQ

What does the ENVO ZigBee Motion + Light + Temperature + Humidity 4-in-1 Sensor measure?

This model combines four sensing functions in one device: PIR motion detection, illuminance measurement, temperature sensing, and humidity sensing. It is designed to support automation decisions based on occupancy and surrounding environmental conditions.

What applications is this 4-in-1 ZigBee sensor suited for?

It is well suited for indoor smart home applications that need occupancy-based and environment-based automation. Typical use cases include daylight harvesting, energy-saving lighting control, and temperature or humidity-based HVAC automation.

Is this sensor compatible with standard ZigBee platforms?

Yes, this sensor is Zigbee 3.0 compliant and is described as compatible with universal Zigbee platforms that support sensors. Compatibility still depends on whether the platform supports this type of motion, light, temperature, and humidity sensor device.

Can this sensor be used outdoors or in harsh environments?

No, this model is specified for indoor applications. Its listed operating temperature range is 0°C to 40°C, so it is intended for normal indoor environmental conditions rather than exposed outdoor use.

How is this model different from a standard motion-only sensor?

Unlike a motion-only sensor, this model adds light, temperature, and humidity sensing in the same unit. That makes it a stronger fit for projects that want broader automation logic and energy-saving control from a single ZigBee sensor.

What are the key operating specs for this sensor?

The sensor uses Zigbee 3.0 at 2.4 GHz and is powered by 3VDC from two AAA batteries. It has a standby consumption of 10uA, a wireless range of up to 100 feet (30 m) line of sight, and dimensions of 55.5 x 55.5 x 23.7 mm.
