Boxco

Boxco P-Series 100x150x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-101507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGP-101507 is a 100×150×70 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-101507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×150×70 mm (3.94×5.91×2.76 in)
Mounting plate dimension M1 × M2
65 × 115 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0813 P (Plastic, P type), 0813 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

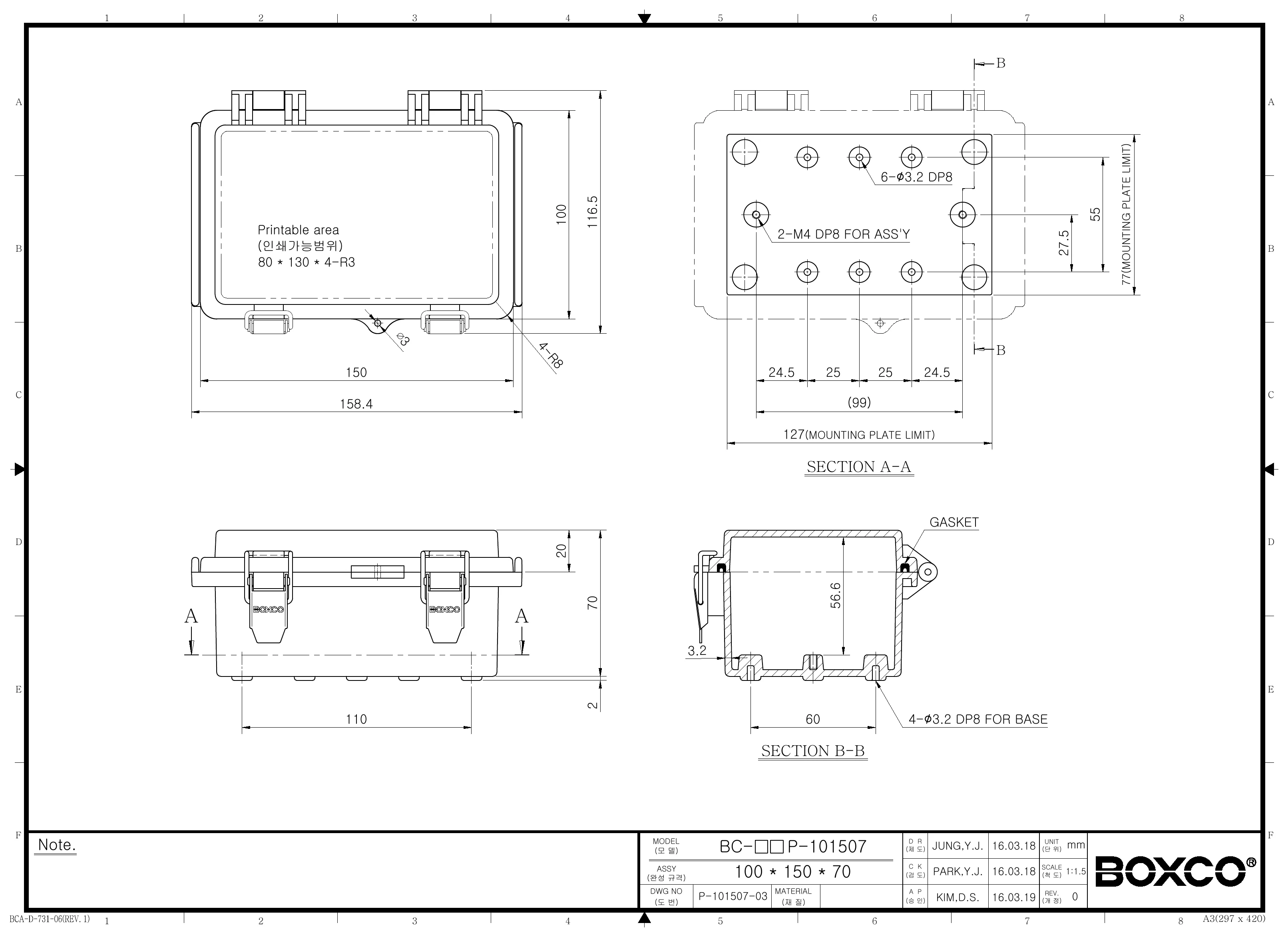

Technical drawings

BC-AGP-101507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure commonly used for?

This enclosure is suited for protecting electronic controls, instrumentation, and other components that need a sealed plastic housing. Its molded hinge and latch design makes it practical for applications where the cover may need to be opened for inspection or maintenance.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the enclosure is rated IP67 for protection against dust and water ingress. The roof protection design at both ends also helps reduce water and dust penetration during cover operation.

What are the main material and durability features of this model?

This model is made from ABS and is described as high impact resistant material designed to resist external impact and reduce breakage during machining. It also carries an IK08 impact rating, which supports its use in tougher industrial and commercial settings.

What size is this enclosure?

This Boxco P-Series enclosure measures 3.94 x 5.91 x 2.76 inches, which corresponds to 100 x 150 x 70 mm. That size makes it a compact choice for applications needing a sealed enclosure without taking up excessive space.

Does this enclosure support internal component mounting?

Yes. The enclosure includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has attachment points for an internal mounting plate. The description notes that the mounting plate can be fixed tightly to support heavier equipment inside the box.

How does the molded hinge and latch design compare with a basic screw-cover enclosure?

Compared with a basic screw-cover style, this model is designed for quicker repeated access because it uses an integrated plastic hinge with a stainless steel bearing and a latch with a stainless steel main part. That can make it more convenient in applications where the enclosure needs to be opened periodically while still maintaining a sealed housing design.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. This range supports use in both cold and warm environments, provided the rest of the application is also rated for those conditions.
