Boxco P-Series 530x730x185mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU BC-ATP-507018
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATP-507018 is a 530×730×185 mm ABS enclosure with a transparent cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-ATP-507018Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
530×730×185 mm (20.87×28.74×7.28 in)
Mounting plate dimension M1 × M2
460 × 660 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
5070 P (Plastic, P type), 5070 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

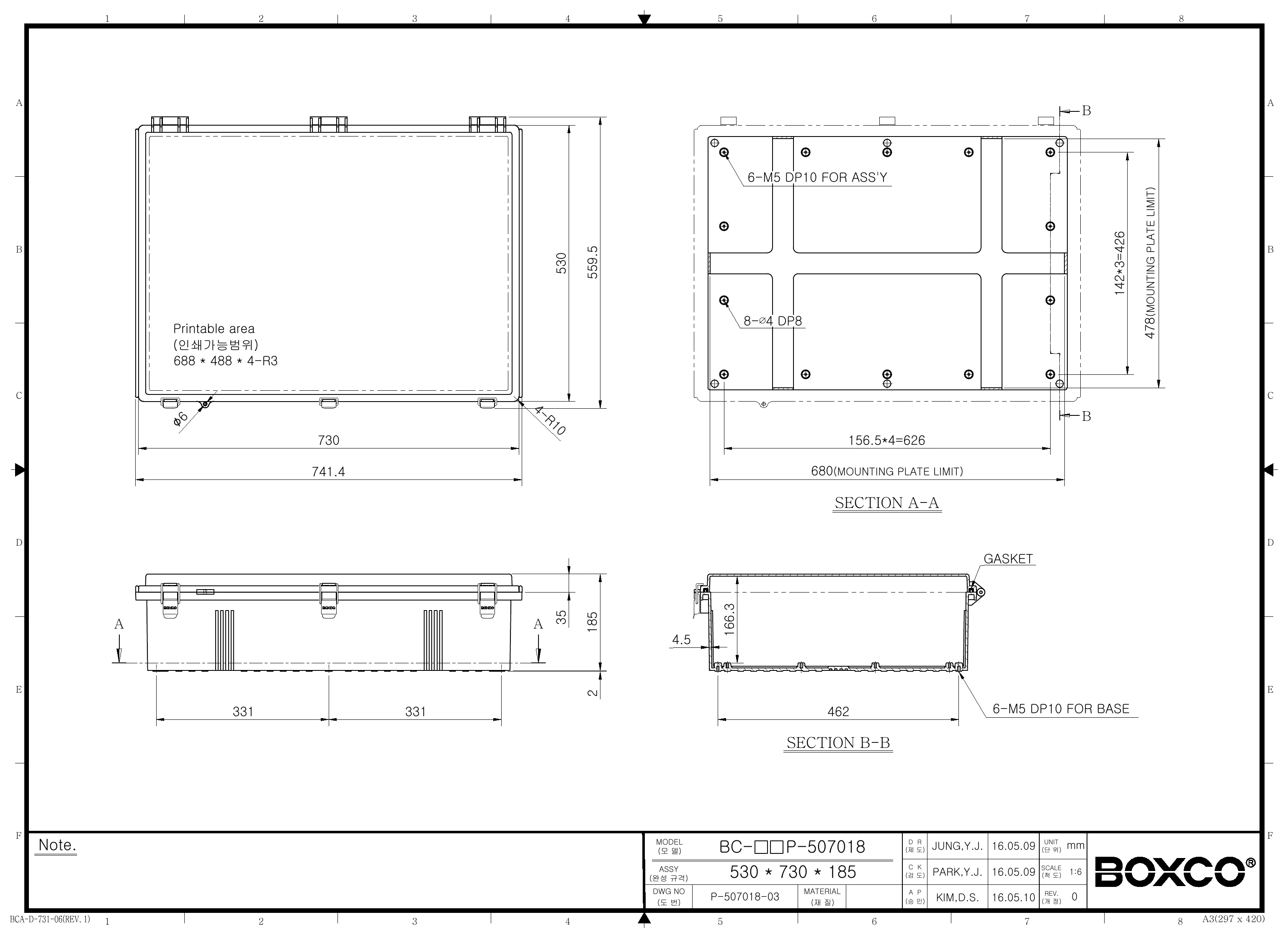

Technical drawings

BC-ATP-507018 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-ATP-507018 enclosure best suited for?

This model is suited to protecting larger electronic controls and instrumentation that need a sealed non-metallic enclosure. Its large 530 x 730 x 185 mm size, transparent cover, IP67 sealing, and IK08 impact rating make it a practical choice for industrial, utility, and outdoor equipment protection where visibility and environmental resistance matter.

Is the BC-ATP-507018 suitable for outdoor use?

Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer for outdoor usage, helping limit visible color change over time. The design also includes roof protection details and a CNC-injected gasket to support waterproof and dust-proof performance.

What are the main environmental and durability ratings for this enclosure?

This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. It is specified for use from -40 degrees C to 70 degrees C, which supports a wide range of indoor and outdoor operating conditions.

What are the material and cover characteristics of the BC-ATP-507018?

The enclosure body is made from ABS and uses a transparent cover for visual inspection of internal components without opening the box. Boxco also notes anti-static material usage and high impact resistance, which helps protect sensitive electronics and supports more demanding industrial environments.

How does this model compare with a standard opaque plastic enclosure?

The transparent cover is the main difference for buyers who need to visually monitor indicators, displays, or component status without opening the enclosure. This model also combines a molded hinge, latch-type closure, stainless steel latch hardware, and integrated mounting features, which gives it a more application-ready design than a basic plain-cover box.

What internal equipment support features are built into this enclosure?

Boxco includes pre-molded mounting screw nuts so DIN rail or other equipment can be fixed more easily inside the enclosure. It also has dedicated mounting plate attachment points with brass-inserted injection molding to support tighter fixing of heavier internal equipment.

What are the physical size, weight, and warranty for the BC-ATP-507018?

This enclosure measures 20.87 x 28.74 x 7.28 inches, which corresponds to 530 x 730 x 185 mm. The listed weight is 18.9 kg, and the warranty period is 1 year.
