Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

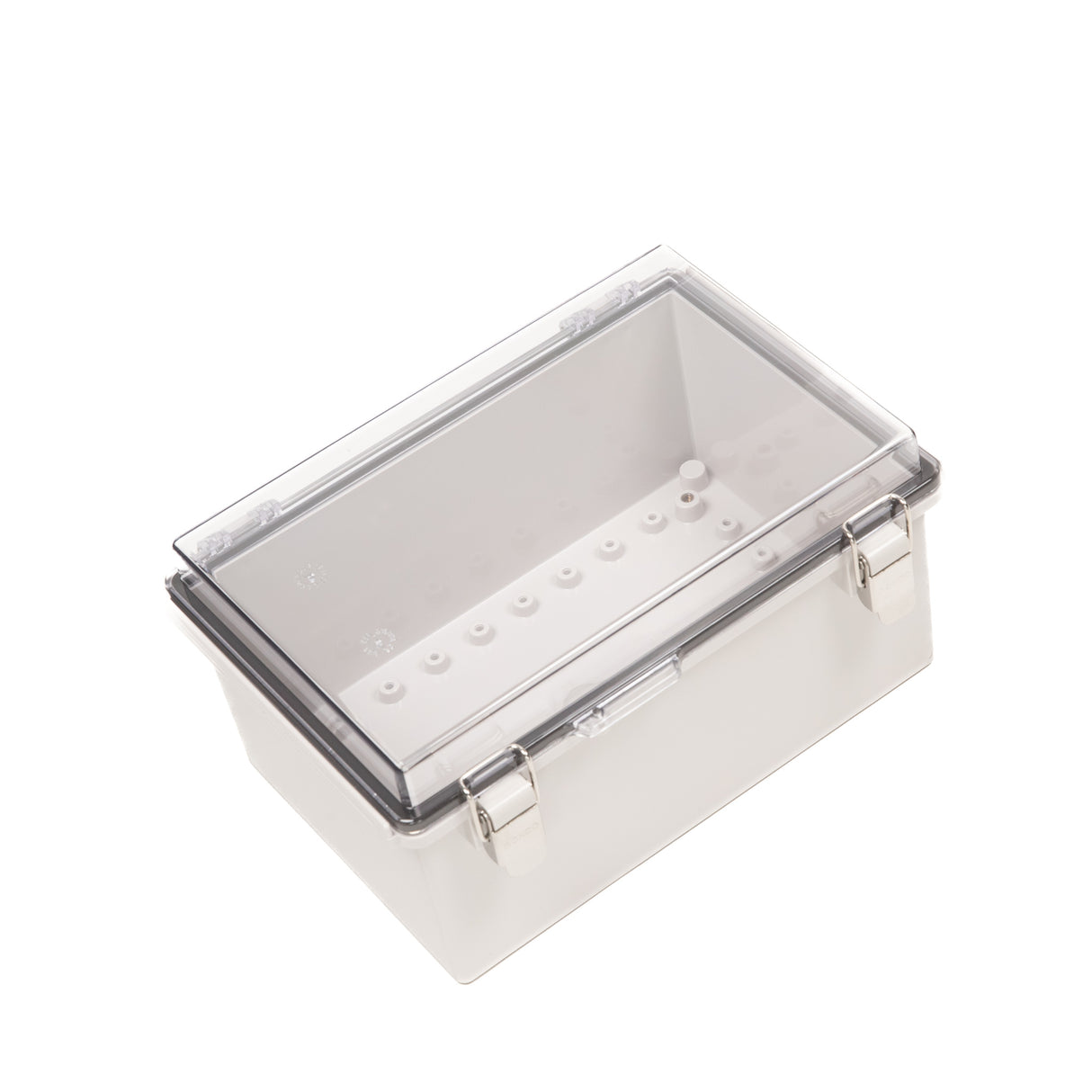

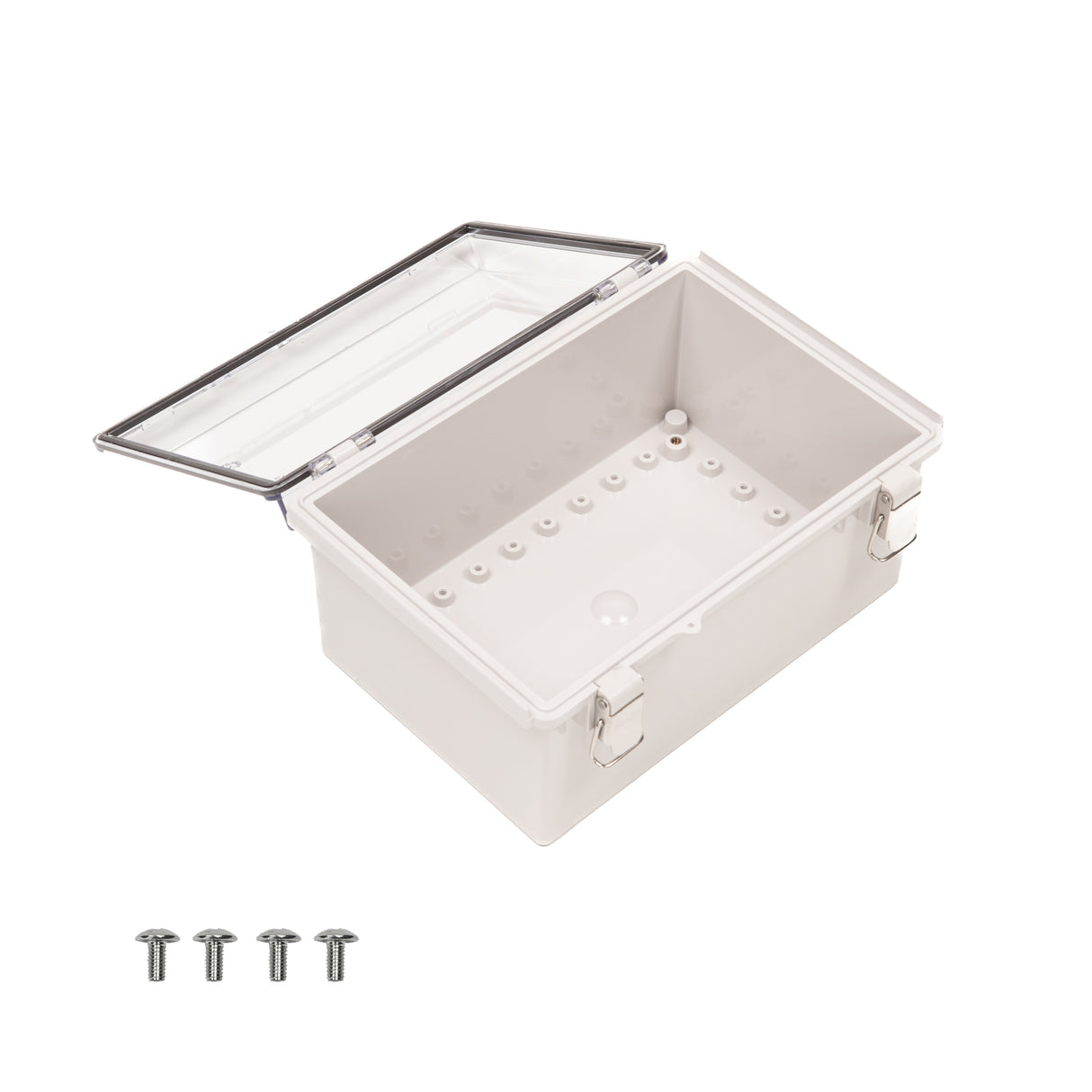

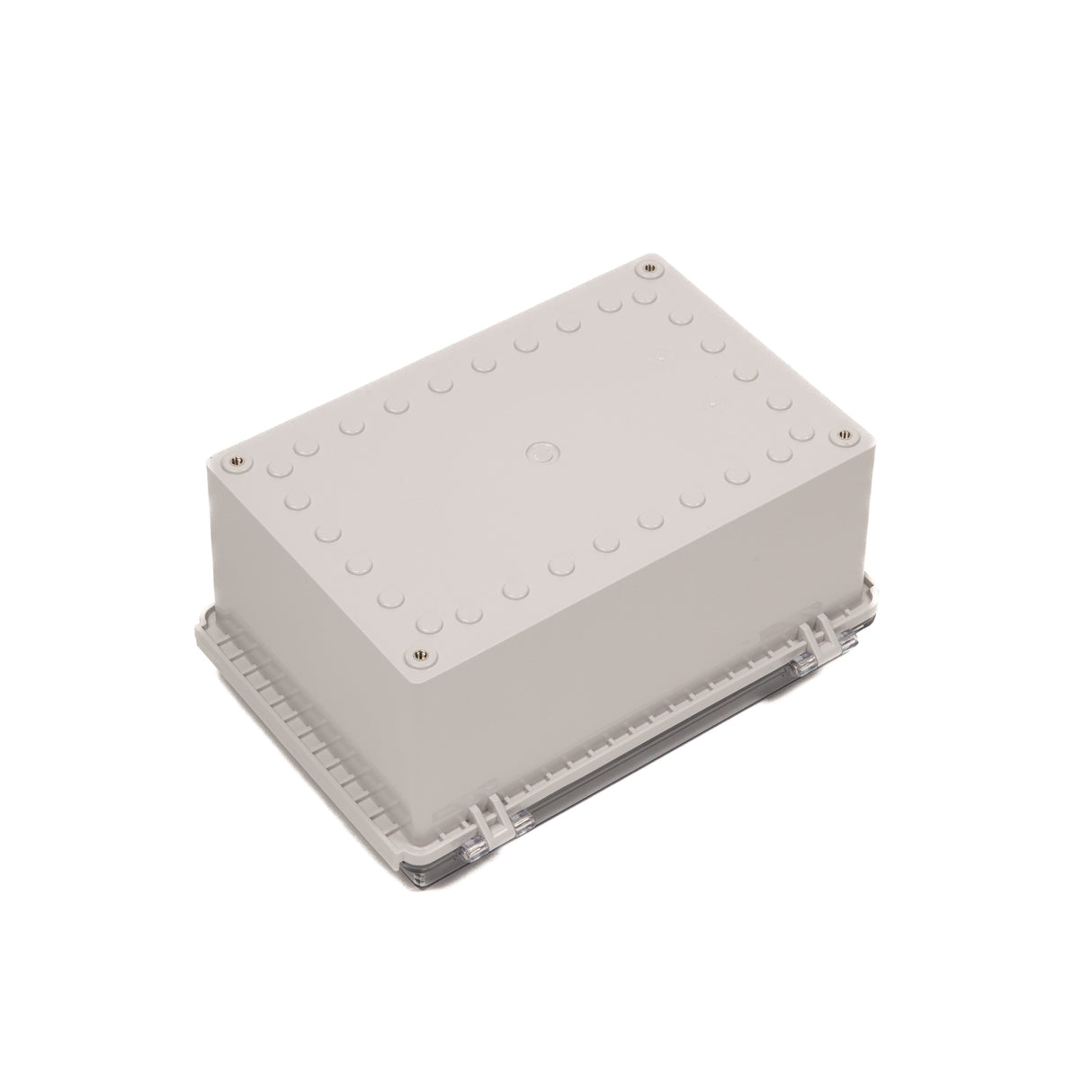

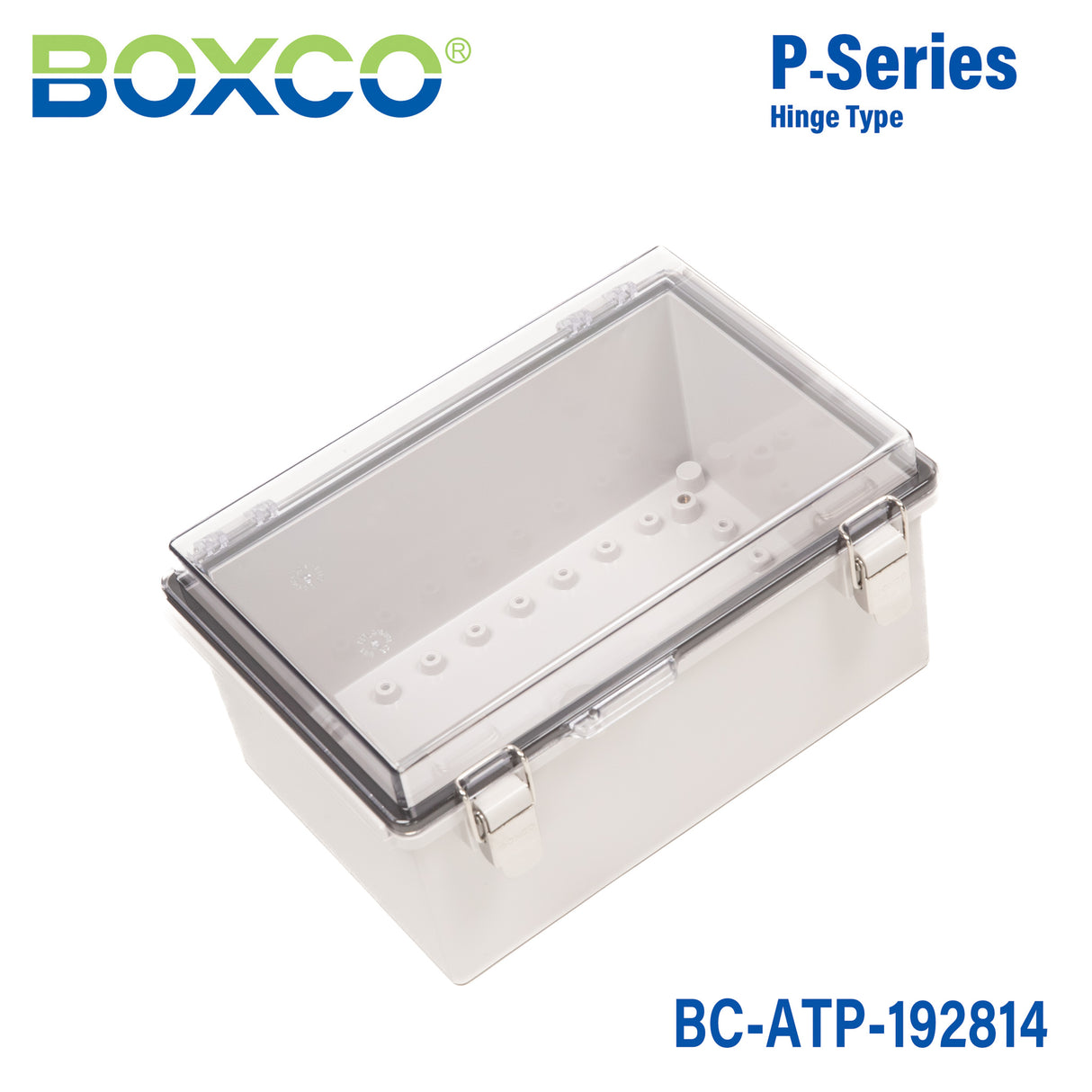

Boxco P-Series 190x280x140mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type

SKU:
BC-ATP-192814
Please for Pricing
|

Description

For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

  • Latch - Main part of the draw latch is made of stainless steel so it is very strong.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
  • Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.

Specifications
  • Brand
    Boxco
  • Series
    Boxco P Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    19 cm
  • Width
    28 cm
  • Height
    14 cm
  • Weight
    0.9 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is this enclosure suitable for outdoor use?

Yes. This Boxco P-Series enclosure includes an ultraviolet stabilizer for outdoor use and is rated IP67 for protection against dust and water ingress. The molded design also includes roof protection features intended to reduce water and dust penetration when the cover is opened and closed.

What kind of equipment is this enclosure typically used for?

This model is intended for protecting electrical or electronic equipment that needs a sealed plastic housing with impact resistance. The anti-static material and high-impact ABS construction make it relevant for sensitive electronic instruments and other industrial or commercial control components housed inside an enclosure.

What are the key size and material specifications for this model?

This enclosure measures 7.48 x 11.02 x 5.51 inches, which is 190 x 280 x 140 mm. It is made from ABS plastic, uses a transparent cover, and has a molded hinge and latch-style closure.

How durable is the enclosure in demanding environments?

This model is rated IK08 for impact resistance and is made from high-impact resistant material designed to reduce breakage during processing. Its latch uses stainless steel in the main part, and the integrated hinge uses a stainless steel bearing to support longer service life.

What internal mounting options does this enclosure support?

The enclosure includes pre-molded mounting screw nuts so DIN rail or other equipment can be fixed to the internal structure. It also has mounting plate attachment points with brass inserted injection molding to support heavier internal equipment more securely.

What temperature range can this enclosure handle?

This Boxco P-Series enclosure is specified for use from -40 °C to 70 °C. That operating range makes it suitable for applications exposed to both low and moderately high ambient temperatures, provided the installed equipment stays within its own limits.

Why choose this hinged transparent-cover model instead of a basic opaque enclosure?

This version combines a transparent cover for visual inspection with a molded hinge and latch design for repeated access. It is a better fit when users need sealed protection, clear visibility into the enclosure, and more convenient cover access than a simpler non-hinged box.
