Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

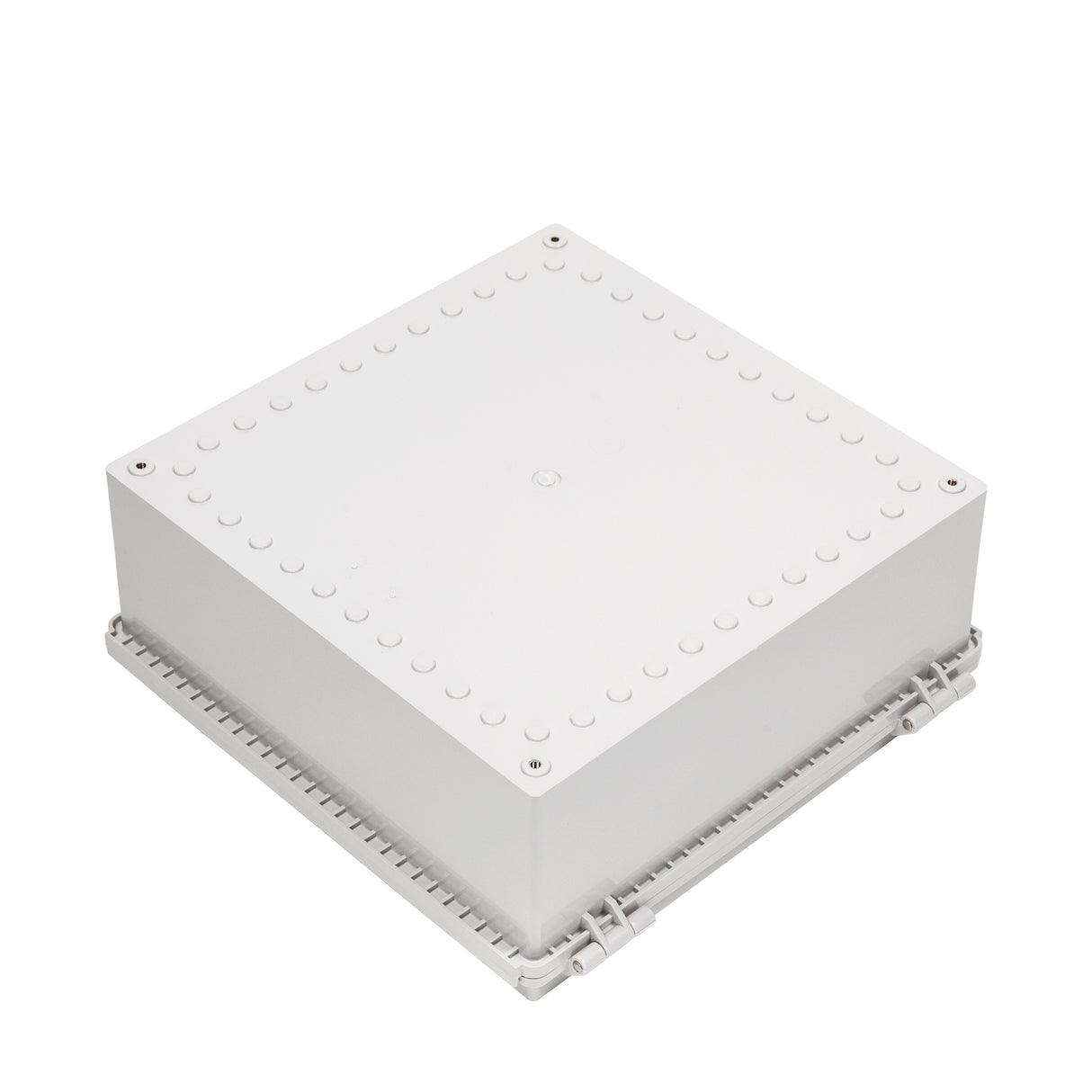

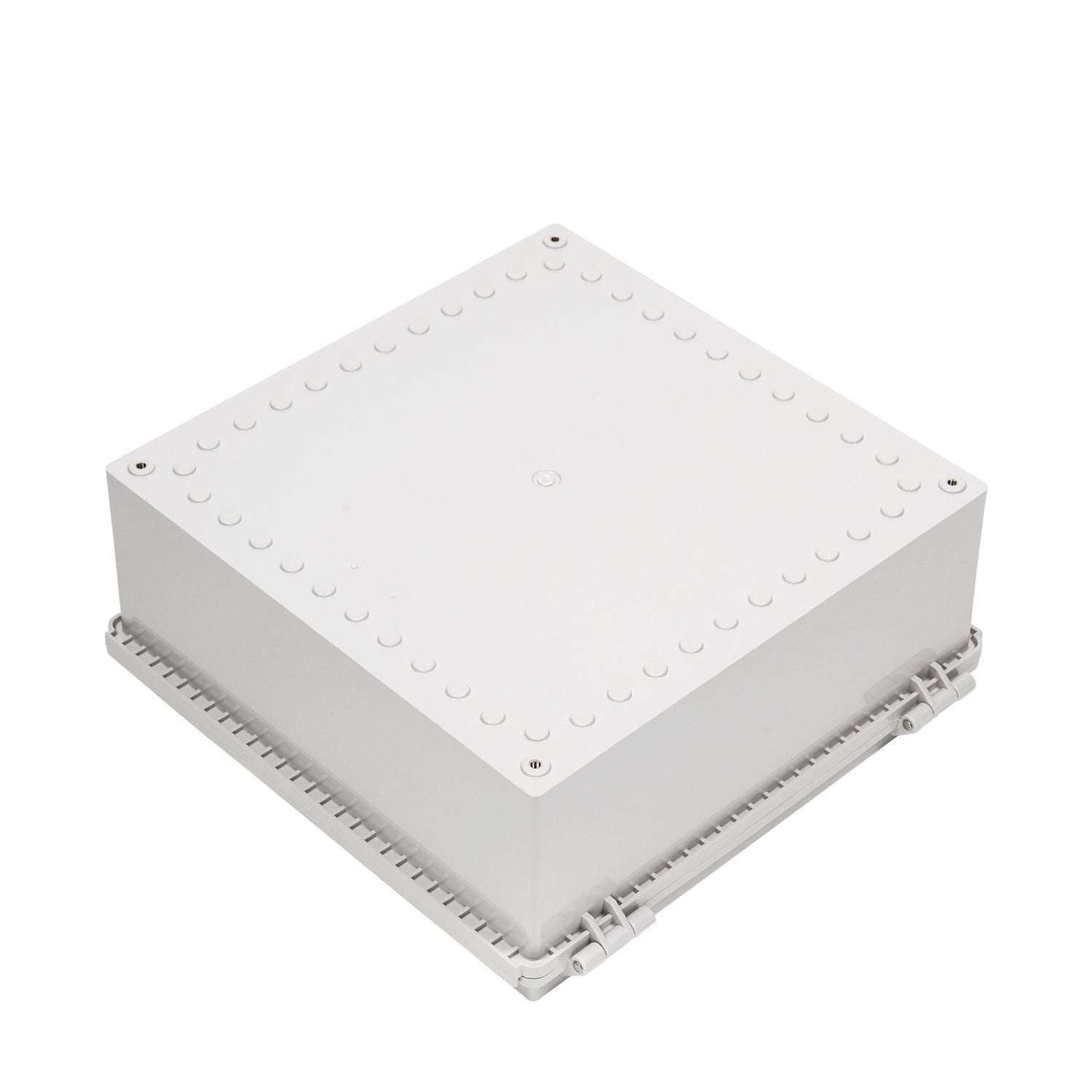

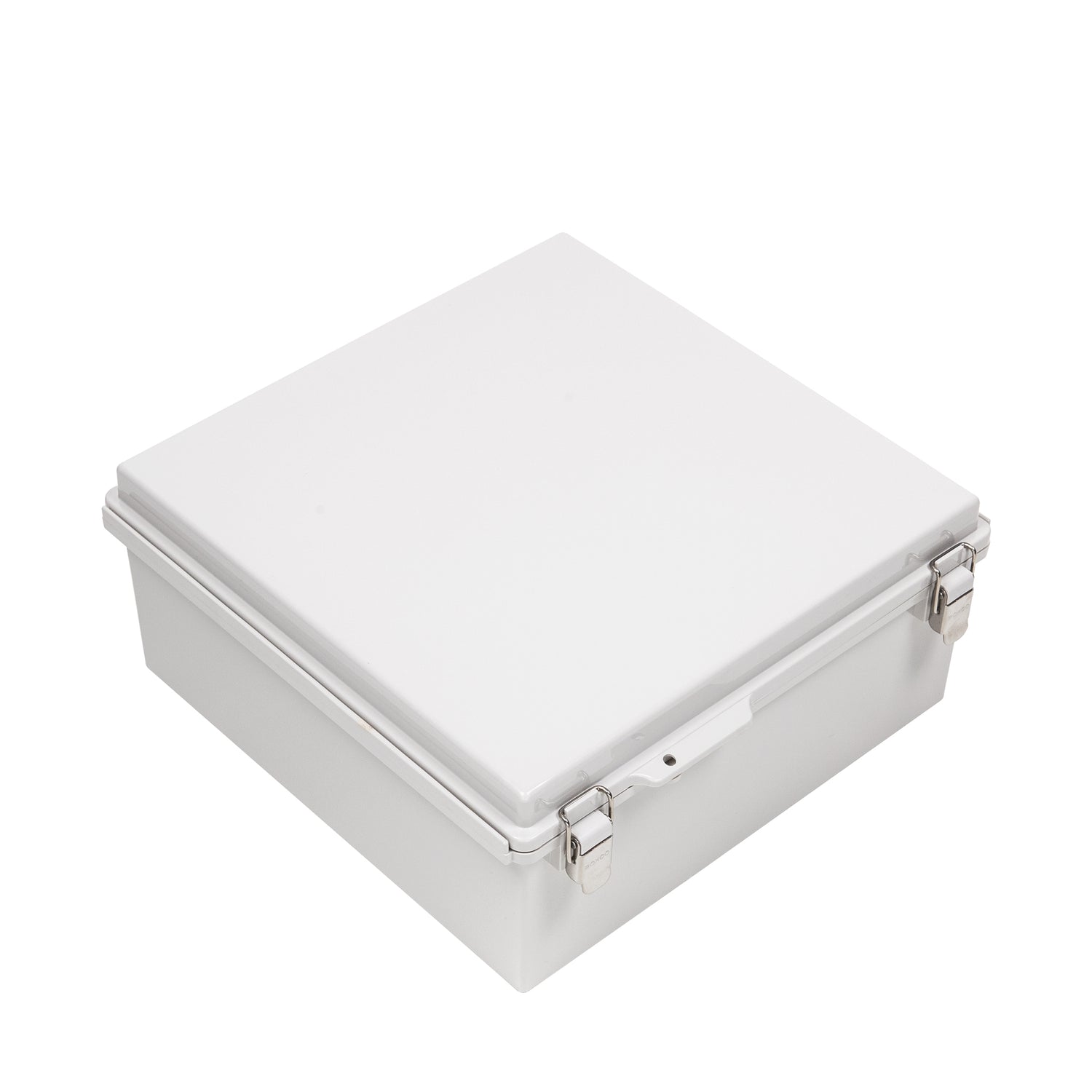

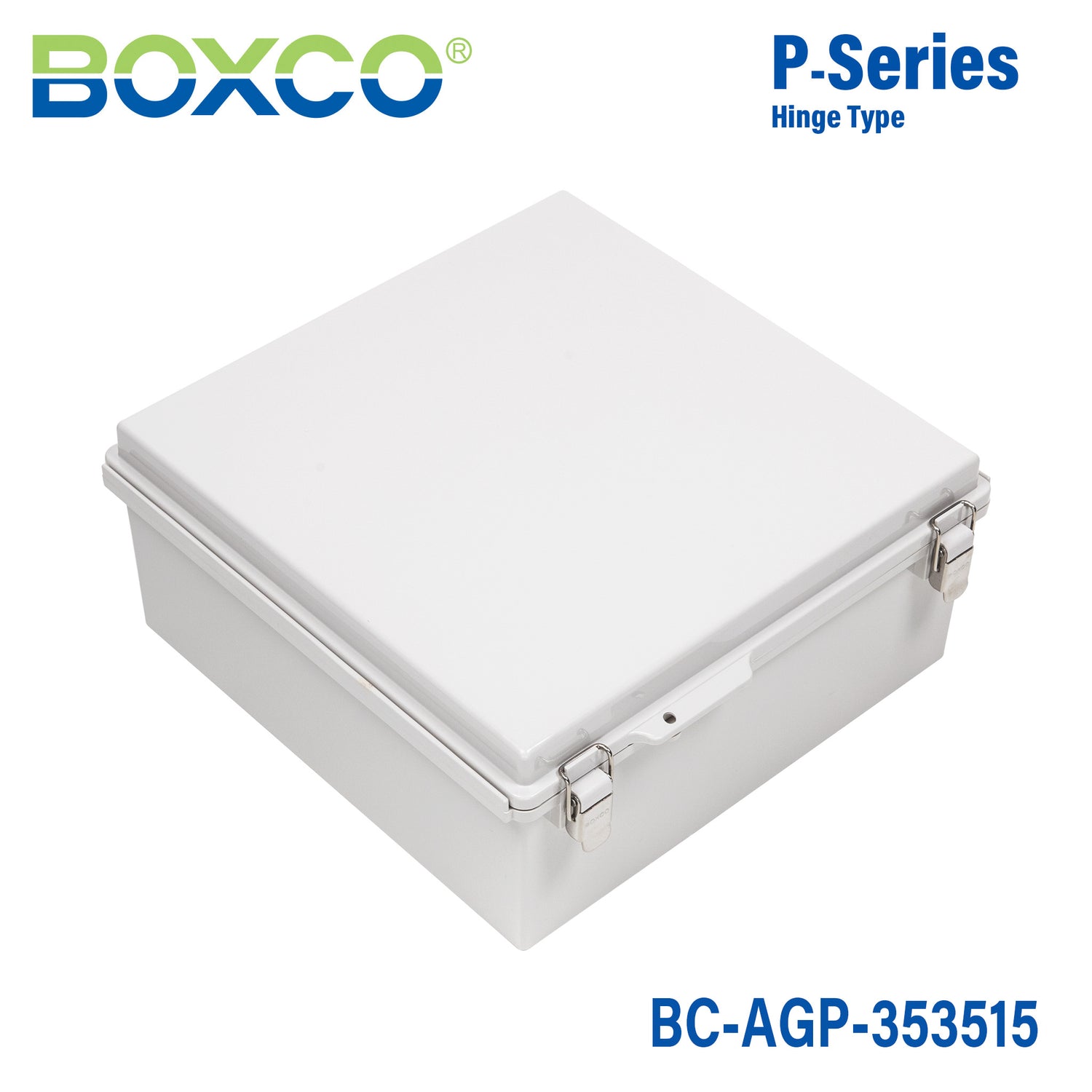

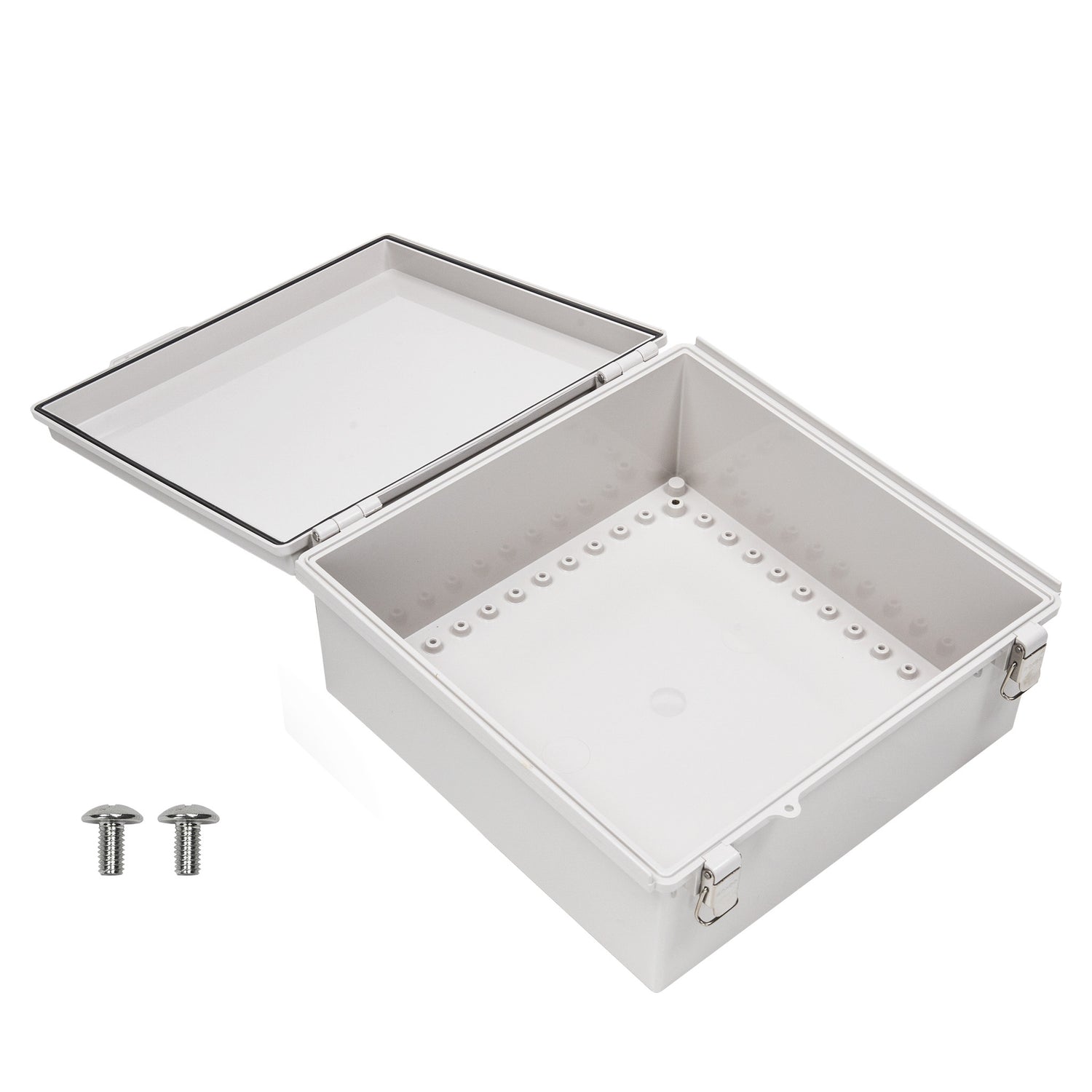

Boxco P-Series 350x350x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-353515
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-353515 is a 350×350×150 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-353515Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
350×350×150 mm (13.78×13.78×5.91 in)
Mounting plate dimension M1 × M2
314 × 314 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3535 P (Plastic, P type), 3535 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

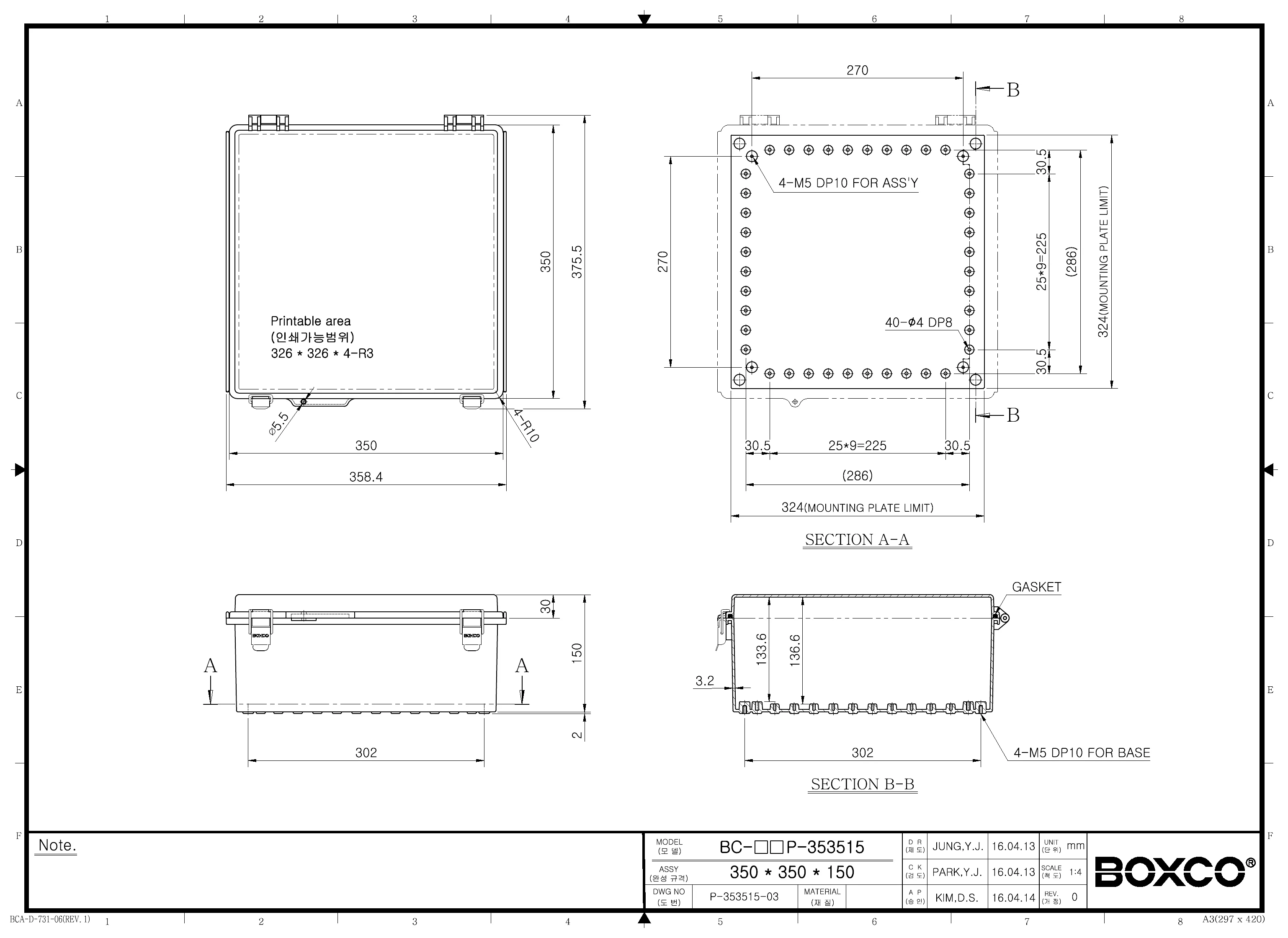

Technical drawings

BC-AGP-353515 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco P-Series enclosure best suited for?

This model is intended for protecting electrical or electronic components in industrial and commercial environments where a durable non-metallic enclosure is needed. Its UV-stabilized ABS construction, molded hinge, and latch design make it a practical choice for outdoor and indoor equipment protection.

What are the key specifications of this enclosure?

This enclosure measures 13.78 x 13.78 x 5.91 inches, which corresponds to 350 x 350 x 150 mm. It is made from ABS, uses a grey cover, weighs 1.783 kg, and is rated IP67 and IK08.

Is this enclosure suitable for outdoor environments?

Yes, this P-Series enclosure is designed with outdoor use in mind. The ABS material includes an ultraviolet stabilizer to reduce visible color change over time, and the design includes roof protection features to help resist water and dust intrusion.

How well does this enclosure protect against dust, water, and impact?

This model carries an IP67 rating for dust and water resistance and an IK08 rating for impact resistance. It also uses a precision-injected gasket and high-impact-resistant material to support reliable environmental protection.

What temperature range can this enclosure handle?

The specified operating temperature range for this enclosure is from -40 degrees C to 70 degrees C. That range supports use in both cold and warm industrial conditions, depending on the requirements of the installed equipment.

What makes this model different from a basic plastic enclosure?

This model adds several design features beyond a standard plain box, including a molded hinge, latch-style closure, pre-molded mounting screw nuts, and mounting plate attachment points. It also uses UV-stabilized, anti-static, high-impact-resistant ABS for broader environmental and equipment protection.

Is this enclosure compatible with internal mounting hardware?

Yes, the enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also has internal mounting plate attachment points. These built-in features make it easier to support heavier internal components within the enclosure.
