Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

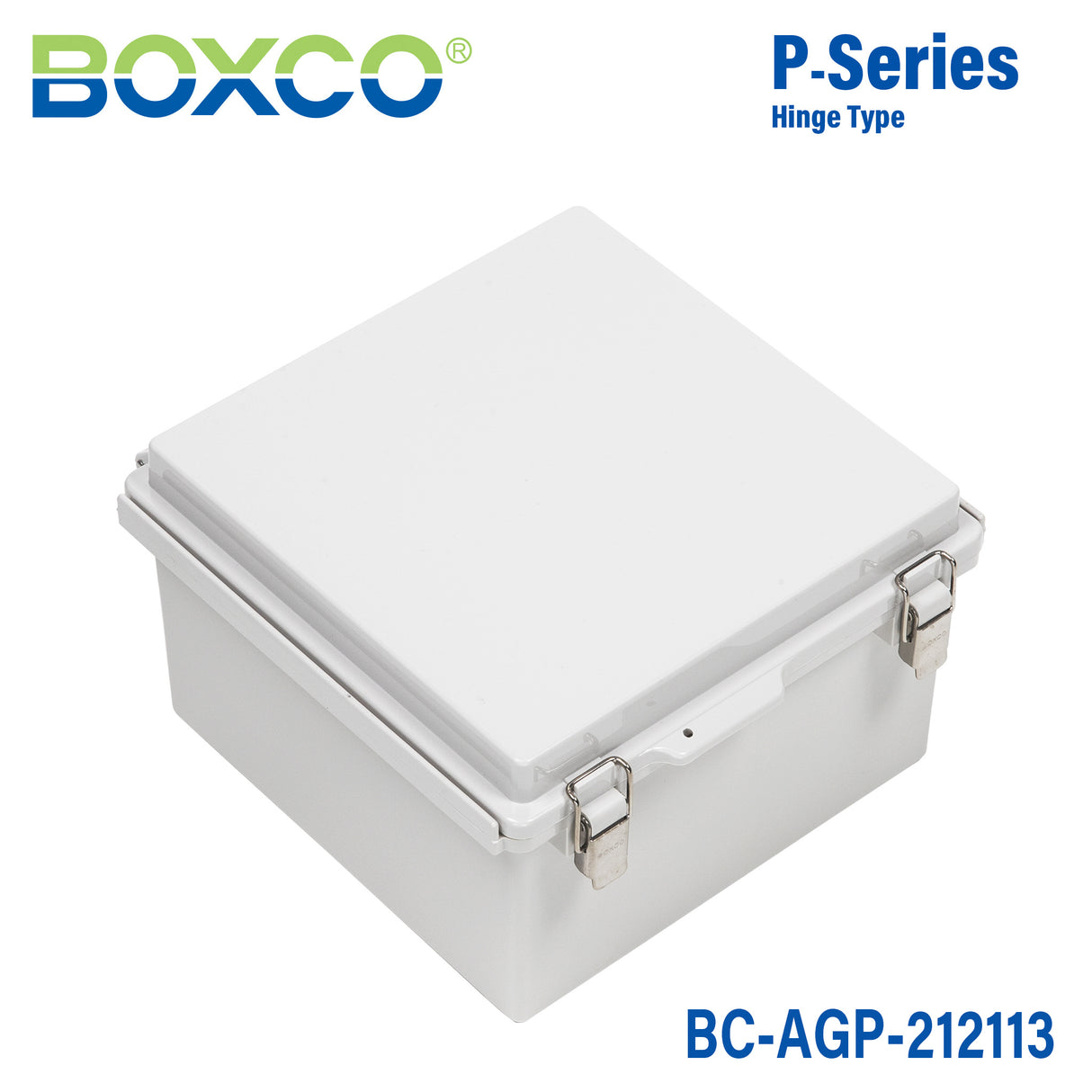

Boxco P-Series 210x210x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-212113
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-212113 is a 210×210×130 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-212113Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
210×210×130 mm (8.27×8.27×5.12 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

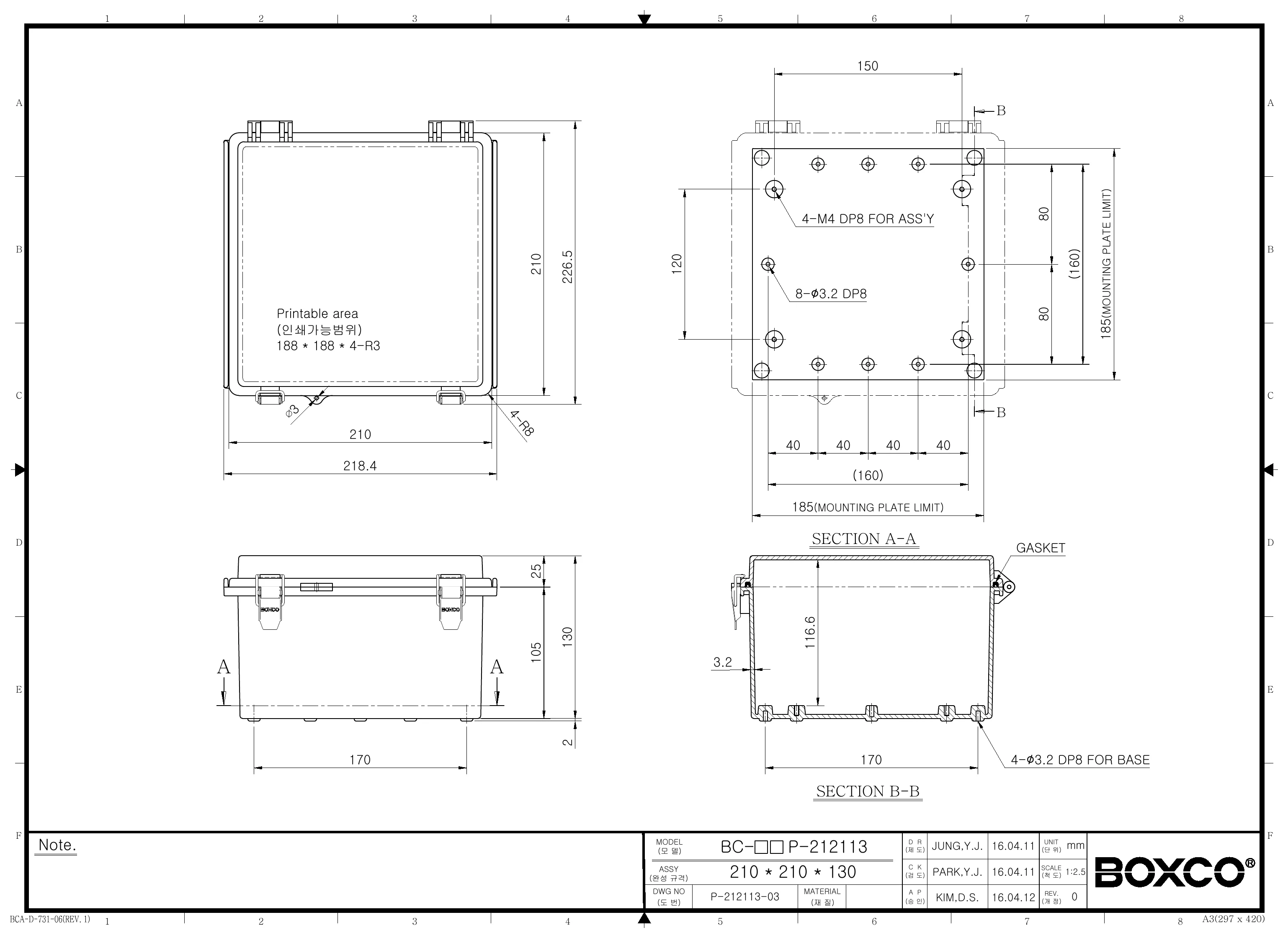

Technical drawings

BC-AGP-212113 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series 210 x 210 x 130mm plastic enclosure suited for?

This enclosure is suited for protecting electronic and control components in industrial and outdoor environments where dust and water resistance matter. Its ABS construction, molded hinge and latch design, and internal mounting features make it a practical choice for equipment housings, control boxes, and instrumentation enclosures.

What protection ratings does this enclosure provide?

This model is rated IP67 for dust-tight sealing and protection against temporary water immersion under rated conditions. It also carries an IK08 impact rating, indicating resistance to external mechanical impact for demanding applications.

Is this enclosure appropriate for outdoor use?

Yes, the product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. It also includes roof protection features and a precision-injected gasket to support waterproof and dust-proof performance when used outside.

What material is this enclosure made from, and why does that matter?

This model is made from ABS and is described as using high impact resistant material. The enclosure also uses anti-static material to help protect sensitive electronic instruments from static electricity, which can be important in control and instrumentation applications.

What are the key size and temperature specifications for this model?

This Boxco P-Series enclosure measures 8.27 x 8.27 x 5.12 inches, which corresponds to 210 x 210 x 130 mm. It is specified for operating environments from -40 °C to 70 °C and has a listed weight of 0.702 kg.

Does this enclosure support internal mounting hardware or equipment plates?

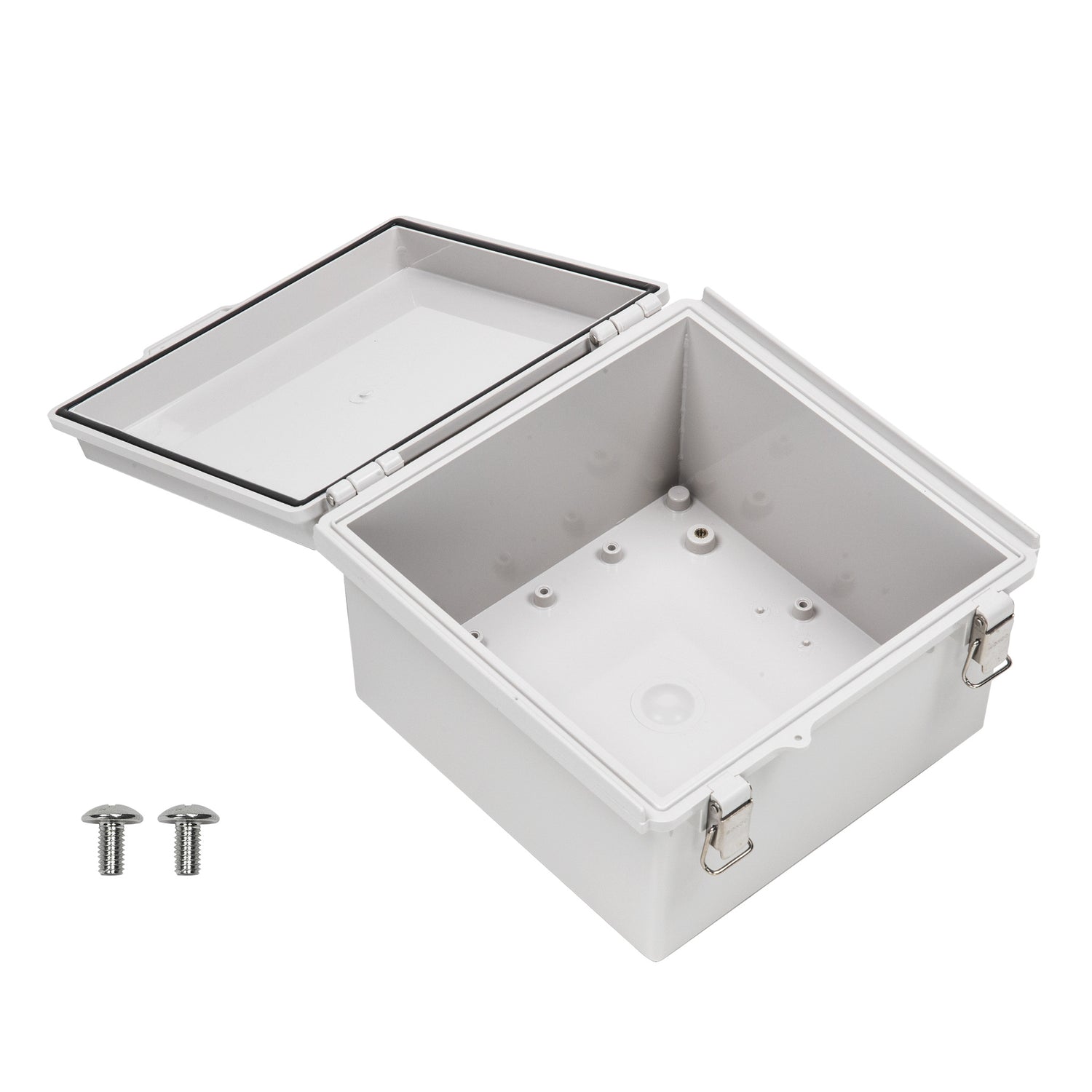

Yes, the enclosure includes pre-molded mounting screw nuts that can be used to secure internal components such as DIN rail or other equipment. It also has mounting plate attachment points with brass inserted injection molding to help support heavier internal equipment.
