Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

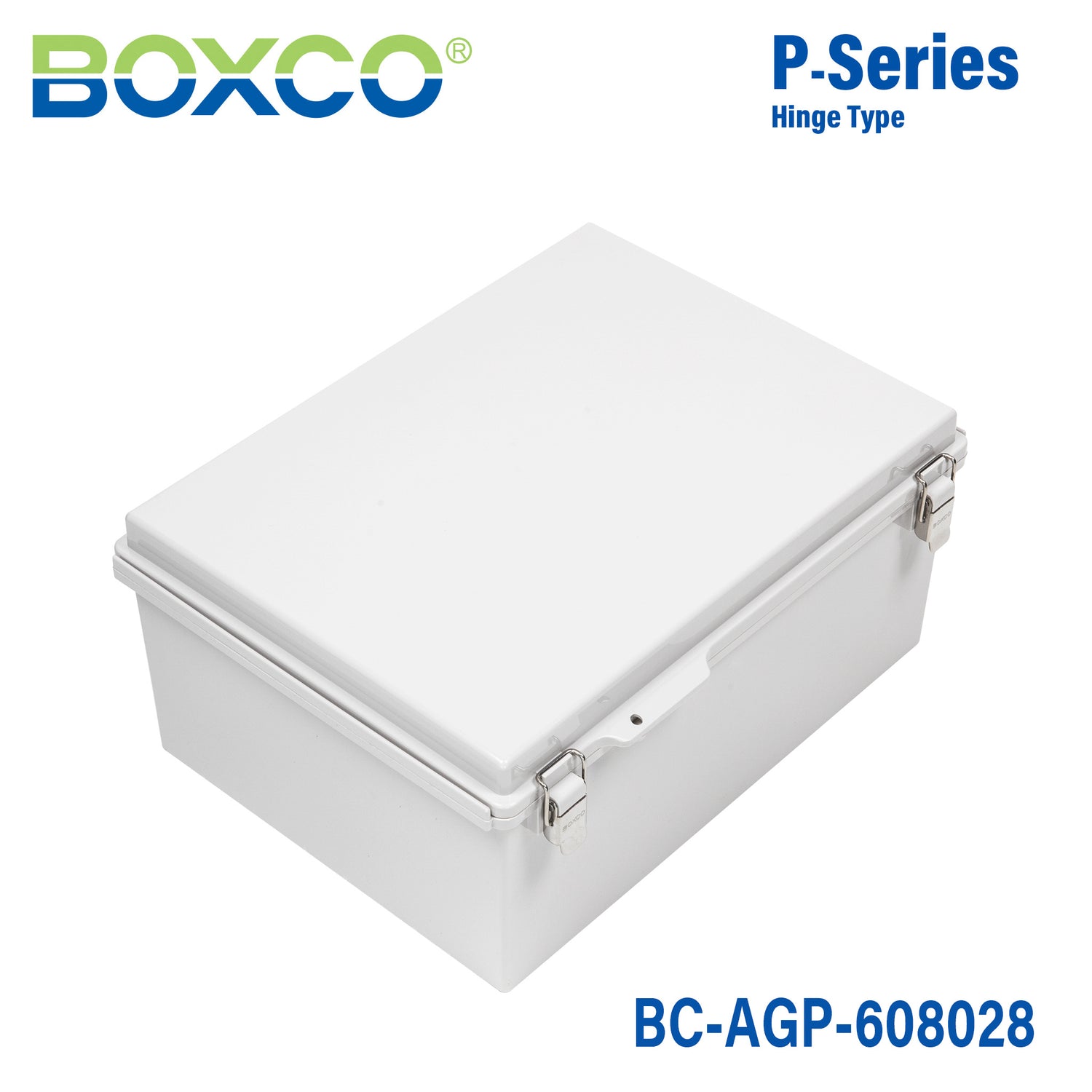

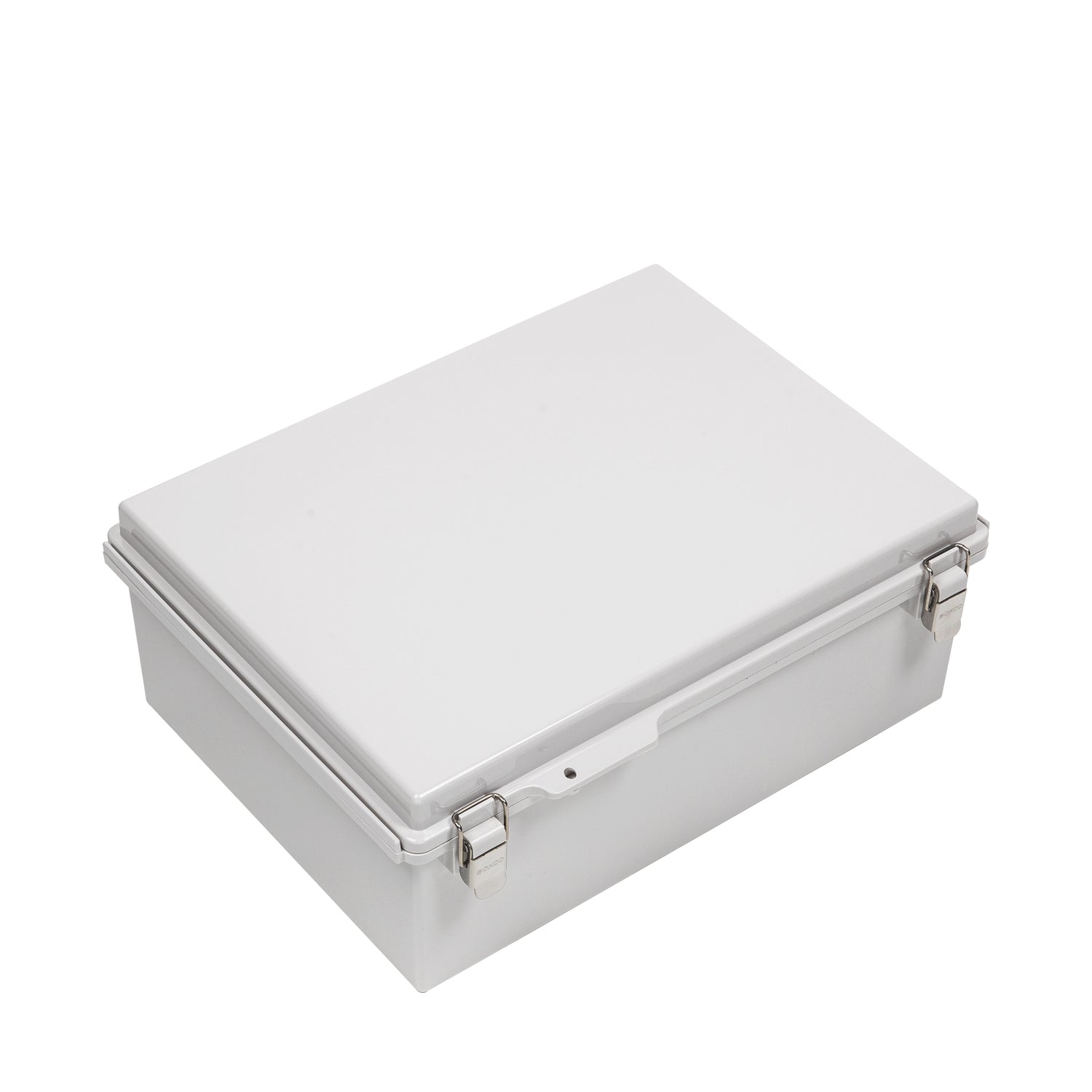

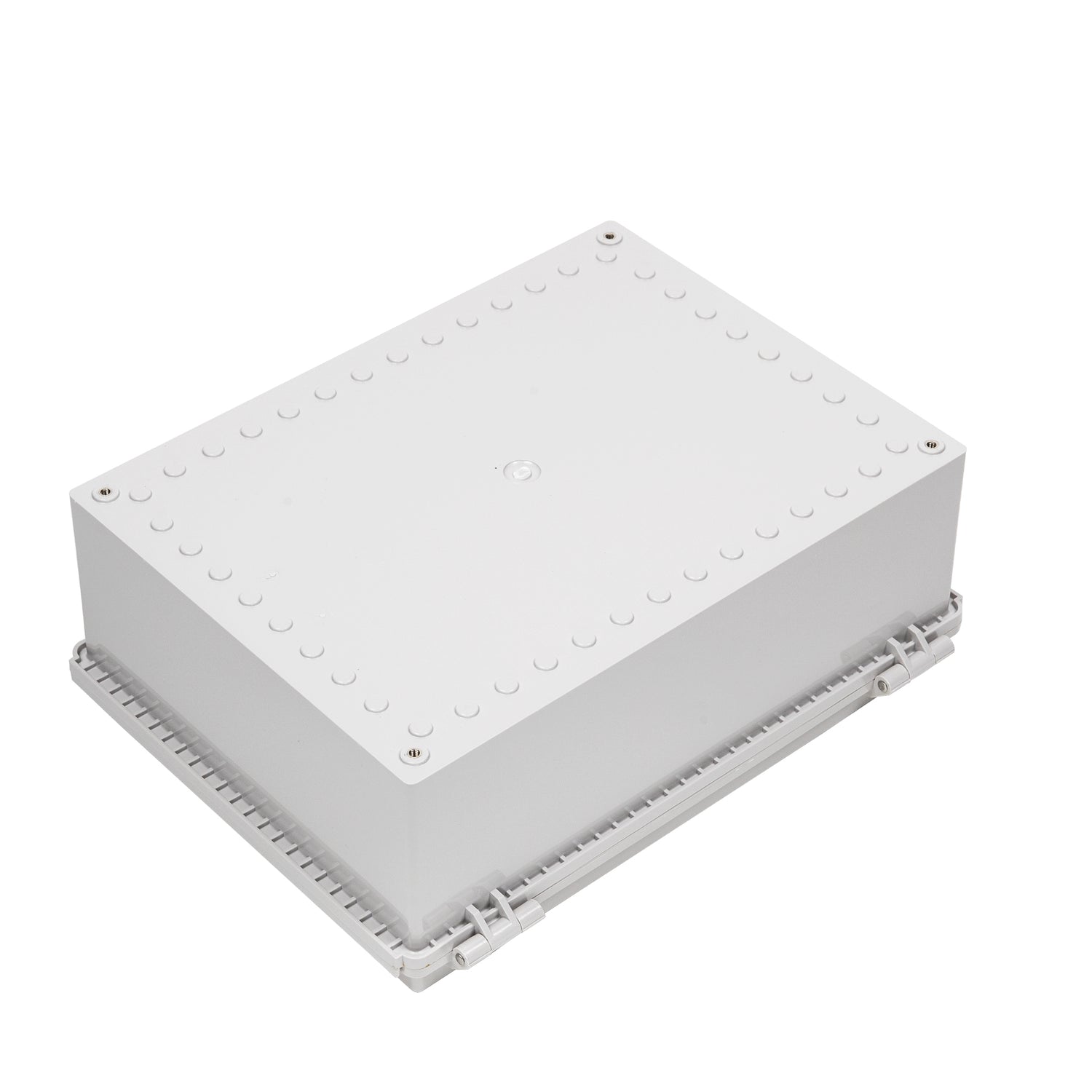

Boxco P-Series 630x830x285mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type

SKU BC-AGP-608028
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGP-608028 is a 630×830×285 mm ABS enclosure with a grey cover from the Boxco P Series.

Features

  • BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
  • Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
  • Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
  • Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Specifications

BC-AGP-608028Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
630×830×285 mm (24.80×32.68×11.22 in)
Mounting plate dimension M1 × M2
560 × 752 mm

Material

Material
ABS
Cover
Grey
Mounting plates
6080 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

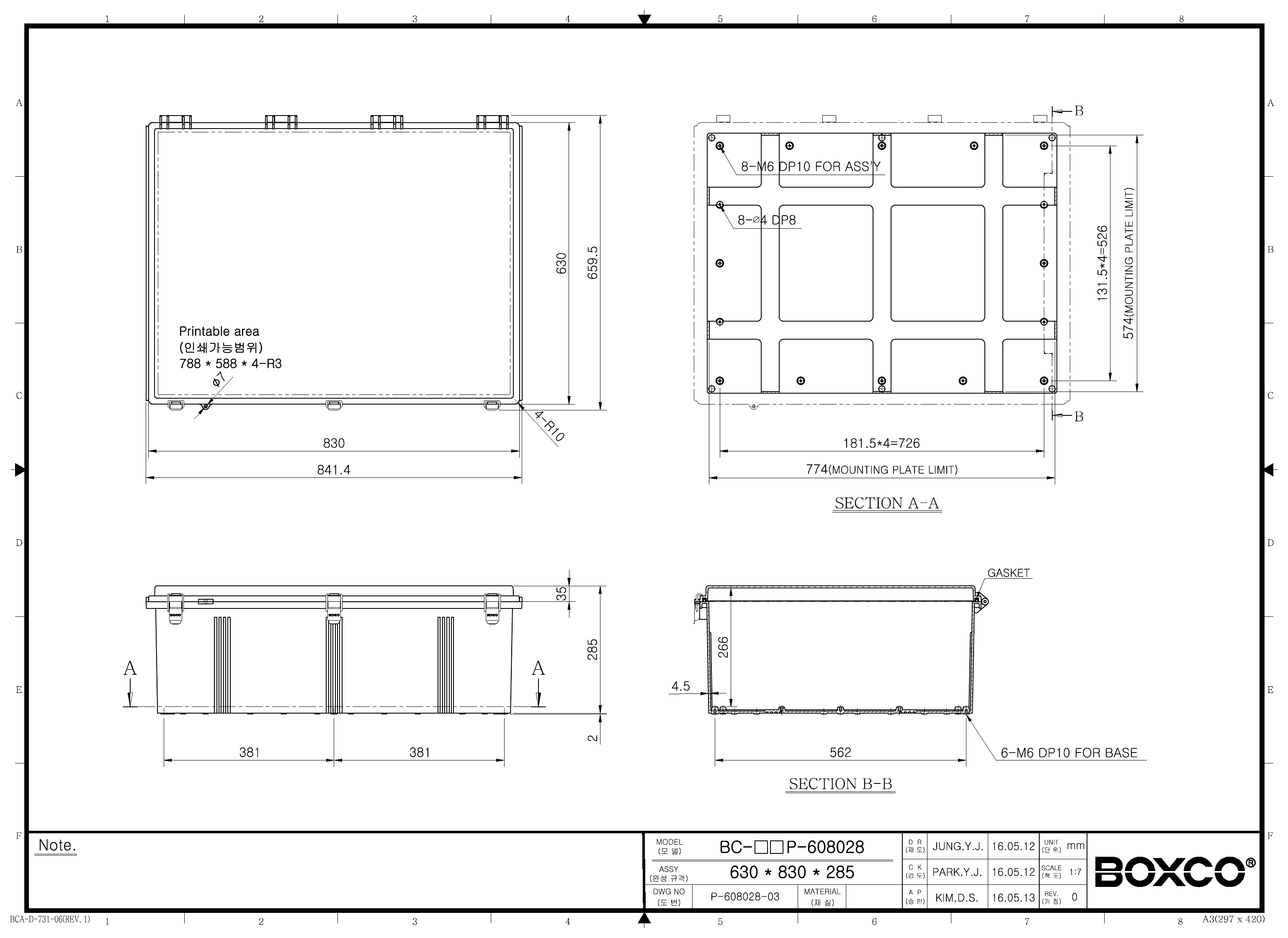

Technical drawings

BC-AGP-608028 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco P-Series BC-AGP-608028 plastic enclosure best suited for?

This model is suited for protecting industrial controls, monitoring devices, and other sensitive equipment that need a large non-metallic enclosure. Its ABS construction, molded hinge-and-latch design, and internal mounting features make it a practical choice for commercial and industrial environments where durability and weather resistance matter.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, and the enclosure is designed to show only limited color change over long periods of use. Its IP67 rating and roof-protection design also support use in exposed environments where water and dust protection are important.

What do the IP67 and IK08 ratings mean for this enclosure?

IP67 indicates this enclosure is built for strong protection against dust ingress and temporary water exposure. IK08 indicates resistance to mechanical impact, which aligns with the product's high-impact ABS material and outdoor-oriented design.

What are the dimensions of the BC-AGP-608028 enclosure?

This enclosure measures 24.80 x 32.68 x 11.22 inches, which is also listed as 630 x 830 x 285 mm. It is one of the larger P-Series sizes, giving more internal space for equipment that requires a roomy enclosure footprint.

What material is this Boxco enclosure made from, and why does that matter?

This model is made from ABS and includes anti-static material for protection of sensitive electronic instruments from static electricity. The description also states that the material is highly impact resistant, helping the enclosure stand up to external impact and reducing the risk of breakage during hole and press processing.

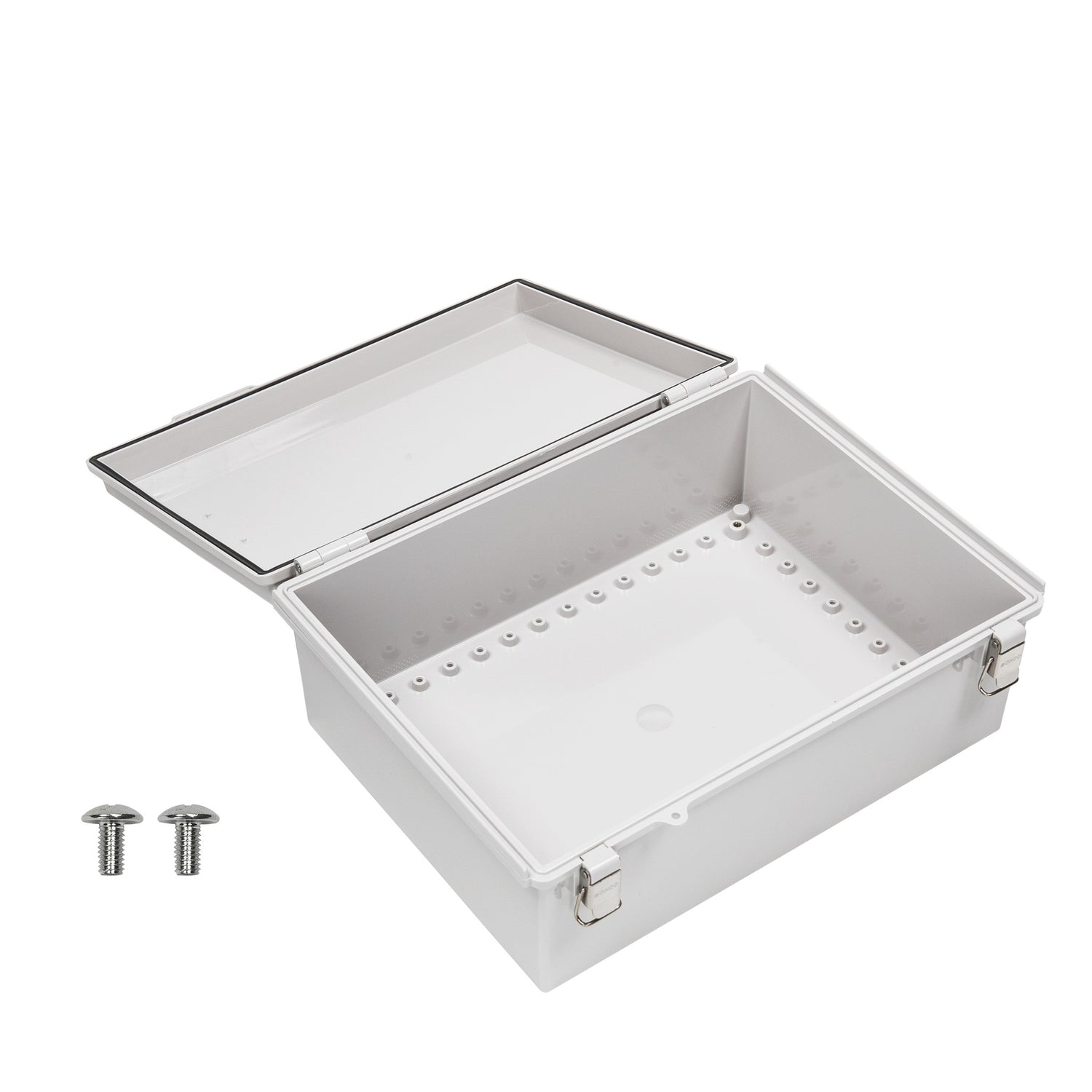

What internal mounting features are included in this enclosure?

The enclosure includes pre-molded mounting screw nuts that can be used to secure DIN rail or other equipment inside the box. It also has mounting plate attachment points with brass-inserted injection molding so an internal mounting plate can be fixed tightly for heavier installed equipment.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40°C to 70°C. That makes it suitable for environments with both low-temperature exposure and elevated ambient heat, as long as the application remains within that stated range.
